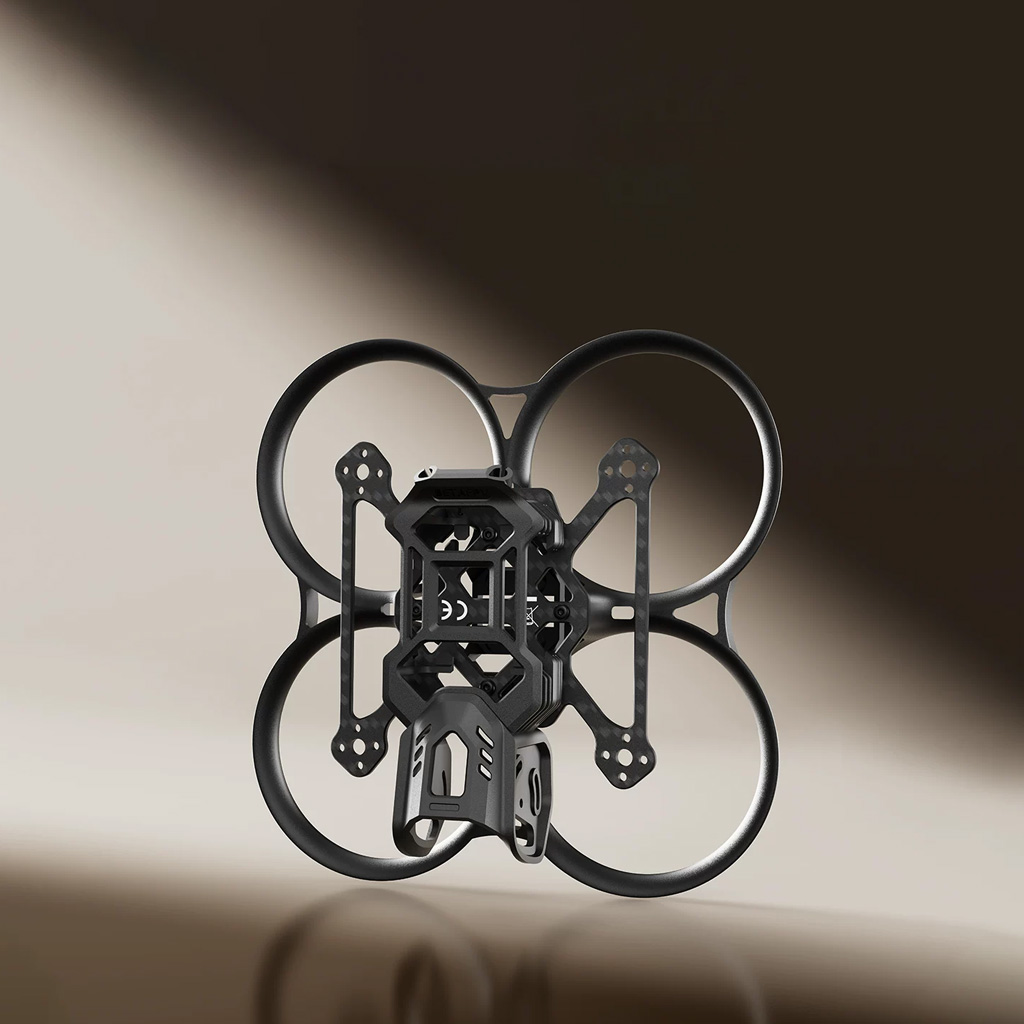

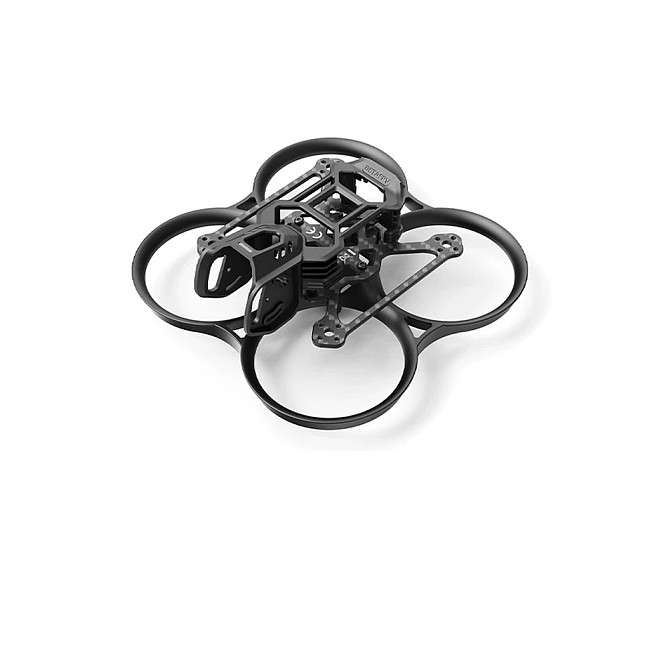

(BETAFPV）Pavo20 Pro II Brusless Whoop Frame For O4 Pro Unit Frame

US$ 5.38

Version

Estimate Shipping Cost

Detail
- Product Name: (BETAFPV）Pavo20 Pro II Brusless Whoop Frame For O4 Pro Unit Frame
- Item NO.: F55731 F55732-A1 F55732-A2
- Weight: 0.025 kg = 0.0551 lb = 0.8818 oz
- Category: DIY RC Drone Accessories > Frame
- Brand: BETAFPV
- Creation Time: 2026-07-27
- (BETAFPV）Pavo20 Pro II Brusless Whoop Frame For O4 Pro Unit Frame
(BETAFPV）Pavo20 Pro II Brusless Whoop Frame For O4 Pro Unit Frame

Product Specifications
Product Name: Pavo20 Pro II Brushless Drone Frame
Material: PA12 / PP
Top Plate Thickness: 2mm
Color: Black / Transparent Grey
Frame Weight: 33.99g
Wheelbase: 93.9mm
Camera Mount Spacing: 20mm
Battery Slot Width: 20mm
Motor Mount Holes: 4 × M2, Hole Spacing 9mm
Filter Installation: Supported
Flight Controller Mount Holes: Reserved
Recommended Accessories
FC & ESC: F4 2-3S 20A AIO Flight Controller V1
Motor: LAVA 1104 Motor, 7200KV
Propeller: Gemfan 2218-3B Propeller
Battery: 3S 450mAh ~ 650mAh
Filter: O4Pro ND Filter
Recommended VTX: DJI O4 Pro Air Unit, DJI O4 Air Unit

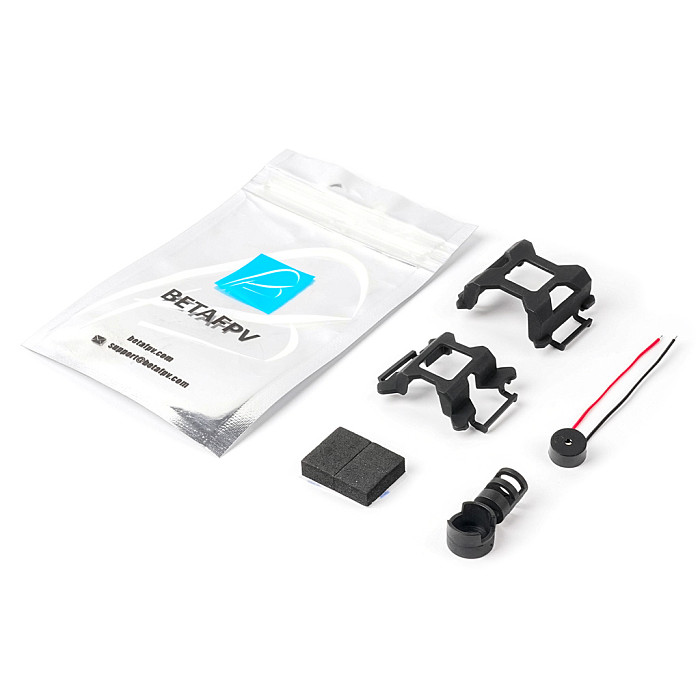

Packing List (O4Pro Frame Kit Set)
1 × Pavo20 Pro II Brushless Drone Top Plate
1 × Pavo20 Pro II Brushless Drone Protective Ring
1 × O4Pro VTX Mount Base
2 × 5.8g Copper Tube Antennas
6 × 8mm FC Anti-Vibration Dampers
6 × 6.6mm VTX Mount Anti-Vibration Dampers
6 × M2×10 Screws
6 × M2×4 Screws
6 × M2×14 Screws
1 × 130mm Battery Strap
2 × Battery Anti-Slip Pads
1 × 5.8G Copper Tube Antenna Holder
1 × H1.5 Hex Screwdriver
1 × 14×17mm GPS Mount
1 × 22×22mm GPS Mount
1 × Buzzer Mount
