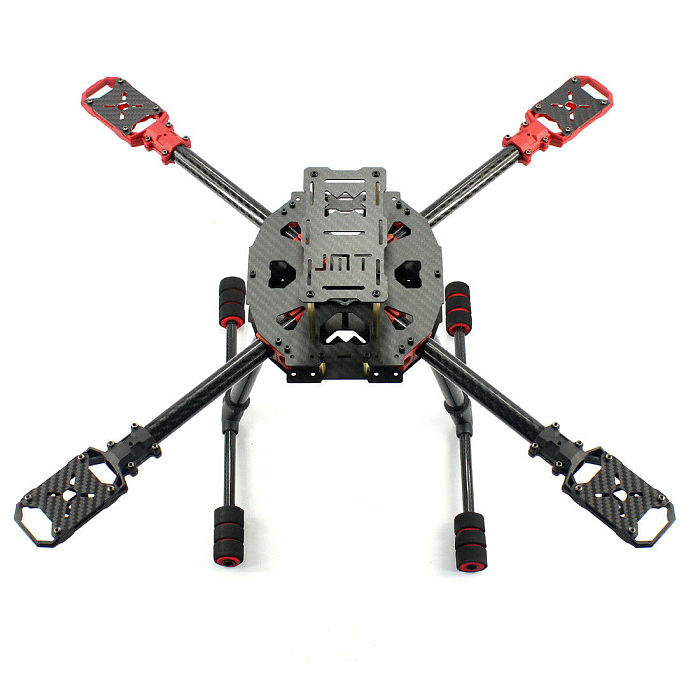

JMT J630 Carbon Fiber 4-axis Foldable Rack Frame Kit for DIY Quadcopter RC Drone
The rack is made of 3K carbon fiber woven carbon fiber board full CNC machining, the entire rack weighing only 635 grams. Folding design, portable. Aerial PTZ installation method for the former hanging or the middle suspension, the battery on the home or under the fixed, users can be used for the upper or lower fixed, T-type tripod.
It is suitable for simple flight and aerial photography, aerial mapping, reconnaissance, fire observation, life exploration, cable inspection, farm monitoring, oil route inspections, high requirements on mobile performance, low equipment load and more left space.
specification:
1,16mm carbon tube, high strength center board with sub-board installation location
2, wheelbase 630mm rack weight of about 635 g load maximum 2KG (the actual load depends on the power)
3,2212,2216,3108,3110,3508,3510,4108 and other motors are applicable
4, it is recommended 10 inch -15 inch paddle
5, Lipo battery 3S -6S 2200mah-6000mah, etc. can be used
6, Internal reserved APM damping plate (F16122) mounting hole for APM2.5 / 2.6 / 2.8 / PIXHAWK and other open source flight control, while reserving a large space can be installed DJI, zero commercial flight control
