Home>DIY RC Drone Accessories>Motor>FEICHAO 6364-200KV Brushless High-Power Motor For Four-wheel Remote Control Scooter
FEICHAO 6364-200KV Brushless High-Power Motor For Four-wheel Remote Control Scooter

FEICHAO 6364-200KV Brushless High-Power Motor For Four-wheel Remote Control Scooter Item NO.: F45427-D1 F45427-D2

Write a Review
US$ 29.59
US$ 31.15 Save US$ 1.56 (5% Off)
Version

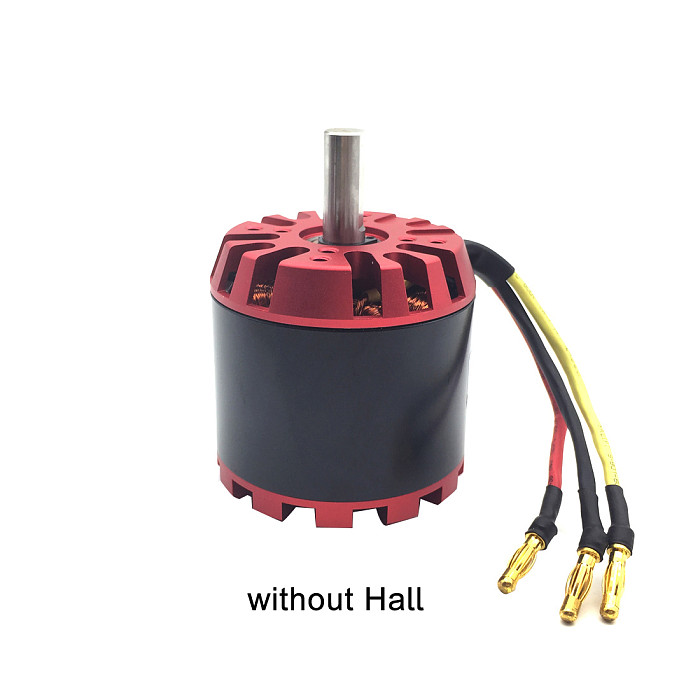

With Hall No Hall
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • FEICHAO 6364-200KV Brushless High-Power Motor For Four-wheel Remote Control Scooter
Product Name FEICHAO 6364-200KV Brushless High-Power Motor For Four-wheel Remote Control Scooter
Item NO. F45427-D1 F45427-D2
Weight 0.74 kg = 1.6314 lb = 26.1027 oz
Category DIY RC Drone Accessories > Motor
Brand FEICHAO
Creation Time 2021-12-14

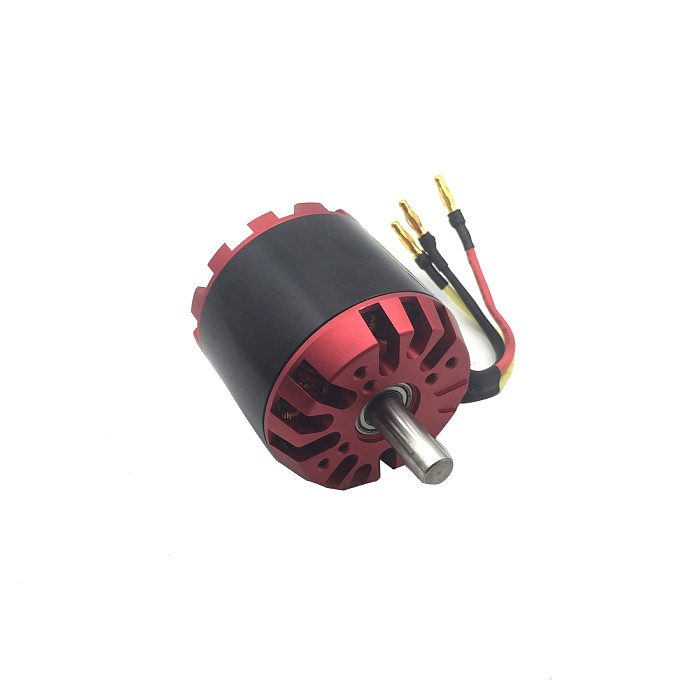

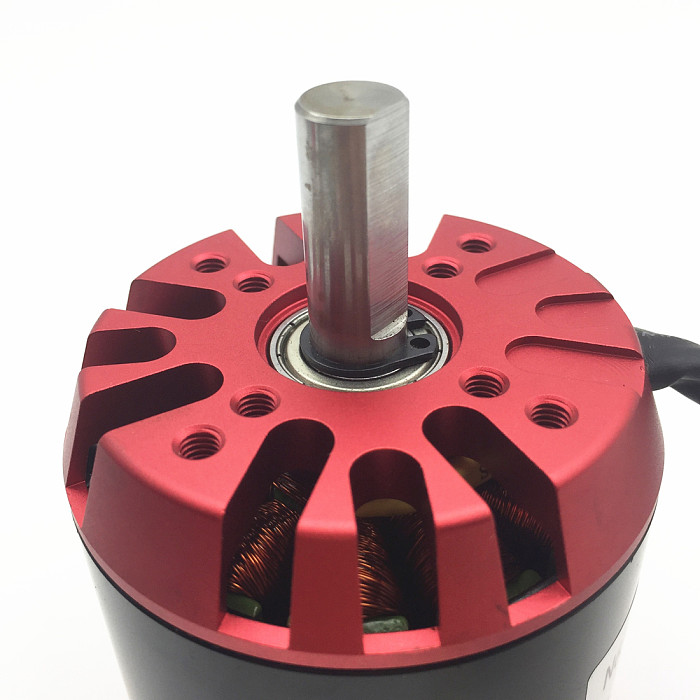

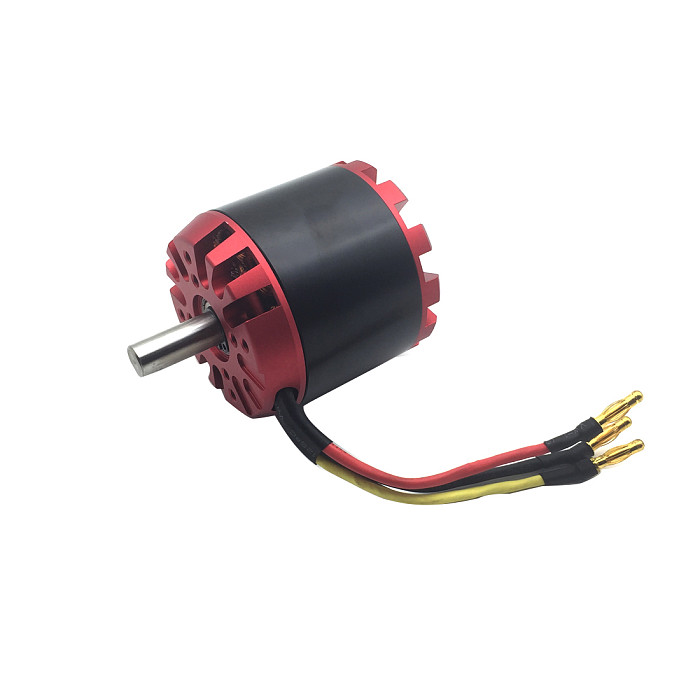

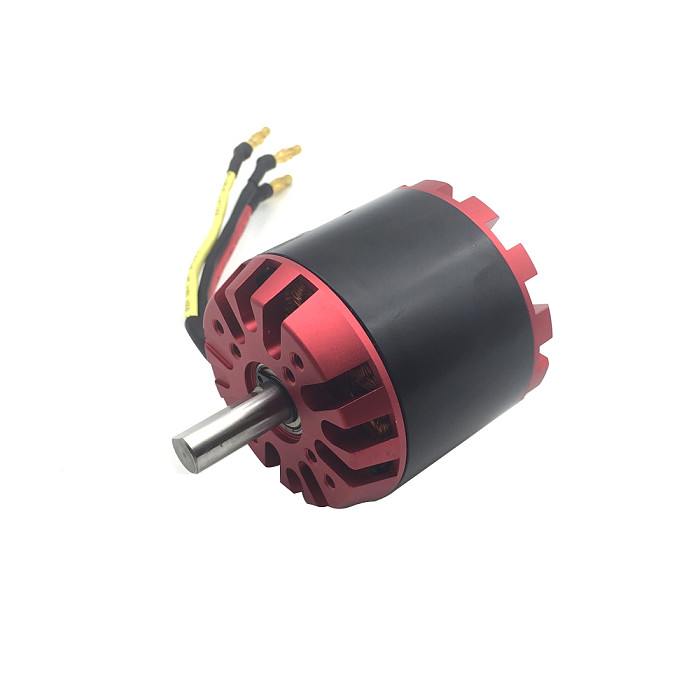

FEICHAO 6364-200KV Brushless High-Power Motor For Four-wheel Remote Control Scooter

Product Description
Name: N6364
Body diameter: 63mm
Shaft diameter: 10mm
Body height: 64mm
Flat thickness: 9.4mm
Flat length: 20mm
Output shaft length: 30mm

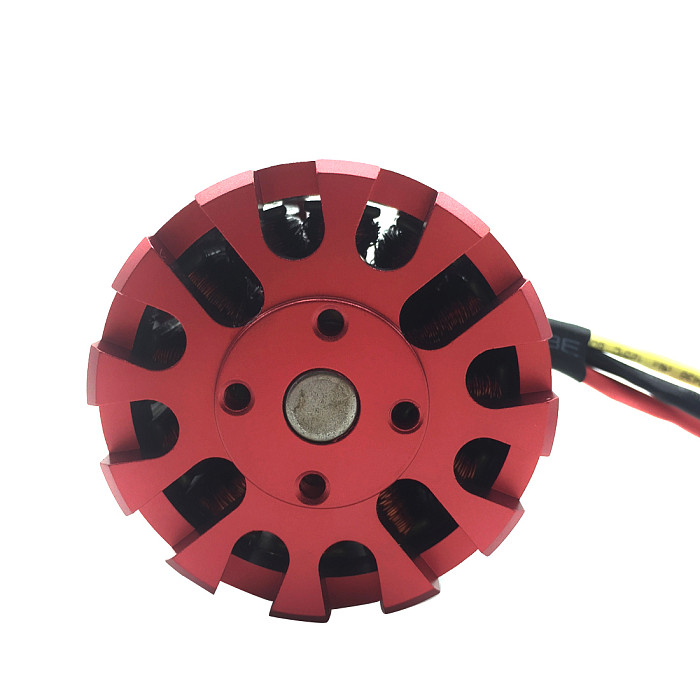

Top mounting hole distance: 44/30mm
Bottom mounting hole distance: 22mm
Mounting hole size: M4*4
Banana head: 4.0/3.5
Weight: 716g
Maximum power: 2300W
Hall angle: 60
No-load current: 0.5-1A
Maximum current: 120A
Recommended voltage: 24-36V
KV value: 200-300KV
No-load speed: 4800-7200rpm
Torque: 1.5-2.5N/m
No-load speed = voltage * KV value
As the KV value increases, the speed increases, and the torque decreases; when the KV value decreases, the speed decreases, and the torque increases.
