Copy| Product Name | BETAFPV Aquila20 2S Brushless Whoop FPV Drone P1 HD/Analog VTX ELRS 2.4G 100mm Wheelbase Long Flight Time Quadcopter |
| Item NO. | F55459-D1 F55459-D2 |
| Weight | 0.3 kg = 0.6614 lb = 10.5822 oz |
| Category | RC Toy Drone |
| Brand | BETAFPV |
| Creation Time | 2026-05-21 |
BETAFPV Aquila20 2S Brushless Whoop FPV Drone P1 HD/Analog VTX ELRS 2.4G 100mm Wheelbase Long Flight Time Quadcopter
The Aquila20 Brushless Whoop Quadcopter is available in two versions to match your flying style and budget: P1 Air Unit HD VTX for clear digital FPV, or Analog VTX for reliable, cost‑effective performance. Both share the same crash‑proof frame, BT3.0 smart battery, and powerful 2S propulsion system, delivering impressive 10‑minute flights. With three intuitive flight modes that grow with your skills, it's the perfect choice to start confidently and progress without limits – making FPV mastery easier and more rewarding than ever. See more, fly longer, and crash fearlessly - your FPV journey begins here.
|
|
Aquila20 P1 |
Aquila20 Analog |
|
VTX |
Aquila20 analog VTX |
|
|
VTX Power & Range |
200mW and range above 400m |
350mW and range above 200m |
|
Camera |
P1 VTX camera (1/2.9" CMOS) |
C04 (1/3" CMOS) |
|
Wheelbase |
100mm |
|
|
Flight Controller |
Aquila20 V1.0 |
|
|
Battery |
||
|
Discharge Rate |
15C |
|
|
Discharge Power |
8.74Wh |
|
|
Rated Voltage |
7.6V |
|
|
Battery Weight |
54.5±1.0g |
|
|
Charger |
2S HV Battery Charger and Voltage Tester with BT3.0 Connector |
|
|
Props |
||
|
Motor |
||
|
Remote Controller Protocol |
ExpressLRS 2.4G V3 |
|
|
Camera Tilt |
10°-30° |
|
|
Flight Modes |
N/S/M Mode |
|
|
Flight Time |
About 10 mins |
|
|
Takeoff Weight |
127±1.0g |
122±1.0g |
The Aquila20 offers two versatile VTX options to match your flying style and budget. Choose the Aquila20 P1 for stunning 1080p@60fps buttery‑smooth digital video with approximately 60ms latency and a 400m transmission range – perfect for immersive, high‑definition flight. Or opt for the Aquila20 Analog for reliable, proven performance with adjustable power output from 25mW to 350mW, giving you the flexibility to optimize signal strength for any environment.
The Aquila20 is designed to grow with you. Powered by the self-developed flight controller, it features three distinct flight modes (N/S/M) that allow you to start with absolute stability and gradually unlock full acrobatic freedom as your skills develop.
Altitude Hold & Stable Hover (N Mode): Your confidence-building mode. A highly precise barometer allows the drone to lock its altitude and hover steadily in place automatically. It's the perfect safety net for taking your hands off the remote control, learning orientation, and ensuring a safe landing in emergencies.
Pro Modes (S & M Modes): For when you're ready to advance. S and M Modes disable all assists, giving experienced pilots complete, unfiltered control for flips, rolls, and precision maneuvering.
Turtle Mode: With this mode, if you flip over, a simple command on your remote control instructs the motors to flip the drone back onto its feet, so you can take off again instantly—no walking over to manually retrieve it.

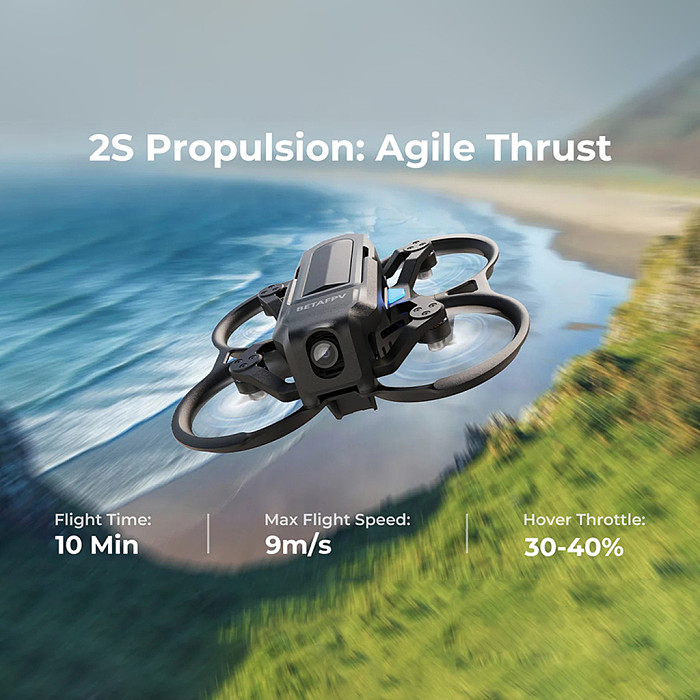

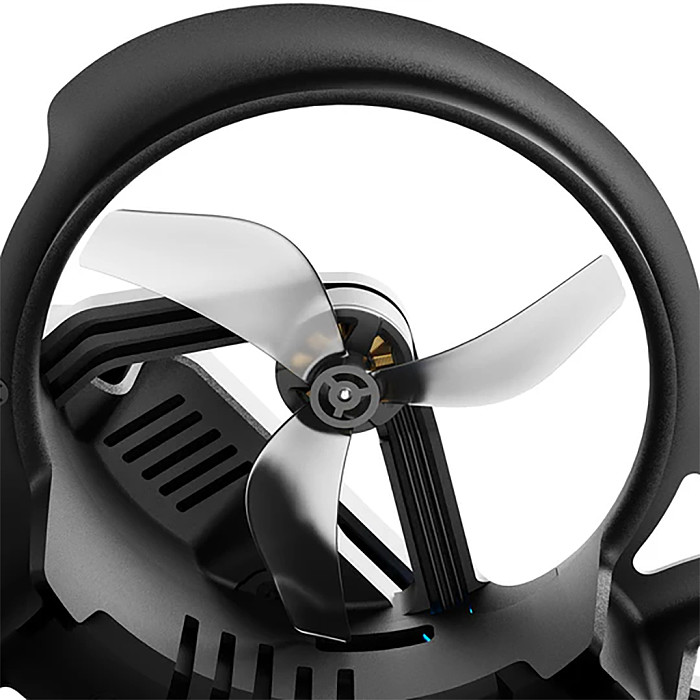

Experience the perfect balance of endurance and performance. Our refined 2S propulsion system delivers both agile power and extended 10-minute flights, giving you more time to master every maneuver. The innovative inverted duct design enhances thrust and provides exceptional flight stability, while maintaining perfectly manageable control for beginners. Fly longer with confidence - this combination of power and efficiency makes learning smoother and more rewarding than ever.

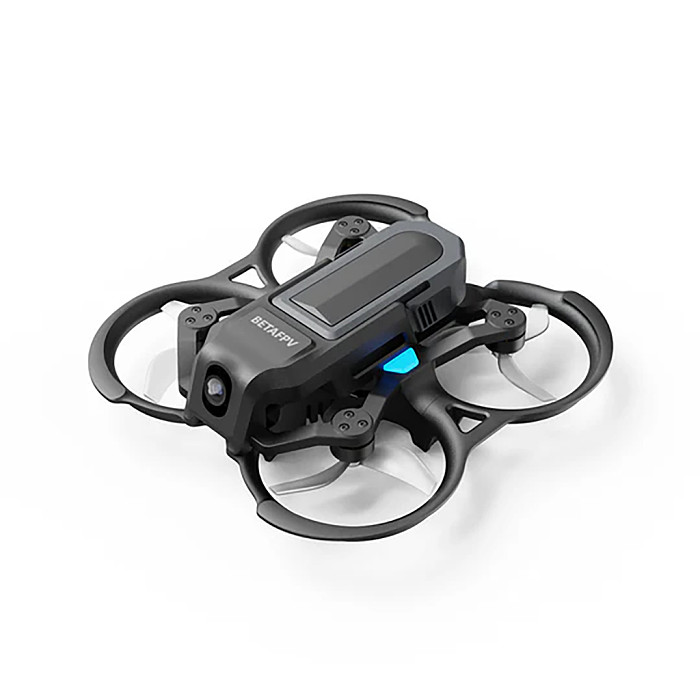

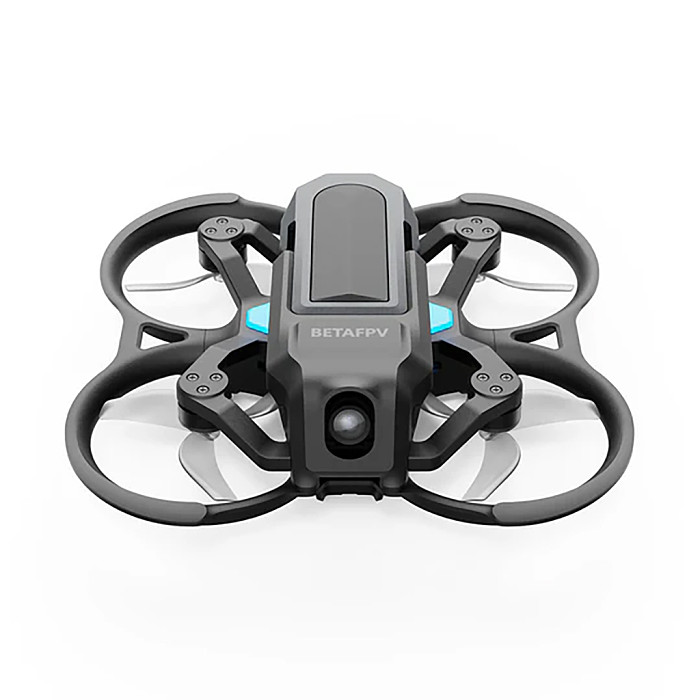

Engineered for resilience, the Aquila20 features a PA410 frame specifically designed to absorb and dissipate impact energy, drastically reducing the risk of damage from crashes. The integrated design provides superior protection for the camera and vital internal components, ensuring your whoop stays in the air. This isn’t just a drone—it’s built to survive, so you can learn, experiment, and fly with confidence.
Powered by the advanced Smart Battery, the Aquila20 delivers optimized performance with built-in intelligence. Its integrated management chip ensures efficient power delivery and automatic protection, while clear LED indicators and low-power alerts keep you informed throughout your flight. Fly longer and land safer with total control!
The ArtLynk protocol is a low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX. ArtLynk protocol enables real-time HD video at about 60ms latency from glass to glass, which is crucial for smooth flight control and high-quality FPV (First Person View). Here are the key features you may want to know.
The ArtLynk protocol supports the following devices, letting you customize your own build or simply bind and fly:
Firmware Compatibility Notes:
| Ground Station | Air Unit | Actions Required |
| V1 | V1 | Update both to V2 |
| V1 | V2 | Update ground station to V2 |
| V2 | V1 | Downgrade ground station to V1, then update both to V2 |
| V2 | V2 | Ready to use |
