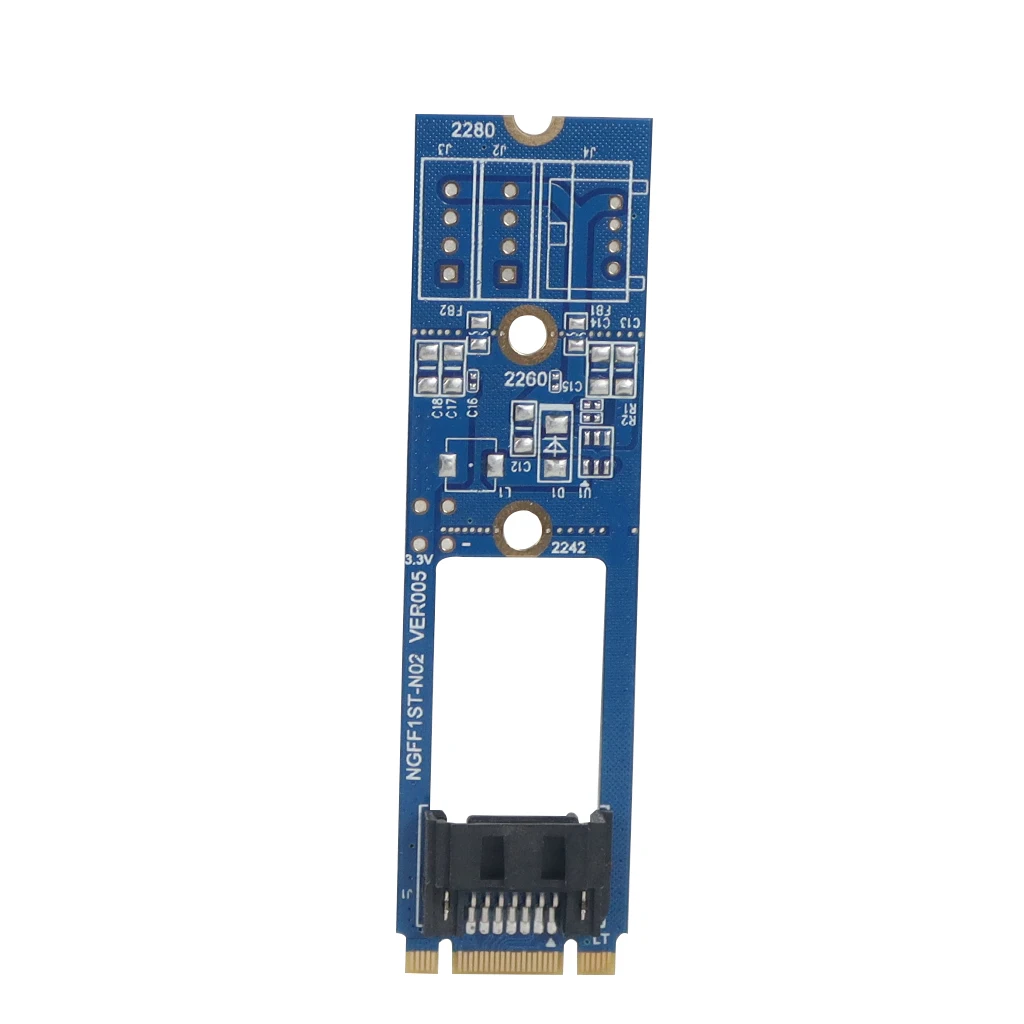

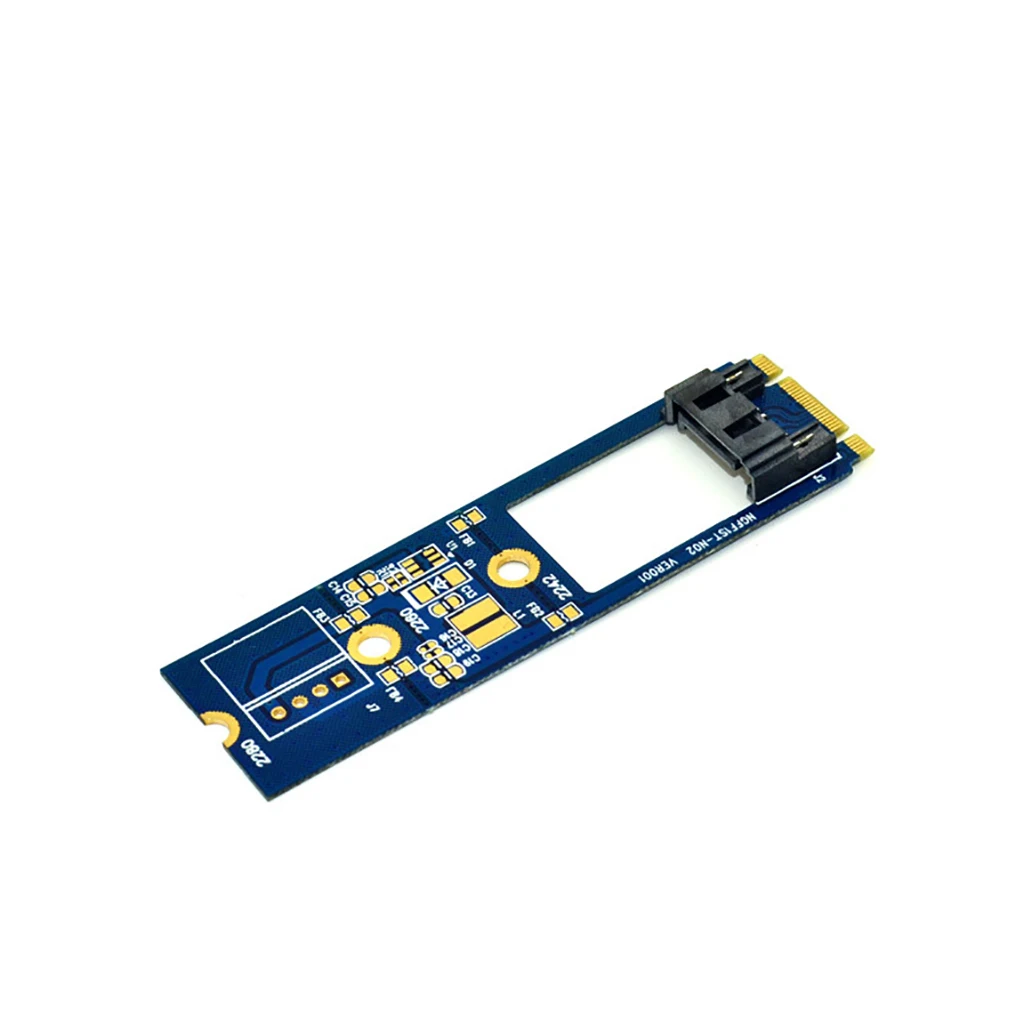

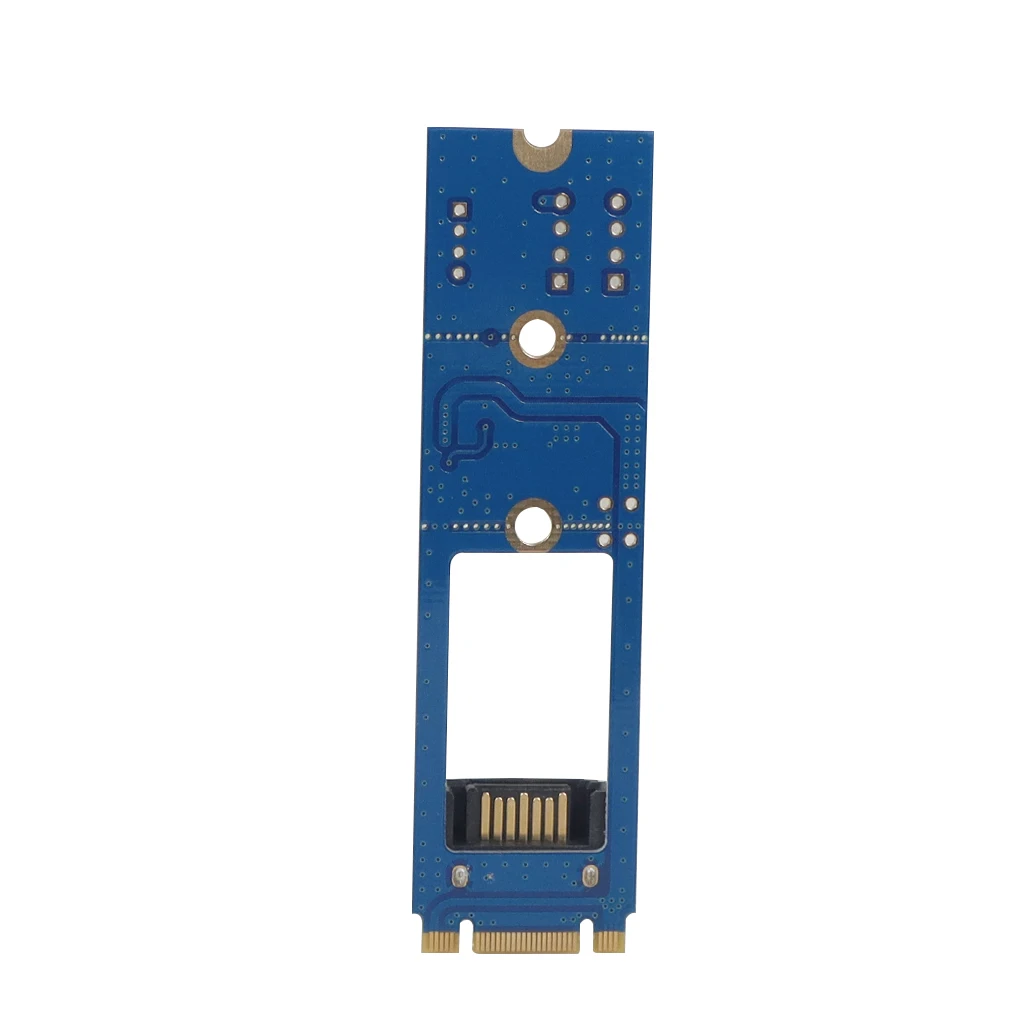

XT-XINTE M.2 to SATA 7Pin Adapter Card M.2 KEY B-M to SATA3.0 7 Pin Converter Adapter Board Card for M2 NGFF 2242 2260 2280 SDD

Product Name： M.2 to SATA adapter card

Product Model： NGFF1ST-N01

Interface: M.2 KEY B-M SATA 7PIN

Support System: WinXP/Vista/Win7/Win8 32bit/64bit MAC10.8 or above

Product Description.

Extend the SATA 7PIN interface from the M.2 NGFF slot of the motherboard, this adapter board only connects the signal from the M.2 KEY B-M holder to the SATA 7PIN connector, so the adapter card does not need a driver. If the interface is not recognised please check if it is a SATA signal KEY-B, the adapter is basically fault free. The adapter supports SSD sizes 2242 2260 2280, the default is 2280 if you want to use a different size, just cut the V-CUT line along the middle of the PCB.

Caution.

This adapter card only supports SATA protocol M.2 interface (KEY-B interface), it does not support PCI-E protocol or NVME protocol, please check if your interface is SATA protocol before purchasing.

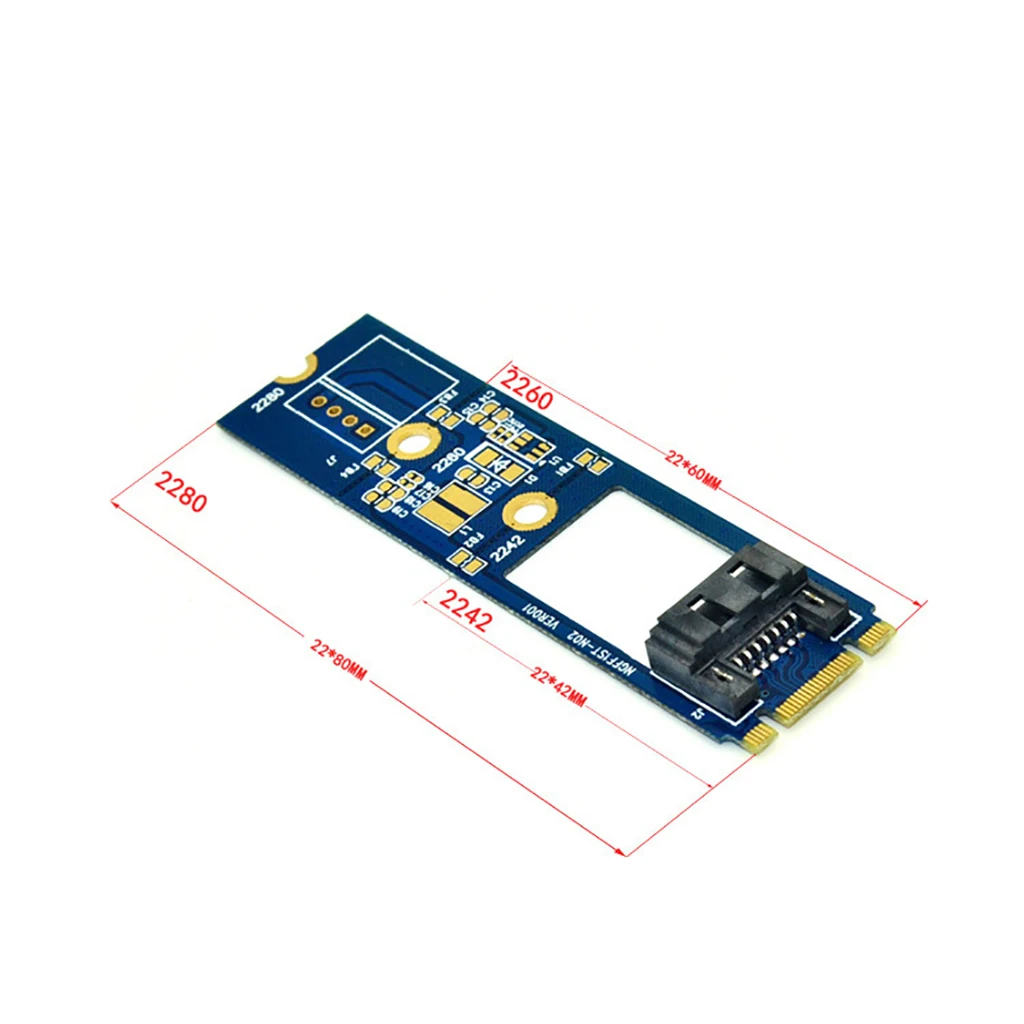

M.2 to SATA3.0 adapter card can convert M.2 NGFF interface to SATA interface, there are 4 fixed holes on the board, 22*42mm, 22*60mm, 22*80mm respectively, please cut the adapter card to position it according to the length of the card slot.

Product usage.

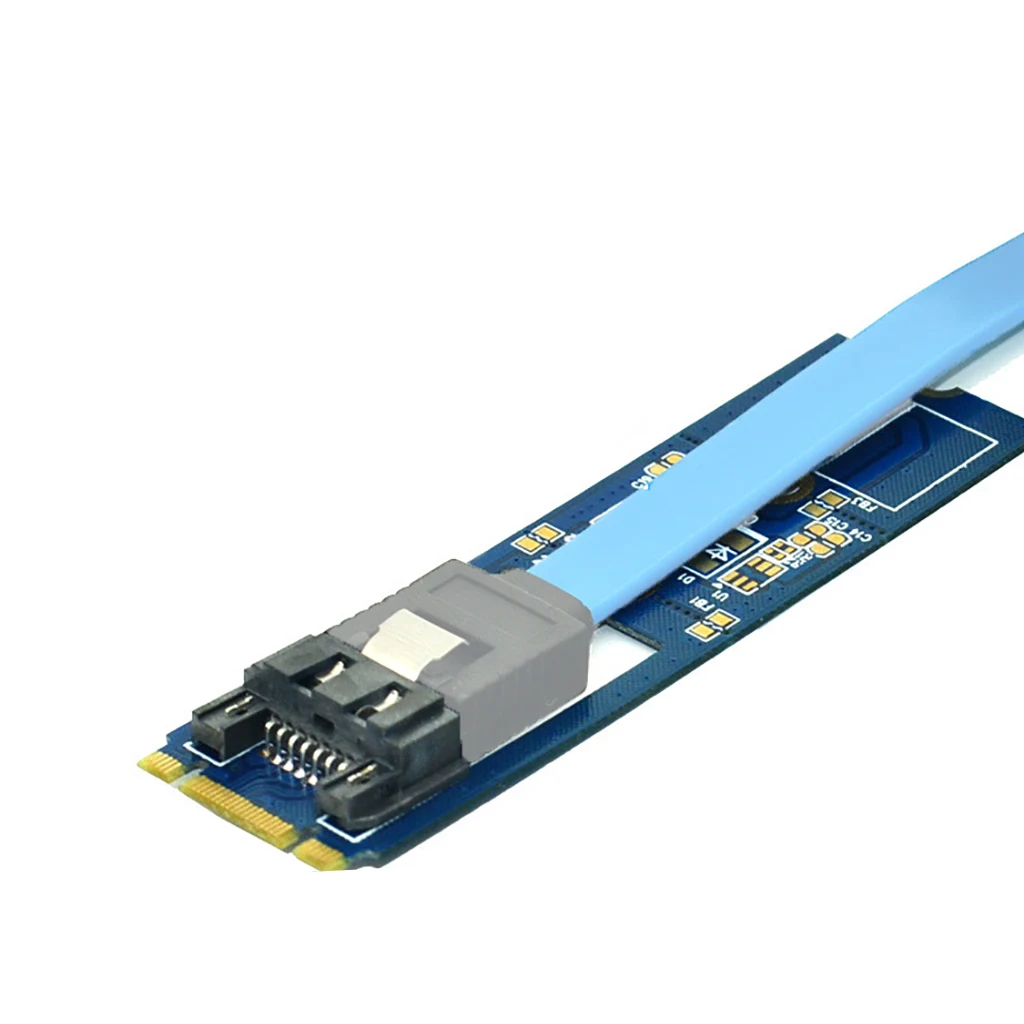

To convert SATA signal from M.2 NGFF to SATA 7PIN, connect 2.5" mechanical HDD or SSD to increase HDD capacity.

Packing list.

M.2 to SATA 7PIN adapter card*1
