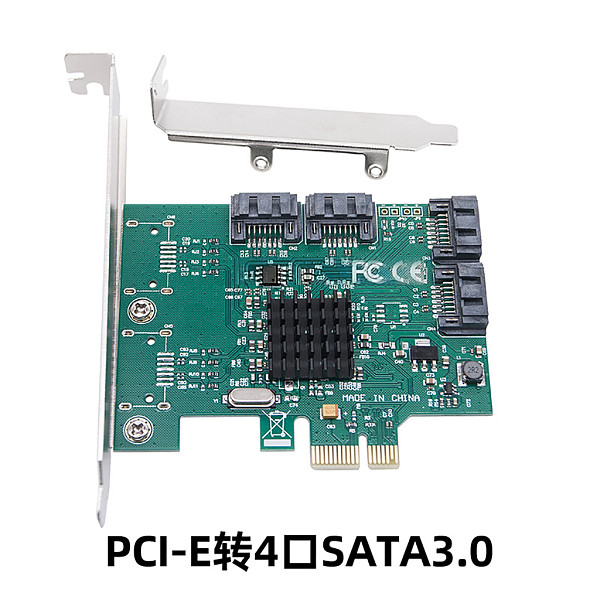

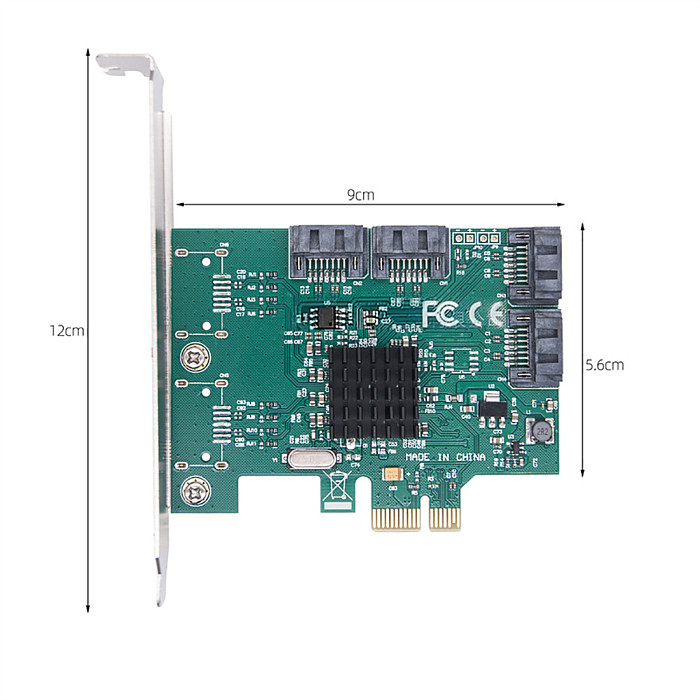

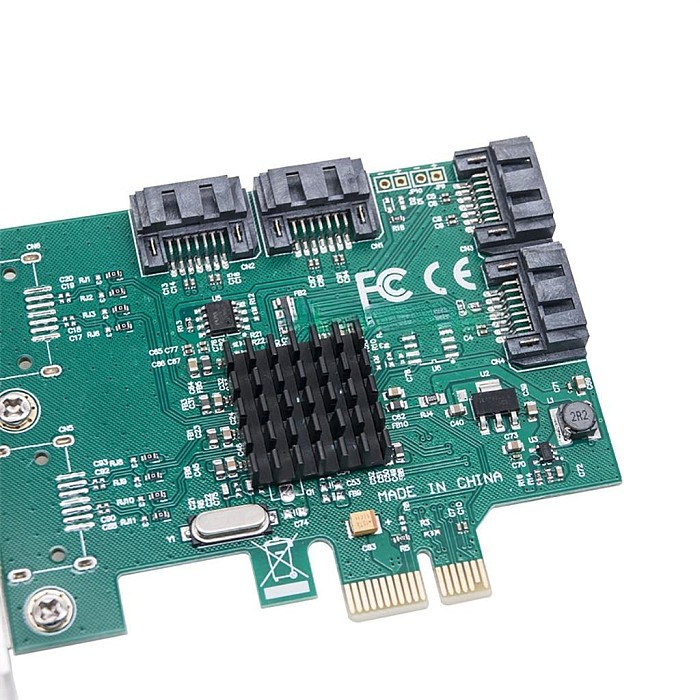

5Gbps PCIE x1 to 4 Ports SATA 3.0 III Controller PCI-E to SATA3.0 Card Hub Adapter Expansion Card PCI Express Adapter Converter
-
Detail
- Product Name: 5Gbps PCIE x1 to 4 Ports SATA 3.0 III Controller PCI-E to SATA3.0 Card Hub Adapter Expansion Card PCI Express Adapter Converter
- Item NO.: F53069
- Weight: 2024 kg = 4462.1562 lb = 71394.4990 oz
- Volume: 1 CBM
- Category: Computer Accessories
- Creation Time: 2024-09-13
5Gbps PCIE x1 to 4 Ports SATA 3.0 III Controller PCI-E to SATA3.0 Card Hub Adapter Expansion Card PCI Express Adapter Converter
Product Name：Desktop graphics card interface to sata4 port expansion card
Main Control Chip: Marvell-compatible 9215
Bus Speed: 5Gbps
Bus specification: PCI-E 2.0 x1
Interface specification: SATA3 7Pin*4
Interface speed: about 400MB/s or so
Support interface: PCI Express slot
Support system: windows, Qunhui, LIUNX, MAC, NAS, etc.
Product Description:
Marvell-compatible 88SE9215 PCIe SATA3.0 Array Expansion Card with
four SATA Gen III 6Gb/s channel host controllers.
Provides server-grade functionality for desktops. The board supports the
use of the industry's newest and fastest 6Gb/s hard disk drives while
providing backward compatibility.
legacy SATA 1.5Gb/s, SATA 3Gb/s drives. It will enhance system performance
for every type of computer user.
Each PCI-Express 2.0 lane provides up to 500MB/S throughput.
Using the RAID function, SATA connected to this controller
drivers connected to this controller can be easily configured as
4 independent ports without RAID functionality.
PCI Express
- PCI Express 2.0 compliant, PCIe* 2.0 endpoint device
- Supports communication speeds of 2.5 Gbps and 5.0 Gbps
- Supports AHCI programming interface registers for SATA controllers
- Supports aggressive power management
- Supports error reporting, recovery and correction
- Supports Message Signaling Interrupt (MSI)
SATA Controller
- Conforms to Serial ATA Specification 3.1.
- Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps.
- Supports programmable emitter signal levels.
- Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x and Gen 3i.
- Supports four SATA ports.
- Supports AHCI 1.0 programming interface.
- Supports Native Command Queuing (NCQ).
- Supports port multiplier FIS-based switching or command-based switching.
- Supports partial and sleep power management states.
- Supports staggered rotation
