Tarot Assembled Kit 40A ESC Controller Tarot 320KV Motor Connection Board Wire for 8-Axis Drone Multi Rotor Hexacopter
Assembled Kit 40A ESC Controller Tarot 320KV Motor Connection Board Wire for 8-Axis Drone Multi Rotor Hexacopter

Assembled Kit 40A ESC Controller Tarot 320KV Motor Connection Board Wire for 8-Axis Drone Multi Rotor Hexacopter Item NO: F04997-G

US$ 331.07 (12% Off)
US$ 376.22 Save US$ 45.15
Remark:
Customized Requirements
Shipping Cost:
Estimate Shipping Cost
Quantity:

Specifications
Product Name Assembled Kit 40A ESC Controller Tarot 320KV Motor Connection Board Wire for 8-Axis Drone Multi Rotor Hexacopter
Item NO F04997-G
Weight 2.5300 Kg
Category DIY RC Drone Kit / RC Drone Accessories
Brand Tarot
Creation time 2017-07-26

Detail

Assembled Necessity Kit: 8 Pcs 40A Brushless ESC Speed Controller + 8 Pcs

Tarot 4114/320KV Brushless Motor TL100B08-02 + KK ESC Connection Board

 +  XT60 Connectors + 16AWG Silicon Wire  for 8-Aix Drone Hex Multi Rotor Hexacopter




Package including :
8X 40A Brushless ESC Speed Controller
8X Tarot 4114/320KV Multiaxial Brushless Motor TL100B08-02
1X  KK Multi-Copter Power Battery to 8 ESC Connection Board
1X 1 Pair XT60 Bullet Connectors Plugs
24 X 3.5mm Gold Banana Connectors
1X Black and Red 16AWG Silicon Wire Connecting Wire



40A Brushless ESC Speed Controller







  • This ESC With the English instruction.
  • Before producing, the manufacturer have set up the program, the ESC do not need additional program.

JMT 40A Brushless ESC Speed Controller For RC RC Quadcopter Hexacopter Multi-Rotor Aircraft



1. quantity:1 PCS

2. 100% Brand New!

3. No manual.

4. For KK MK MWC RC Quadcopter Hexacopter Multi-Rotor Aircraft

5. Preview:



1 Specification

1.1 Output: Continuous 40A, Burst 60A up to 10 Secs.

1.2 Input Voltage:Pentium-40A:2-6 cells lithium battery or 5-18 cells NiCd/NIMh battery.

1.3 BEC:Pentium-40A: 3A / 5V (Switch mode).

1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.(BLM: BrushLess Motor)

1.5 Size: 55mm (L) * 28mm (W) * 12mm (H).

1.6 Weight: Pentium-40A: 35g.

Note: The old version Pentium-40Auses built-in linear mode BEC, but the new version uses switch mode BEC to enhance the output ability.


2Features:

2.1 Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.

2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.

2.3 Programmable Items:Brake Setting: brake enabled / brake disabled. Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd). Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power. Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high. Start Mode: normal / soft / very soft. Timing: low / medium / high. Reset: resetall the programmable items totheir default settings.

2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.

3 Advantages

3.1Military standard capacitorof extreme low resistance increases the ability of prevention of unwanted RF noise during flying. 3.2Extreme low resistancePCB is usedatthe power output section, the whole ESC hassuper current endurance capability. 3.3 Microprocessor uses separate voltage regulator IC, with good anti-jamming capability. 3.4 Compatible with Hobbywing's.

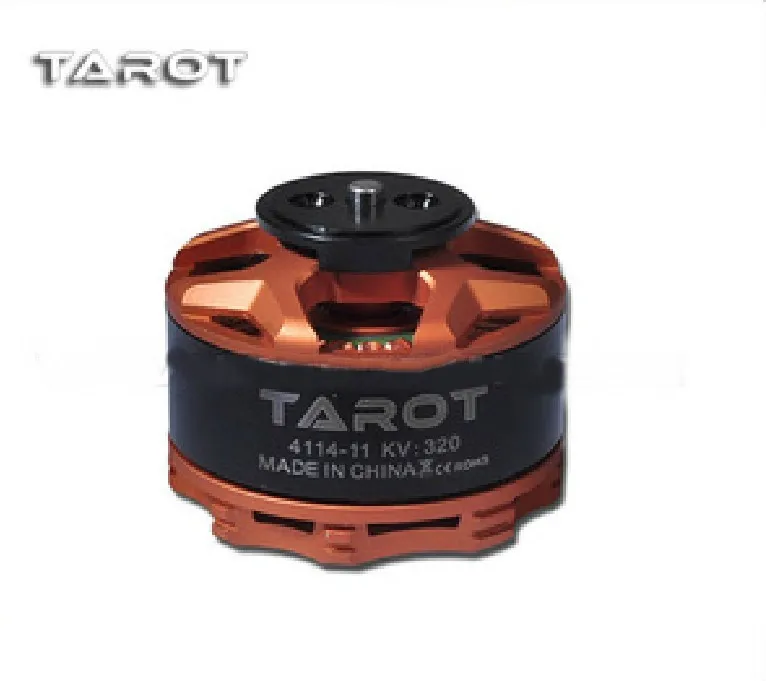

Tarot 4114/320KV Multiaxial Brushless Motor TL100B08-02





aeProduct.getSubject()

Motor peripheral diameter : 46.00mm

Stator diameter : 41.0 mm
Stator Thickness : 14.0 mm
Stator number : 24N
Motor Poles : 22P
Diameter : 0.31mm
Per volt Speed : 320 RPM / Volt
22.2V empty annexed Current : 0.5 Amps
Motor resistance : 126 m?
Motor Weight : 148 Grams
Gear shaft mounting diameter : ¢ 4.0 mm
Motor Length : 32.0 mm
Motor shaft total length : 37.0 mm


4114 brushless motor mounting specifications : 27.7MM equilateral triangle

Specifications:

M2.5 × 6 level screw X3
4114-11KV320 × 1


 KK Multi-Copter Power Battery to 8 ESC Connection Board





aeProduct.getSubject()  aeProduct.getSubject()  aeProduct.getSubject()




MultiCopter Multi-Quad Copter Power Battery to 8 ESC Connection Board

Features:
- The whole board as a conductor,up to 100A input
- Does not produce magnetic, less influence to sensor
- One side for positve,another side for nagetive
Specfications:
- Special for MultiCopter battery connection
- Up to 8 ESC/Motor can be connect to the Board
- 100A maxium input
- Weight:6.7 gram
- Size:55mm*55mm



Connection ESC: 1-8 (more than 8 may as excessive current damage the connecting plate)









 1Pair XT60 Bullet Connectors Plugs







aeProduct.getSubject()





Product Description :

Item number: XT60

Name: Bullet Connectors Plugs

For: RC Battery

Quantity: 1Pair

Color: Yellow




3.5mm Gold Banana Connectors




effective picture , just the Connectors


aeProduct.getSubject()  aeProduct.getSubject()





Black and Red 16AWG Silicon Wire Connecting Wire for RC Toy Copter Electric

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()Color: red and balck
