JMT F4 X1 175mm FPV Racing Drone Quadcopter RTF with FPV Goggles GHF411AIO F4 2-4S AIO Flysky Remote Controller EVA handbag

JMT F4 X1 175mm FPV Racing Drone Quadcopter RTF with FPV Goggles GHF411AIO F4 2-4S AIO Flysky Remote Controller EVA handbag Item NO.: F37458-E

Write a Review
US$ 199.74
US$ 234.99 Save US$ 35.25 (15% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name JMT F4 X1 175mm FPV Racing Drone Quadcopter RTF with FPV Goggles GHF411AIO F4 2-4S AIO Flysky Remote Controller EVA handbag
Item NO. F37458-E
Weight 1.59 kg = 3.5053 lb = 56.0856 oz
Category DIY RC Drone Accessories > DIY RC Drone Kit
Brand JMT
Creation Time 2020-04-17

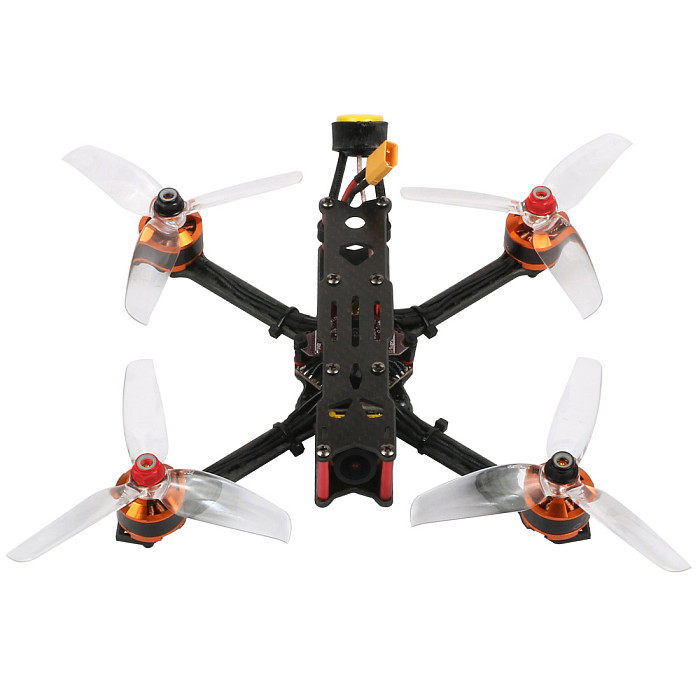

JMT F4 X1 175mm FPV Racing Drone Quadcopter RTF with FPV Goggles GHF411AIO F4 2-4S AIO Flysky Remote Controller EVA handbag

FLYSKY version with FPV Goggles & handbag
Flysky i6 AFHDS-2A remote control, Fli14 + receiver 14 channels with PA amplifier and OSD

Package include:
1x JMT F4 X1 Frame Kit
4x JMT Motors (2CW+2CCW)
1x M5 self-locking nut
1x JMT GHF411AIO Flight Controller Built-in 30A ESC
4x 4032 3-blade Props (4Pairs)
1x Caddx.us Ratel 2.1mm+ND filter FPV Camera
1x JMT Supra-VTX 25-100-200MW VTX
1x JMT NAZE32 Buzzer
1x RunCam Speedy Bee Antenna RHCP+UFL
1x Antenna tailstock
1x Flysky 2.4G Fli14+ Receiver

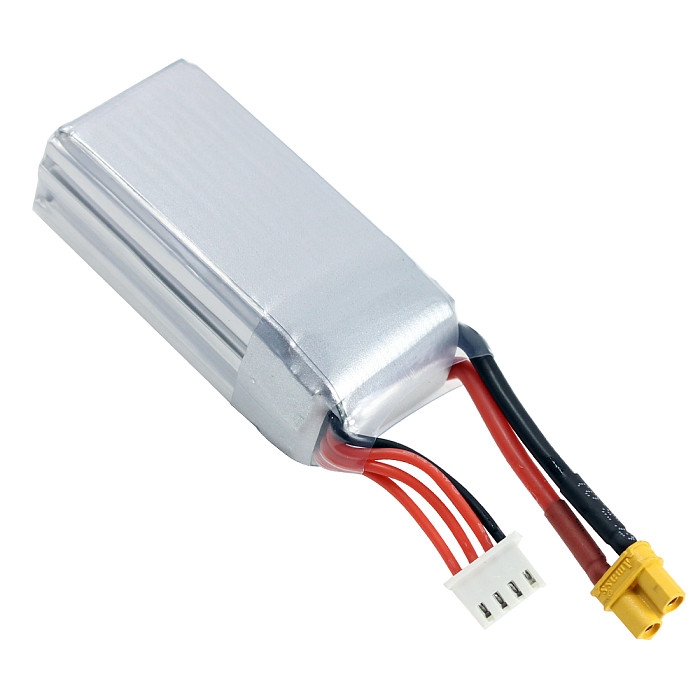

1x GNB 750mAh 3S 11.1V 80C XT30 Battery

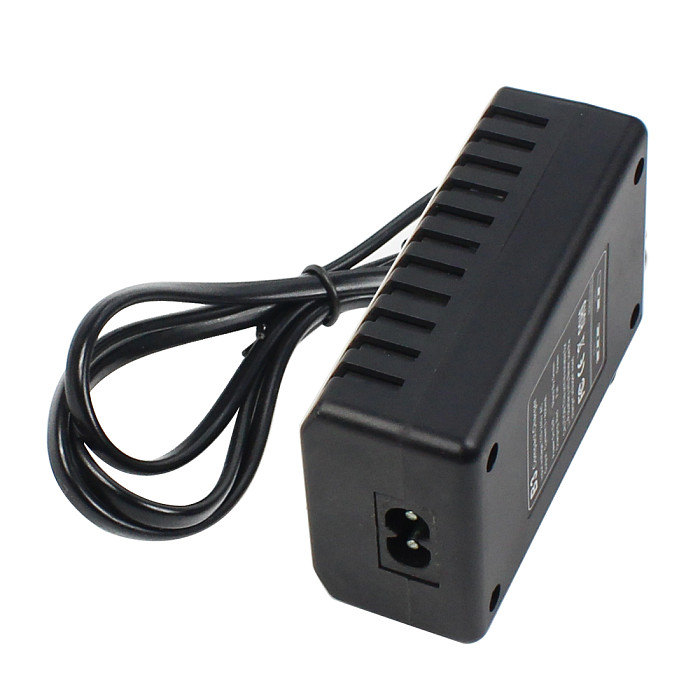

1x IMAXRC B3 pro Charger
1x FS I6 Transmitter
1x Transmitter Rocker Mount

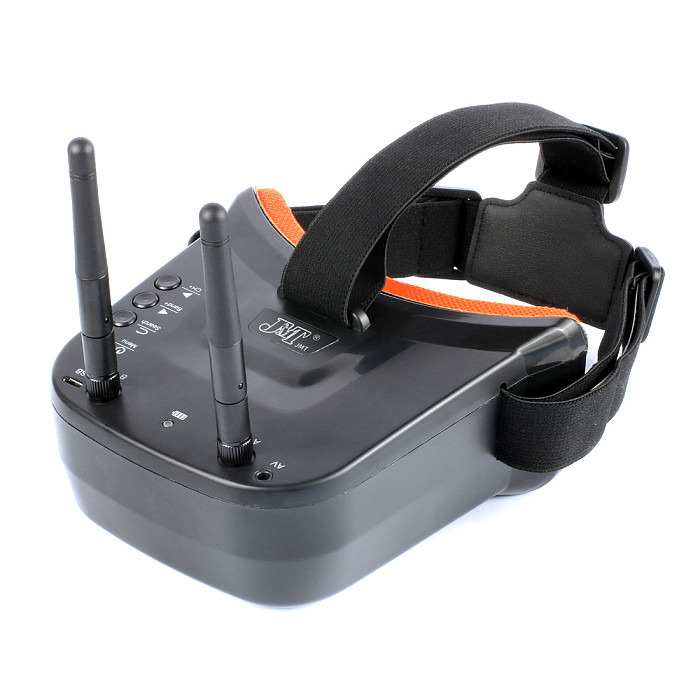

1x 5.8G FPV LST-009 FPV Goggles

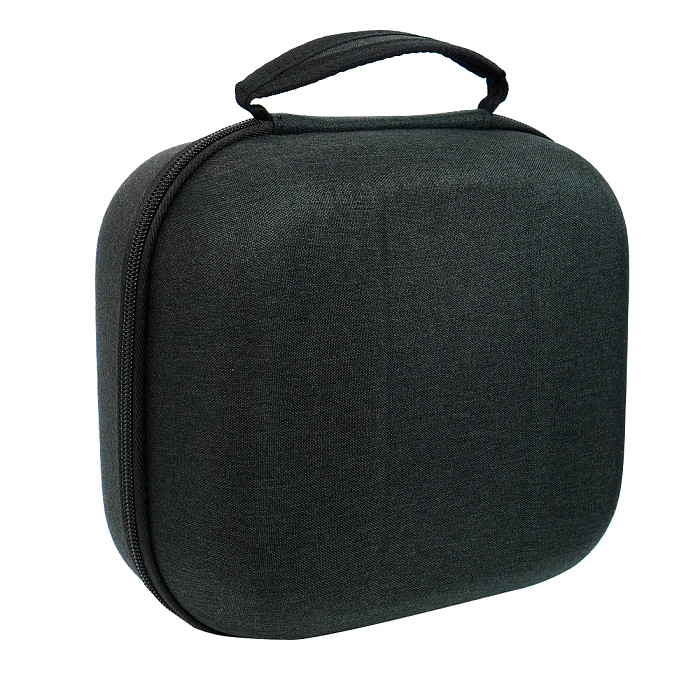

1x EVA handbag

Rack
Wheelbase: 175mm
Weight: 56g
Material: carbon fiber
Color: Matte Twill
Arm thickness: 3.5mm
Upper plate thickness: 2mm
Floor thickness: 2.5mm
Thickness of other boards: 2mm
Applicable camera size: 19mm
Flight control installation size: 20 * 20mm, 25.5 * 25.5mm

Propellers
Product name: 4032
Size: 4 inches
Pitch: 3.2 inches
Hub size: 5mm
Weight: 3.09g
Material: PC
Color: transparent
Center thickness: 6.5 mm
Paddle diameter: 102.2 mm
Maximum blade width: 14.25 mm

Motor
KV: 2400
Stator diameter: Φ18
Motor weight: 16g (without cable)
Power supply voltage: 2-3s
Maximum current: 6.5A
Maximum power: 70W

Flight control + ESC
Flight control parameters • CPU: STM32F411CEU6 (100MHZ) • Six axes: MPU6000 (SPI connection) • Size: 32.5 * 32.5mm (25.5mm mounting hole) • Firmware version:

Betaflight MATEKF411 (MK41) • OSD: Built-in BetaFlight OSD (OSD chip : AT7456E)
• Receiver: Support Frsky XM / XM + receiver / Futaba receiver / Flysky receiver / TBS Crossfire receiver / DSMX receiver
• Built-in current sensor
• Weight: 6.3g

ESC parameters
• Support BLheli / BLHELI_S
• Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Input voltage: 2S-4S Lipo
• Continuous current: 30A
• Firmware: BLHELI_S

Image transmission
Project name: 5.8G 40CH 25mW 100mW 200mW switchable FPV transmitter
Input voltage: 4.5-5.2V (DC)
Input current: 500mA @ 200mW
Power: 25mW / 100mW / 200mW (switchable)
Channel: 40CH
Antenna connector: IPEX
Dimensions: 37x24x5mm
Mounting hole: 25.5x25.5mm
Weight: 2g

FPV camera
Lens: 2.1mm + ND filter
Image sensor: 1 / 1.8 "inch starlight HDR sensor
Horizontal resolution: 1200TVL
FOV: 180 degrees
Minimum delay: 8 ms
TV system: NTSC and PAL (can be changed)
Image: 16: 9 and 4: 3 (can be changed)
WDR: Super WDR (HDR)
Minimum illumination: starlight
Synchronization: internal
Electronic shutter: PAL: 1/50 ~ 100,000; NTSC: 1 /
SNR of 60 ~ 100,000:> 60dB (AGC off)
Video output: CVBS
Camera OSD: separate OSD
DNR: 3-DNR
Language: ENG / FRANCE / RUS / SPA / PU / KOREA / China / Japan
Day / Night: Auto / Color / Black and White / External
Size: 19mm * 19mm * 19mm
Wide power input: DC 5-40V
Working temperature: -20 ℃ ~ + 60 ℃

Working humidity: 20% ~ 80% "
