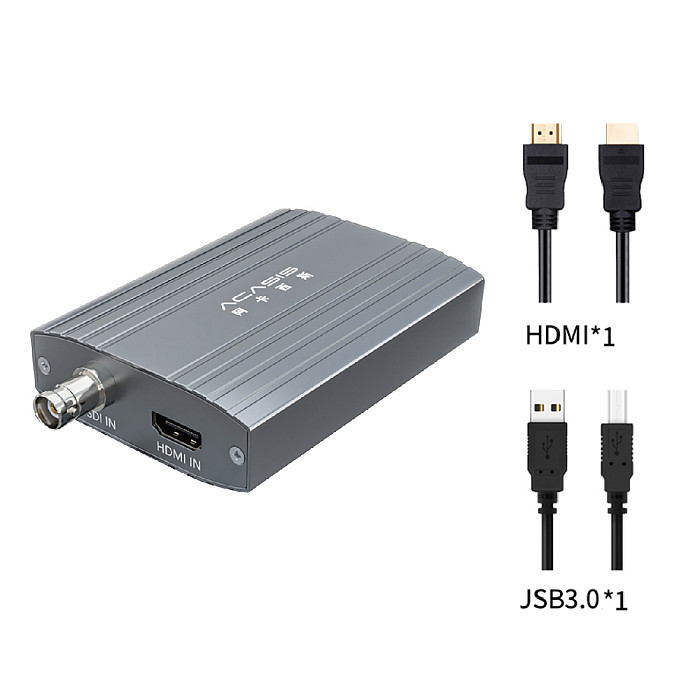

Acasis U3SDH 2-channel for SDI/HDMI HD USB3.0 Video Capture Card Switch 1920*1080@60FPS for PS4 Game Live/NS Camera 4K Recording

Product parameter

Device connection interface: USB3.0 300~350Mb/s transmission bandwidth

Video ADC bit depth: 10Bit

Main control scheme: low power consumption Lattice EP3-35FPGA

Onboard DDR: 1GBDDR3

Video input interface: (switch input)

HDMI interface: HDMI input, DVI can be transferred; in line with HDMI1.4 standard

SDI: Support SMPTE260M, SMPTE274M,

SMPTE 295M and SMPTE 296M

Analog audio input, support dual channel stereo input

Video resources: HD HDMI 1920*1080@60FPS backward compatible

SDI: 1920*1080@60FPS backward compatible

HDCP support: HDCP support

Audio mixing: support analog audio mixing to digital HDMI or SDI audio

TV input format standard support:

1920*1080P (60/59.54/50/30/29.97/25/24/23.976)

1920*1080i (60/59.54/50/30/29.97/25)

1280*720P (120/100/60/59.54/50/30/29.97/25/24/23.976)

720*576P (120/60/50)

720*576i (120/60/50/25)

720*480P (240/239.76/120/60)

PC graphics card format input supports standards

640*480P (60/72/75/8HZ)/800*600P (60/72/75/85HZ)

1024*768P (70/75/85HZ)/1280*768P (60/75/85HZ)

1280*960P (60/85HZ)/1280*1024P (60/75/85HZ)

1600*1024P60HZ/1600*1200P60HZ/1680*1050P60HZ

1920*1080P60HZ/1920*1200P60HZ/1150*870P75HZ

1024*576P60HZ/1280*720P60HZ/1360*768P60HZ

1440*788P60HZ/1440*960P72HZ/1440*1050P60HZ

1152*864P75HZ

Output color space:

YUV4:2:2(YUY2),RGB8:8:8(RGB24),NV12(YUV420)

Audio support:

Support UAC (USB audio class), audio resampling is fixed to 48K output

U VC free drive support:

Comply with UVC (USB video class), UAC (USB audio class) specifications

USB2.0 support: support USB2.0

Standard development support: DirectShow (Windows), V412 (Linux)

SDK development streaming media protocol support

Support RTSP video transmission, can realize VLC remote monitoring

Support RTMP streaming to FMS server

Compatible software support: Windows Media Encoder (Windows)

Adobe Flash Media Live Encoder (Windows, OS X)

Real Producer Plus (Windows)

VLC (Windows, OS X, Linux)

QuickTime Broadcaster (OS X)

QuickTime Player (OS X)

Wirecast (Windows, OS X)

Supported operating system: X86 and X64 versions of the following operating systems are supported

Support compatible with Windows, Linux, OS X systems
