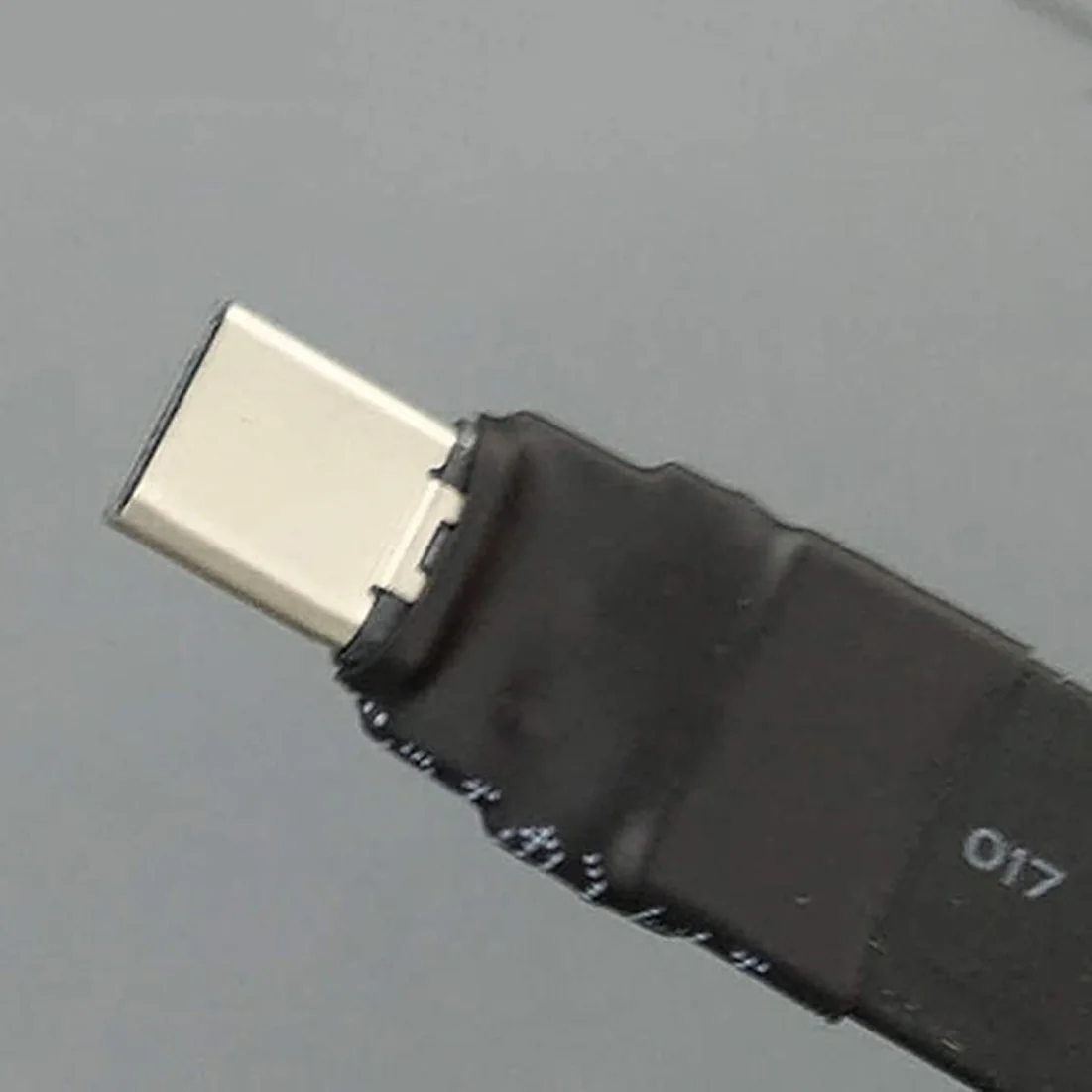

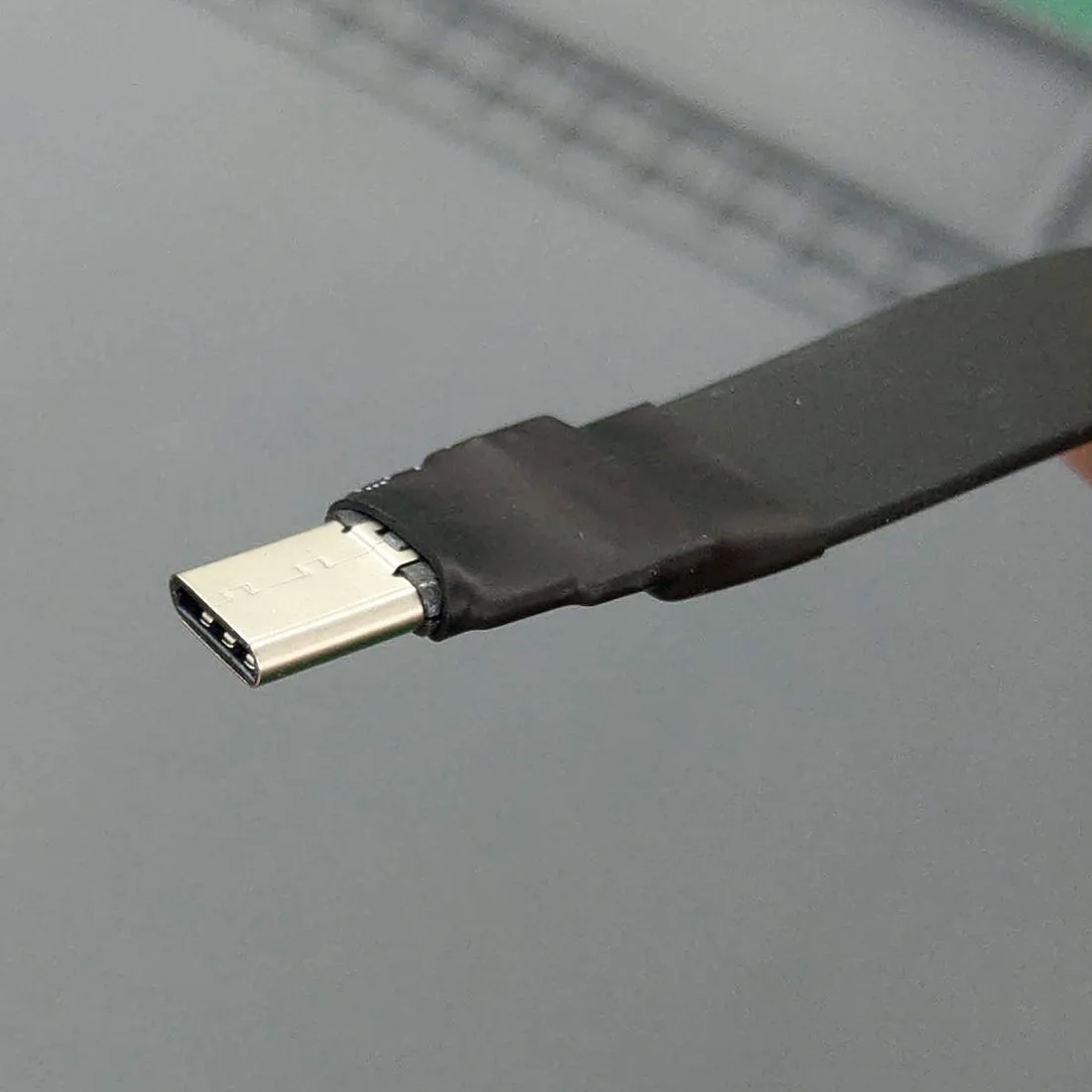

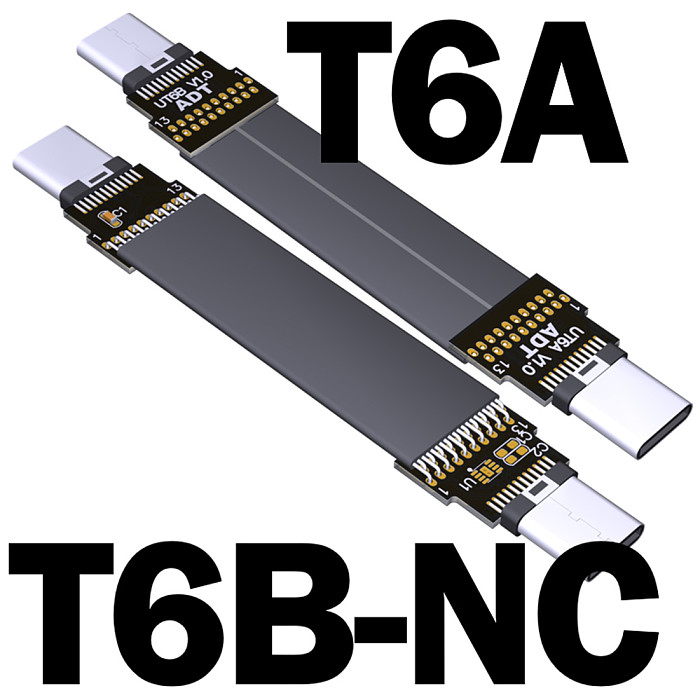

ADT-Link USB 3.2 Type C To Type C Extension Cable Shield FPV FPC Ribbon Flat USB C Cable 3A 20Gbps Gen2 x 2 EMI Shielding

Brand: ADT-Link

Size: 15cm

Weight: 7g

Quantity:1pc

product description:

Product model: UTT-20G series products

Product name: USB3.2 Type C adapter extension cable

Wire length: 3-300cm (support length customization, if you need other lengths, please contact us to change the price, thank you!)

Adaptation range: USB 3.2 USB-C to USB-C

Speed bandwidth: USB 3.2 standard, Gen2x2 20G.bps (0.5 meters support Gen2, 3 meters support Gen1)

Current capacity: 3A (measured to support 3A within 50cm, 1.5A within 1 meter)

Product application: GPS navigator, storage device, imaging device, ROCK Pi 4 Raspberry Pi MCU development board, built-in USB device to extend the purpose of adapter, convenient for USB power supply and USB signal transmission of SLR handheld pan/tilt, etc.

Purchase restriction: This product is designed to connect to built-in USB devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support return or exchange. Please consider carefully before placing an order.

Procurement Tips: Be sure to buy 1~2 samples first, and then purchase in bulk after testing and verification.

Description of wire length:

The length of the wire in our shop refers to the part of the visible wire, excluding PCB and connectors.

Product advantages:

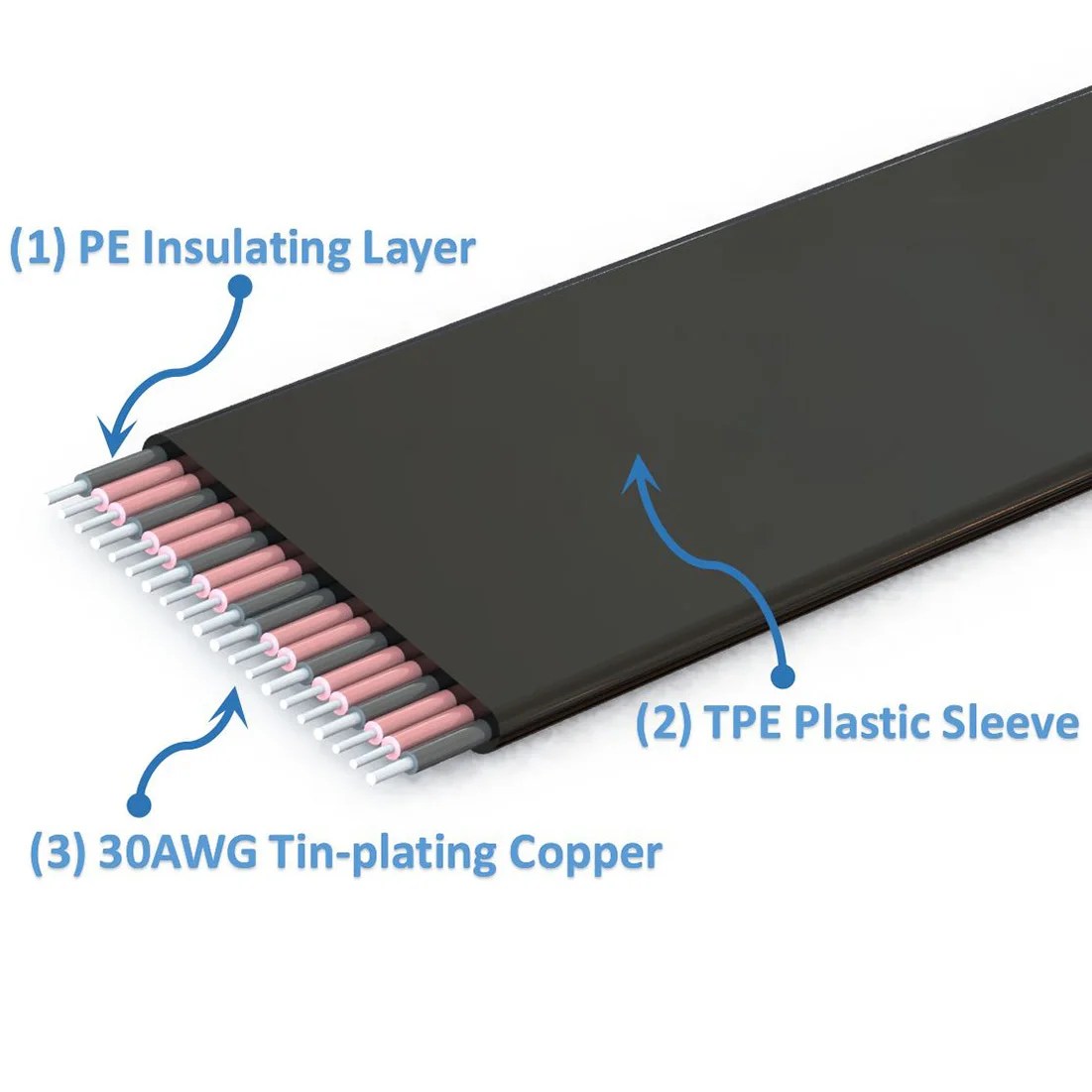

1. Wire advantage, using German patent imported wire.

2. Cable length advantage, from 3 cm to 3 meters can be customized.

3. The differential signal has no via hole design, the signal is pure, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there will be no CAF micro short circuit phenomenon, and the product is durable.

4. The PCB is made of high-quality materials with high frequency and low resistance. The PCB is made of precision. The PCB is made of high TG plates. The thickness of the copper material is thickened to 1oz. The PCB power circuit is strengthened and the use of 2 5V power core wires is strengthened to transmit current more strongly Support up to 3A.
