ADT-Link Type C To Micro USB 3.0 Type-c 90 Degree Adapter 15cm FPC Ribbon Flat USB-C to Micro-B 3.0 OTG FPV Cable 3A 5Gbps

US$ 4.58

Version

Estimate Shipping Cost

Detail
- Product Name: ADT-Link Type C To Micro USB 3.0 Type-c 90 Degree Adapter 15cm FPC Ribbon Flat USB-C to Micro-B 3.0 OTG FPV Cable 3A 5Gbps
- Item NO.: F42426-F42439
- Weight: 0.021 kg = 0.0463 lb = 0.7408 oz
- Category: Consumer Electronics > Computer Accessories > Wire & Cable & Cord
- Brand: ADT-Link
- Creation Time: 2020-12-11

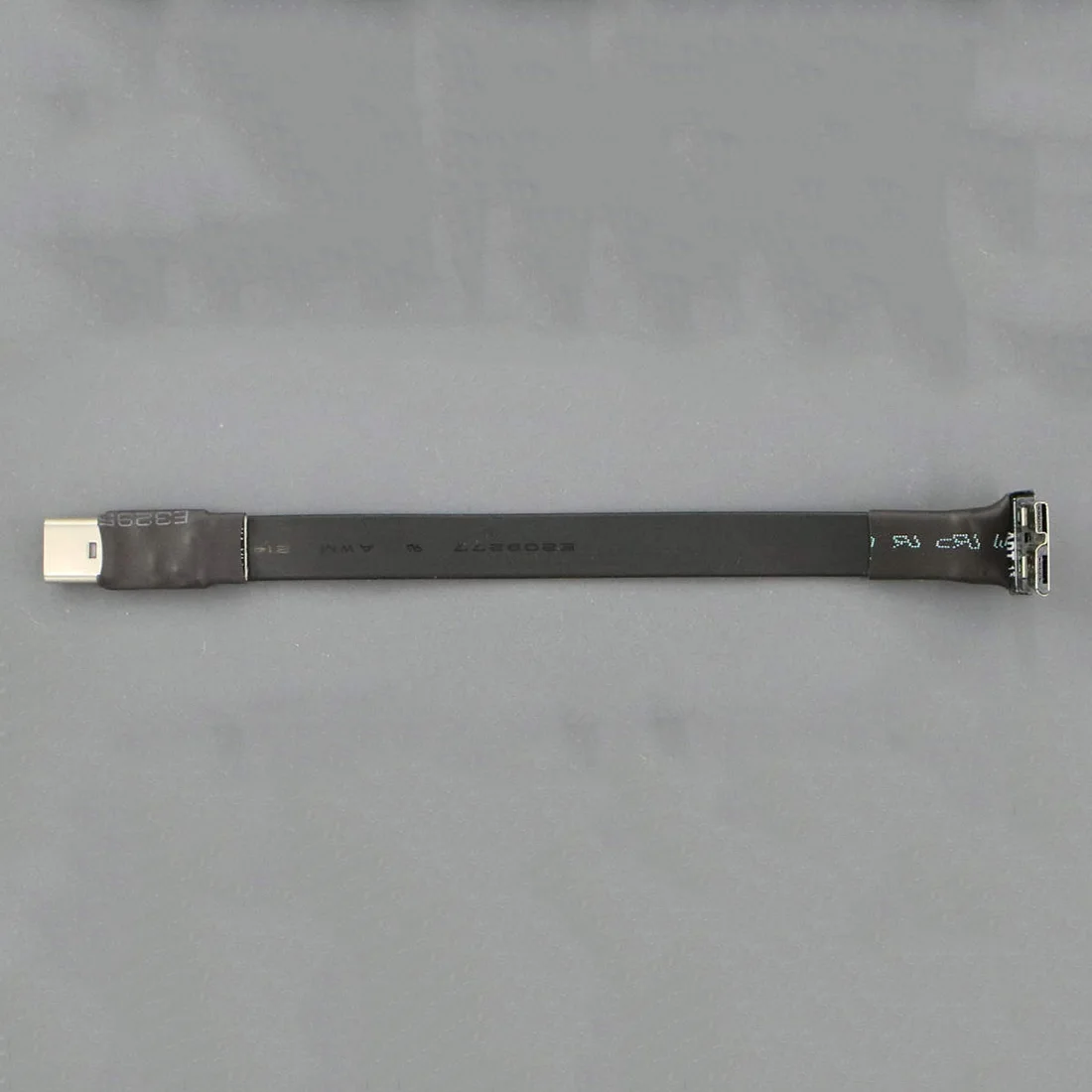

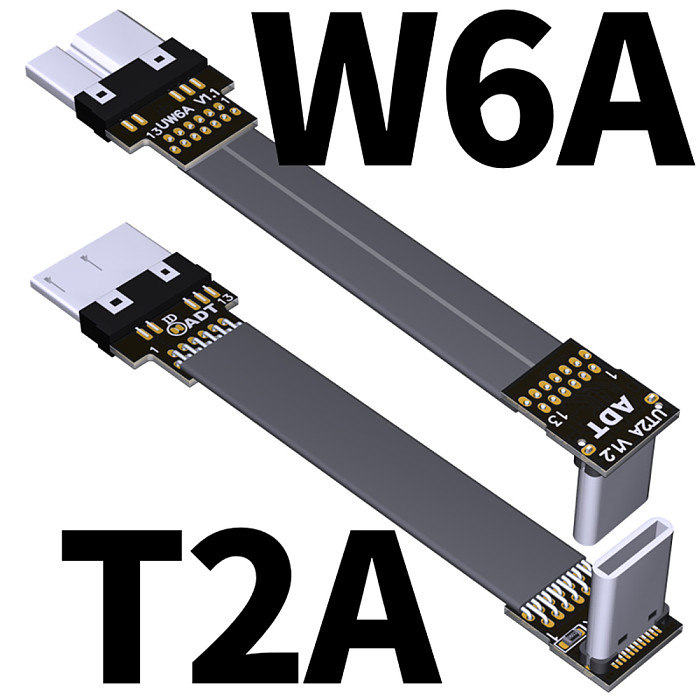

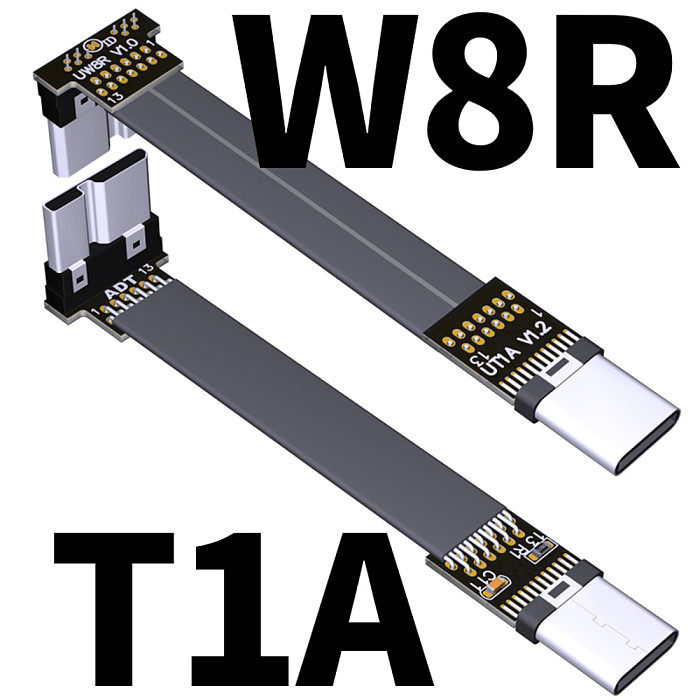

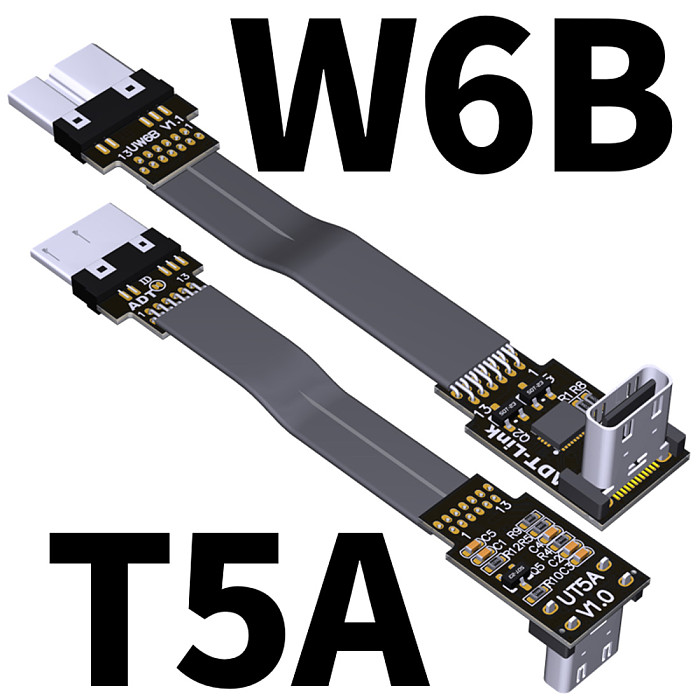

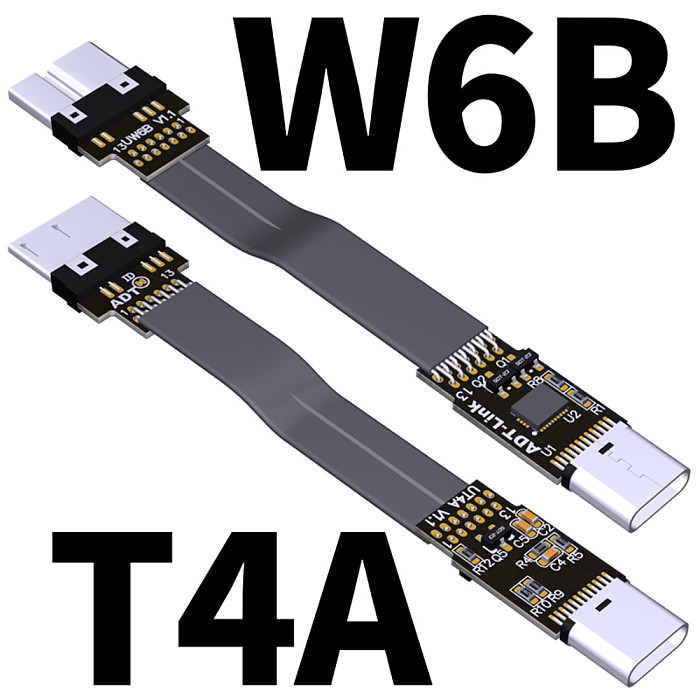

ADT-Link Type C To Micro USB 3.0 Type-c 90 Degree Adapter 15cm FPC Ribbon Flat USB-C to Micro-B 3.0 OTG FPV Cable 3A 5Gbps

Brand: ADT-Link

Colour: Black

Weight: 6g

product description:

Product model: UTW3-OTG series products

Product name: Type-C to Micro-B extension cable

Wire length: 15cm (0.03m-3m support length customization, if you need other lengths, please contact us to change the price, thank you!)

Adaptation range: USB-C to micro-B OTG

Speed bandwidth: USB 3.0 standard 5G/bps high speed

Current capacity: 3A (measured to support 3A within 50cm, 1.5A within 1 meter)

Product application: Intel UP Board built-in USB device extension and adapter use, microcontroller development board and other devices connected to industrial cameras, hard disk boxes and other extension uses through micro-B3.0 OTG

Purchase restriction: This product is designed to be connected to built-in MicroUSB OTG devices. It cannot be used for general external purposes. It is limited to product engineers to specify purchases. Individual buyers are not allowed to place orders. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support return or exchange. Please consider carefully before placing an order.

Procurement Tips: Be sure to buy 1~2 samples first, and then purchase in bulk after testing and verification.

Description of wire length:

Wire length refers to the visible wire part, excluding PCB and connectors.

Product advantages:

1. Wire advantage, using German patent imported wire, stable transfer.

2. Cable length advantage, from 3 cm to 3 meters can be customized.

3. The differential signal has no via hole design, the signal is pure, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there will be no CAF micro short circuit phenomenon, and the product is durable.

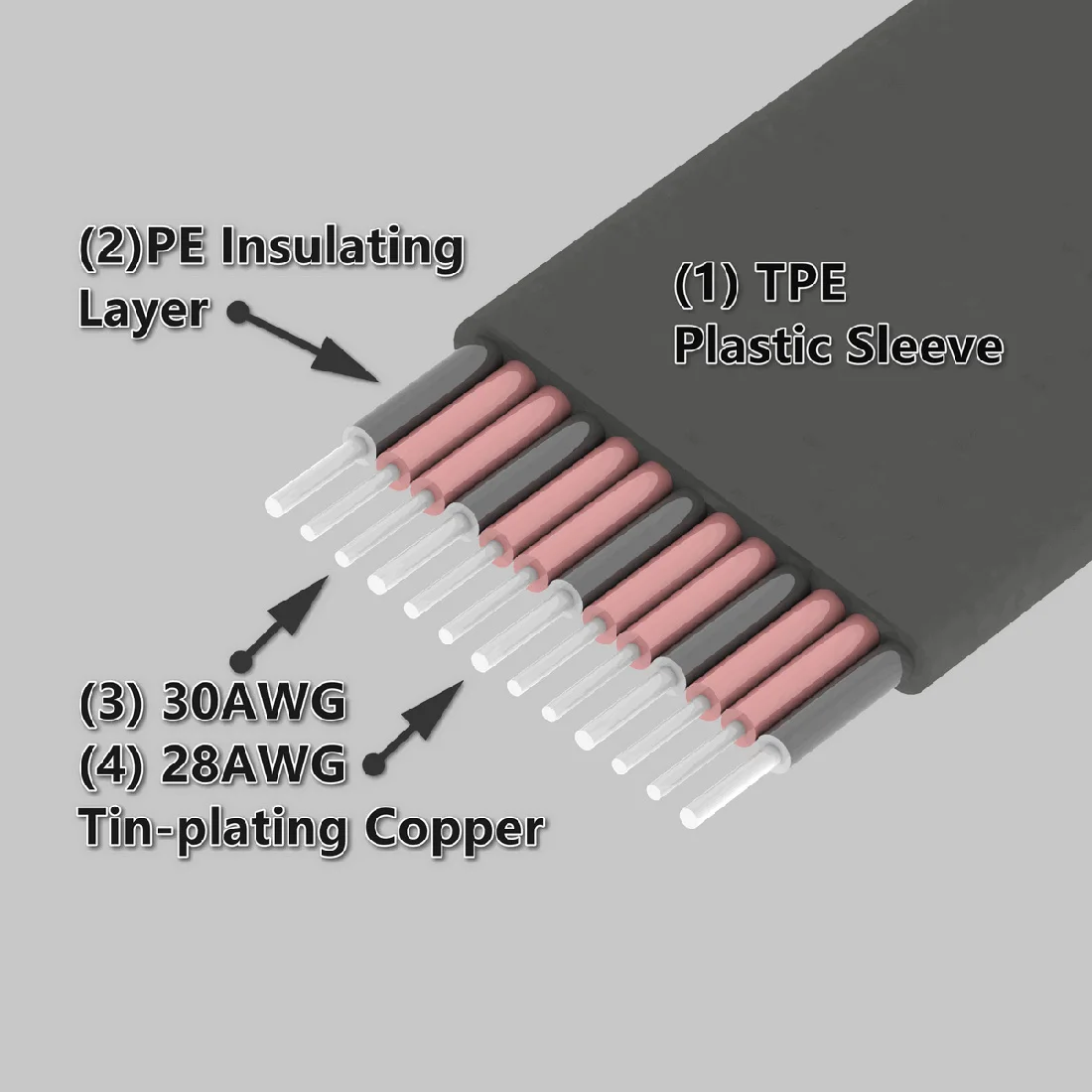

4. The PCB is made of high-quality materials with high frequency and low resistance, the PCB is miniaturized design, the product is precise in workmanship, the PCB uses high TG plate, the copper thickness is thickened to 1oz, the PCB power circuit is strengthened, and the flexible flat cable uses 2 5V power core wires 3 A grounding wire, so that the transmission current is stronger, and the wire length can support up to 3A within 1 meter.
