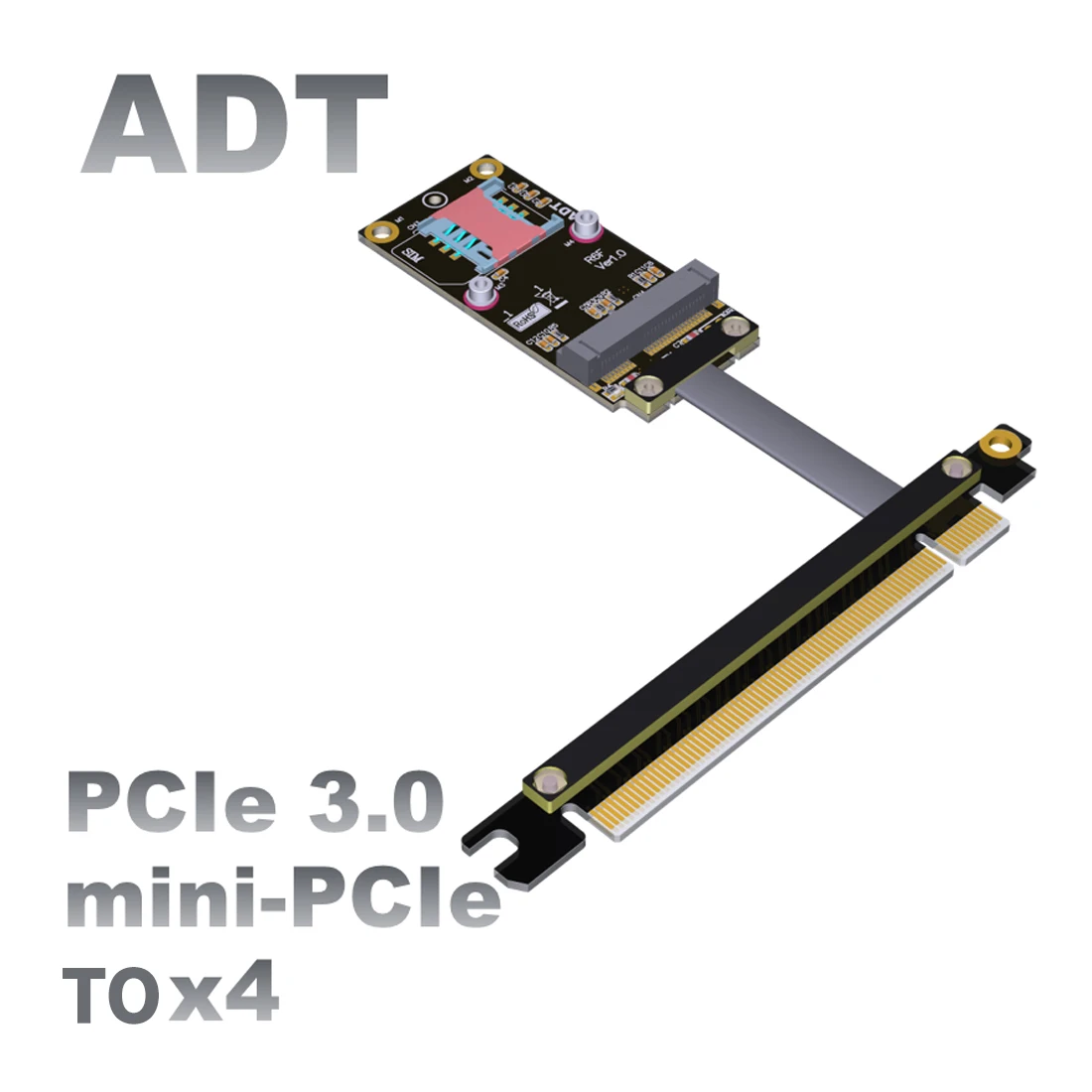

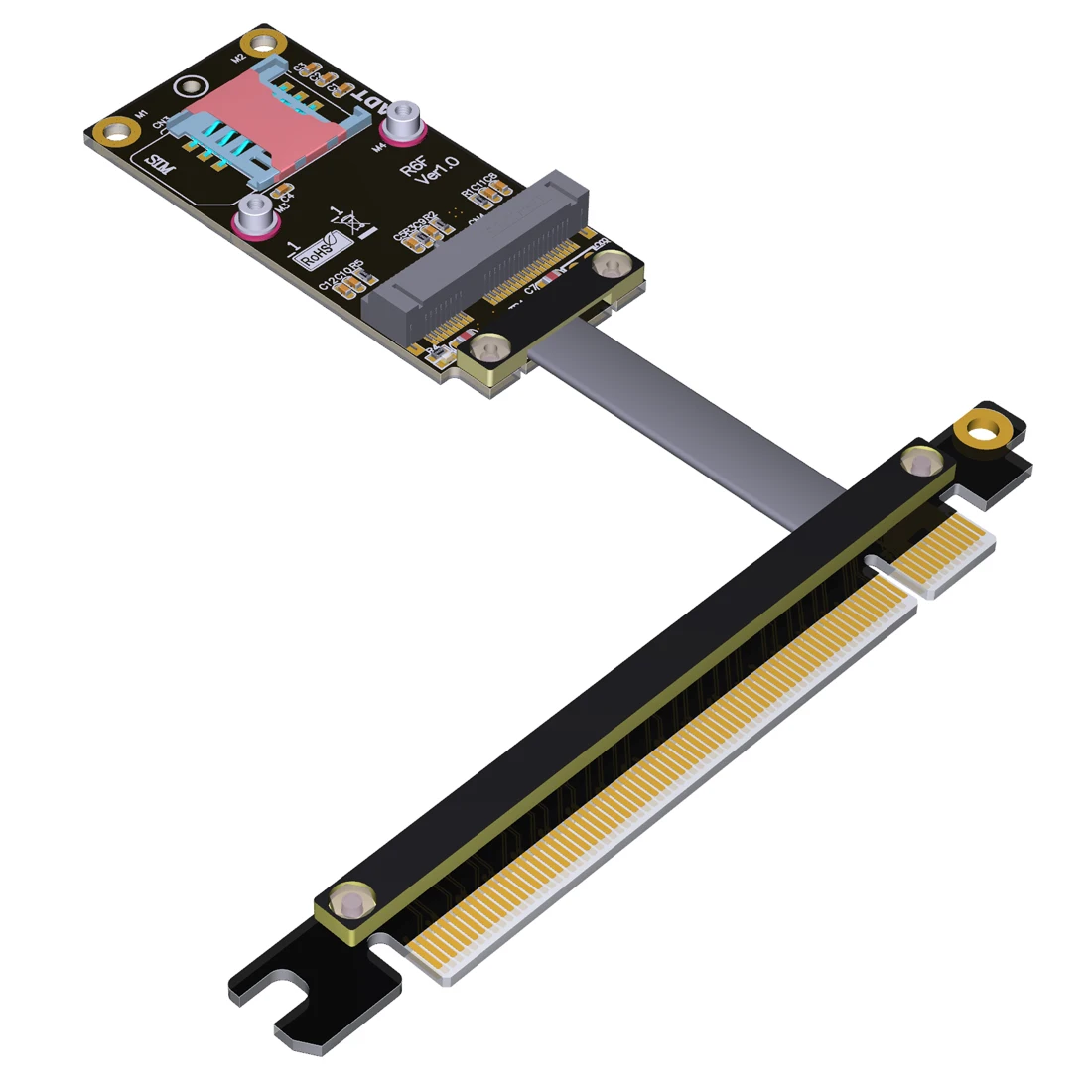

ADT-Link PCI-E x16 To miniPCIe Extension Cord Adapter Cable gen3 8G/bps PCIe x16 mini PCIe For Wireless Card

Brand: ADT-Link

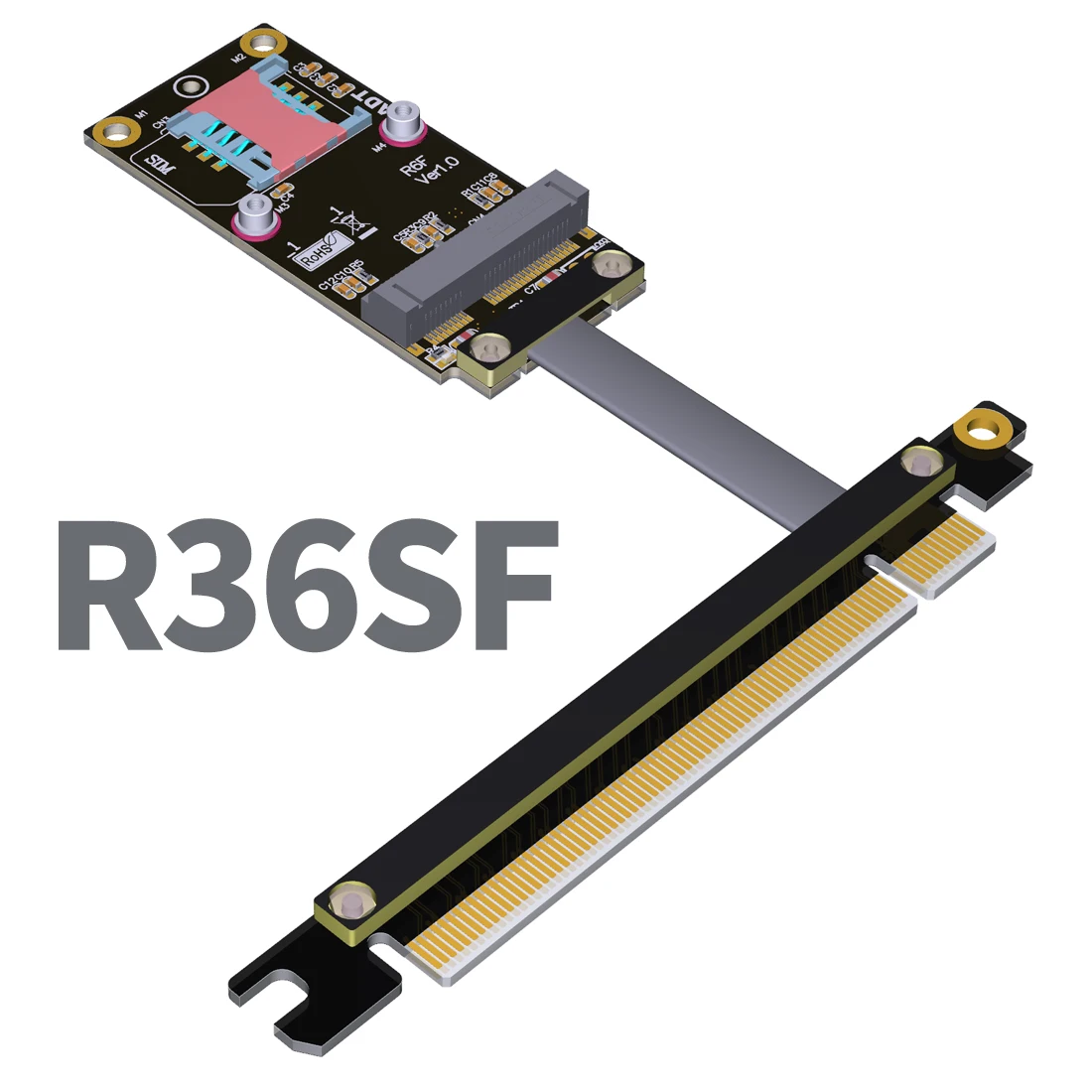

Product model: R36SF, (R36 series)

Product Name: PCI-E X16 to mini-PCIe signal cable

Wire length: 3-100cm (support line length customization, different line lengths have different prices, please contact customer service for line length customization.)

Speed bandwidth: PCIe3.0x1 gen3 8G/bps

Product features: industrial control server equipment connection, PCIe signal high-speed transmission

Restrictions on use: Only for professional engineers to specify purchase, general use is not suitable, can not be used. Ordinary buyers do not buy.

Purchasing Tip: Be sure to buy 1~2 samples first and then purchase them in large quantities after verification.

Friendly Tip: This product has many compatibility problems. If you assemble it incorrectly or improperly, it will burn your device. Professional engineers are authorized to purchase. This product is a product that is not refundable, please consider and confirm the order and then purchase.

The length of the wire instructions:

Our wire length refers to the visual wire part, does not include the PCB and connector.

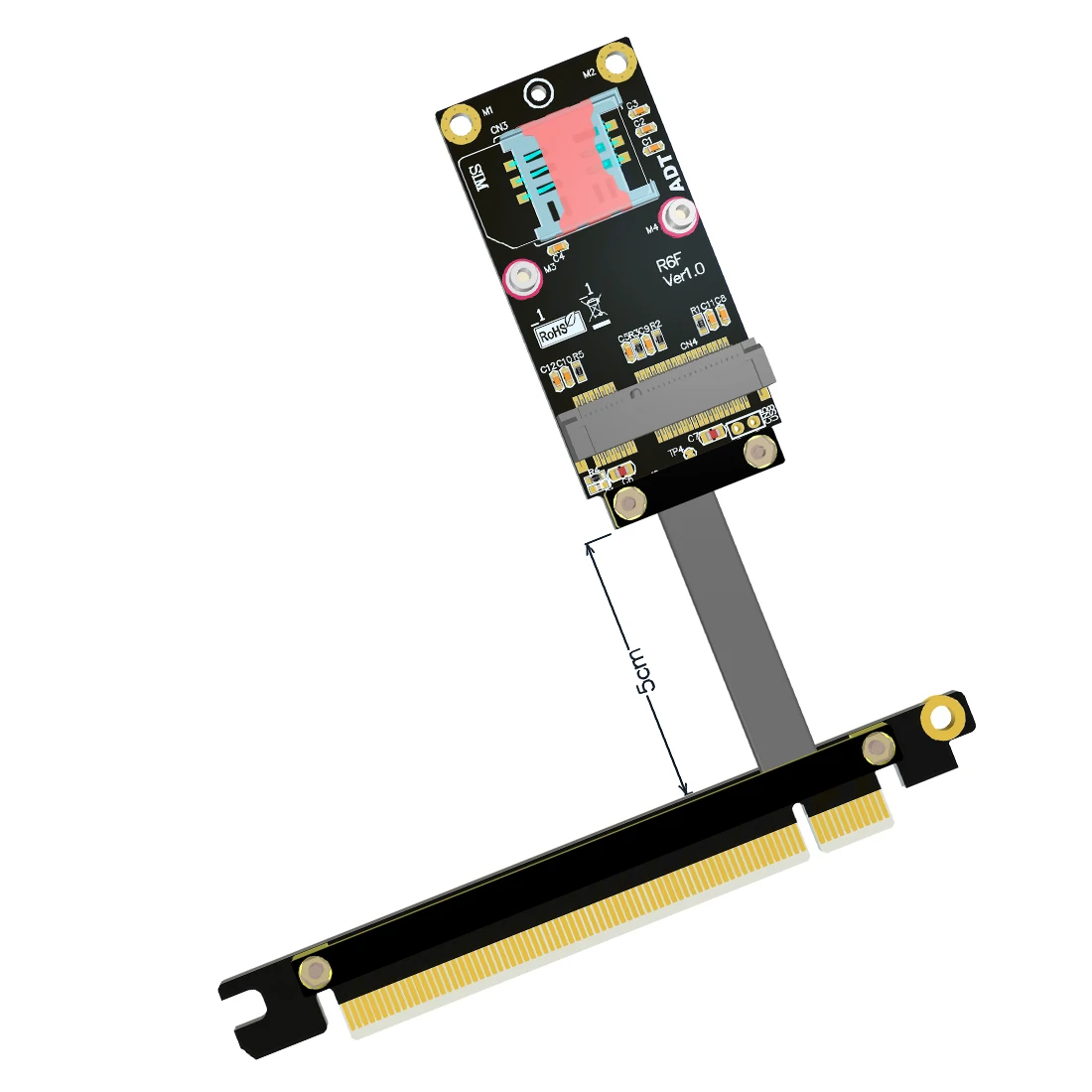

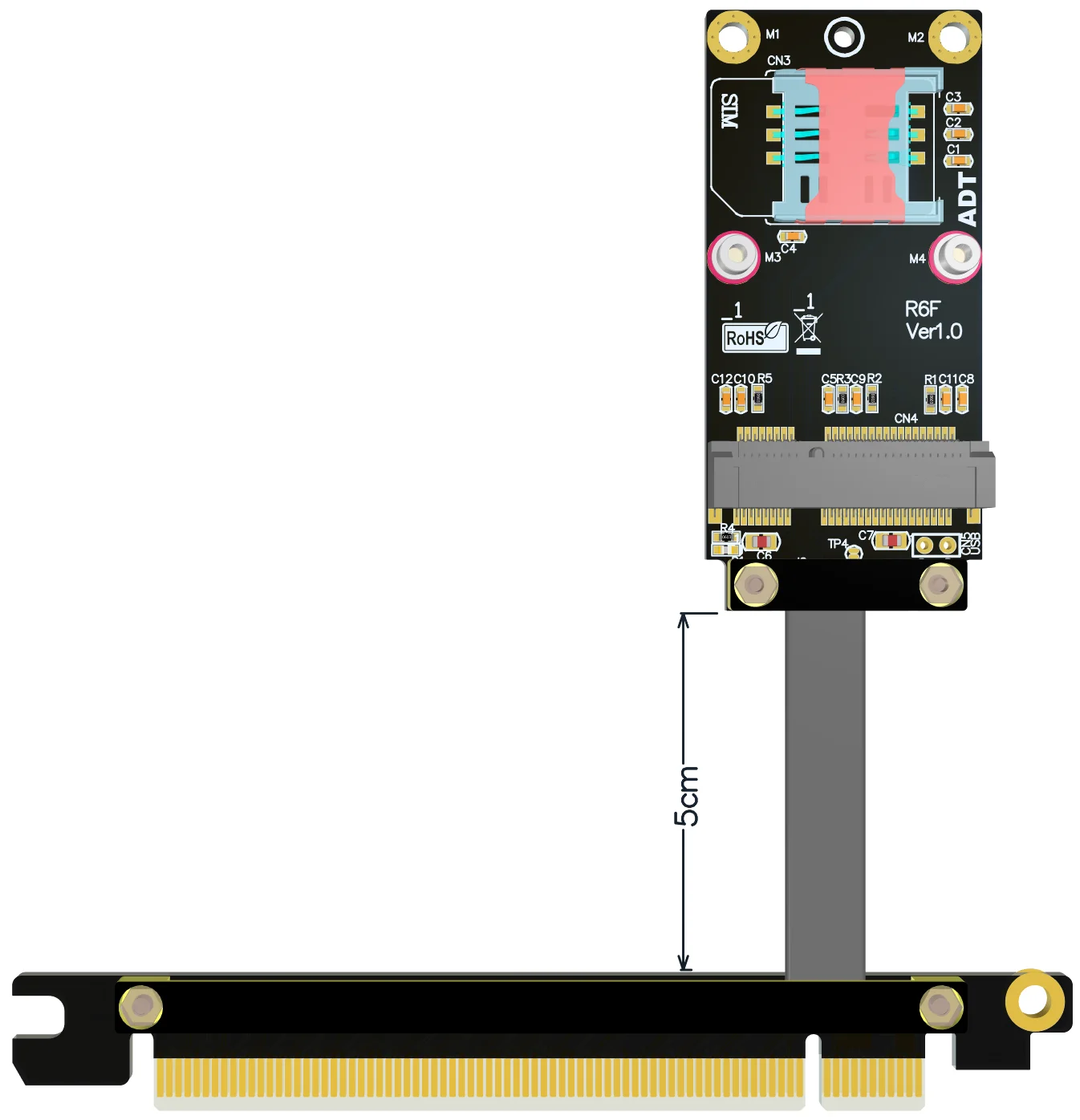

The following models for R36SF - 5 cm, refer to the below dimension.

Product advantage:

1. Wire advantages: using the German patent imported wire, using the Lotes connectors which imported from Taiwan, high frequency support PCIe 3.0 stable transfer.

2.Cable length: from 5 cm to 100 cm can be customized, our wire has a low impedance, the cable below 60cm can be stable at PCIe3.0 full speed reading and writing.

3.Differential signal without hole design, there is no problem of signal attenuation interference in a parasitic capacitance and parasitic inductance, there will be no more CAF micro short circuit, cable is durability.

4.PCB use high frequency low resistance of materials with high quality, PCB using high TG board, copper thickness thicken to 1oz, gold finger plating enough gold, Good conductive performance, can reduce oxidize higher impedance caused by the crash blue screen.

Purchase Notice:

1. You must identify the direction when you plug in this cable. Don’t reverse insert and bend, prevent burning equipment.

2. All kinds of Motherboard and equipment condition such as signal driving ability is different, the results of our test does not guarantee that it is the same as your test results. You need to know, as long as using a extension cable, the signal will have a loss. The buyer who requires perfectly, please don't buy.

3. The graphics card or motherboard is an electronic equipment which will increase over time and oxidative aging. It will become more unstable if plug in an extension cable. Does not support the old equipment. The device which is more than four years, please don't buy.

4. Only use for Engineering professionals product testing, If other purposes or don't have DIY ability, please don't buy.
