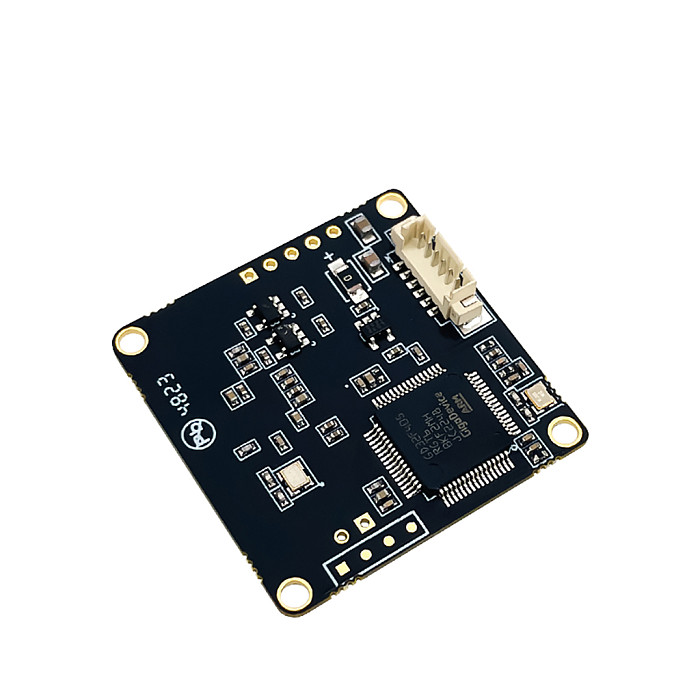

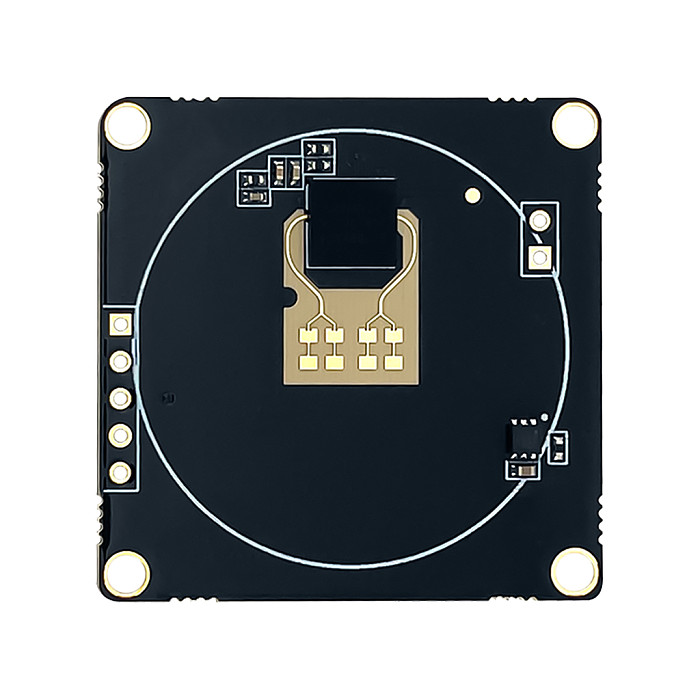

HI-LINK 80G Liquid Level Detection Sensor Radar Module LD8001H Non-contact Low-power Long-distance Item NO.: F51812

HI-LINK 80G Liquid Level Detection Sensor Radar Module LD8001H Non-contact Low-power Long-distance

Product Description
LD8001H is a radar module specifically designed for hydrological detection.
This module adopts FMC W mode, non-contact installation design, and compact size,
Compact structure. High precision, low power consumption, strong anti-interference ability,
Suitable for water level monitoring in lakes, rivers, flash floods, reservoirs, sewage pipelines, and other areas.


Product features
-Working frequency: 80GHz (77~81GHz)
-Output power: 13dBm (Typ.) - Modulation method: FMC W
-Detection angle: horizontal ± 25/vertical ± 25 ° (-3dB)
-External lens antenna: horizontal ± 3 °/vertical ± 3 °
-Detection distance: 0.15~40m - Measurement accuracy: ± 5mm
-Resolution: 1mm
-Start time: 100ms fastest
-Power supply requirements: 3.7V (3.5-5V)/~30mA
-External dimensions: 35 x 35mm
-Working temperature: -45 ℃~+85 ℃
-Data format: UART output (ASCII/Modbus protocol)
The working frequency band of the radar is 80GHz, and the maximum measurement range is 40 meters,
According to the size of the object's RCS, there may be a deviation in the maximum detection distance.
