AB-915 (902-928MHz) Built-in SAW filter For Helium Hotspot Helium NebraBobcat300 Mining Machine Signal Enhancement With 5V1A Power Adapter

AB-915 (902-928MHz) Built-in SAW filter For Helium Hotspot Helium NebraBobcat300 Mining Machine Signal Enhancement With 5V1A Power Adapter Item NO.: F46977-A

US$ 54.59 ~ US$ 60.65
Quantity 0-3 4-50 51-100
Discount 0% OFF 5% OFF 10% OFF
Price US$ 60.65 US$ 57.62 US$ 54.59
Sold Out

Copy and share this link on social network or send it to your friends

Copy
  • AB-915 (902-928MHz) Built-in SAW filter For Helium Hotspot Helium NebraBobcat300 Mining Machine Signal Enhancement With 5V1A Power Adapter
Product Name AB-915 (902-928MHz) Built-in SAW filter For Helium Hotspot Helium NebraBobcat300 Mining Machine Signal Enhancement With 5V1A Power Adapter
Item NO. F46977-A
Weight 0.25 kg = 0.5512 lb = 8.8185 oz
Category Consumer Electronics > Computer Adapter
Creation Time 2022-05-13

AB-915 (902-928MHz) Built-in SAW filter For Helium Hotspot Helium NebraBobcat300 Mining Machine Signal Enhancement With 5V1A Power Adapter

902MHz-928MHz(AB-915). A built in filter avoids interferences with out-of-band signals


It is suitable for  the 902MHZ-928MHZ frequency band in North America.







Working frequency:


AB-915:902MHz – 928MHz

RX gain:

11dB±2dB

NF:

≤1.5dB

TX gain:

0dB – 10dB (±2dB)Adjustable

TX/RX switching threshold:

-2dBm

TX input power range:

1dBm - 20dBm

Maximum transmit power:

31dBm (1.3w)

Status indication :

RX status: Green light is on, Blue light is off


TX status: Blue light is on, Green light is off

Operating Voltage :

5V(4.75V-5.25V)

Working current :

RX status :10mA(±3mA)


TX status :≤720mA

Overall dimension :

79mm*64mm*23mm(L*W*H)



Tips:  The output power of the upper-level device must be at least 3dB higher than the switching threshold, which means that the output power of the upper-level device cannot be lower than 1dBm, otherwise it may cause unstable operation.

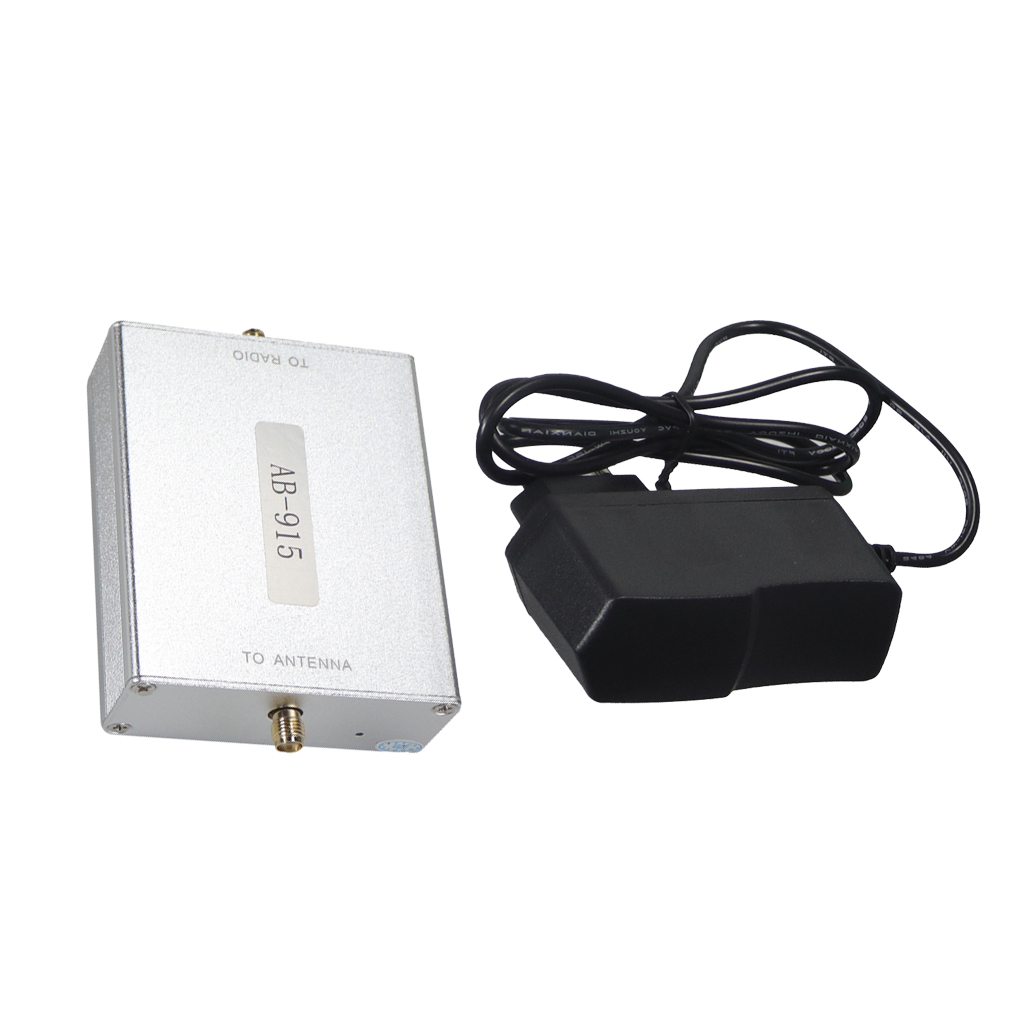

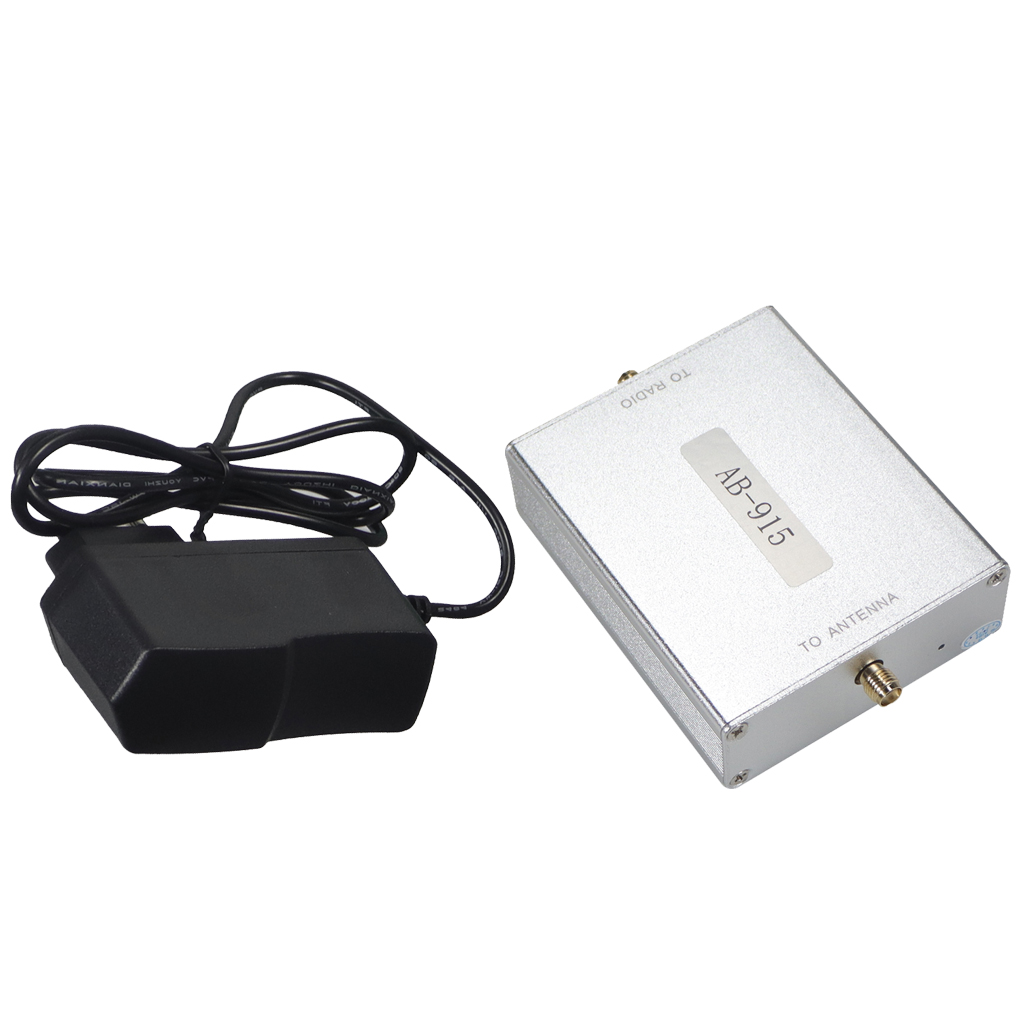

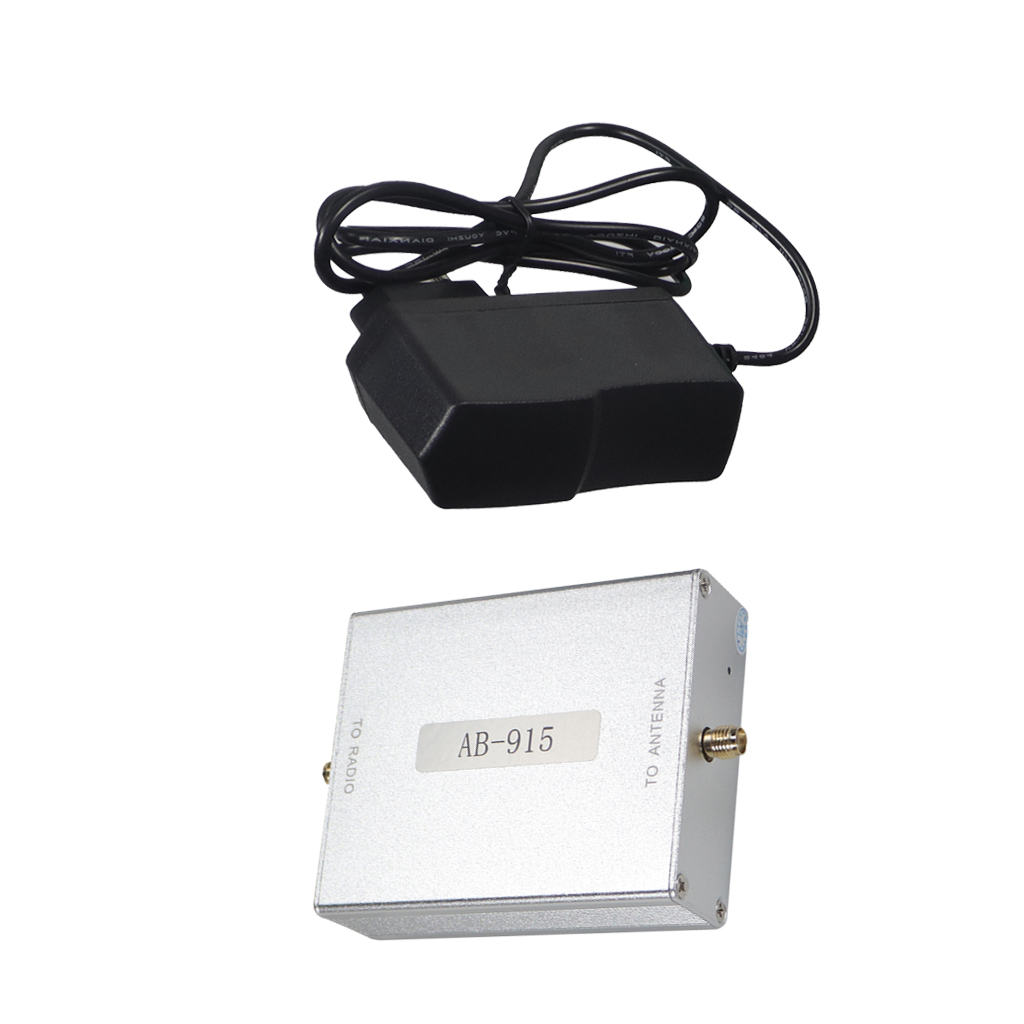

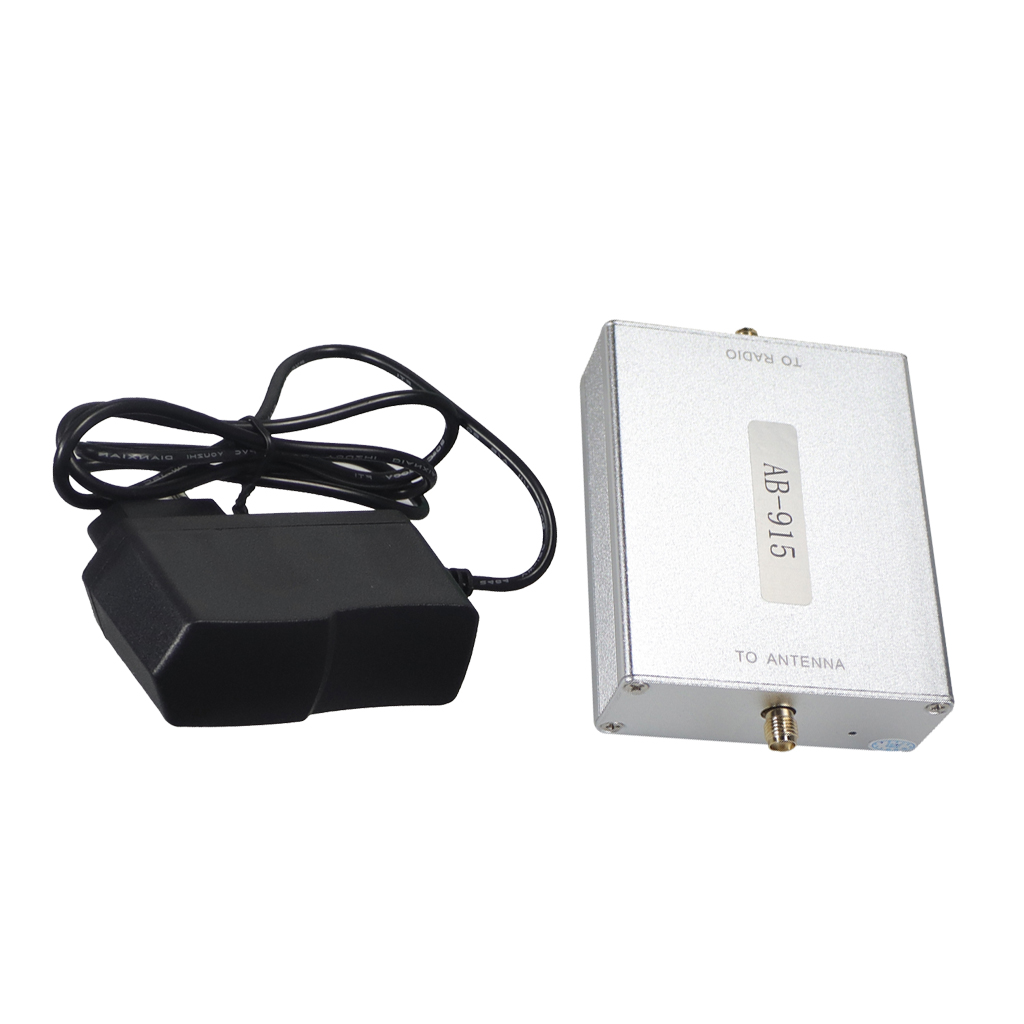

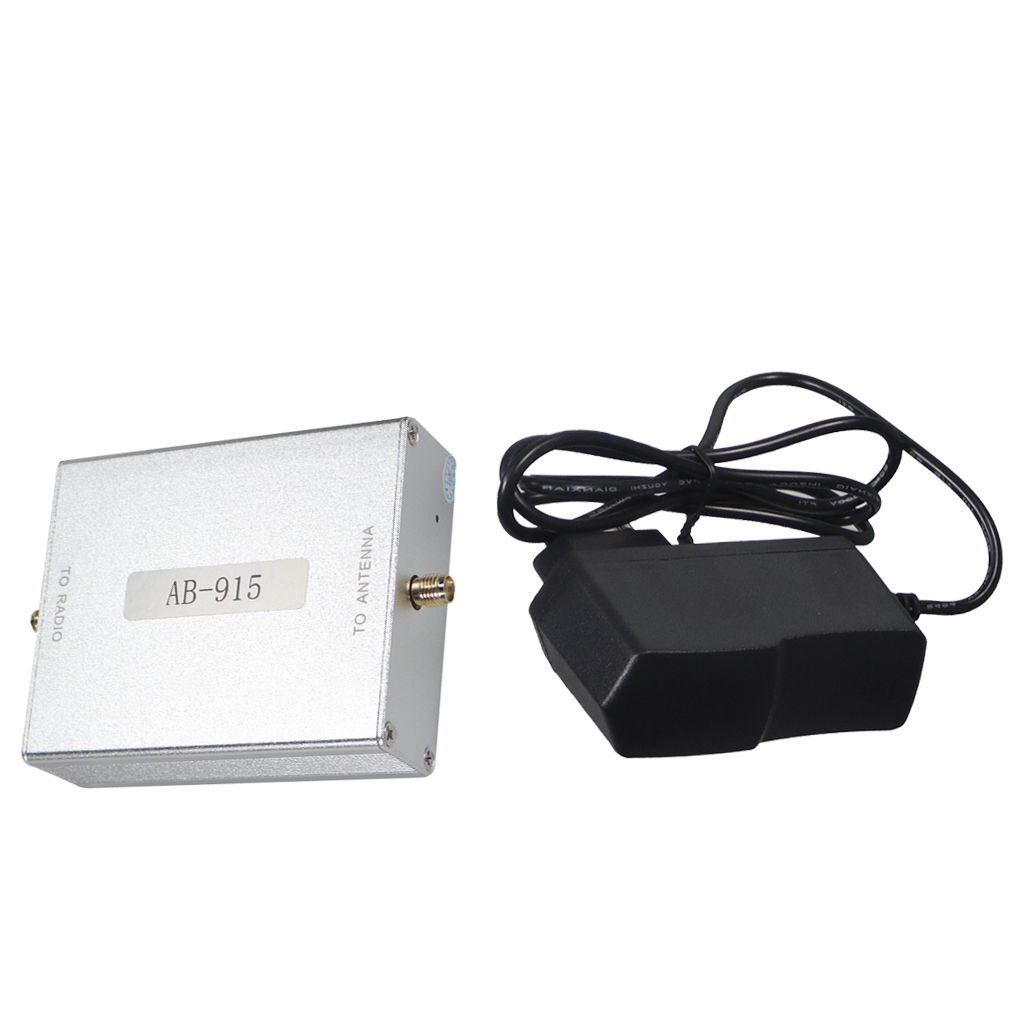

The package contains:
AB-915 Signal Booster*1
Power adapter*1
