CopyProduct Name | 9imod Waterproof Servo DSC35MG 35KG DSC45MG 45KG Aluminum Case Digital Metal Gear HV Coreless Servo for RC Car Truck Crawler Boat Robot DIY |
Item NO. | F45006-D1 F45006-D2 |
Weight | 0.09 kg = 0.1984 lb = 3.1747 oz |
Category | DIY RC Drone Accessories > Servo |
Creation Time | 2021-10-27 |

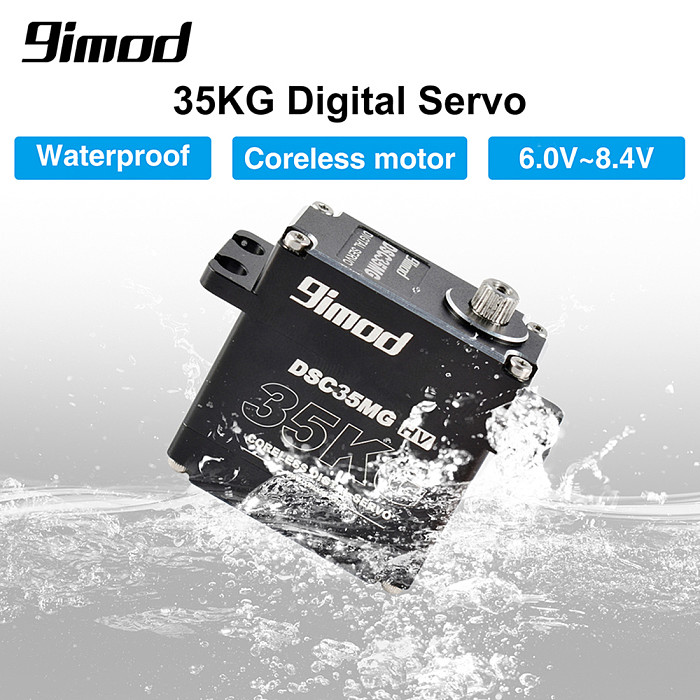

9imod Waterproof Servo DSC35MG 35KG 120 Degree Aluminum Case Digital Metal Gear HV Coreless Servo for RC Car Truck Crawler Boat
Features:
1.High voltage.
2.High performance digital High Voltage Coreless servo.
3.High-precision steel gears with hard anodizing.
4.Full CNC aluminium Shell structure.
5.Dual ball bearings.
6.Waterproof.
Description:
9imod DSC45MG Digital Waterproof servo,adopt Coreless motor,Compared
with ordinary servo, the speed is much faster and the reaction is also
fast,6.0V ~8.4V Operation Voltage Range,
It's a good accessory for your RC RC Car Truck Crawler Boat Robot and DIY model toy!
Specifications:
Brand:9imod
Model:DSC45MG
Color:black
Dead band width:2 usec
Gear Material:Metal Gear
Case Material:Aluminum Case
Control System:PWM Control (1500usec in the central point)
Operation Voltage Range:6.0V ~8.4V
Operation Temperature Range:-20C°~ +60C°
Circle:>60000 times without load
Operation Travel:60°±1
Limit angle :180°± 1
Direction:Re-clock wise/ Pulse Travel 500→2500 μsec
Diver type:Mos Drive
Motor Type:coreless Motor
Potentiometer Type:Direct Drive
Amplifier Type:Digital Control

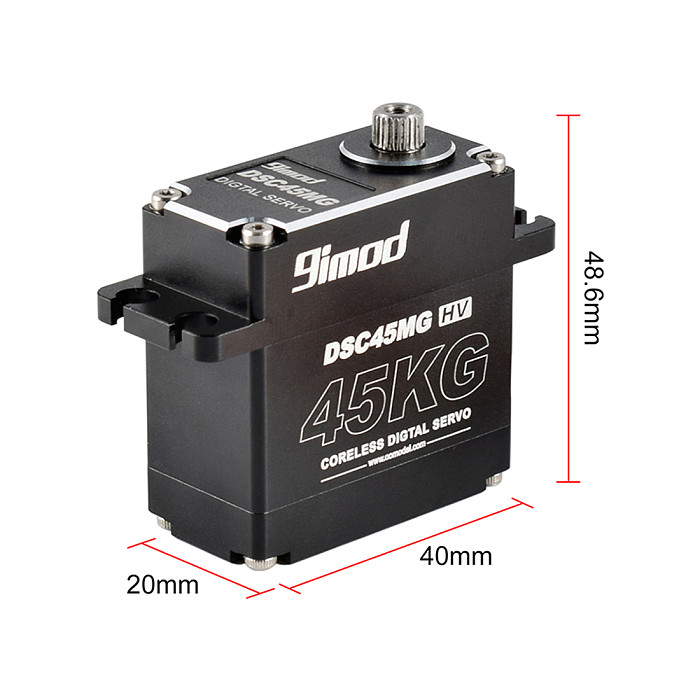

Dimensions:40x20x48.6mm
Weight::75g (without servo horn)
Standing Torque:0.12sec/60°,35kg-cm@6.0V 0.11sec/60°,45kg-cm@8.4V
Idle Current:350mA@6.0V 410mA@8.4V
Running Current:3500mA@6.0V 4000mA@8.4V
Ball Bearing:2BB
Connector Wire Length: 300MMJR Plug
Connector Wire Gauge:22AWG
Model:DSC35MG
Color:black
Dead band width:2 usec
Gear Material:Metal Gear
Case Material:Aluminum Case
Control System:PWM Control (1500usec in the central point)
Operation Voltage Range:6.0V ~8.4V
Operation Temperature Range:-20C°~ +60C°
Circle:>60000 times without load
Operation Travel:60°±1
Limit angle :180°± 1
Direction:Re-clock wise/ Pulse Travel 500→2500 μsec
Diver type:Mos Drive
Motor Type:coreless Motor
Potentiometer Type:Direct Drive
Amplifier Type:Digital Control
Dimensions:40x20x48.6mm
Weight::75g (without servo horn)
Standing Torque:0.09sec/60°,30kg-cm@6.0V 0.07sec/60°,35kg-cm@8.4V
Idle Current:300mA@6.0V 350mA@8.4V
Running Current:3000mA@6.0V 3800mA@8.4V
Ball Bearing:2BB
Connector Wire Length: 300MMJR Plug
Connector Wire Gauge:22AWG
