Product Name DarwinFPV Tyro 129 S FPV Drone Quadcopters Darwin129 280mm 7 Inch F4 OSD 50A BLHeli_S Dshot600 800mW 1500TVL
Item NO. F43967
Weight 0.72 kg = 1.5873 lb = 25.3973 oz
Category RC Toy Drone
Brand DarwinFPV
Creation Time 2021-05-26

Welcome to DarwinFPV shop.We are the design team from China with rich design experience in the field of FPV racing drone. We aim to provide low-cost and high-performance products for every friend in the world who loves flying. Thank you for choosing our products and wish you a happy and safe flight

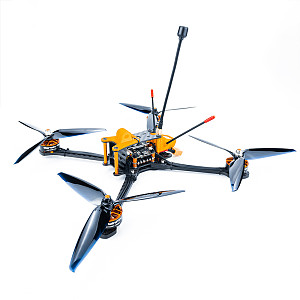

Item name:Darwin129


Camera upgraded to 1500TVL Darwin B19

Comeswithout battery,charger,receiverorremotecontroller.



Darwin129

Wheelbase:280mm

Framearmthickness:5mm

Framekitmaterial:3Kcarbonfiber

DrawinFPV

25071800KV 3-5S

Brushless Motor

Motor KV:1800KV

Idle Current (Io/10V):0.89A

Lipo Cell:3-5S

Weight:39g

Max Continuous Current:42A

Max Continuous Power:840W

Max thrust:1488g(4S/7")

Configu-ration:12N/14P

Motor Resistance (RM):0.0586 Ω

Stator Diameter:25mm

Stator Thickness:7mm

Motor Diameter:30.8mm

Motor Body Length:20mm

Overall Shaft Length:35mm

Prop adapter shaft:M5

Bolt holes spacing:16mm

Bolt thread:M3

Propeller:7”

4In1 50A Blheli_S ESC

F4-50A stack

Continuous current: 50A

Peak current: 60A (10S)

Lithium battery section number: 2-6S

BEC: 5V2A

ESC weight: 10.8g

Firmware: BL_S

Maximum support throttle signal: DSHOT600

Mounting hole: M3 30.5 * 30.5mm




F4FlightController


F4 Flight contro

Lithium battery section number: 3-6S

BEC: 10V 1A, 4.5V, 3.3V

MCU: STM32F405

Gyro: MPU6000

OSD: AT7456E

Firmware: MATEKF405

Weight: 7.2g

Mounting hole: M3 30.5 * 30.5mm

Support barometer, black box

Bluetooth





5.8G40CH800mw

VTXTX805

Item name: FPV Transmitter VTX

Frequency: 5.8G Channels: 40CH

Input voltage: 7V~24V

5V camera supply: 120mA(MAX)[email protected] 5V

camera supply: 200mA(MAX)[email protected] 5V

camera supply: 300mA(MAX)[email protected] 5V

camera supply: 350mA(MAX)[email protected] Extra

features: Smart audio

Power supply: 5V output for Camera

Output power: 25mW/200mW/600mW/800mW

switchable Antenna connector: MMCX

Cable connector: Solder pads

Dimensions: 36mm*22mm*5mm,30.5 stackable hole

Weight: 8g(excluding antenna)

Darwin 19 camera

Item Name: B19

Resolution: 1500TVL

Lens: 2.1mm

TV System: NTSC & PAL (switchable)

DNR: 3DNR

Min. Illumination: 0.001LUX

Shutter Speed: PAL:1/50~100,000; NTSC: 1/60~100,000

Wide Power Input: 5-30V

Working Temperature: -20℃ ~ +60 ℃

Weight: 6.0g

Dimension: 19*19*19mm



Darwin M80 GPS

Item Nome:GPS+GLONASS

Power Supply:5V

Support Rate:115200dps

Receiving Sensitivity:Trace-167dBm Capture-160dBm

Size:18mm*18mm*7.1mm

Gemfan Flash 7040-3

Flash Durable 3 Blade

7040-Clear 2L2R

Material:PC

Mountinghole:5mm

Centerthickness:8mm

Quantity:1pairs

Weight:7.9g

Color:Black/Transparent Random

LipoBattery

Notincluded

Recommend4S
