500g Ω (500kM Ω)/2W ultra-high resistance resistor with compact aluminum alloy shell and BNC interface Item NO.: F55659

US$ 70.79

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

500g Ω (500kM Ω)/2W ultra-high resistance resistor with compact aluminum alloy shell and BNC interface

Product Name	500g Ω (500kM Ω)/2W ultra-high resistance resistor with compact aluminum alloy shell and BNC interface
Item NO.	F55659
Weight	0.055 kg = 0.1213 lb = 1.9401 oz
Category	Industrial Technology
Creation Time	2026-07-10

500g Ω (500kM Ω)/2W ultra-high resistance resistor with compact aluminum alloy shell and BNC interface

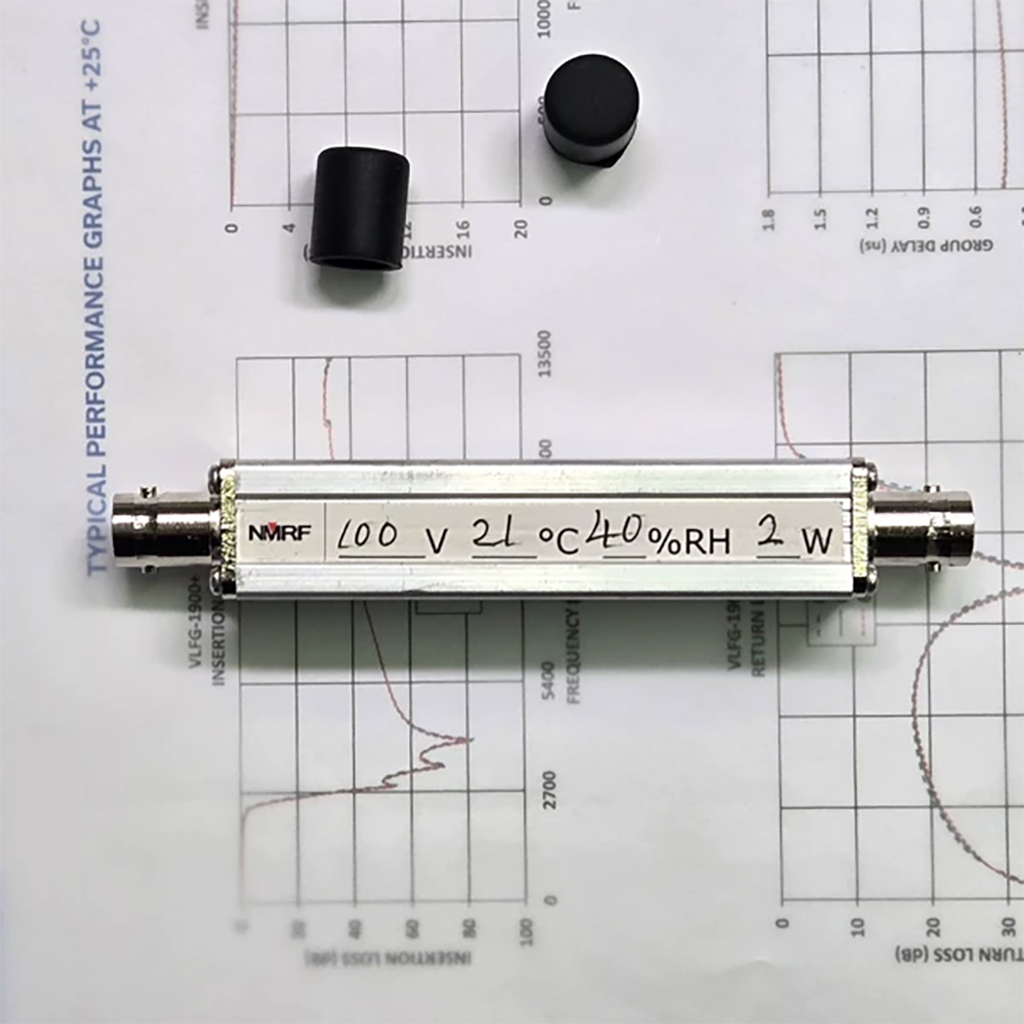

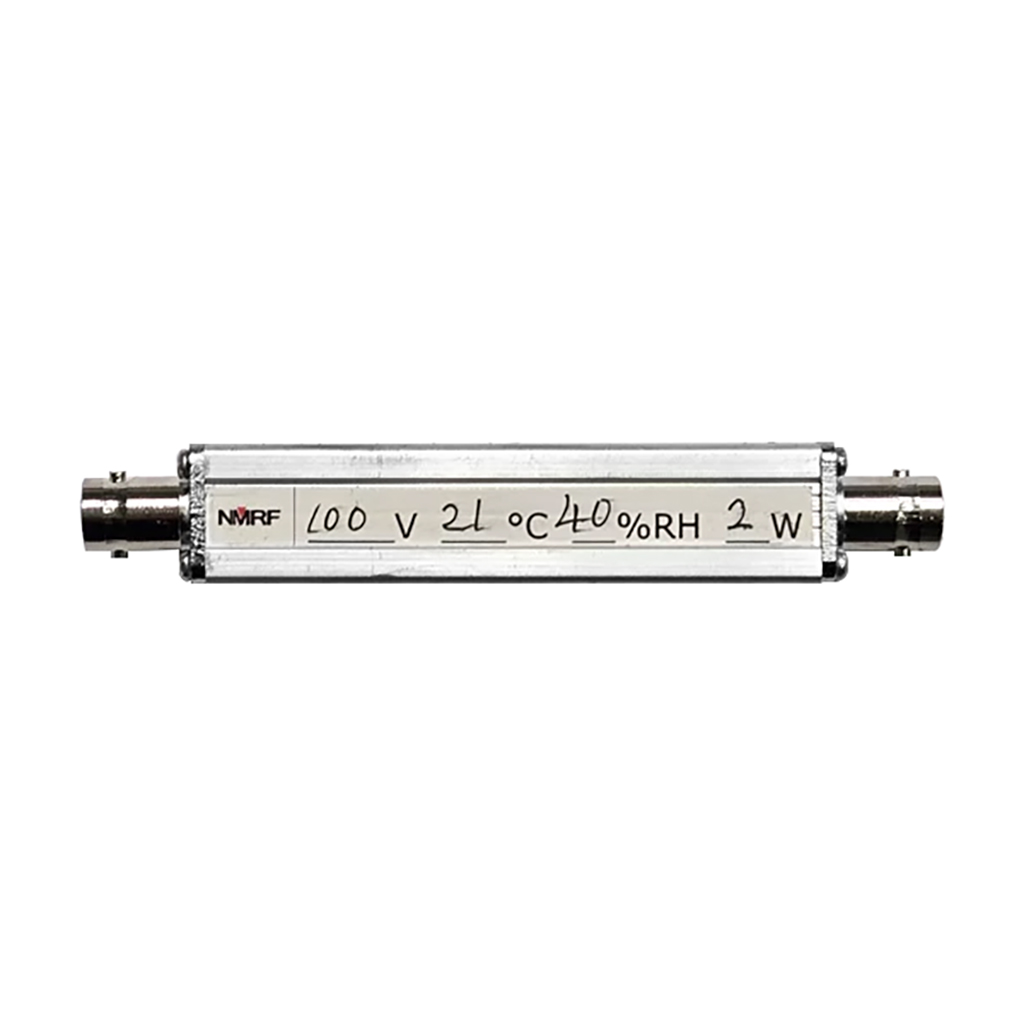

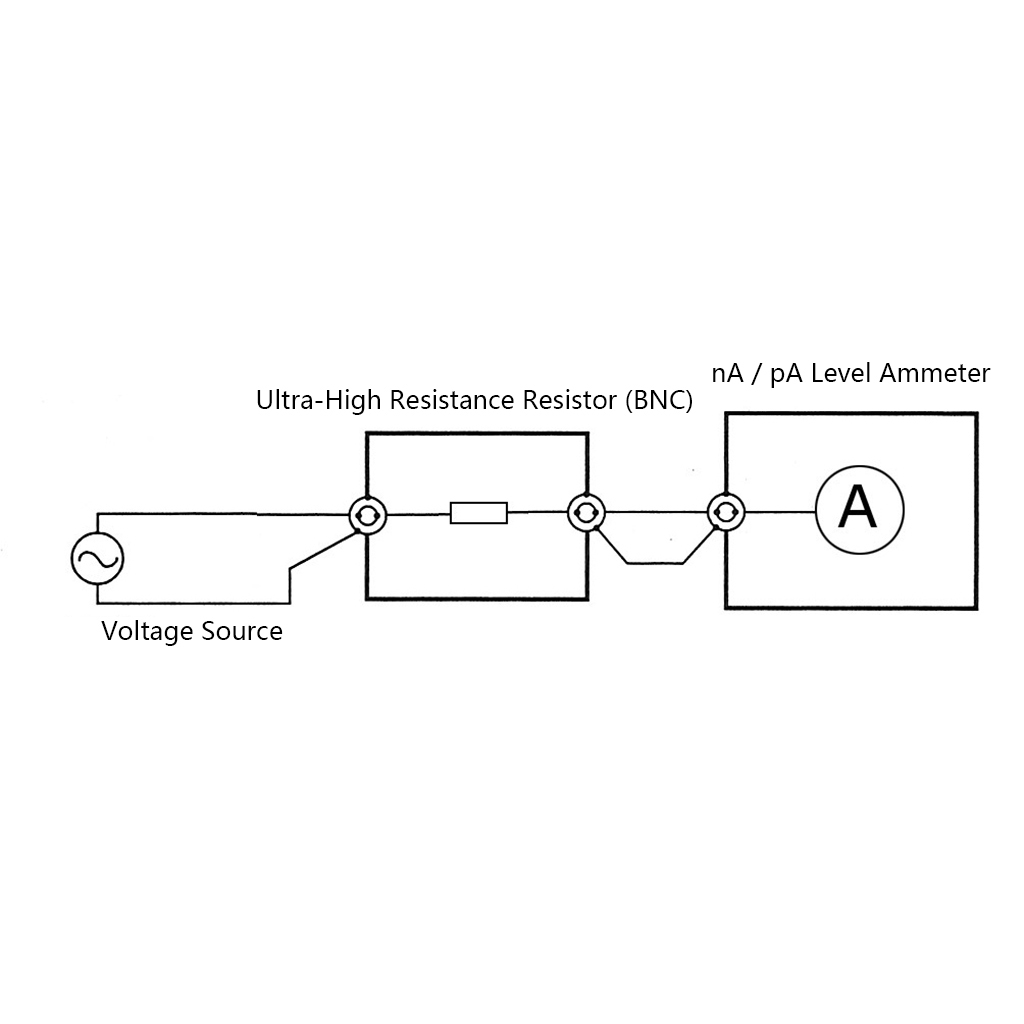

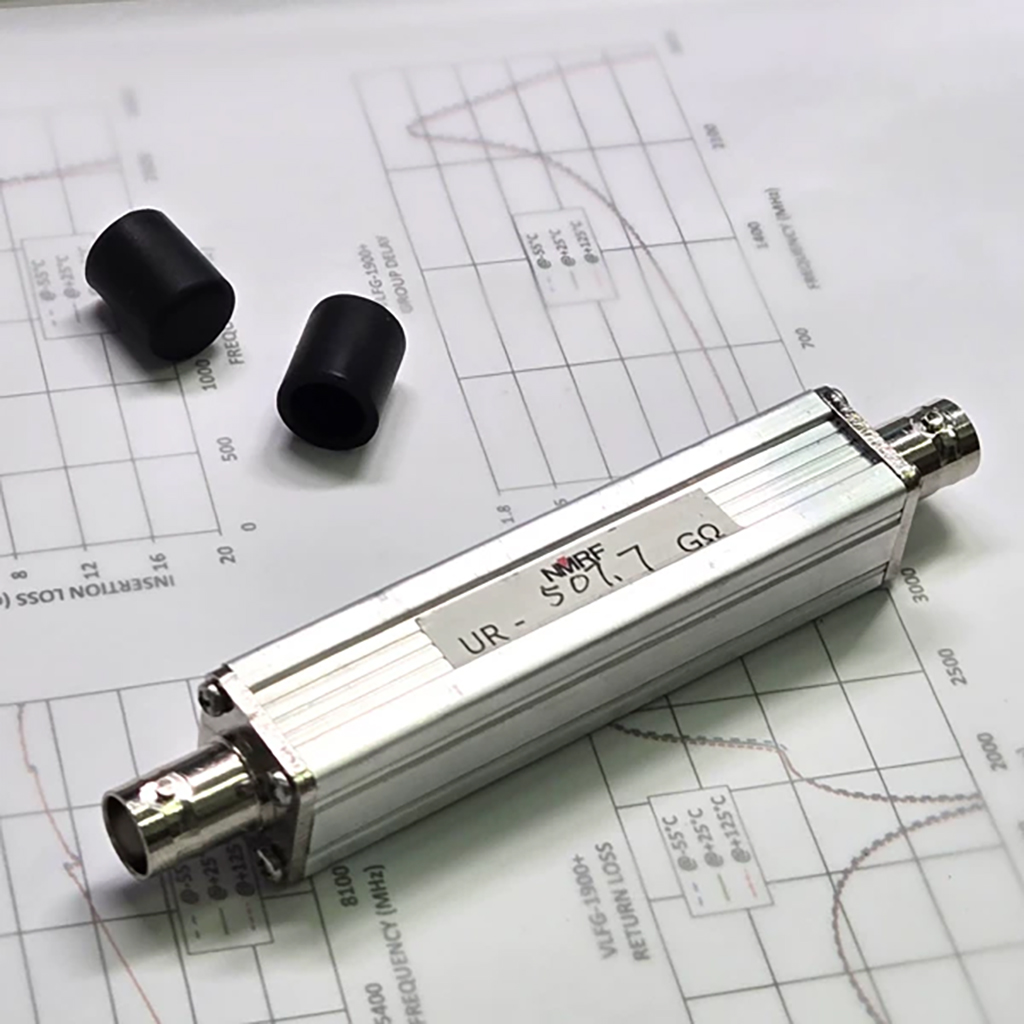

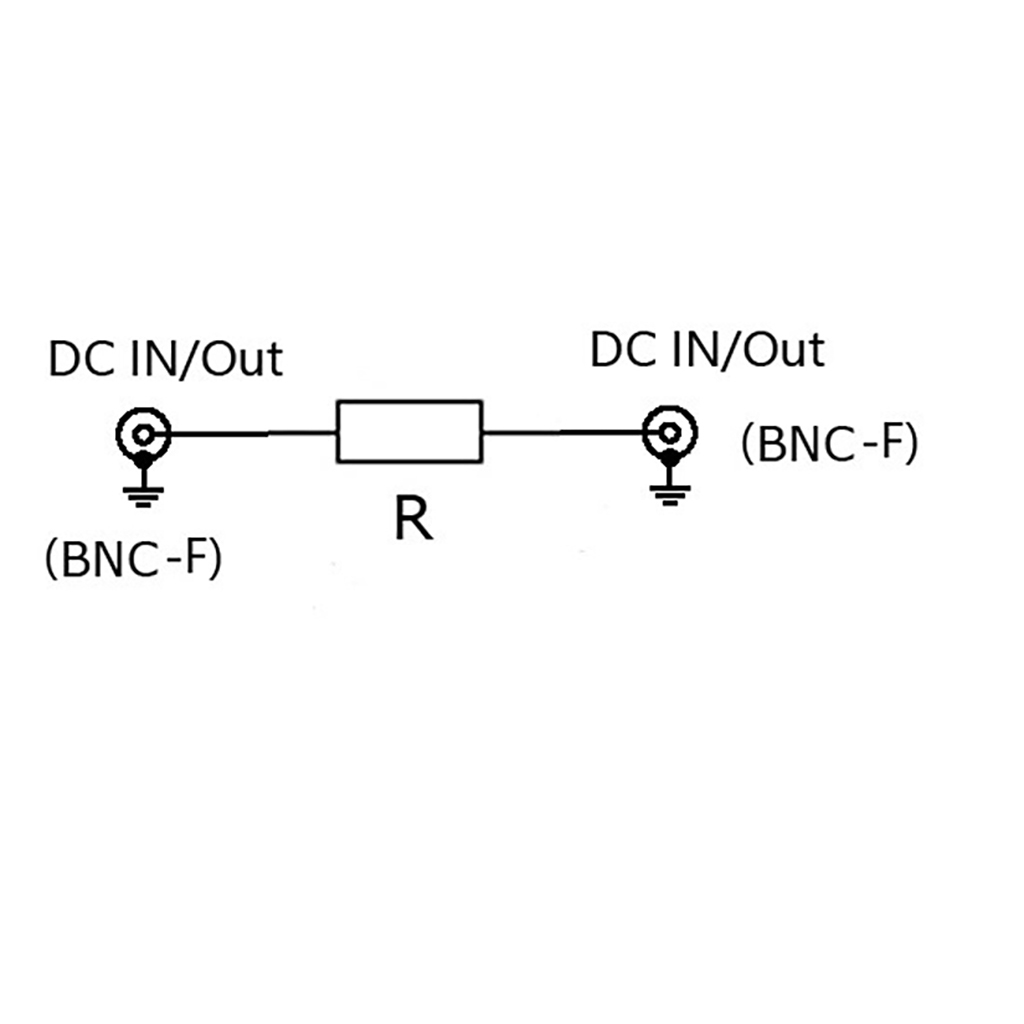

This device is internally connected in series with ultra-high resistance resistors, used to generate nA or pA level currents or for testing and analyzing ultra-high resistance voltage sources. The device is enclosed in an aluminum alloy shell and has a BNC interface, making it compact, sturdy, and durable. The internal resistance value is 500GQ (500kMQ), with a power of 2W. Each resistor is calibrated with a professional electrostatic meter/high resistance meter to determine its actual resistance value, and labeled with "test voltage", "ambient temperature 99 '," ambient relative humidity ", and the maximum dissipated power of the resistor on the back. Our store can also customize resistors with the same packaging range of 100M Ω -1TQ (1MMQ).

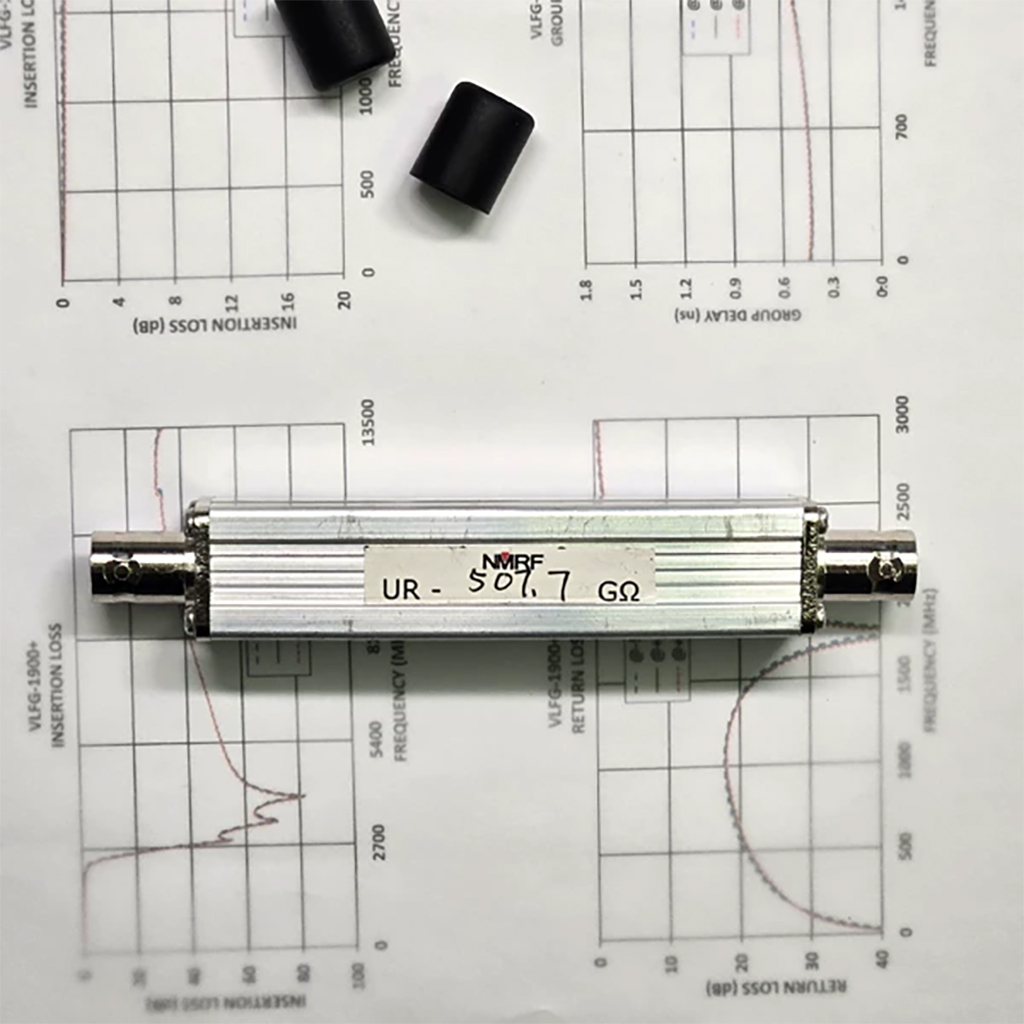

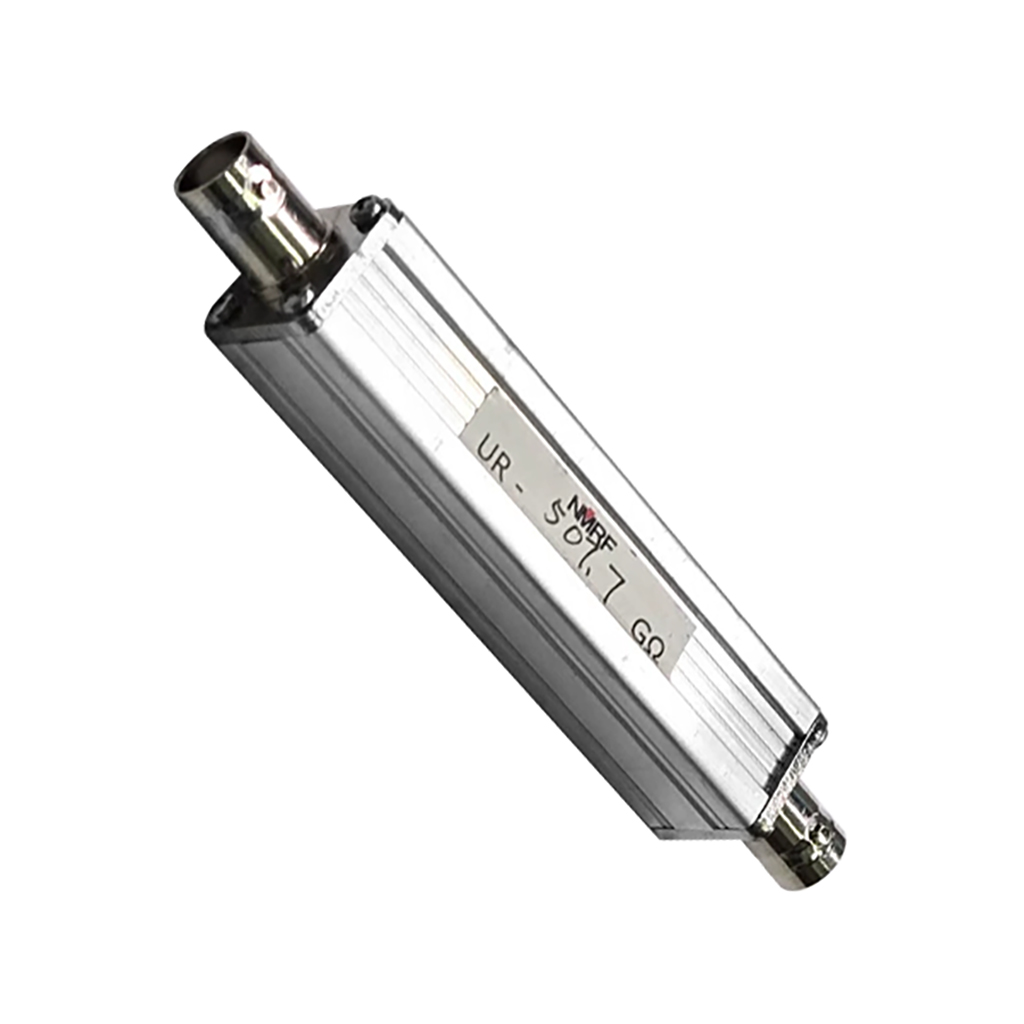

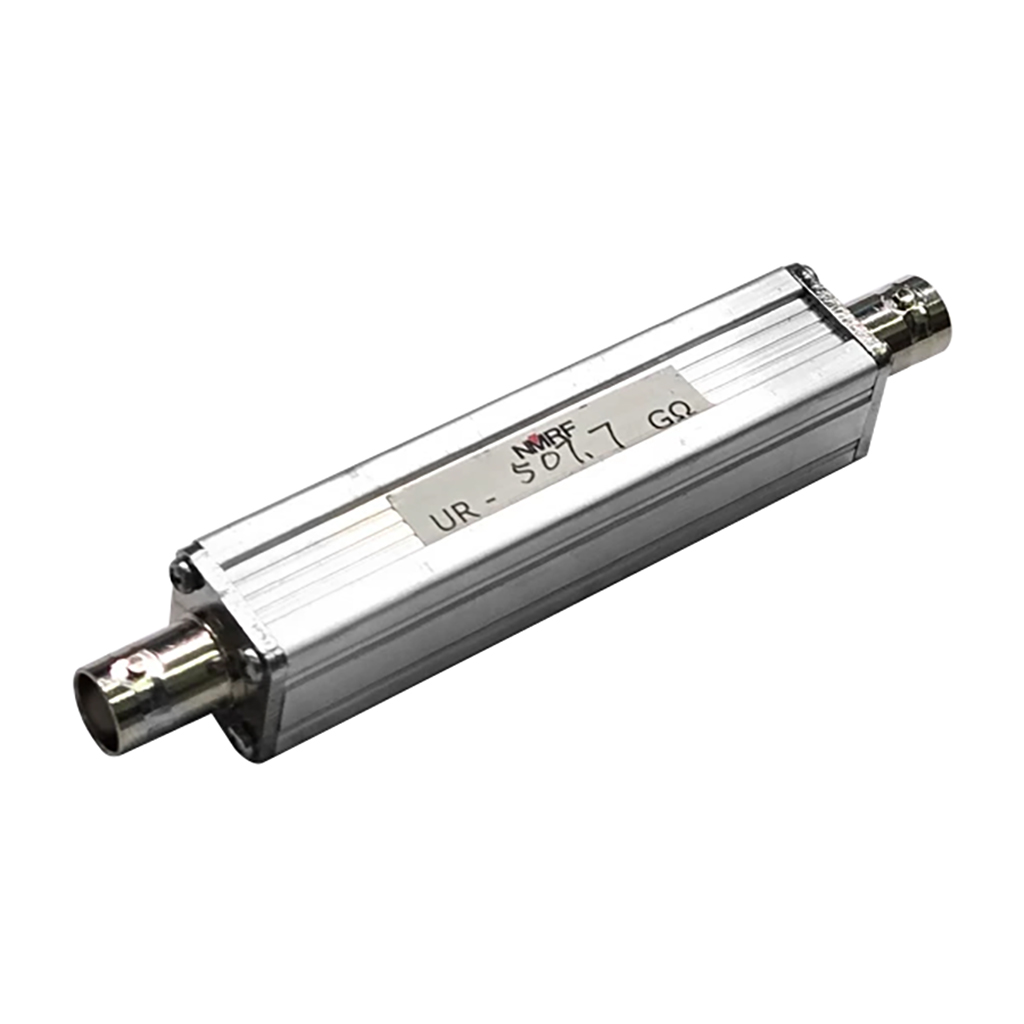

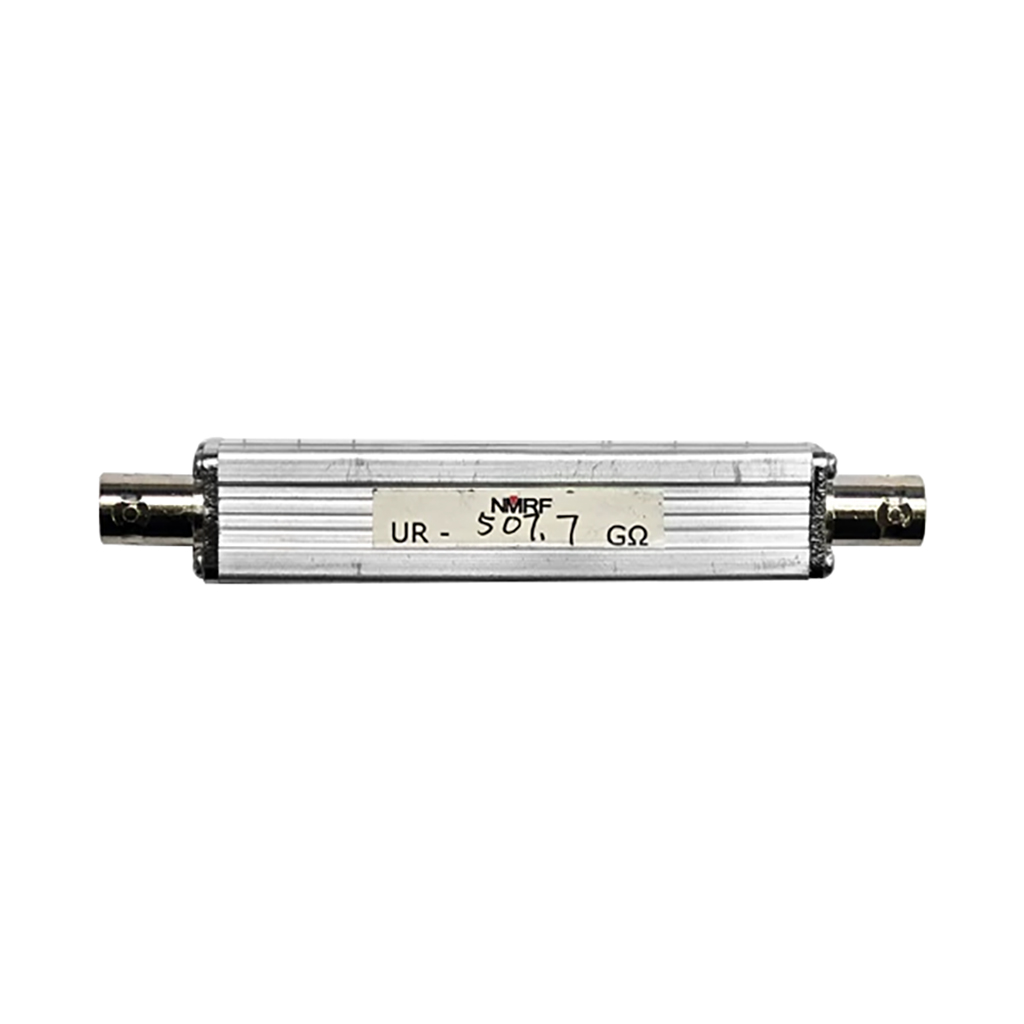

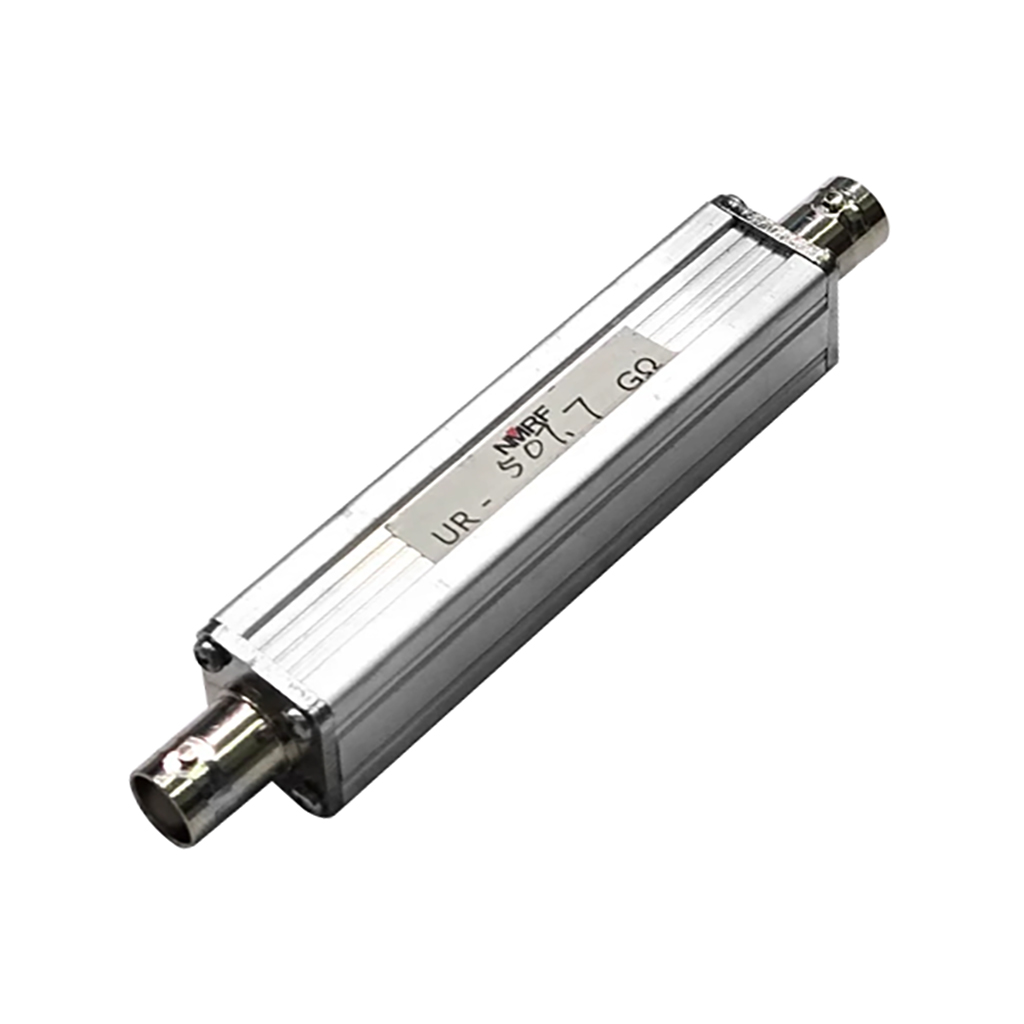

Model: UR-50x.xG Ω (each device is labeled with measured resistance)
Maximum carrying power: 2W (33dBm)
Resistance accuracy: ± 1% (based on actual labeled values)
Temperature coefficient of resistance: ± 200PPM
Test voltage: 100V_DC (if there are special requirements for the test voltage, please leave a note in the order message area, optional values: 1-1000V_DC)

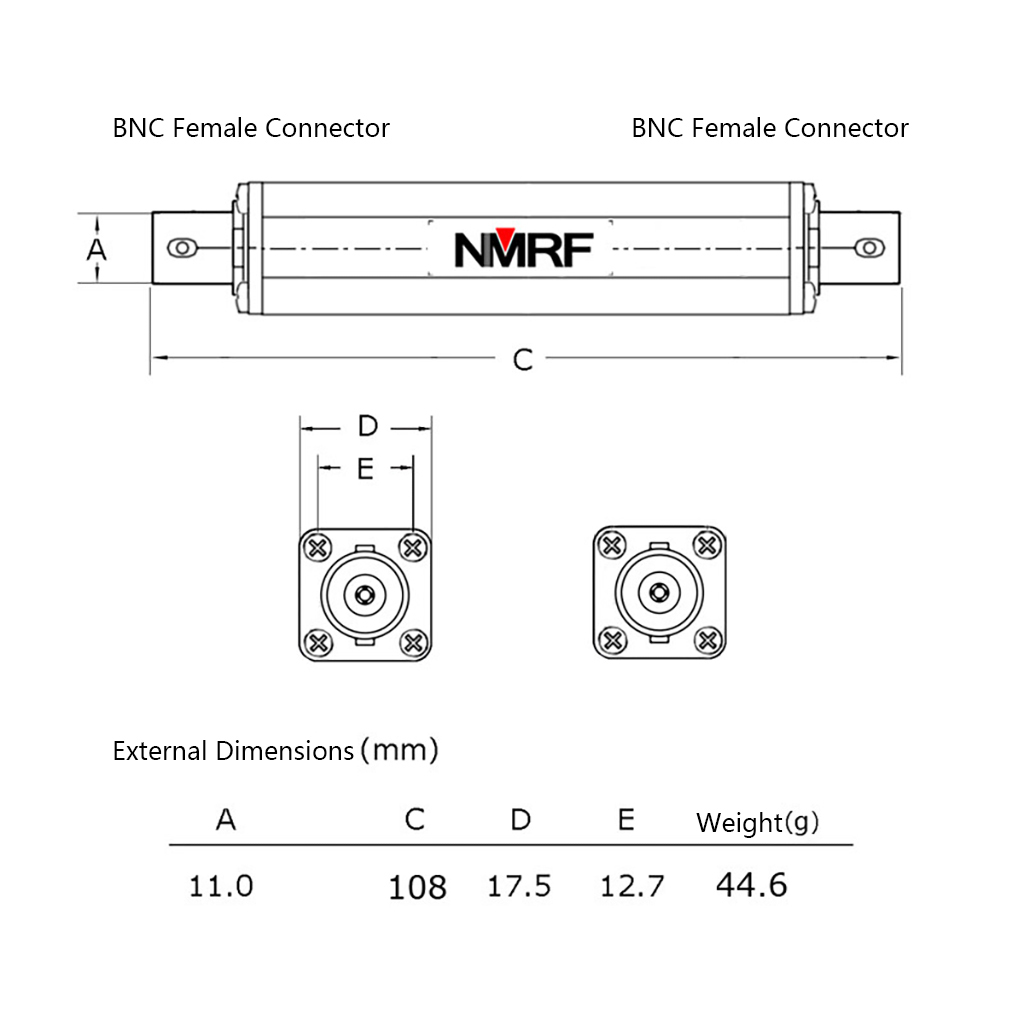

Interface:BNC-F---BNC-F (50Q)
