200GΩ (200kMΩ) 2W Ultra-High Value Resistor Compact Aluminum Alloy Shell BNC Connector
-
Detail
- Product Name: 200GΩ (200kMΩ) 2W Ultra-High Value Resistor Compact Aluminum Alloy Shell BNC Connector
- Item NO.: F55660
- Weight: 0.055 kg = 0.1213 lb = 1.9401 oz
- Category: Industrial Technology
- Creation Time: 2026-07-10
- 200GΩ (200kMΩ) 2W Ultra-High Value Resistor Compact Aluminum Alloy Shell BNC Connector
200GΩ (200kMΩ) 2W Ultra-High Value Resistor Compact Aluminum Alloy Shell BNC Connector

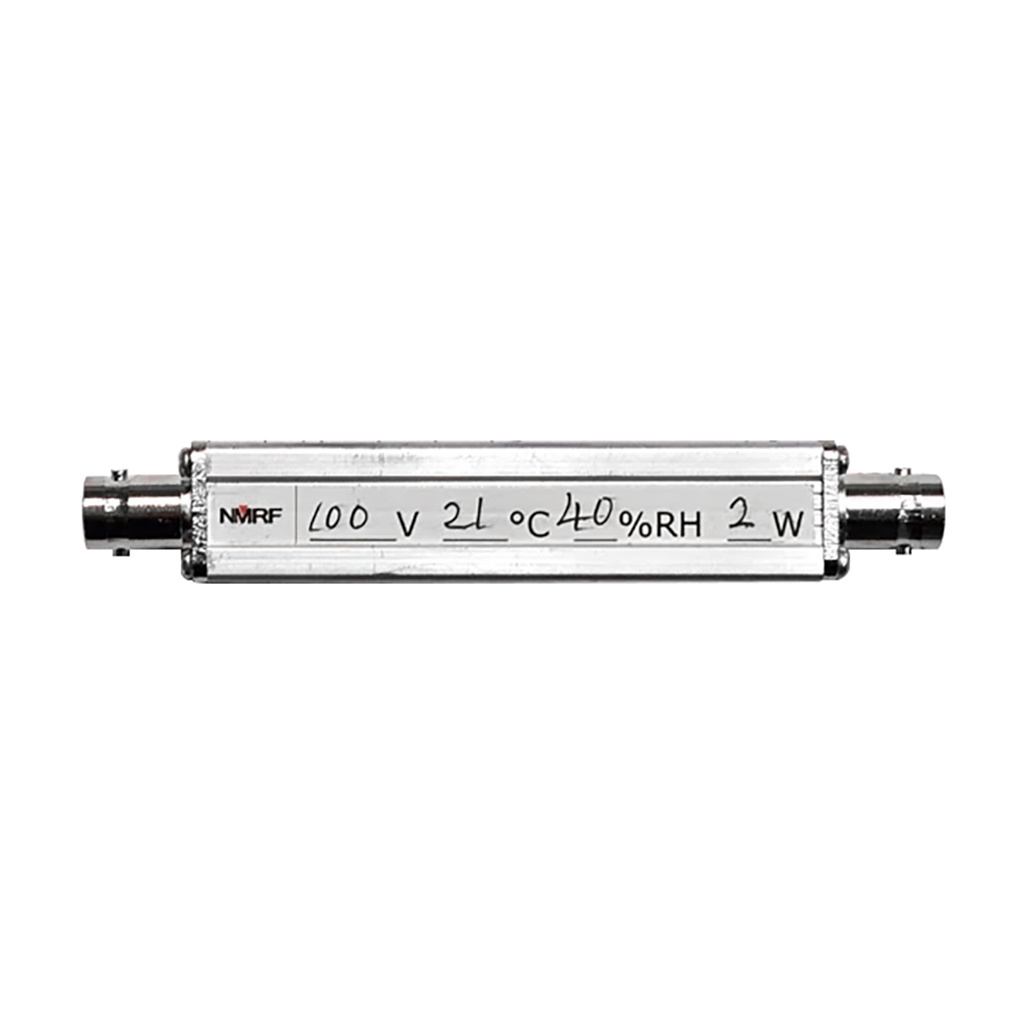

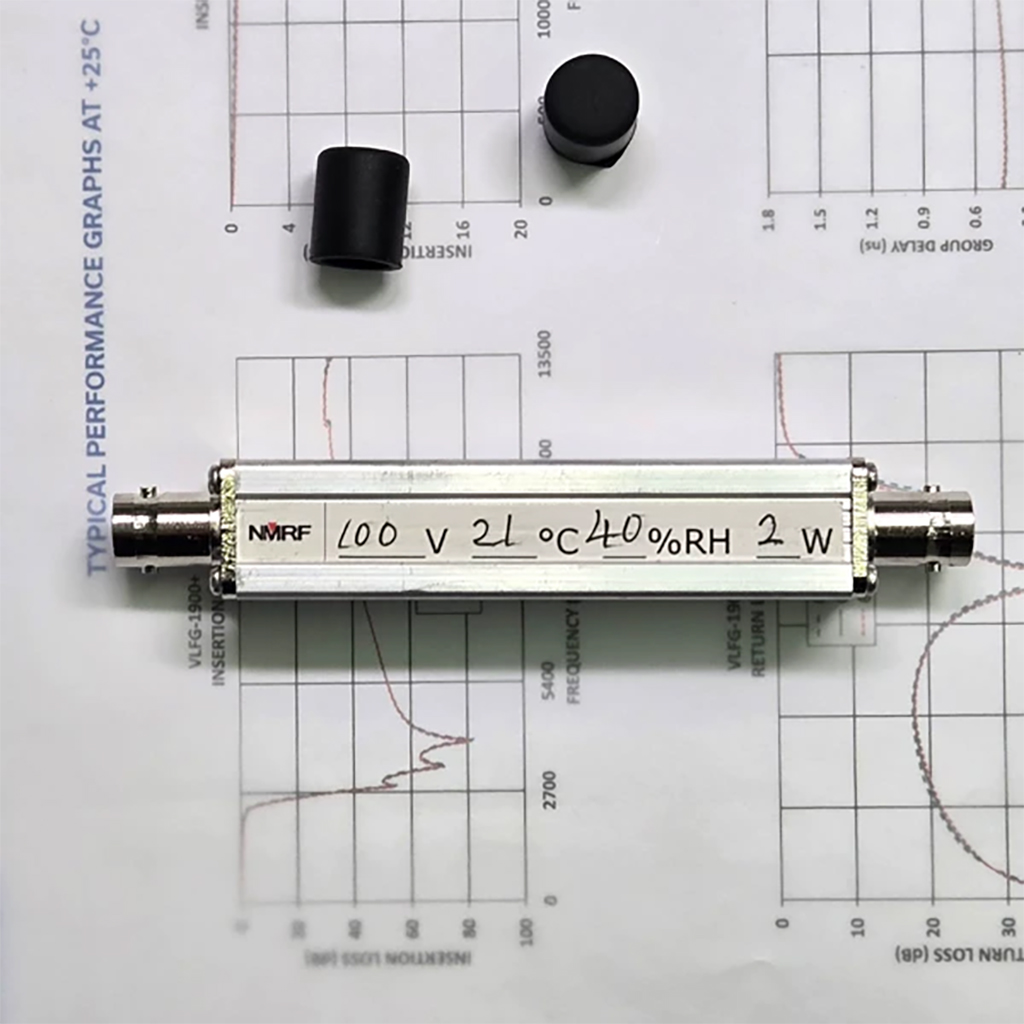

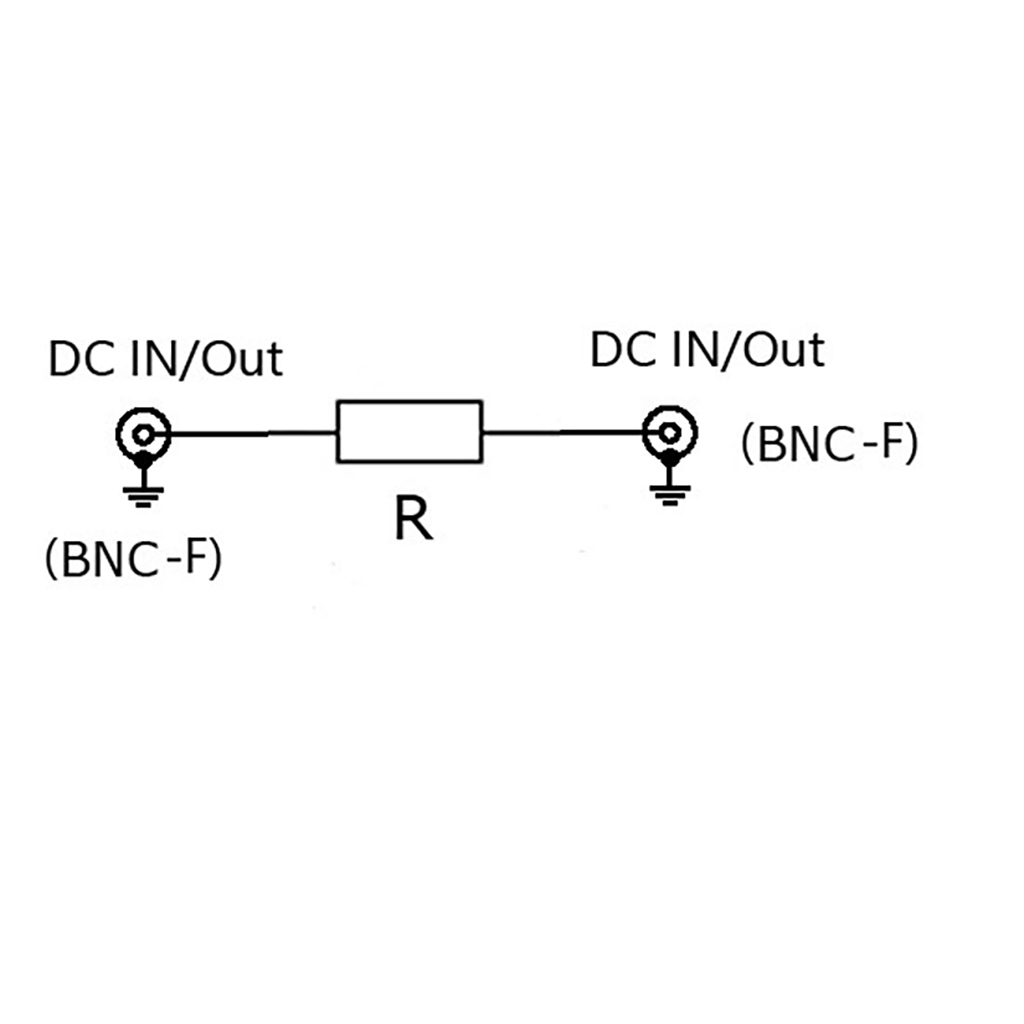

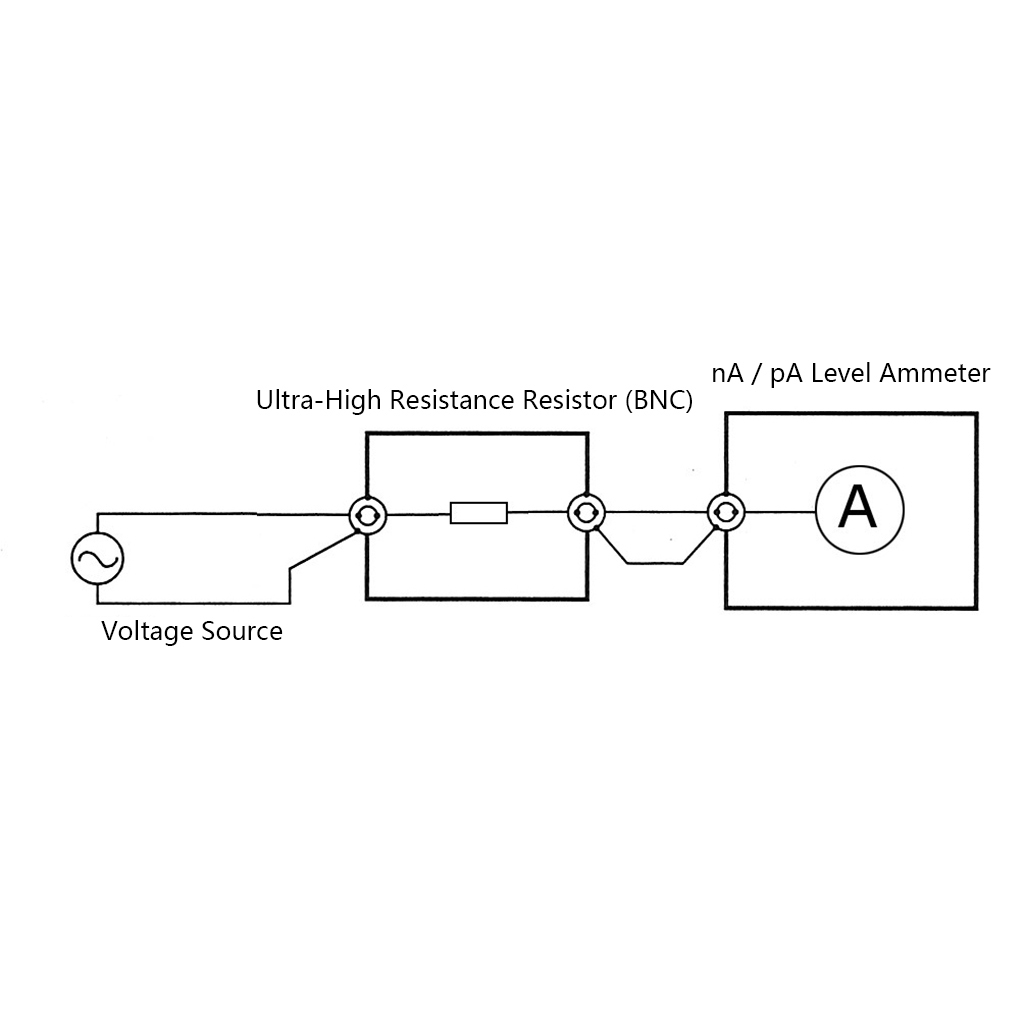

This device is internally connected in series with ultra-high resistance resistors, used to generate nA or pA level currents or for testing and analyzing ultra-high resistance voltage sources. The device is enclosed in an aluminum alloy shell and has a BNC interface, making it compact, sturdy, and durable. The internal resistance value is 200GQ (200kMQ), with a power of 2W. Each resistor is calibrated with a professional electrostatic meter/high resistance meter to determine its actual resistance value, and labeled with "test voltage," "ambient temperature," "ambient relative humidity," and the maximum dissipated power of the resistor on the back. Our store can also customize resistors with the same packaging range of 100MQ-1TQ (1MMQ)

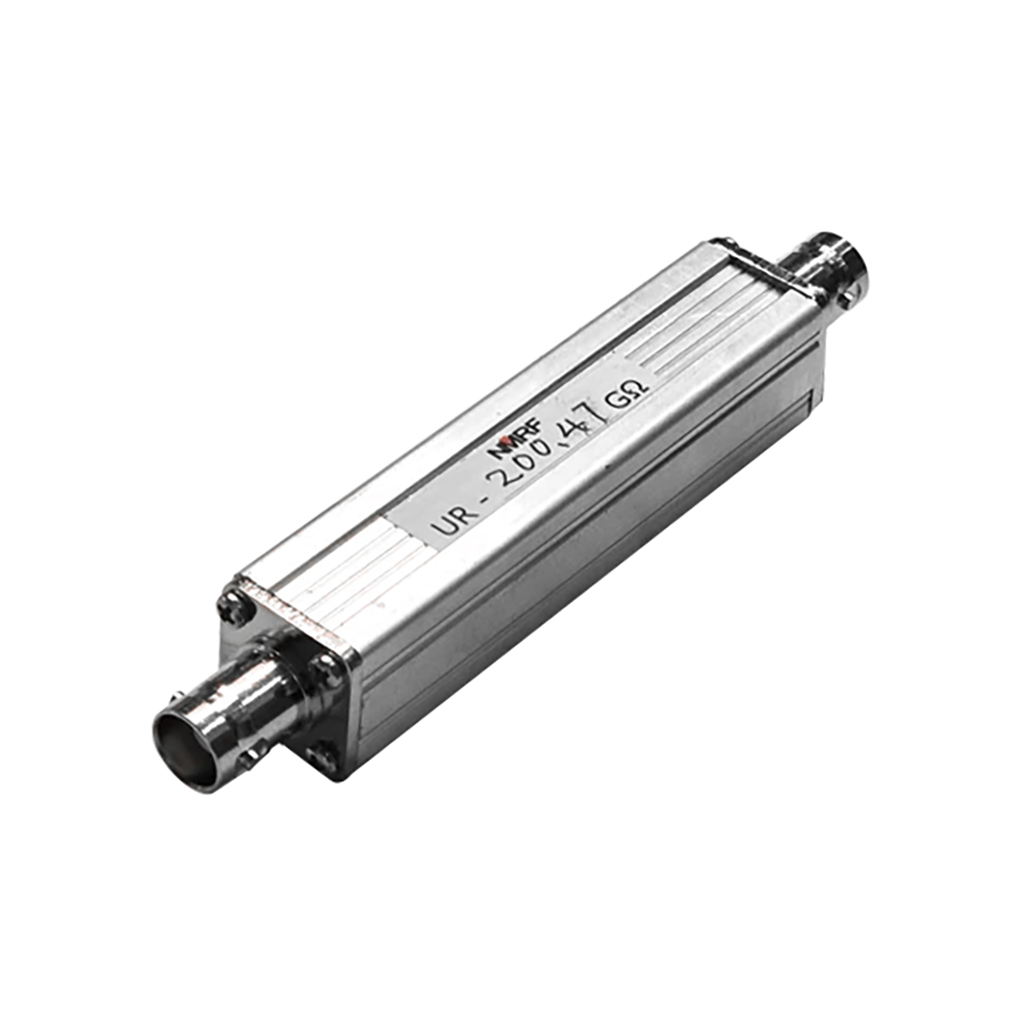

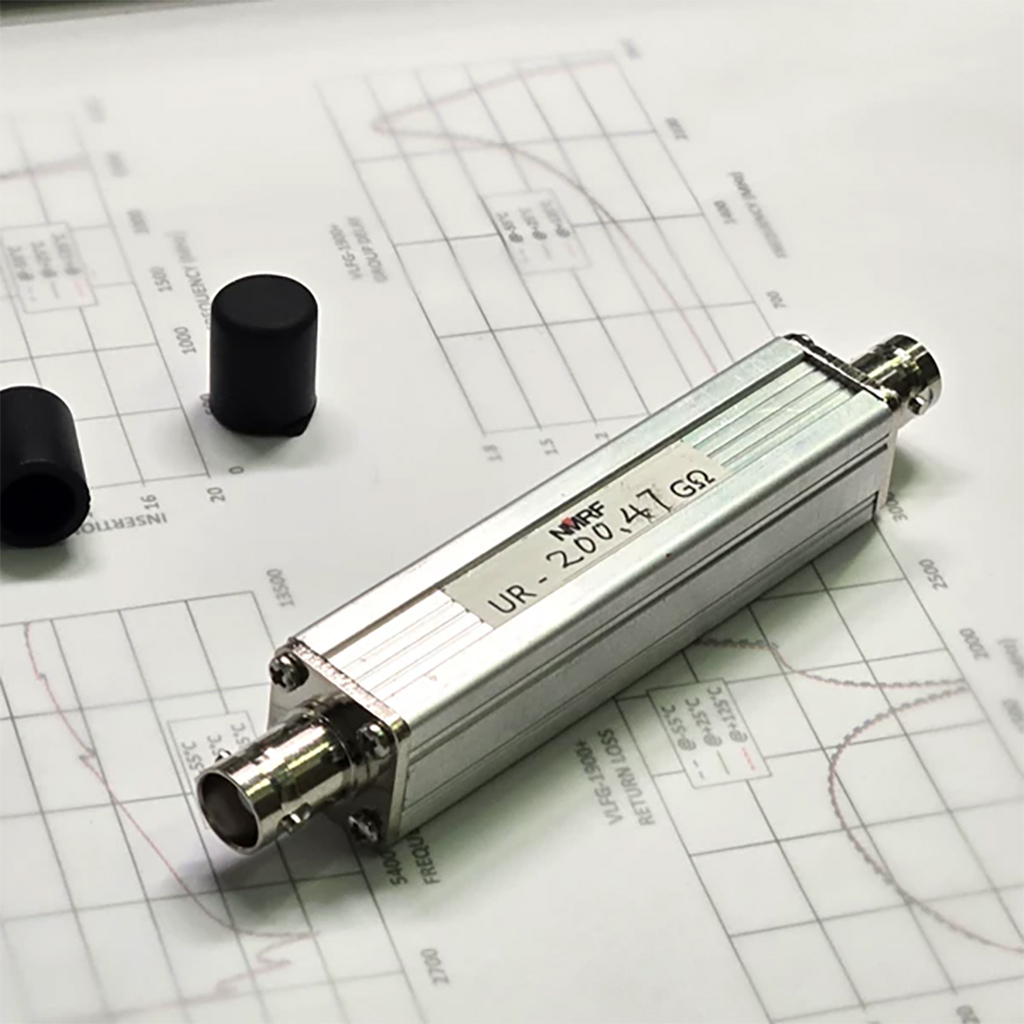

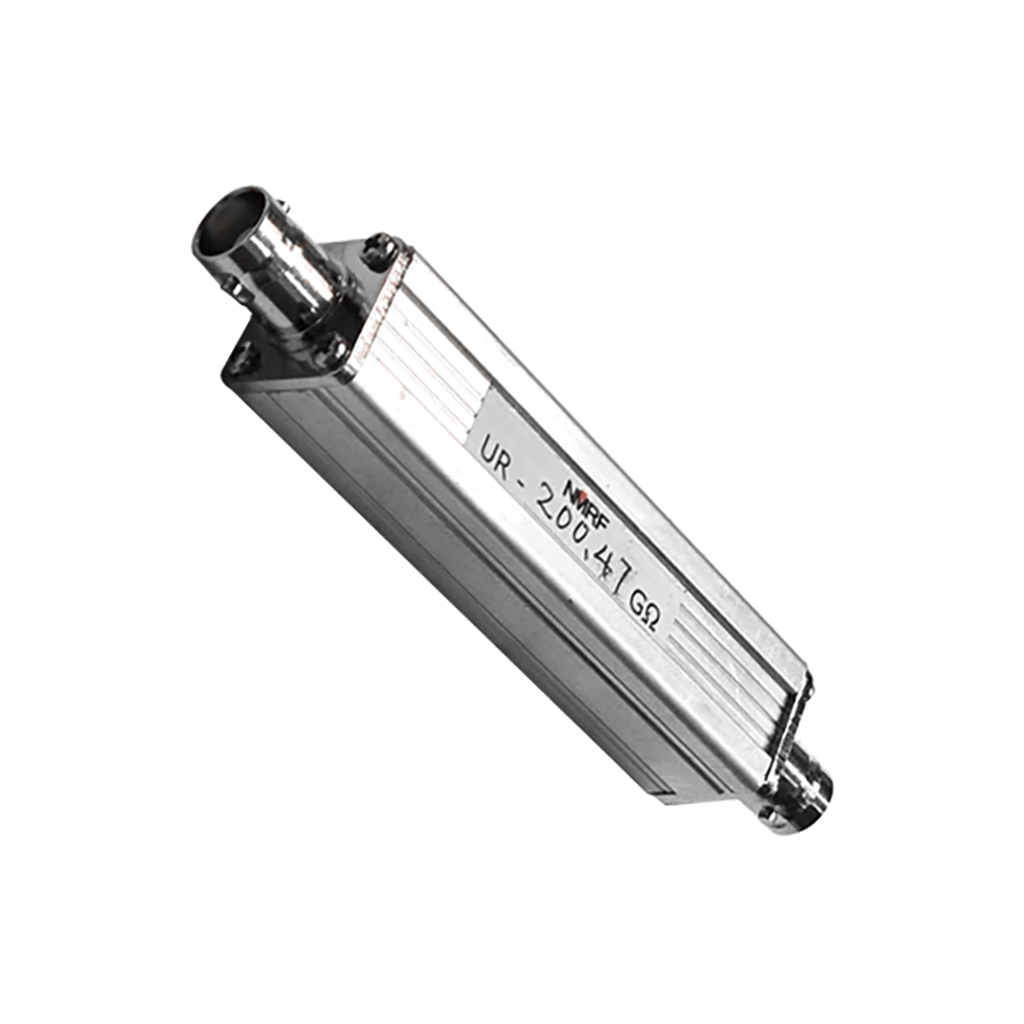

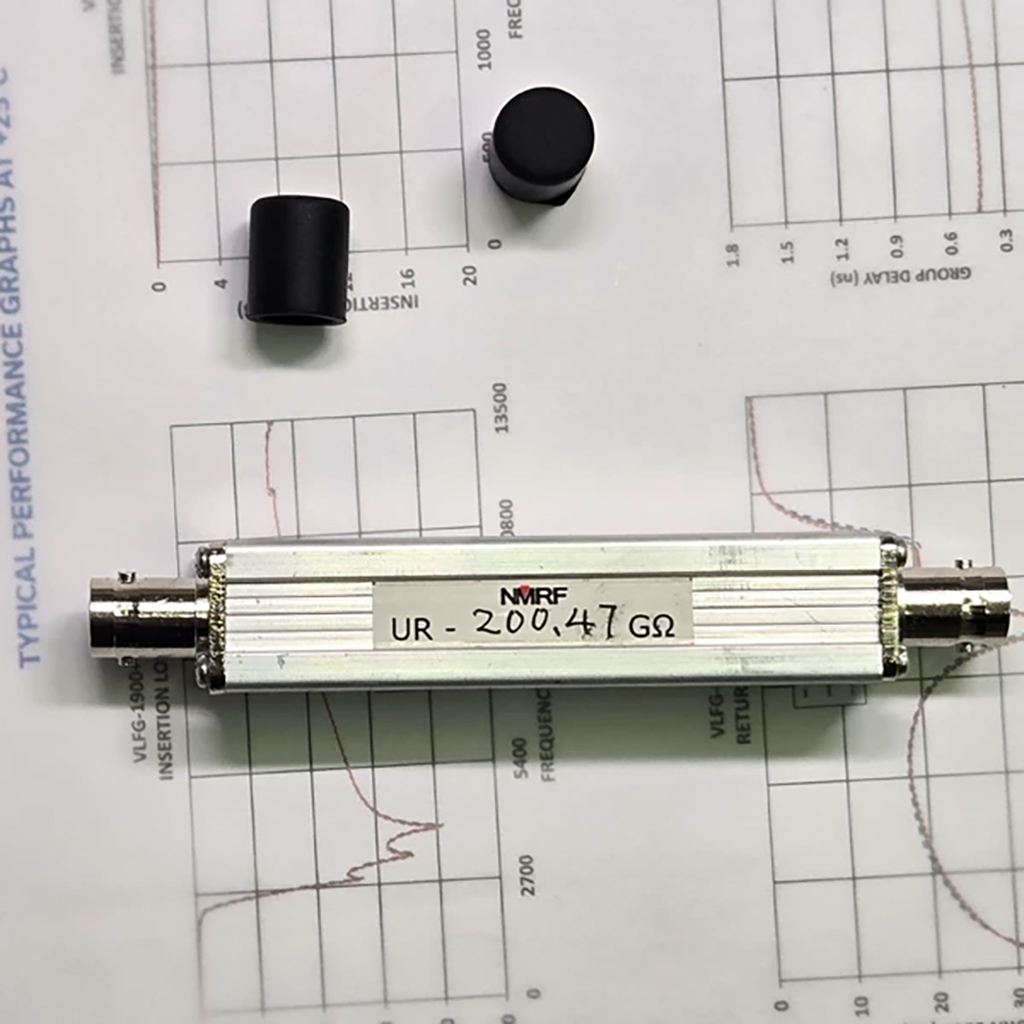

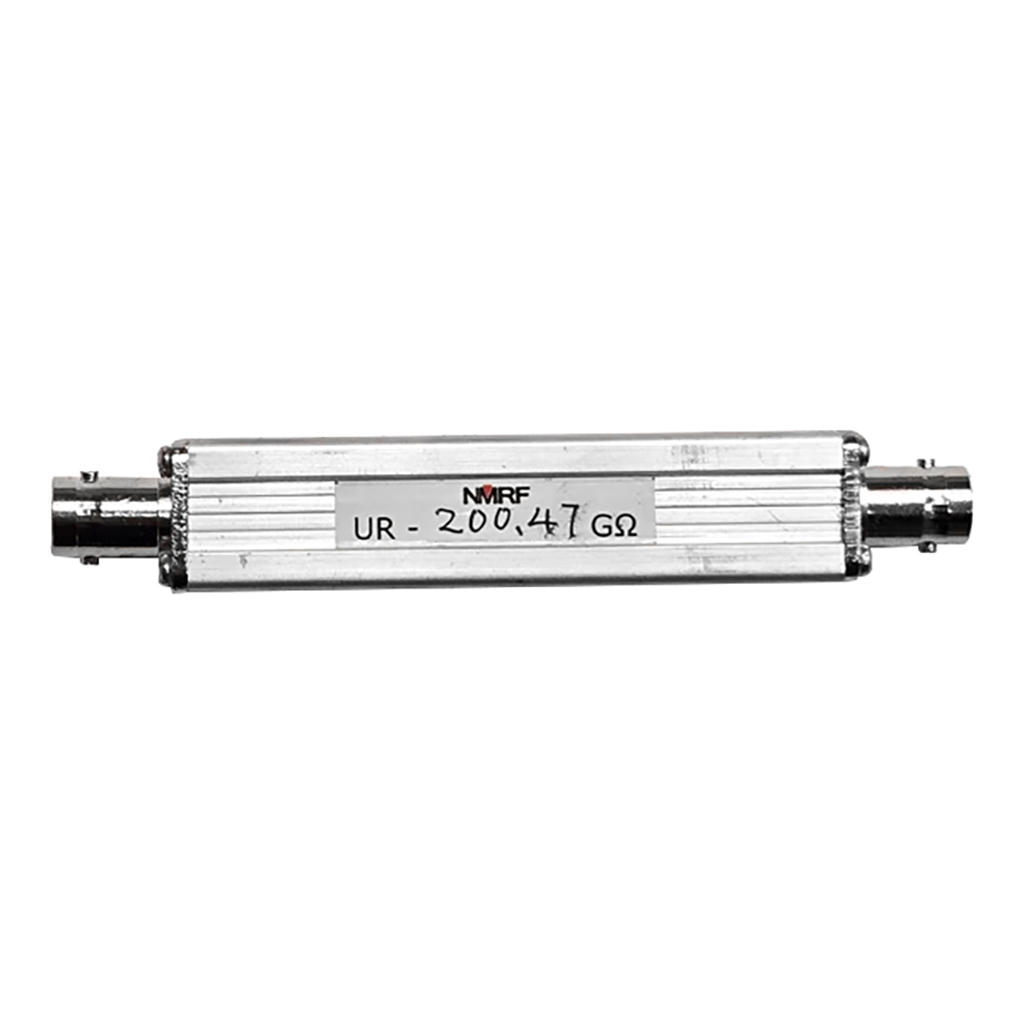

Model: UR-20x.xxGQ (each component is labeled with measured resistance)
Maximum carrying power: 2W (33dBm)
Resistance accuracy: ± 1% (based on actual labeled values)
Temperature coefficient of resistance: ± 200PPM

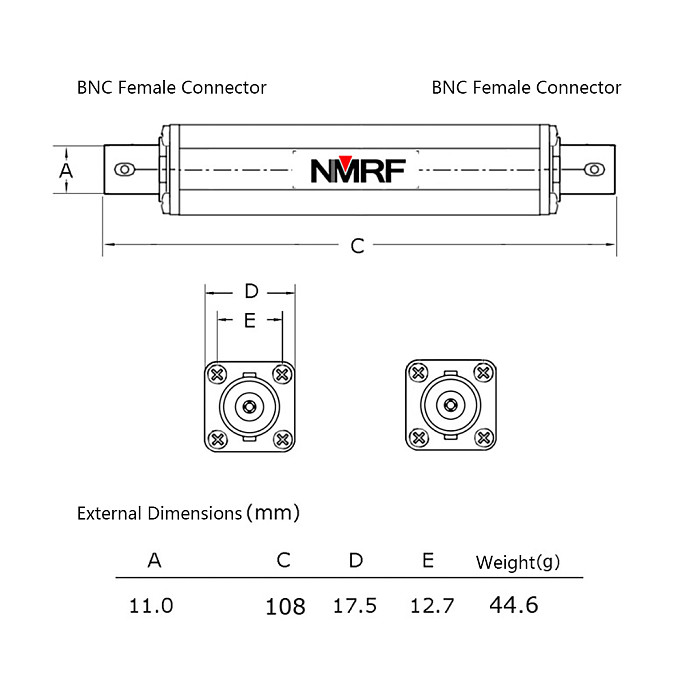

Test voltage: 100V_DC (if there are special requirements for the test voltage, please leave a note in the order message area, optional values: 1-1000V_DC)Interface: BNC-F - BNC-F (50 Ω)
