470-510MHz IoT LoRa Device Dedicated Frequency Band LC Bandpass Filter Standard SMA Interface
-
Detail
- Product Name: 470-510MHz IoT LoRa Device Dedicated Frequency Band LC Bandpass Filter Standard SMA Interface
- Item NO.: F51054
- Weight: 0.025 kg = 0.0551 lb = 0.8818 oz
- Category: DIY RC Drone Accessories
- Creation Time: 2023-11-02
470-510MHz IoT LoRa device dedicated frequency band LC bandpass filter standard SMA interface
Characteristics:
Low insertion loss, small volume, high out of band suppression
Application:
IoT China LoRa dedicated frequency band device
Laboratory Applications
---------------------------------------------

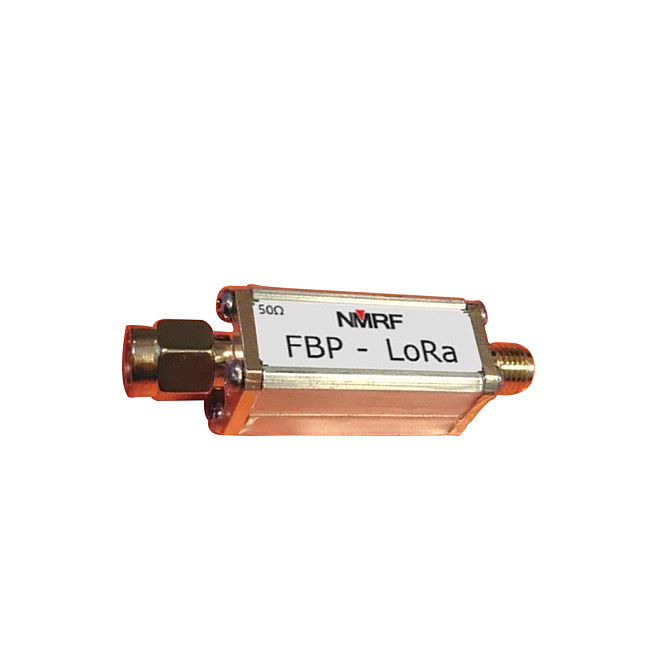

Model: FBP-LoRa
Impedance: 50 Ohms
Center frequency/1 dB bandwidth: 490 MHz/50 MHz
Band insertion loss:<=3.3 dB
3dB passband: 450~520 MHz
Maximum carrying capacity: 5 W (37 dBm)
Interface: SMA-M, SMA-F

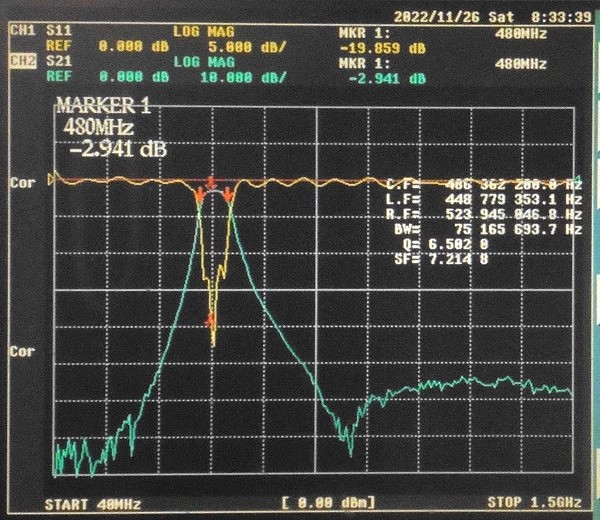

Frequency response diagram (scanning range: 40-1500MHz, blue line represents transmission loss, vertical scale 10dB per grid, and the diagram shows 3dB bandwidth. Yellow line represents reflection loss, and vertical scale 5dB per grid):
