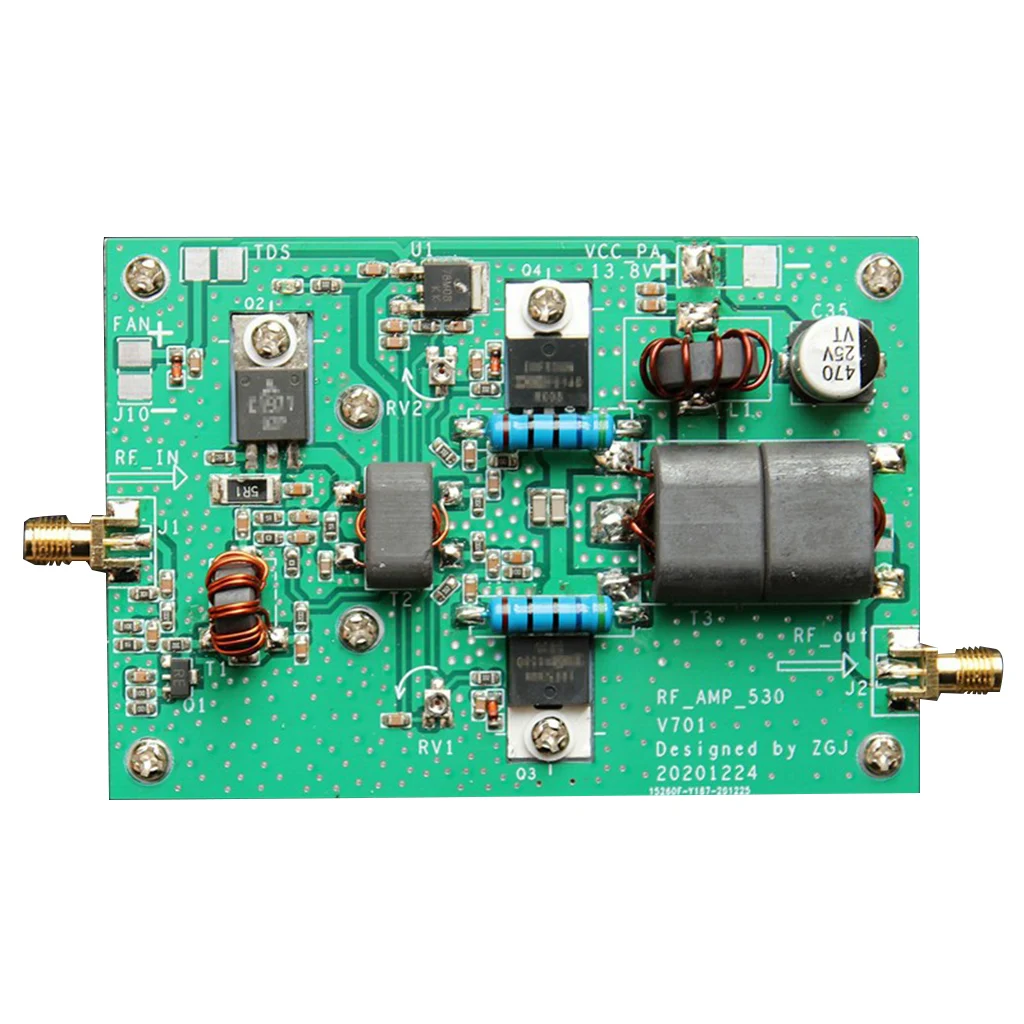

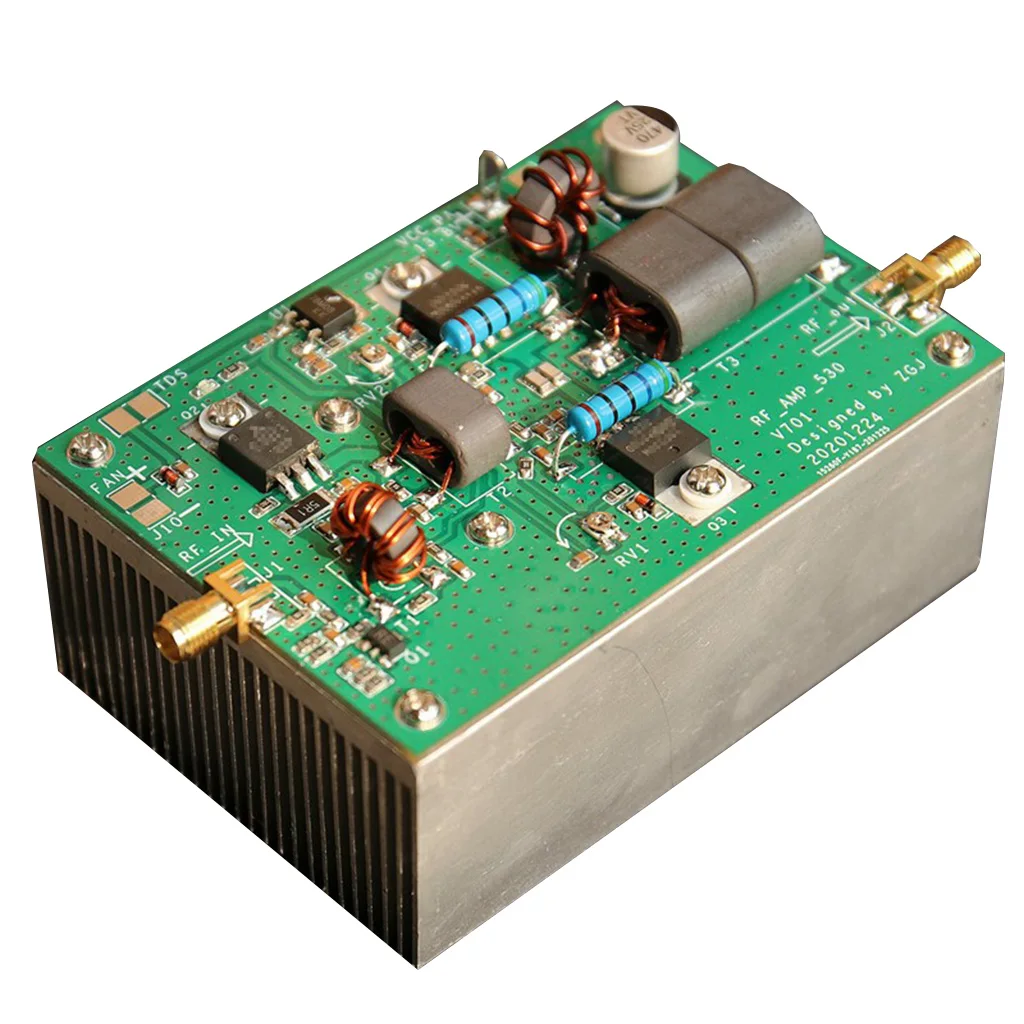

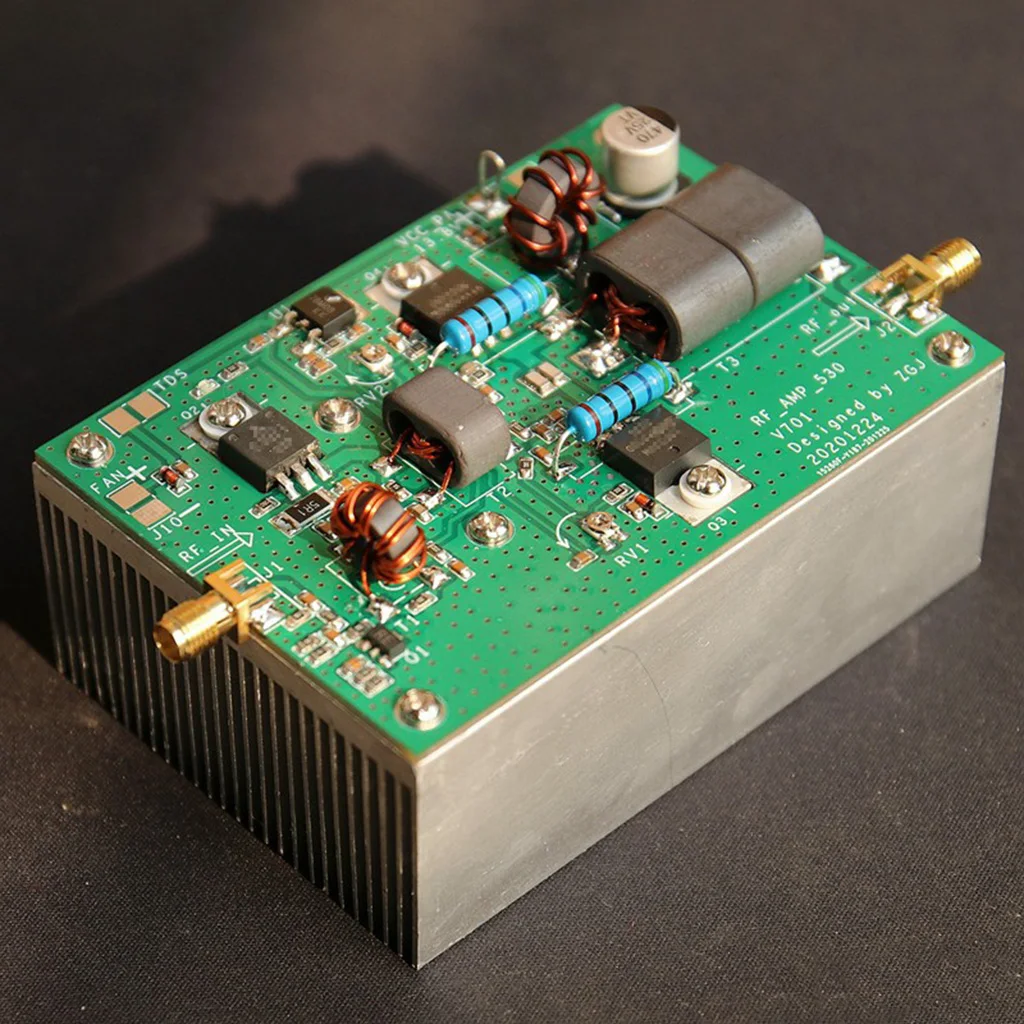

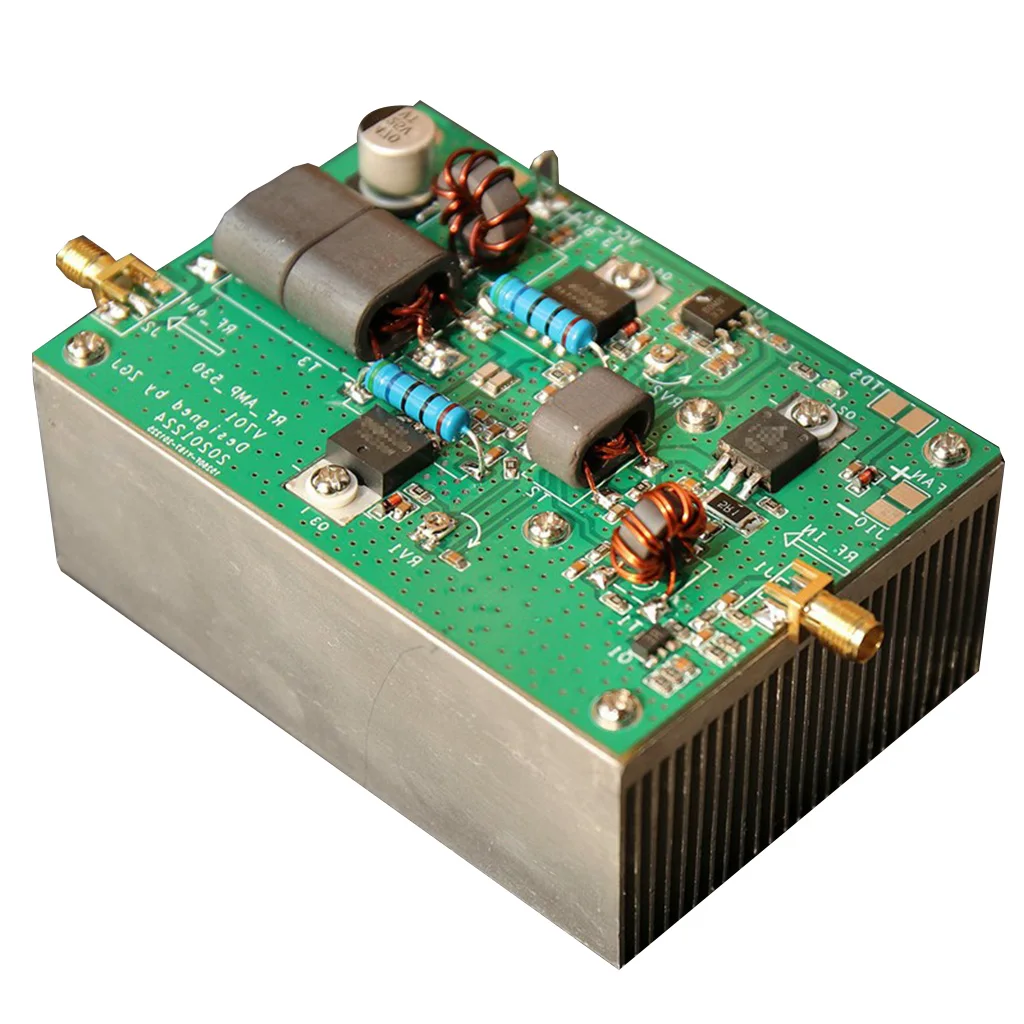

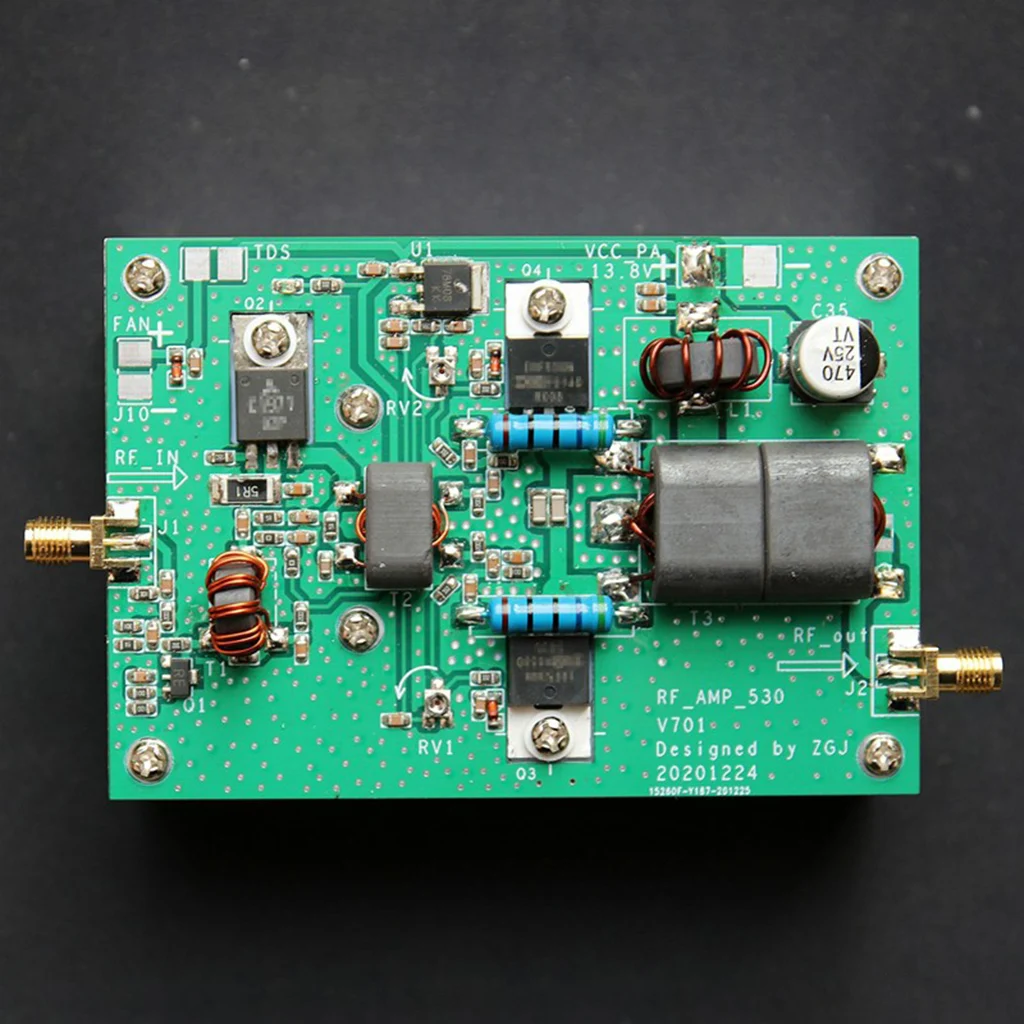

45W Short Wave 3-28MHz Linear High Frequency HF RF Power Amplifier Radio Station Wireless Power Transmission
-
Detail
- Product Name: 45W Short Wave 3-28MHz Linear High Frequency HF RF Power Amplifier Radio Station Wireless Power Transmission
- Item NO.: F46795
- Weight: 0.4 kg = 0.8818 lb = 14.1096 oz
- Category: DIY RC Drone Accessories
- Creation Time: 2022-04-21
45W Short Wave 3-28MHz Linear High Frequency HF RF Power Amplifier Radio Station Wireless Power Transmission
Input: 0-10dBm (1-10mW)
Output: 45-47dBm (30-50W)
Operating frequency: 11-14MHz, center frequency 13.56MHz (this is the default operating frequency). Other operating frequencies: 3-21MHz (filter determines the working range).
Input and output impedance: 50 ohms
The high-frequency power amplifier amplifier must be connected to the nominal load before powering on (the default power amplifier product is 50 ohms), this is very important!
Power supply: 12-15V
Size: 60*100mm
Net weight: 375g (375g)
Note: This power amplifier is a linear power amplifier, and the output and input are directly related, that is, output power = input power + 40dBm (approximate relationship)
