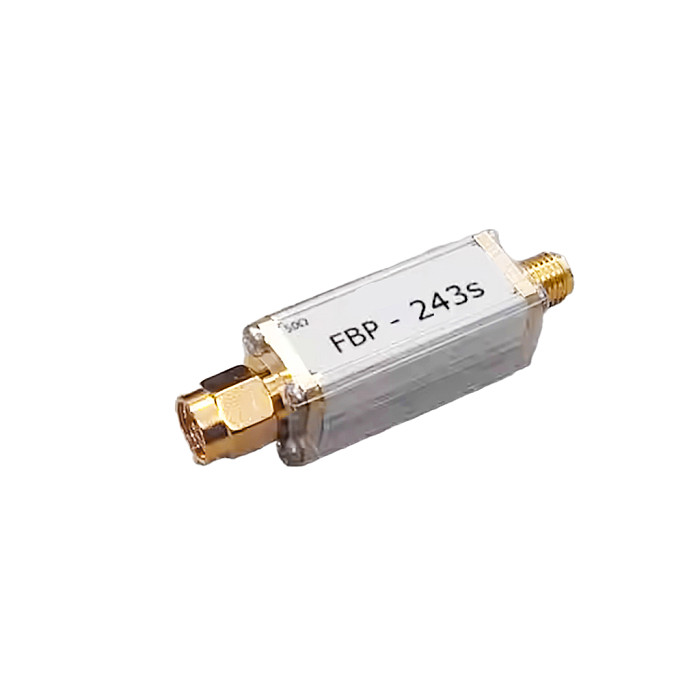

243.95MHz SAW Bandpass Filter Small Size for Aviation Emergency Band Dedicated 300kHz Bandwidth with SMA Connector

243.95MHz SAW Bandpass Filter Small Size for Aviation Emergency Band Dedicated 300kHz Bandwidth with SMA Connector Item NO.: F53107

Write a Review
US$ 24.47
US$ 28.79 Save US$ 4.32 (15% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name 243.95MHz SAW Bandpass Filter Small Size for Aviation Emergency Band Dedicated 300kHz Bandwidth with SMA Connector
Item NO. F53107
Weight 0.03 kg = 0.0661 lb = 1.0582 oz
Category Computer Accessories
Creation Time 2024-09-18

243.95MHz Small Size SAW Bandpass Filter for Aviation Emergency Band Dedicated 300kHz Bandwidth with SMA Connector

Features:


Low insertion loss, small size, using imported SAW chip


Applications:


243.95MHz aviation emergency band receiver


If you have other specification requirements you can contact us for customisation.


---------------------------------------------

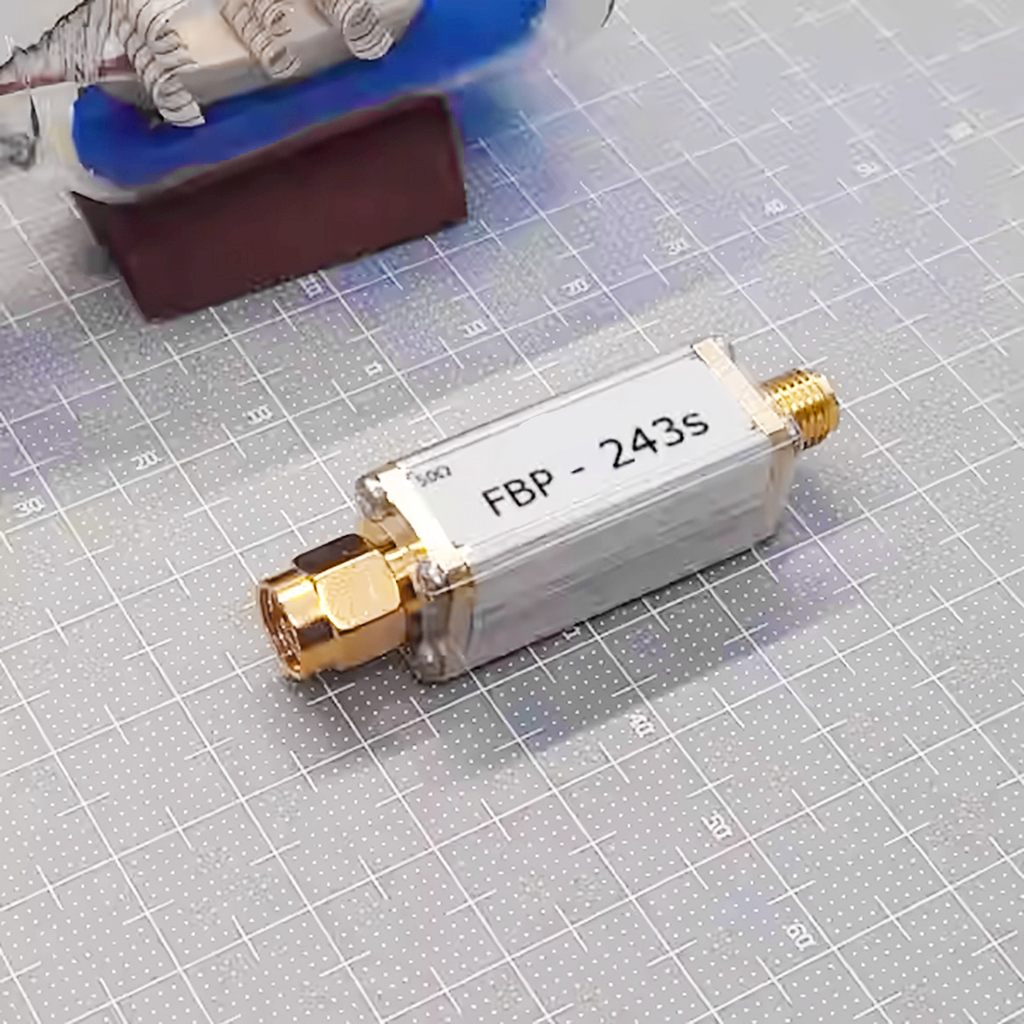

Model: FBP-243s


Impedance: 50 Ohms


Centre frequency / 1 dB bandwidth: 244.1 MHz / 300 kHz


In-band insertion loss: <= 4.5 dB


3dB Passband: 243.85 ~ 244.35 MHz


Maximum Carrying Power: 50 mW (17 dBm)


Interface: SMA-M, SMA-F




Frequency Response Diagram (Sweep centre frequency: 244.1 MHz; yellow-brown line is S21,

Sweep width: 488 MHz; blue-green line is S21,

Sweep width: 5 MHz; vertical scales are 10 dBm per cell):
