Copy| Product Name | USR-G806s-G Global Band Industrial 4G LTE Router with GNSS Support Global Band & GNSS Industrial Design/Multiple VPNs/ Remote Management |
| Item NO. | F54272-D1 F54272-D2 F54272-D3 |
| Weight | 0.65 kg = 1.4330 lb = 22.9281 oz |
| Category | Computer Accessories |
| Brand | USR |
| Creation Time | 2025-05-26 |

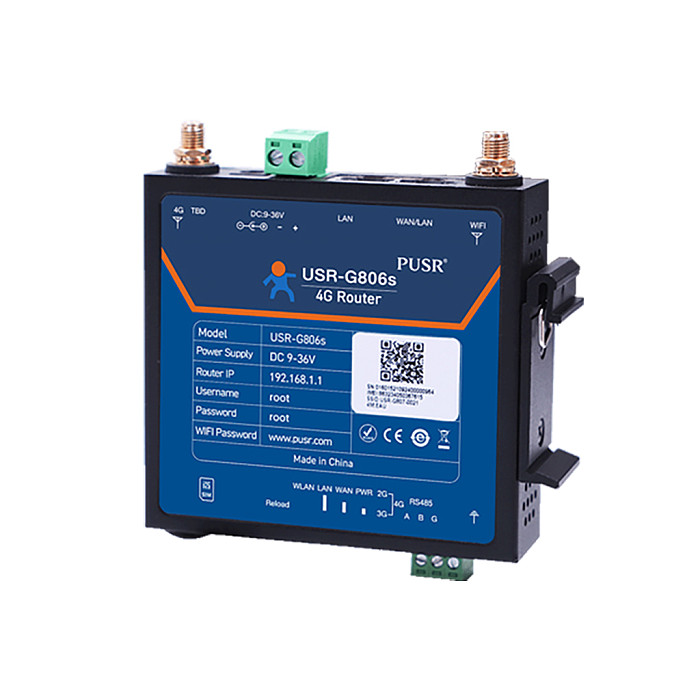

USR-G806s-G Global Band Industrial 4G LTE Router with GNSS Support Global Band & GNSS Industrial Design/Multiple VPNs/ Remote Management
USR-G806s-G | Global Band Industrial 4G LTE Router
with GNSS
Global Band & GNSS, Industrial Design, Multiple VPNs, Remote Management
USR-G806s-G is a global band industrial 4G router with GNSS function lunched by PUSR, it adopts Qualcomm solution 4G modem which can provide the most
stable and flexible wireless network for users over the world, uses can monitor the location information of assets anytime and anywhere. This product comes
with rich hardware interfaces including 1*WAN/LAN configurable, 1*LAN, and 1*RS485, which allows the device to realize data transmission of network devices
and serial port devices at the same time. This product also integrates a variety of VPN protocols to prevent data from being accessed or tampered and
provides high security for data transmission over network.

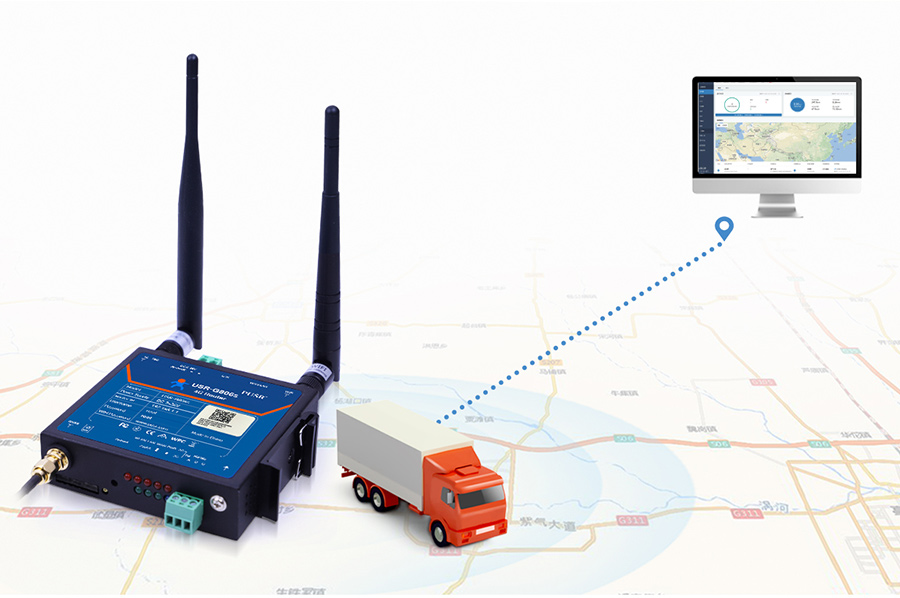

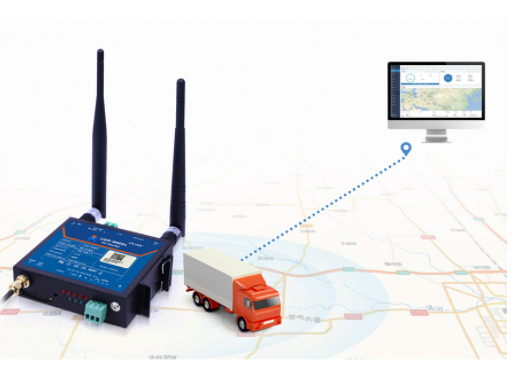

With GNSS Location, Monitoring Your Assets

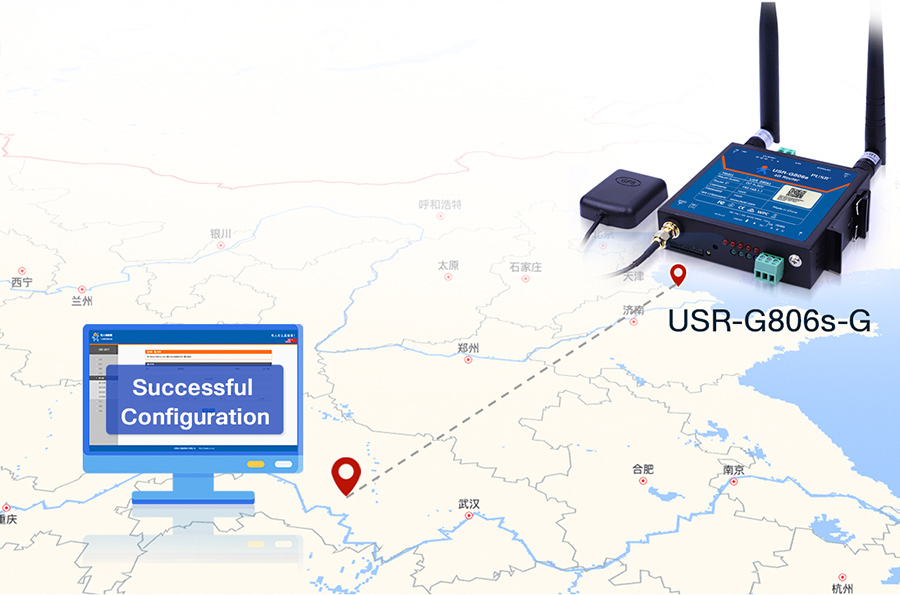

USR-G806s-G can report the location information in RMC and GGA formats to the manned cloud platform for track display, or to the user-defined TCP/UDP server
for location and tracking.

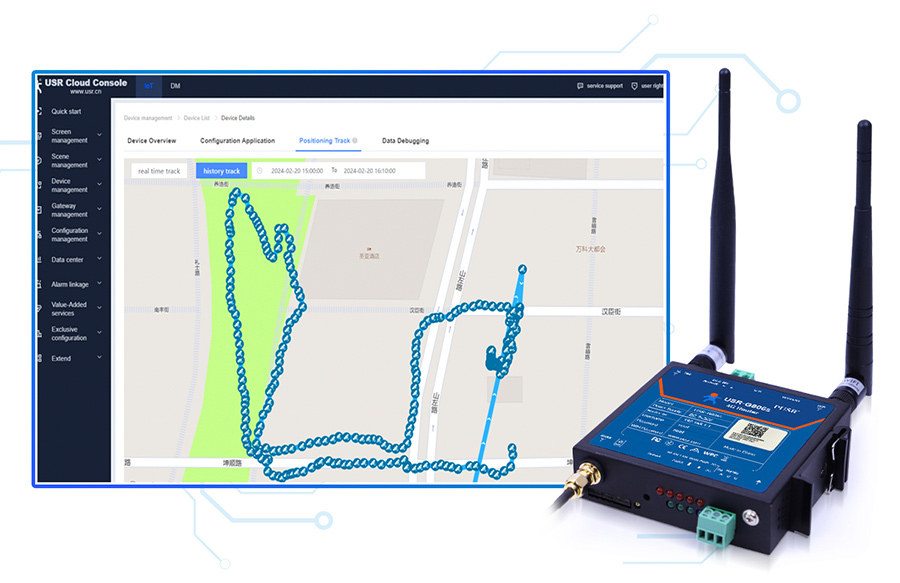

A Visible Trajectory
The data in the picture is the measured data tested by PUSR engineers. The positioning track is displayed on PUSR's platform, positioning and tracking
anytime and anywhere. The data can also be sent to private servers in GPGGA or GPRMC format.

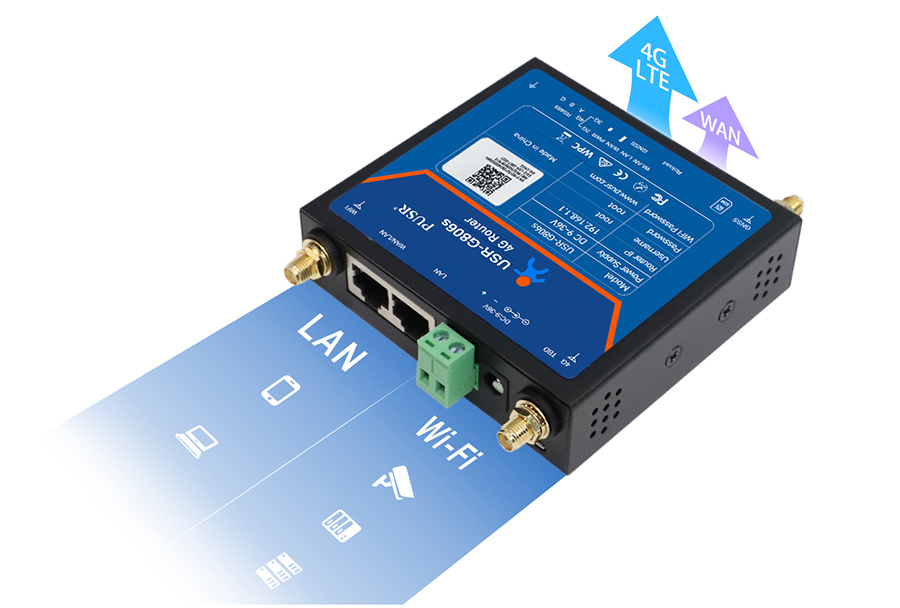

Multiple Internet Accesses, Reliable Connection The router can access the Internet through a SIM card or wired WAN port, supporting network failover, providing a stable and reliable network environment
for terminal network devices
Comprehensive VPN protocols support ensures your data security, including OpenVPN, IPsec, PPTP, L2TP and GRE.
Multiple encryption method make financial-grade data transmission.
Easy to use, but also professional.

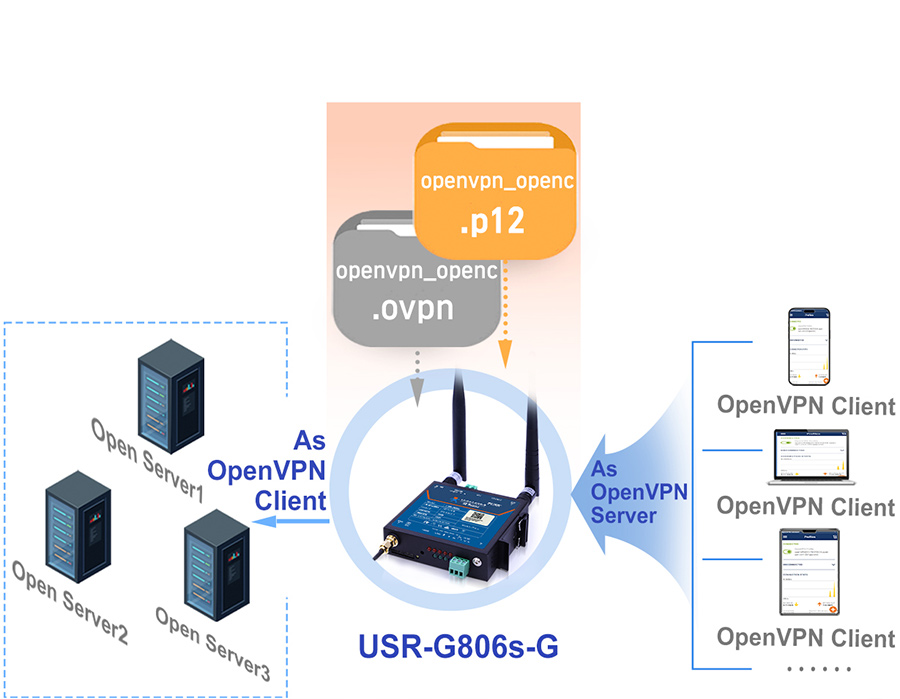

Allows to connect to three different OpenVPN servers as a client and also function as an OpenVPN server.
One-click import .ovpn config-file and PKCS#12 cert-file import Say goodbye to the complex parameter.
Available to OpenVPNR CloudConnexaTm,OpenVPN Access Server, OpenVPN @AWS EC2,Open source OpenVPN,OPNsense,pfSense and other OpenVPN Servers.
PUSR Remote Management platform is an all-in-one user-friendly loT platform providing a smart way to manage your device remotely, securely and reliably.
Users can access to built-in web page remotely to achieve Parameter Configuration, Device Reboot and Firmware Upgrade.

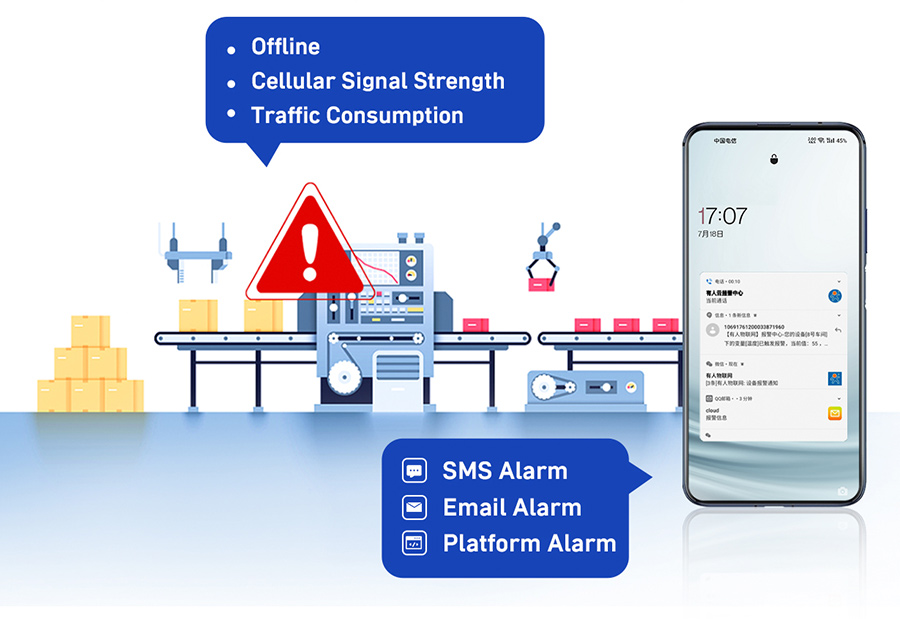

Device offline alarm, weak signal alarm, network traffic overrun. All of this can be alarmed in real time.
Multiple alarm push ways such as E-mail, SMS. Repeated push supported.

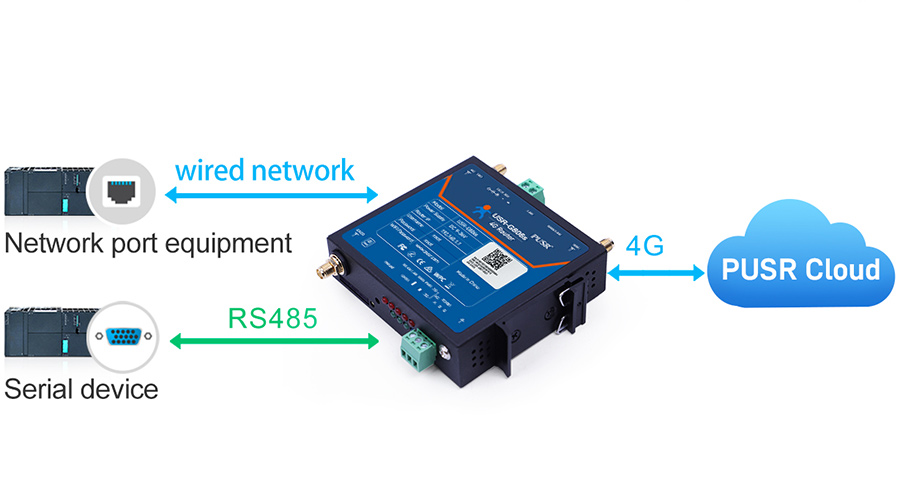

USR-G806s also integrates with serial modem, which can easily achieve the two-way data transparent transmission between RS485 devices and 4G network.
With this device, users can easily send serial data to different servers via TCP/UDP/HTTP. It also supports user-defined register & heartbeat packets to
ensure the device online.

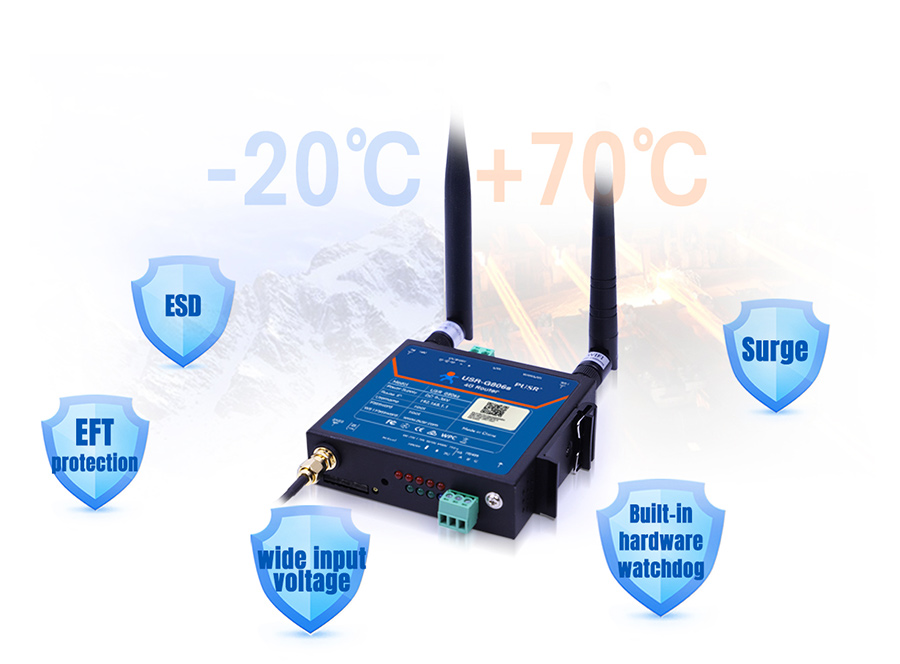

EMC Protection: Surge, EFT and ESD protection for serial ports, Ethernet ports and power circuits.
Watchdog: Hardware & software dual watchdog, 7*24h stable operation without downtime.
Wide Operation Temperature: -20℃～+70℃.
Wide Input Voltage: 9~36V.
Metal Housing: IP30 protection.

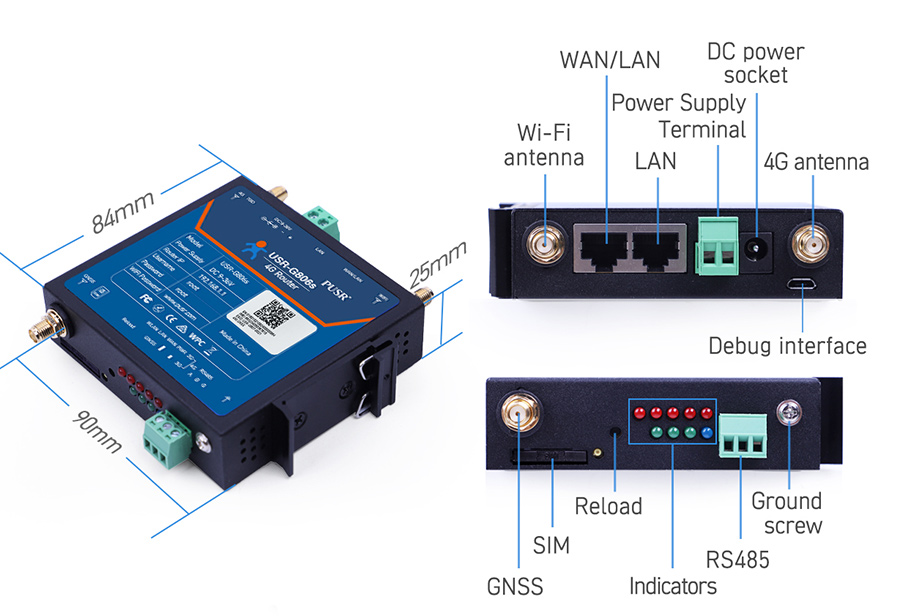

Dimension: 90*84*25mm
Ethernet Ports: 1*WAN/LAN(Configurable)+1*LAN
WiFi: IEEE 802.11 b/g/n, 1*RP-SMA-K antenna connector
Power Supply: 2-pin terminal block & DC socket redundancy
SIM Card: Mini SIM(2FF)
Installation: Wall Mounting & DIN Rail Mounting Available

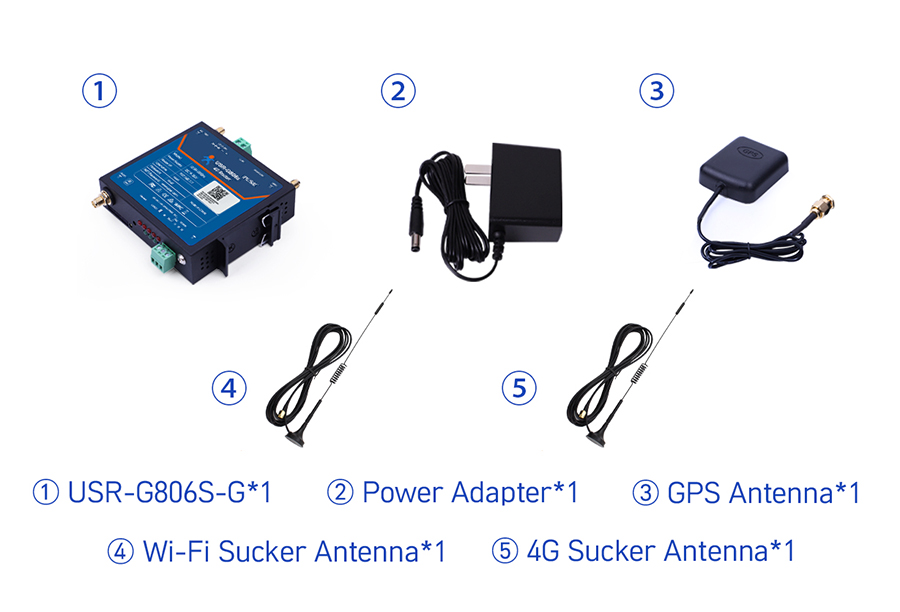

1*USR-G806s
1*WiFi Sucker Antenna
1*4G Sucker Antenna

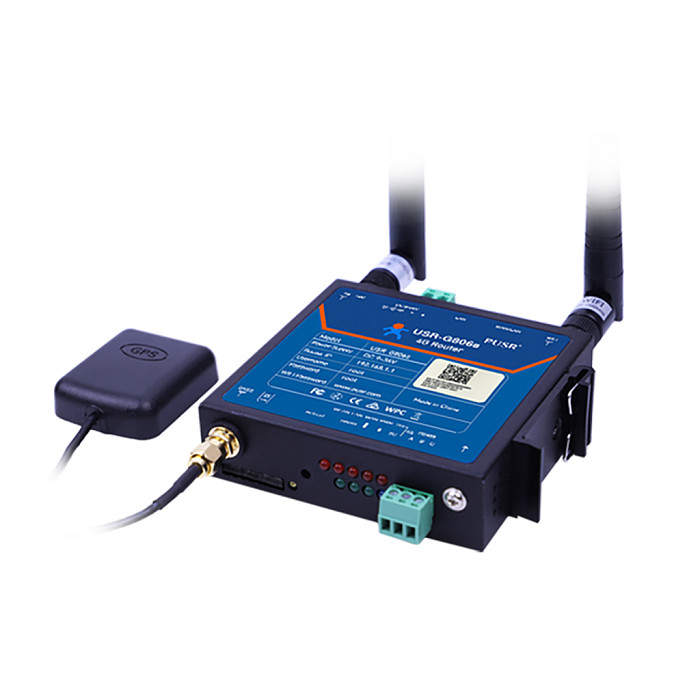

1*GPS Antenna
1*Power Adapter
