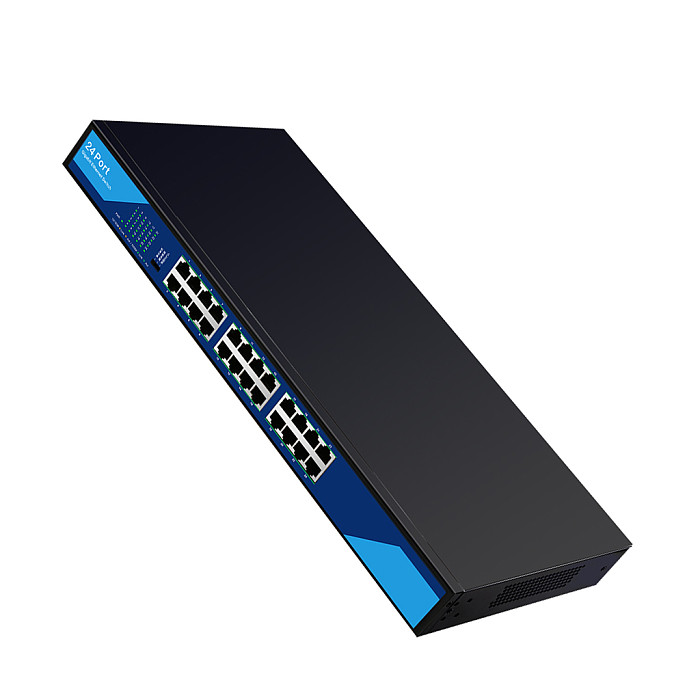

24-port 10/100/1000Mbps Gigabit Unmanaged Switch RJ45 Adaptive Port Auto MDI/MDIX 56Gbps VLAN Isolation Hub Monitor Extender

19inch:

Product Overview:

The TXE237 is a Gigabit unmanaged switch that provides 24 x10/100/1000Mbps RJ45 adaptive ports,

supports wire-speed forwarding for all ports, and each port has the MDI
Each port is equipped with MDI and VMDIX automatic cross-detection function.

Adopting store-and-forward technology, combined with dynamic memory allocation,

ensures effective bandwidth allocation. Ensures effective bandwidth allocation to each port.

Supports multi-mode state operation to meet Multi-mode operation is supported

to meet the requirements of different operating environments.

Built-in high reliability wide voltage input design power supply,

even if the grid voltage is unstable, the power supply can still be used.

The TXE237 is designed for wide voltage input, which ensures the normal

operation of the device even when the network voltage is unstable.
TXE237 is easy to use, no need to configure, plug and play.

Main Features:

Conforms to IEEE802.3, IEEE

802.3u, IEEB802.3ab,

IEEE802. 3x, IEEB802. 1q

Standard.

Flow control, full duplex adopts IEEE 802.3x standard, half duplex adopts Backpressure standard.

Adopts store-and-forward mode.

Supports 8K MAC address capsule.

Up to 56Gbps backplane bandwidth.

Three different modes of operation.

Product Characteristics
> Conforms to IEEE802. 3, IEEE802. 3u, IEEE802. 3ab, IEEE802. 3x,
IEEE802. 1q Ethernet standards.
> 24 10/100/1000MbpsAdaptive RJ45 port,support auto-flip function
(Auto MDIAMDIX)

> Supports IEEE802. 3x full-duplex flow control and half-duplex backpressure flow control.
Supports IEEE802.3x full-duplex flow control and half-duplex back-voltage flow control: >8K auto-learned and auto-aged MAC addresses.
> Supports multiple operation status modes.

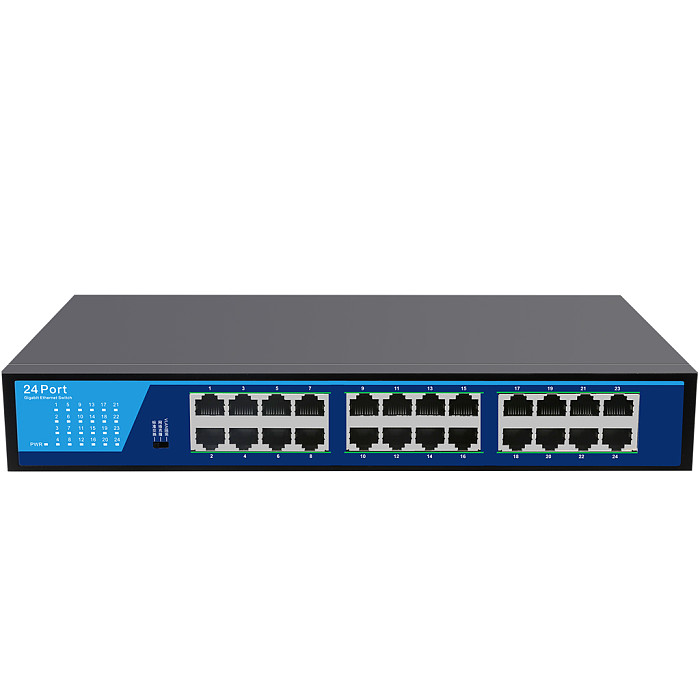

> Easy-to-read LEDs indicate port link and data transfer status.
> Built-in power supply, 19-inch all-iron casing design, suitable for rack mounting.

Product Name: TXE237
Chip: EN8853D+EN8808Q*2
Supported Standards and Protocols: IEEE802. 3, IEEE802. 3u, IEEE802. 3ab, IEEE802. 3x,IEEE802. 1q
Interface: 24x10/100/1000Mbps
Network Media:
10Base-T: Category 3 or higher UTP (up to 100M)
100Base-TX: Category 5 UTP (up to 100M)
1000Base-T: Category 5 or more UTP (up to 100M)
Transmission method: store-and-forward
MAC address capacity: 8K
Switching Capacity: 56Gbps
Packet Forwarding Rate: 35.7Mpps
Packet Buffer: 4M Bits
Jumbo Frame :15K Bytes
Operating Mode: Standard Switching
Standard switching - all ports can communicate normally, suitable for monitoring and office environments.
Network cloning - flow control function is closed, all ports can communicate with each other, suitable for virtualised desktops and diskless systems.
VLAN isolation - switch uplink ports (ports 23 and 24) and ports 1-22 can communicate with each other normally.
ports 1-22 are isolated from each other and cannot communicate.
Indicator Lights.
Power (green) per unit
Per port Link/Act (green)

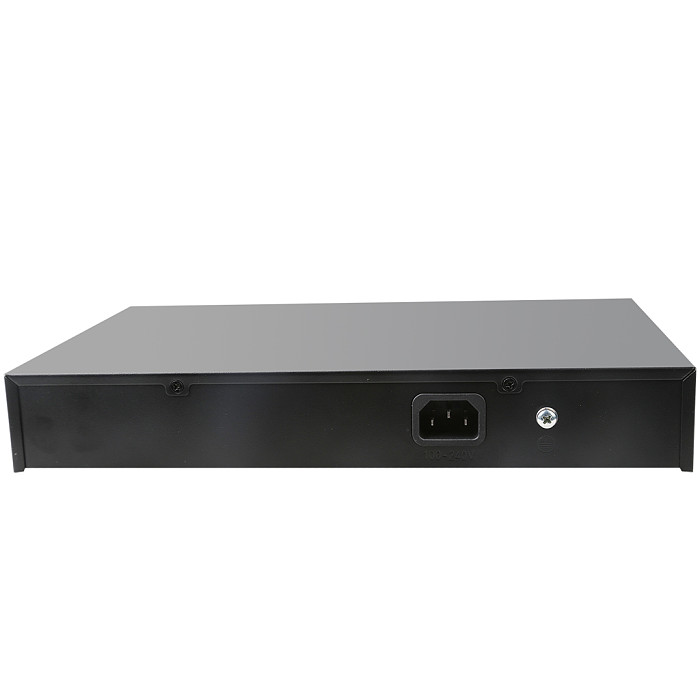

Power supply: 100-240VAC, 50/60Hz
Dimensions (L×W×H) : 440*220*44.5mm
Use environment:
Operating temperature: 0ºC-40ºC
Storage temperature: -40º-70ºC
Operating humidity: 10%-90% non-condensing
Storage humidity: 5%-90% RH non-condensing

13inch:

Description

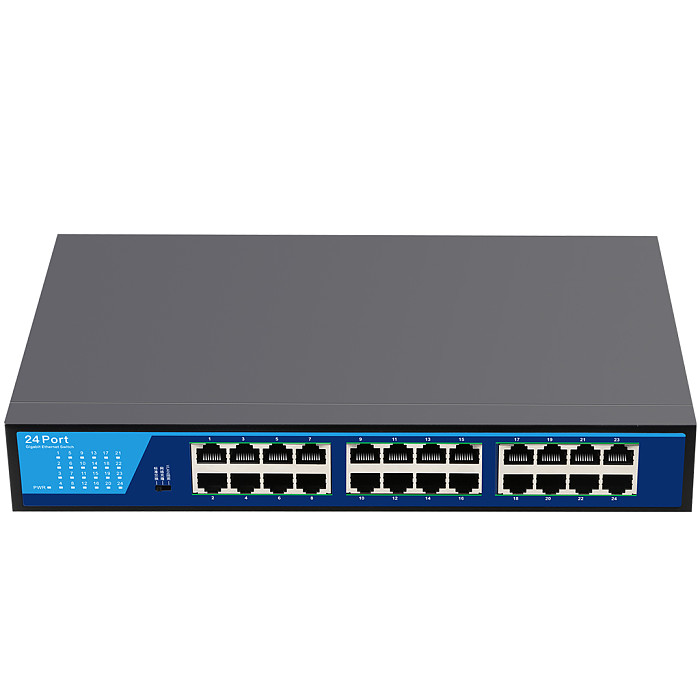

TXE238 is a 24-ports 10/100/1000Mbps unmanged Ethernet switch provides the

seamless network connection. Providing 24x 10/100/1000Mbps RJ45 ports, supporting

all port wrie-speed forwarding, and each port has MDI/MDIX cross detection function.

Using store and forward technology, combined with dynamic memory allocation, to

ensure the effective allocation of bandwidth to each port. It supports multi-mode

operation, and can meet various requirements of operation environment. Built in high

reliability and wide voltage input design power supply can ensure the normal operation

of the equipment even if the grid voltage is unstable.

TXE238 is easy to use without configuration, plug and play.

Characteristics

 Comply with IEEE802.3、

IEEE 802.3u、

IEEE802.3ab、

IEEE802.3x 、

IEEE802.1q standards

 IEEE802.3x flow control

for Full-duplex Mode

and backpressure for

Half-duplex Mode

 Supports 8K entry MAC

address table

 Switching Capacity

56Gbps

 Multi-mode operation

Features

 Comply with IEEE802.3、IEEE 802.3u、IEEE802.3ab、IEEE802.3x、 IEEE802.1q standards;

 Support 24 x10/100/1000Mbps Auto-negotiation RJ45 ports , all port auto

MDI/MDIX;

 Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for

Half-duplex Mode;

 8K entry MAC address table of the switch with auto-learning and auto-aging;

 Support multi-mode operation;

 LED indicators for monitoring port Link/Activity;

 13 inches full metal iron shell and internal power adapter design, suitable for

rack installation.
