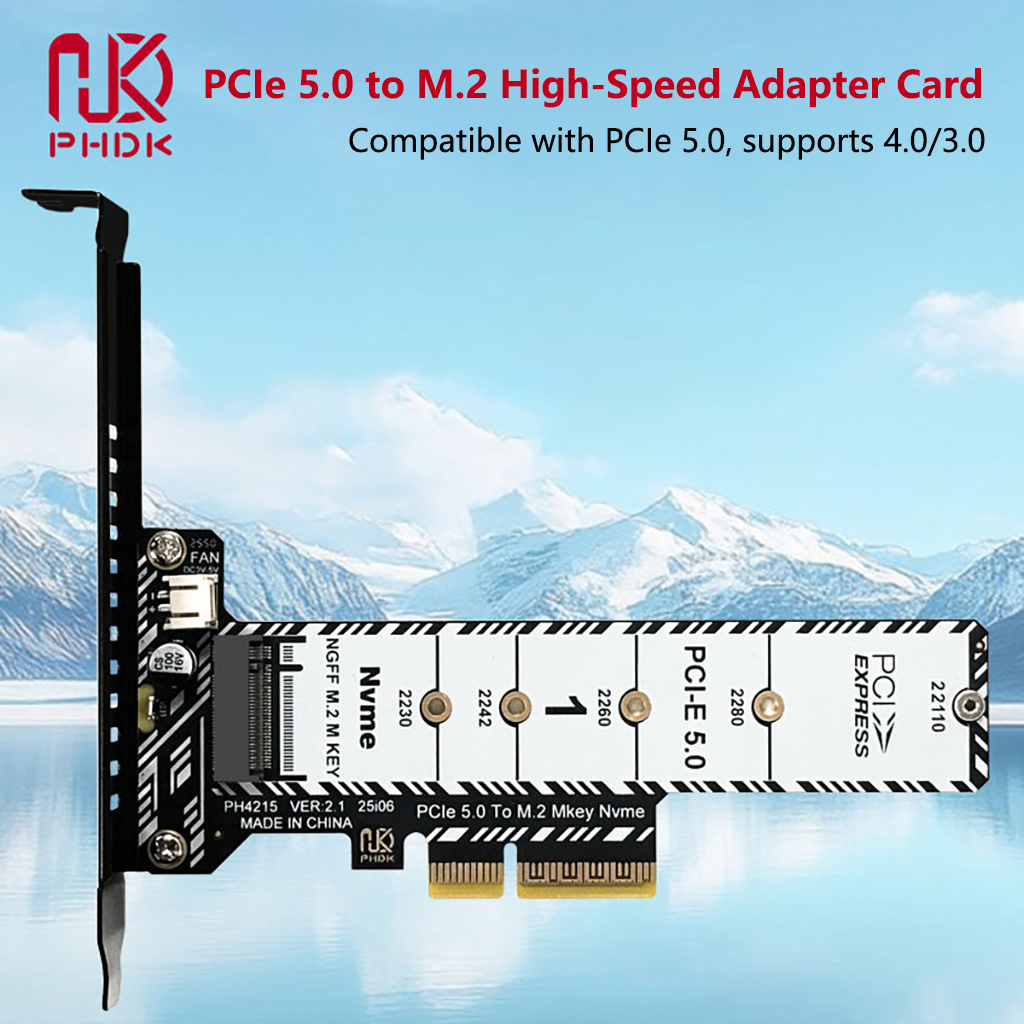

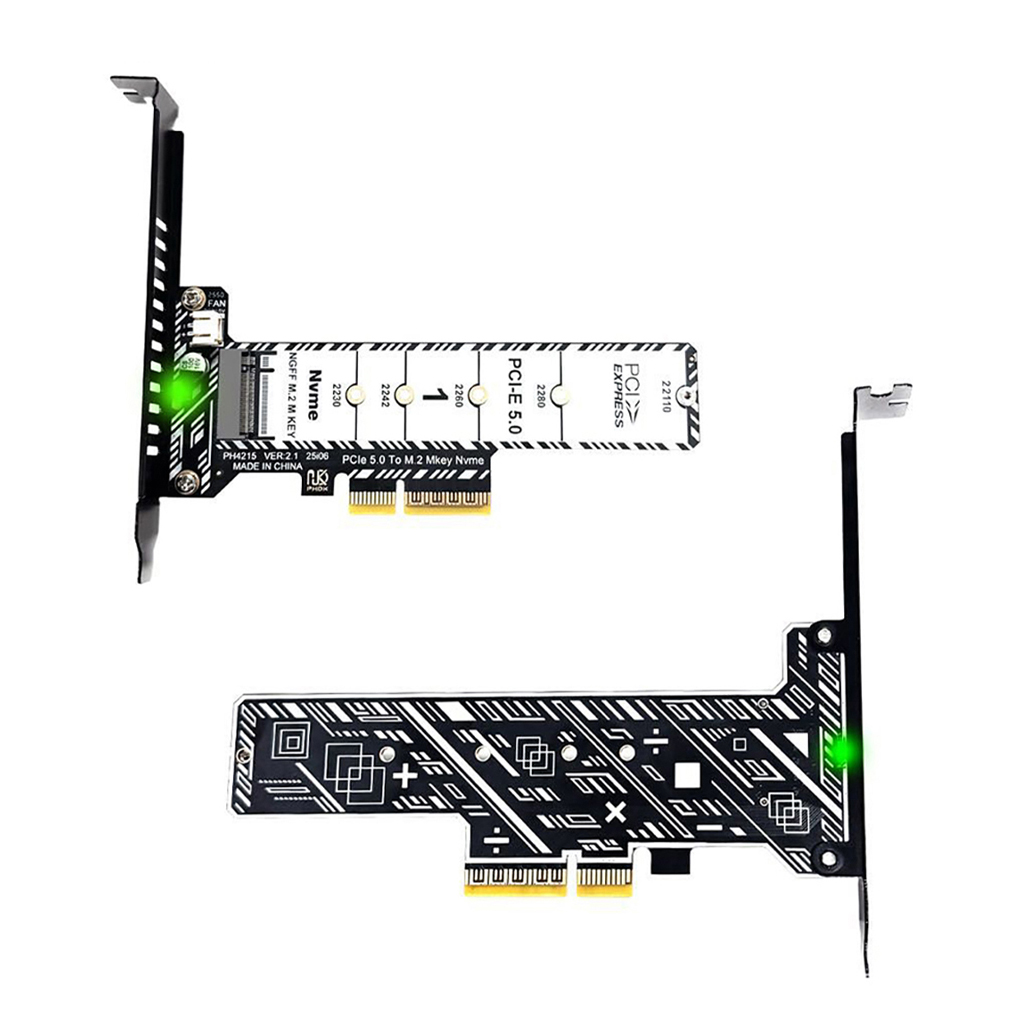

This PCIe 5.0 to M.2 NVME Adapter Card (Model: PH4215, VER:2.1 25i06) is carefully designed and strictly tested, providing you with a reliable and efficient storage expansion solution for desktops, workstations and servers. It perfectly solves the problem of insufficient M.2 NVME slots, helping you fully release the performance of your M.2 NVME SSD.
🔥 PCIe 5.0 High Speed | 5 SSD Sizes Supported | Transparent PCB & LED Indicator | Stable & Universal Compatibility | Factory Direct
🌟 Key Features
-
PCIe 5.0 High-Speed Transmission: Fully supports PCIe 5.0 standard, delivering ultra-fast data transfer speeds without deceleration, disk drop or congestion. It is perfectly compatible with M.2 NVME protocol SSDs, ensuring smooth operation even during heavy tasks such as 4K/8K video editing, 3D rendering, large file transmission and high-performance computing.
-

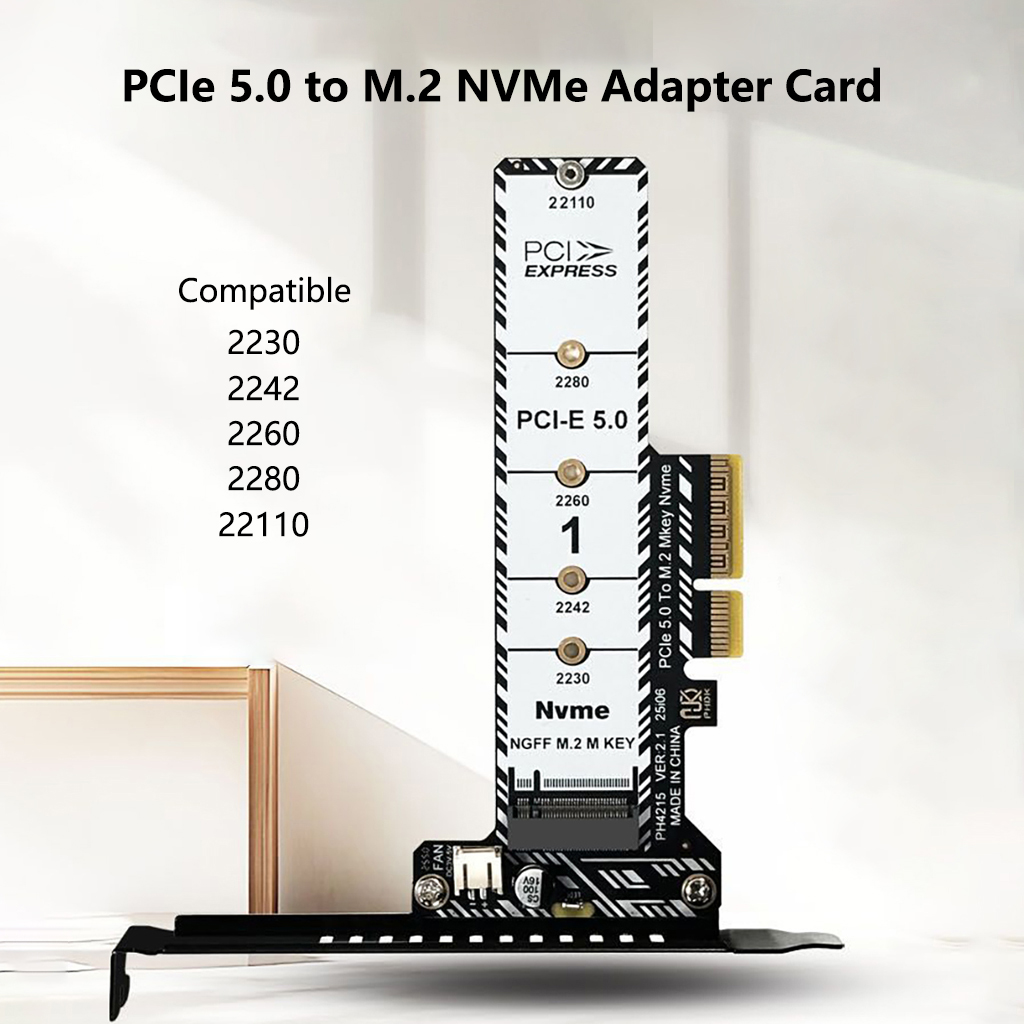

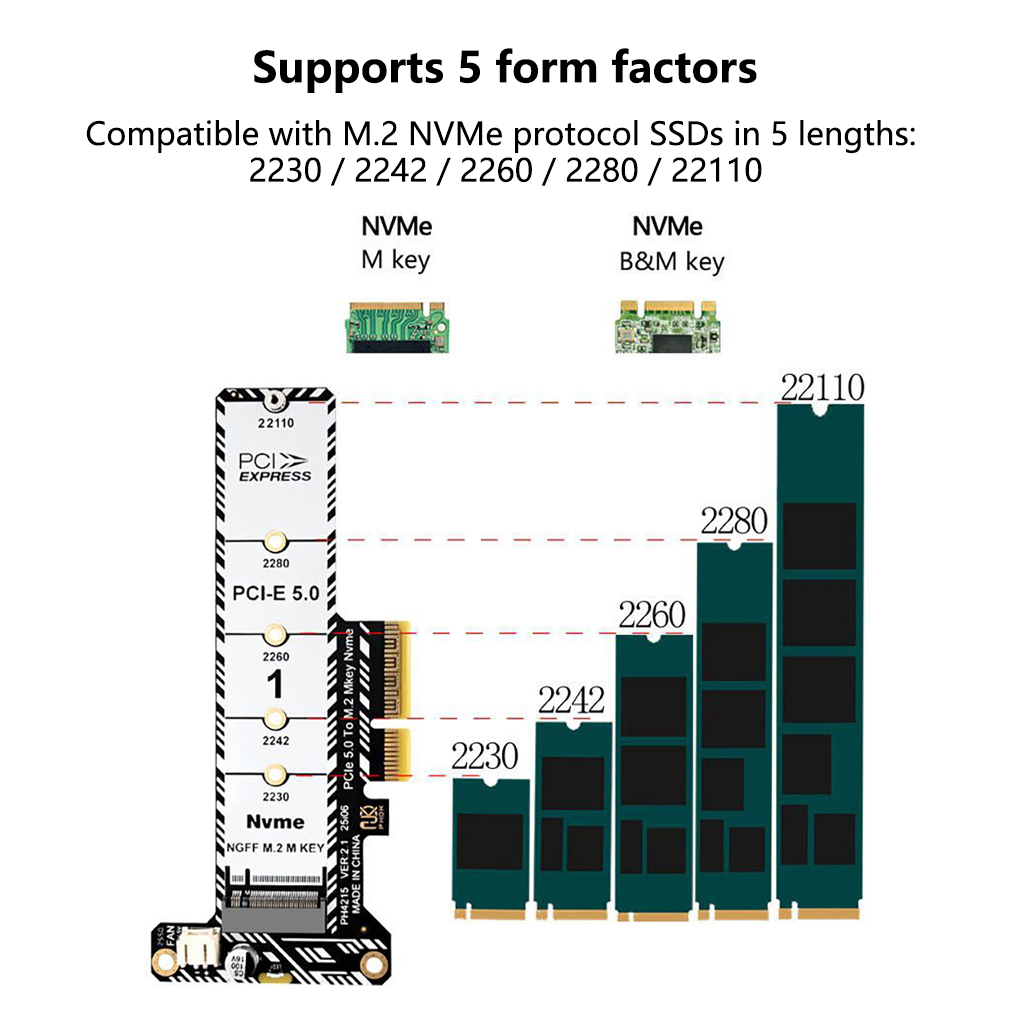

Wide SSD Compatibility: Supports 5 sizes of M.2 NVME protocol SSDs, including 2230, 2242, 2260, 2280 and 22110. Compatible with M-Key and B&M-Key M.2 NVME SSDs (Note: Does not support SATA protocol NGFF SSDs), meeting various storage expansion needs of different users.
-

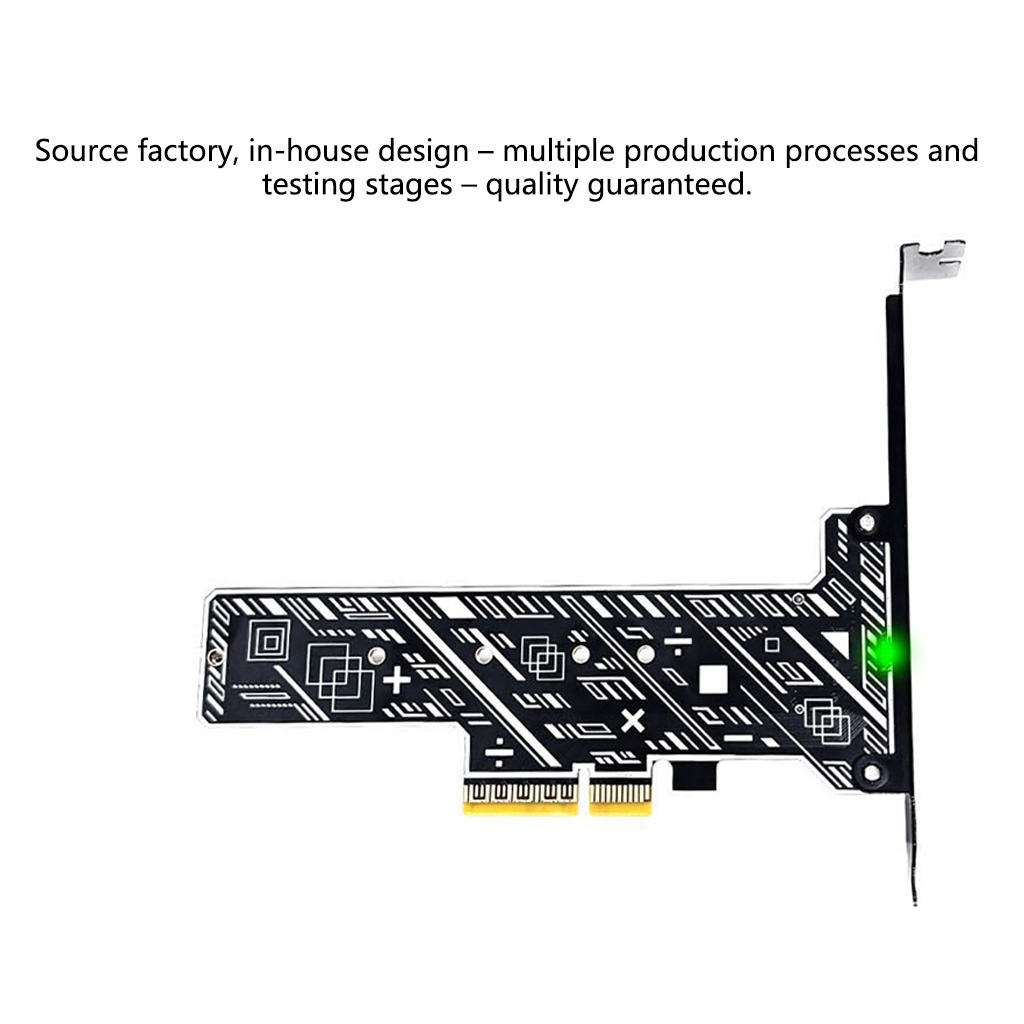

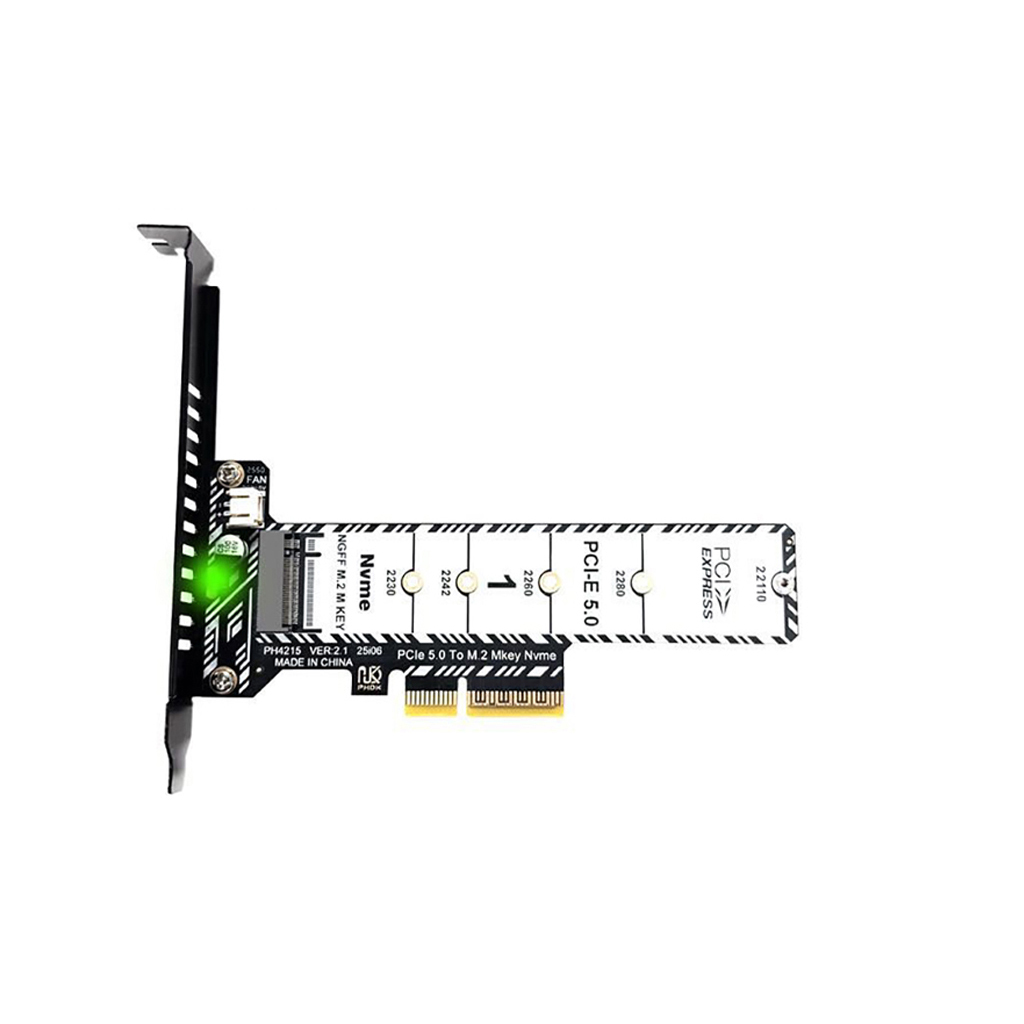

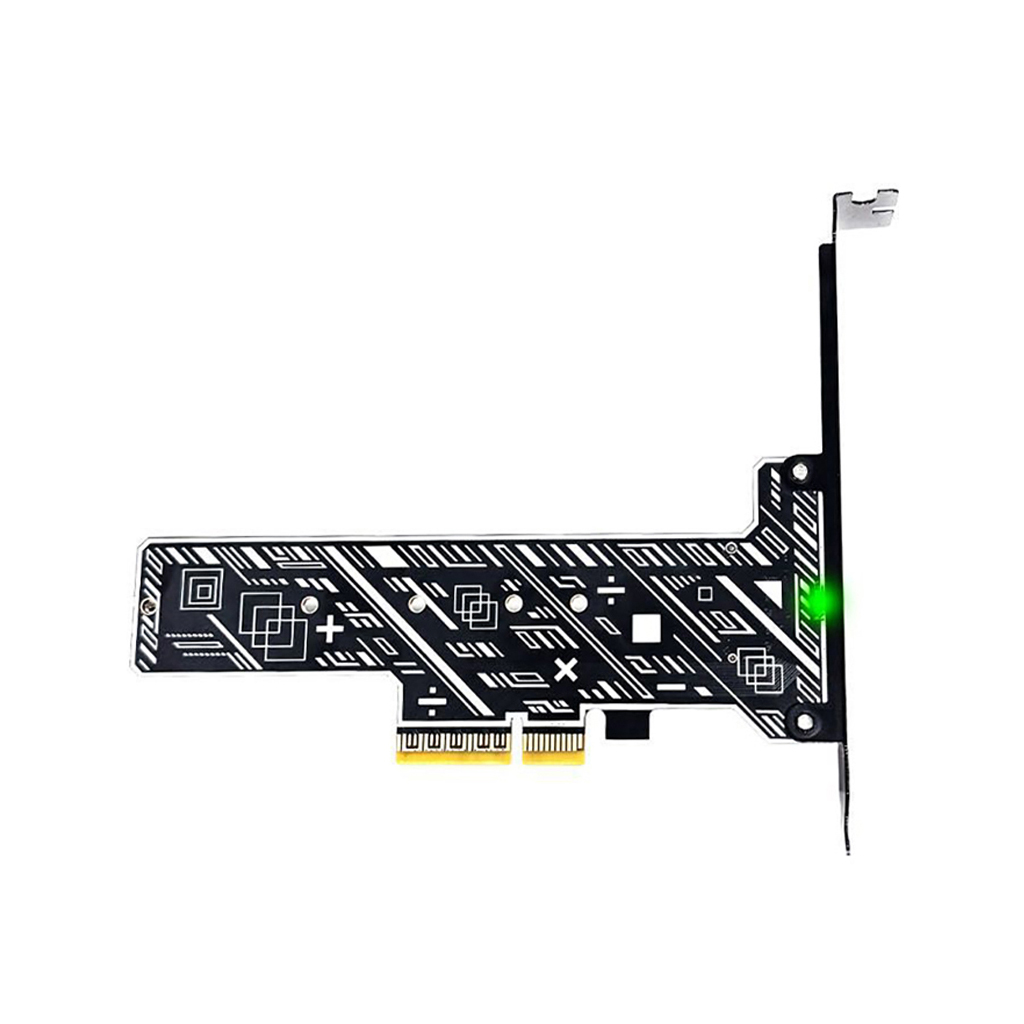

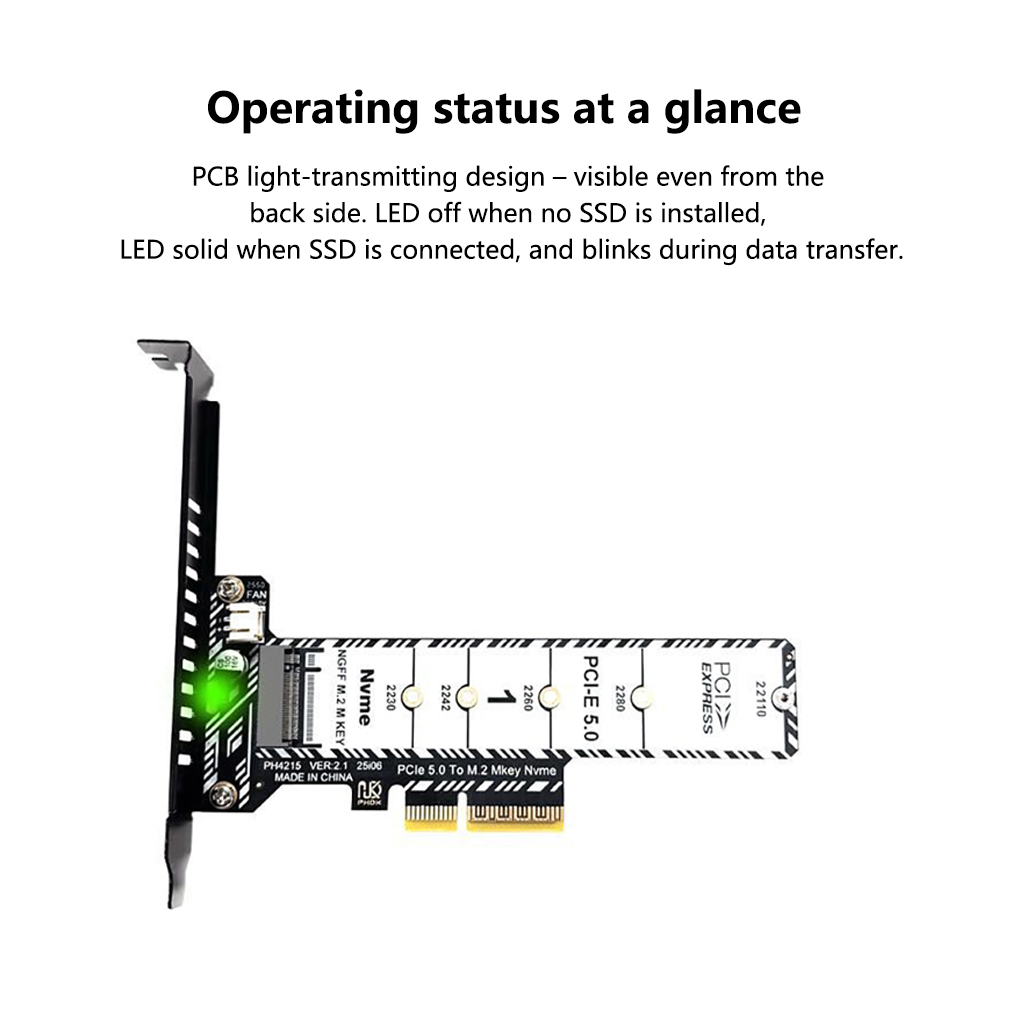

Transparent PCB & LED Status Indicator: Adopts transparent PCB design, allowing you to clearly check the working status even from the back. Equipped with LED indicator: the LED is off when no SSD is connected, stays on when the SSD is connected, and flashes when data is transmitted, making the working status of the adapter card and SSD at a glance.
-
Universal System Compatibility: Fully compatible with three major operating systems: Mac OS, Windows and Linux, plug-and-play, no need to install additional drivers, easy to use for both beginners and professionals.
-
Premium Quality & Reliable Performance: As an original factory, we independently design and produce each product, which undergoes multiple production processes and strict testing links to ensure stable performance and long service life. The adapter card is made of high-quality materials, ensuring good conductivity and durability.
📊 Performance Test Results
Tested with CrystalDiskMark 8.0.6, Blackmagic Disk Speed Test, AJA System Test and CrystalDiskInfo 8.17.14, the card shows excellent and stable performance. Note: Test data may vary due to different environments and scenarios; the actual results shall prevail.
-
CrystalDiskMark 8.0.6 (1GiB, X64):
SEQ1M Q8T1 Read: Up to 11692.49 MB/s, Write: Up to 9635.64 MB/s
SEQ1M Q1T1 Read: Up to 8665.95 MB/s, Write: Up to 8845.81 MB/s
RND4K Q32T1 Read: 801.90 MB/s, Write: 624.82 MB/s
RND4K Q1T1 Read: 95.20 MB/s, Write: 314.12 MB/s
-
Blackmagic Disk Speed Test: Read up to 8245.3 MB/s, Write up to 7207.4 MB/s, fully supporting high-bitrate video formats such as ProRes 422 HQ, H.265 and Blackmagic RAW, and smoothly handling 4K/8K/12K video workflows.
-
AJA System Test (1920x1080 HD-1080, 16GB Test File, 10bit YUV): Write up to 7240 MB/SEC, Read up to 10400 MB/SEC, ensuring stable performance under high-load conditions.
-
CrystalDiskInfo 8.17.14: The SSD connected to the adapter card maintains a healthy status (100% health), supports S.M.A.R.T., TRIM and Volatile Write Cache functions, with stable temperature (42℃-46℃) and reliable operation.
The test results confirm that the adapter card can fully release the performance of the M.2 NVME SSD, with stable signal transmission and no speed loss, providing a smooth and reliable user experience.

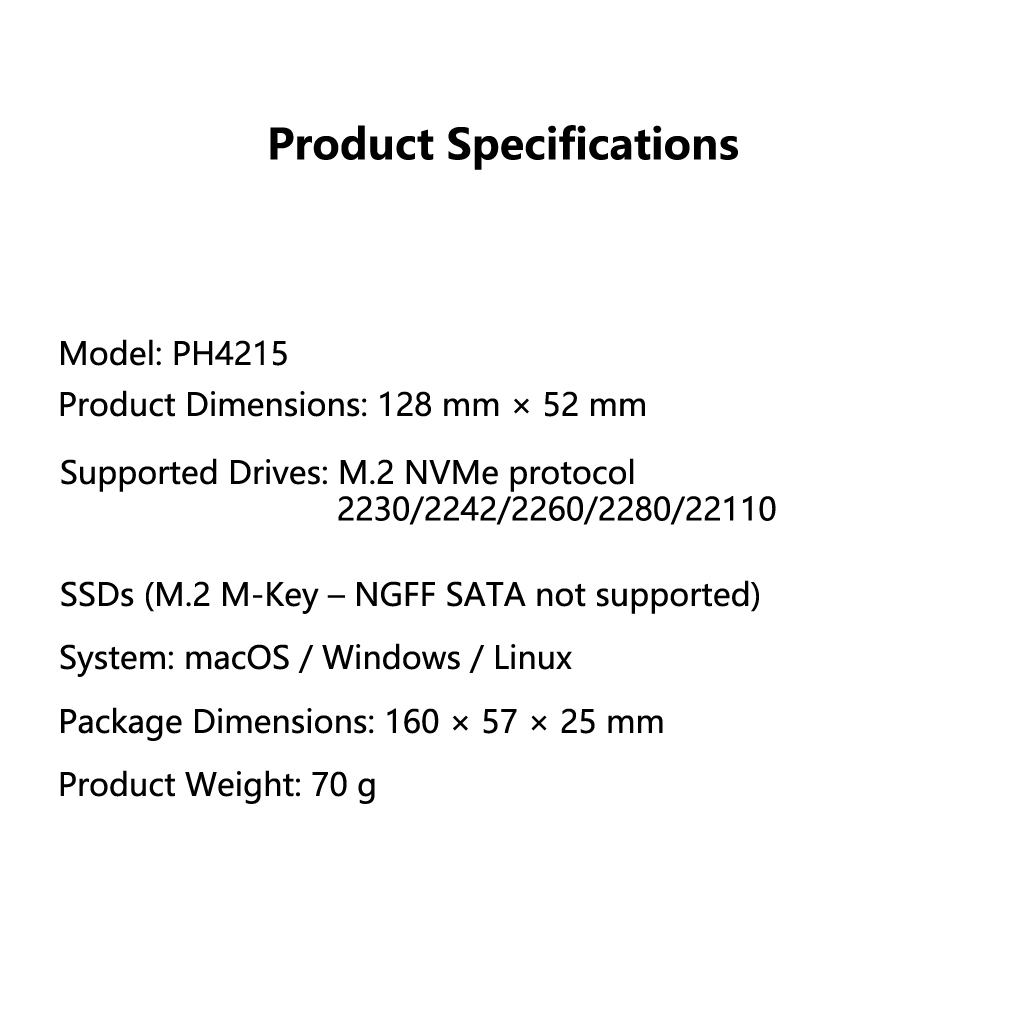

📐 Product Specifications
|
Item
|
Specification
|
|
Product Model
|
PH4215 (VER:2.1 25i06)
|
|
Product Name
|
PCIe 5.0 to M.2 NVME Adapter Card
|
|
Supported SSDs
|
M.2 NVME Protocol (M-Key/B&M-Key), 2230/2242/2260/2280/22110 sizes (Does not support SATA protocol NGFF)
|
|
PCIe Standard
|
PCIe 5.0
|
|
Compatible Systems
|
Mac OS / Windows / Linux
|
|
Product Size
|

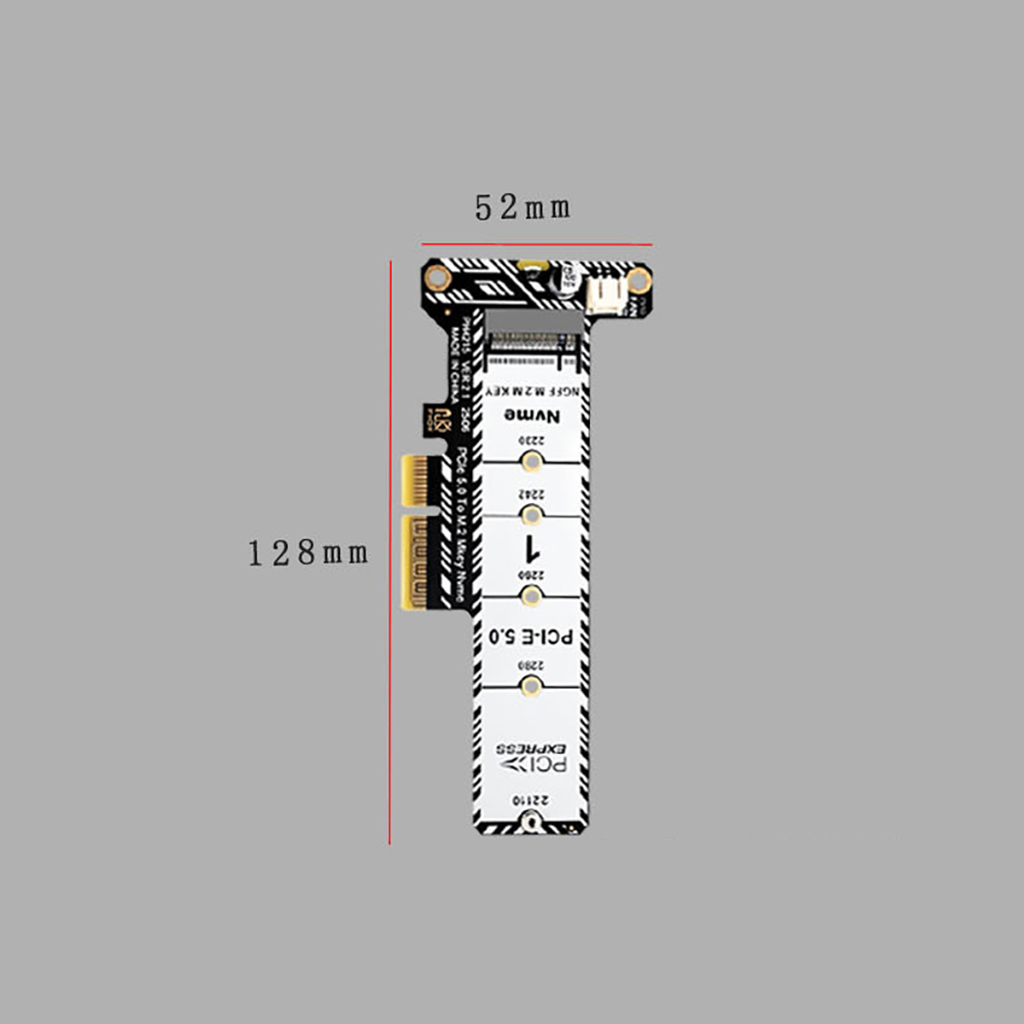

128mm * 52mm (Manual measurement, slight error may exist)
|
|
Product Weight
|
70g
|

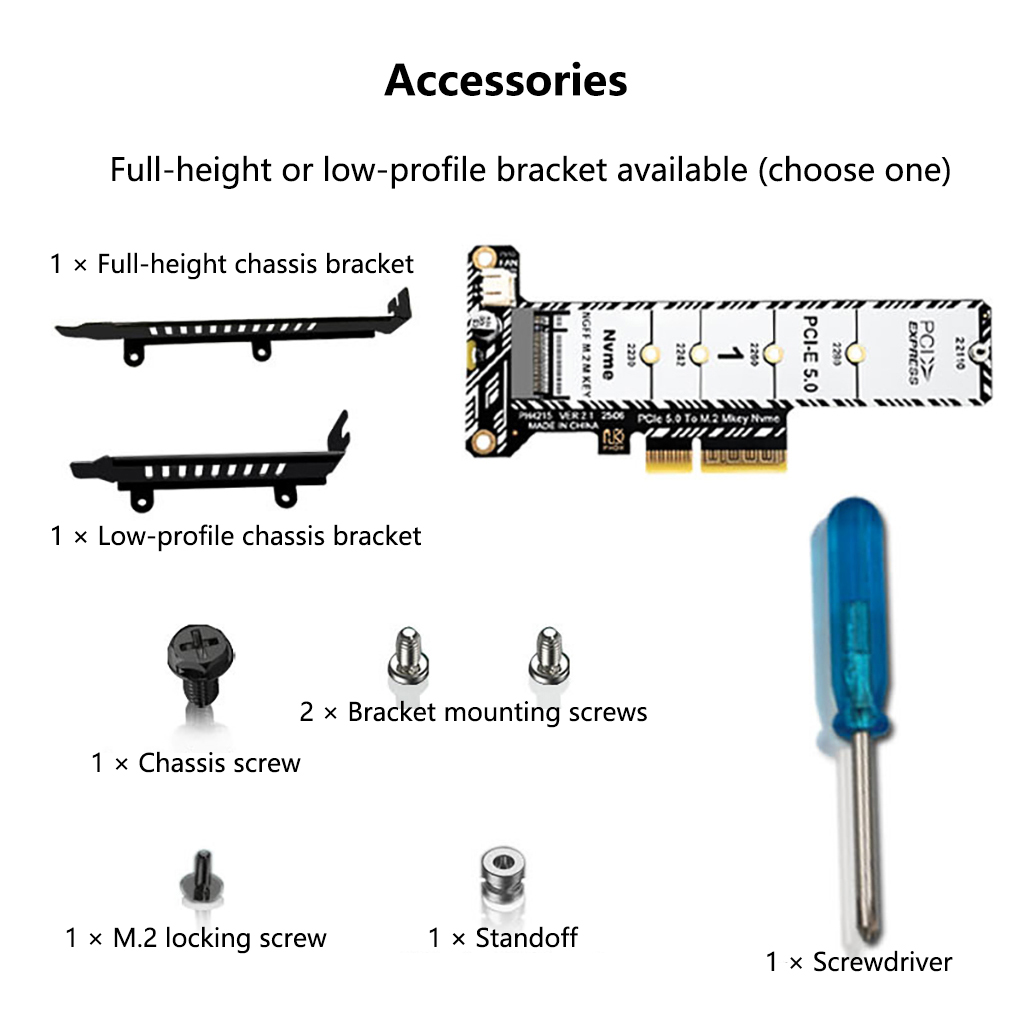

🎁 Package Included
-
1 x PCIe 5.0 to M.2 NVME Adapter Card (PH4215)
-
1 x Full-Height Chassis Bracket or 1 x Low-Profile Chassis Bracket (Optional)
-
2 x Bracket Lock Screws
-
1 x Chassis Screw
-
1 x Movable Stud
-
1 x SSD Lock Screw
-
1 x Screwdriver
🏆 Why Choose Us?
-
Original Factory Direct: Independent R&D and production, no middlemen, offering high-quality products at competitive prices.
-
Strict Quality Control: Each product undergoes multiple production processes and strict testing links to ensure stable performance and reliable quality.
-
User-Friendly Design: Transparent PCB, clear LED status indicator, plug-and-play, compatible with multiple SSD sizes and operating systems, easy to install and use.
-
Professional Support: If you have any questions about installation, compatibility or performance, our customer service team will reply to you within 24 hours to provide professional solutions.
Note: This adapter card only supports M.2 NVME protocol SSDs (M-Key/B&M-Key) and does not support SATA protocol NGFF SSDs. Please confirm your SSD type before purchasing. Test data may vary due to different environments and scenarios; the actual results shall prevail.
