Home>DIY RC Drone Accessories>Motor>iFlight XING2 3106 1200KV/1500KV Brushless Motor For FPV Drone

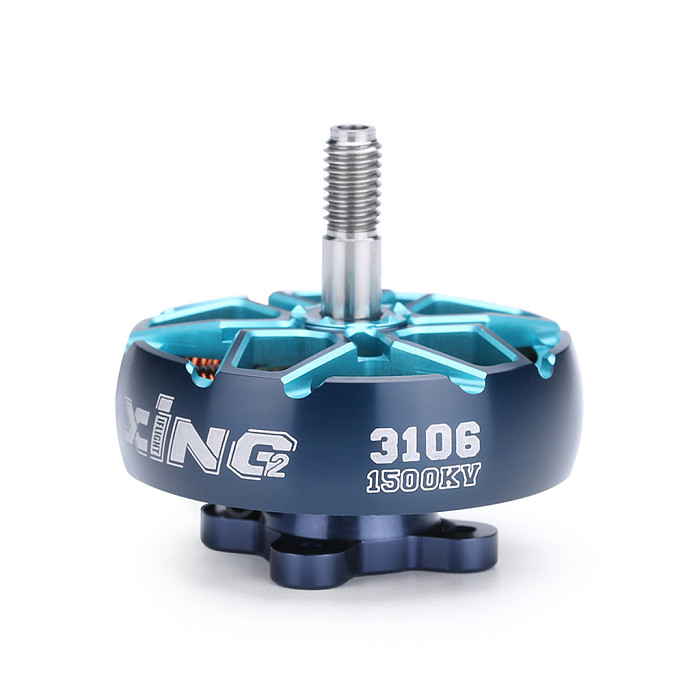

iFlight XING2 3106  1200KV/1500KV  Brushless Motor  For FPV Drone

iFlight XING2 3106 1200KV/1500KV Brushless Motor For FPV Drone Item NO.: F47579-D1 F47579-D2

Write a Review
US$ 38.99
Version
1200KV 1500KV
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • iFlight XING2 3106 1200KV/1500KV Brushless Motor For FPV Drone
Product Name iFlight XING2 3106 1200KV/1500KV Brushless Motor For FPV Drone
Item NO. F47579-D1 F47579-D2
Weight 0.1 kg = 0.2205 lb = 3.5274 oz
Category DIY RC Drone Accessories > Motor
Brand iFlight
Creation Time 2022-06-23

iFlight XING2 3106  1200KV/1500KV  Brushless Motor  For FPV Drone

PRODUCT DESCRIPTION
Our XING series NextGen motors have become popular after the initial release in 2018 and became the new standard on
the market. Was it the curved shape or the internal damping ring to protect the bearing, or was it the higher
quality NSK bearings coupled with a higher grade titanium alloy shaft? We've been copied and compared all these
years, but now it's time to set a new standard again! We're finally ready to announce our predecessor the XING2!

The smooth, reliable and powerful XING motors were upgraded and we achieved an even higher standard in our
manufactory as well as better performance than ever before. New center slotted N52H curved arc magnets were
introduced to drastically reduce response time of the motor! Maybe the biggest bottleneck of our FPV flight
controller is the motor due to it's translation delay of it braking and accelerating. XING2 motors offer faster
response to translate your PID loop quicker and get that locked-in feeling you were always looking for!

Due to the high quality materials used and the durable joint of bell and shaft, we were able to reduce the magnet
air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher
the magnetic flux (which is the magnetic analog of current) causing more efficiency and higher power!

Early 2018 we started to put o-rings on the top of our bearings between motor bell and stator. This acts as an
absorber if your bell or shaft has gone through crashing and keeps the bearing gap tight to reduce all those
vibrations induced by high rpms! It can also reduce the axial impact force just enough to keep your bearings smooth
 and quiet. All our experience, high quality 7075 bells, O-ring bearing protection and all the other features
you've just seen on your original XING series are still inbuilt in a new shape and design!


Features:
- 5mm titanium alloy shaft, our strongest prop shaft ever!
- Crash resistant 7075 aluminum bell
- Smooth and long-lasting NSK 11x5x5 bearings
- Center slotted N52H curved arc magnets
- XING O-ring bearing gap protection
- Motor wires protector
- Dynamically balanced

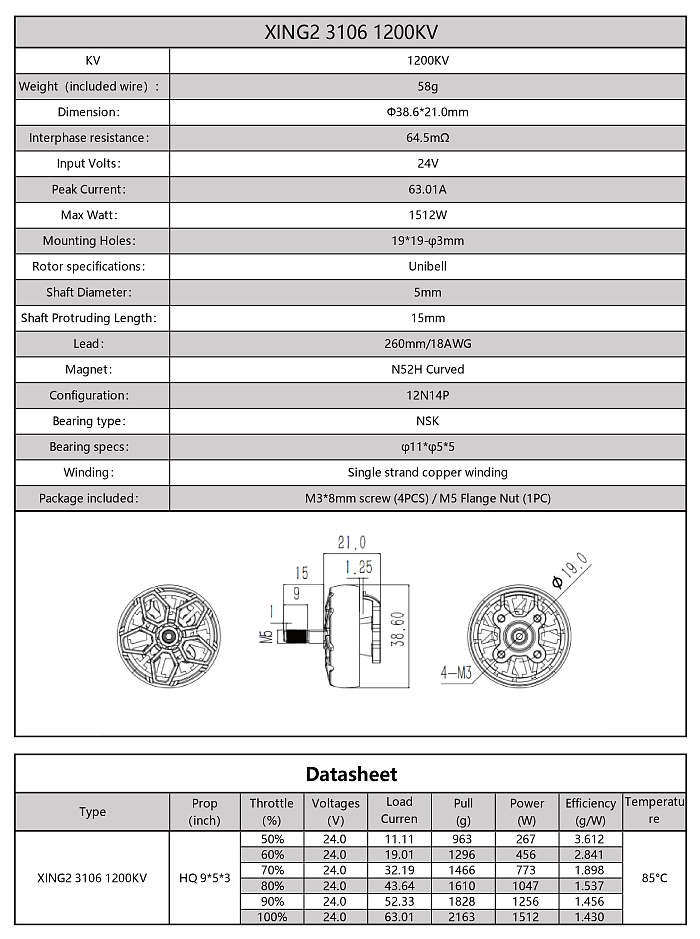

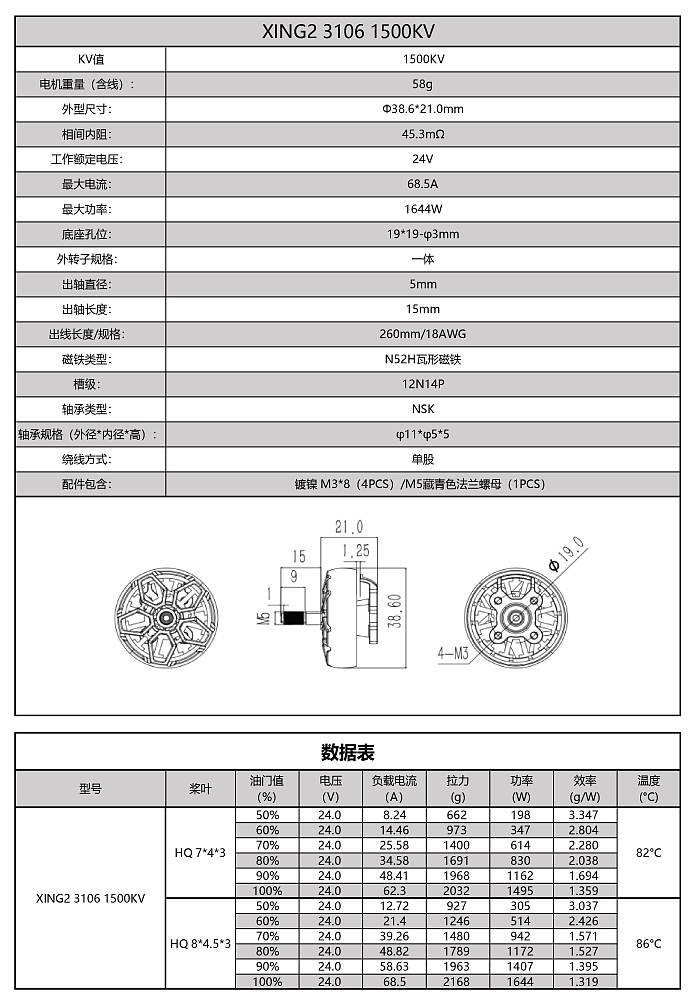

Specification
- Model: XING2 3106
- KV: 1200KV / 1500KV (select)
- Prop shaft: CW thread
- Recommended input voltage Voltage: 4S-6S (16V-26V)
- Configuration: 12N14P
- Stator Diameter: 31mm
- Stator Height: 6mm

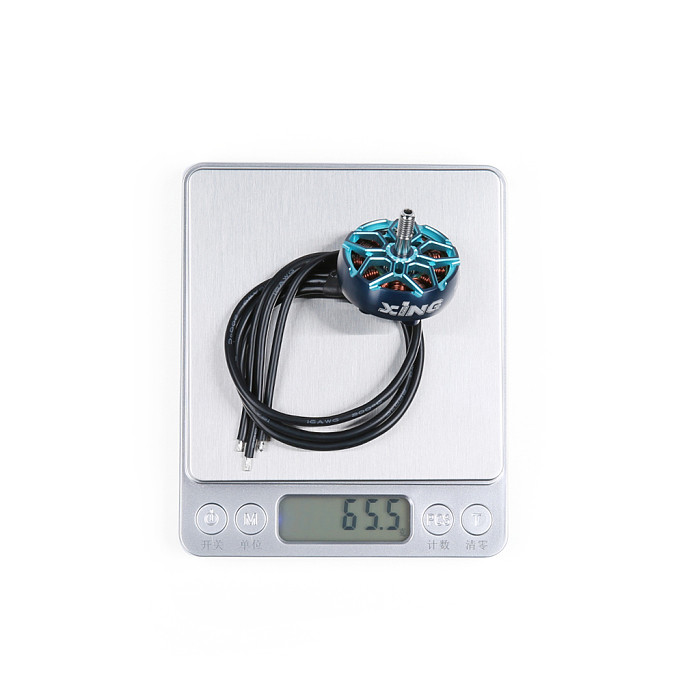

- Weight: 65.5g with short wire
- Wire length: 16AWG 260mm
- Mounting pattern: 19*19mm

Package includes:
1x XING2 3106 Brushless Motor
4x M3x6 screws
1x Prop nut

NOTE: Propellers not included!
