(iFlight) XING2 1806 1600KV/2500KV 1.5mm Shaft Motor For FPV Racing DIY Accessories Item NO.: F47585-D1 F47585-D2

(iFlight) XING2 1806 1600KV/2500KV 1.5mm Shaft Motor For FPV Racing DIY Accessories

PRODUCT DESCRIPTION
Our XING series NextGen motors have become popular after the initial release in 2018 and became the new standard on
the market. Was it the curved shape or the internal damping ring to protect the bearing, or was it the higher
quality NSK bearings coupled with a higher grade titanium alloy shaft? We've been copied and compared all these
years, but now it's time to set a new standard again! We're finally ready to announce our predecessor the XING2!

The smooth, reliable and powerful XING motors were upgraded and we achieved an even higher standard in our
manufactory as well as better performance than ever before. New center slotted N52H curved arc magnets were
introduced to drastically reduce response time of the motor! Maybe the biggest bottleneck of our FPV flight
controller is the motor due to it's translation delay of it braking and accelerating. XING2 motors offer faster
response to translate your PID loop quicker and get that locked-in feeling you were always looking for!


Due to the high quality materials used and the durable joint of bell and shaft, we were able to reduce the magnet
air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher
the magnetic flux (which is the magnetic analog of current) causing more efficiency and higher power!


Early 2018 we started to put o-rings on the top of our bearings between motor bell and stator. This acts as an
absorber if your bell or shaft has gone through crashing and keeps the bearing gap tight to reduce all those
 vibrations induced by high rpms! It can also reduce the axial impact force just enough to keep your bearings
smooth and quiet. All our experience, high quality 7075 bells, O-ring bearing protection and all the other features
you've just seen on your original XING series are still inbuilt in a new shape and design!

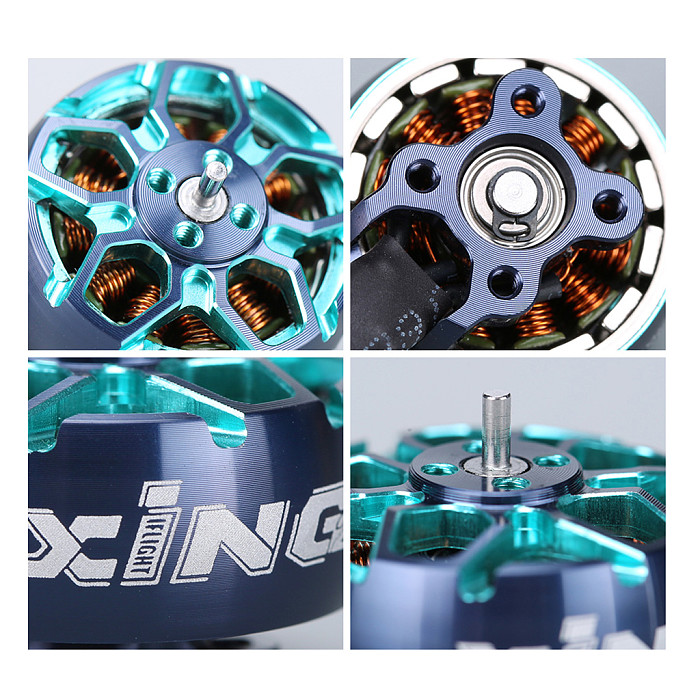

Features:
*1.5mm outer titanium alloy shaft
*Japanese NSK φ7*φ3*3mm bearings
*N52H curved magnets
*Motor wires protected
*Dynamically balanced

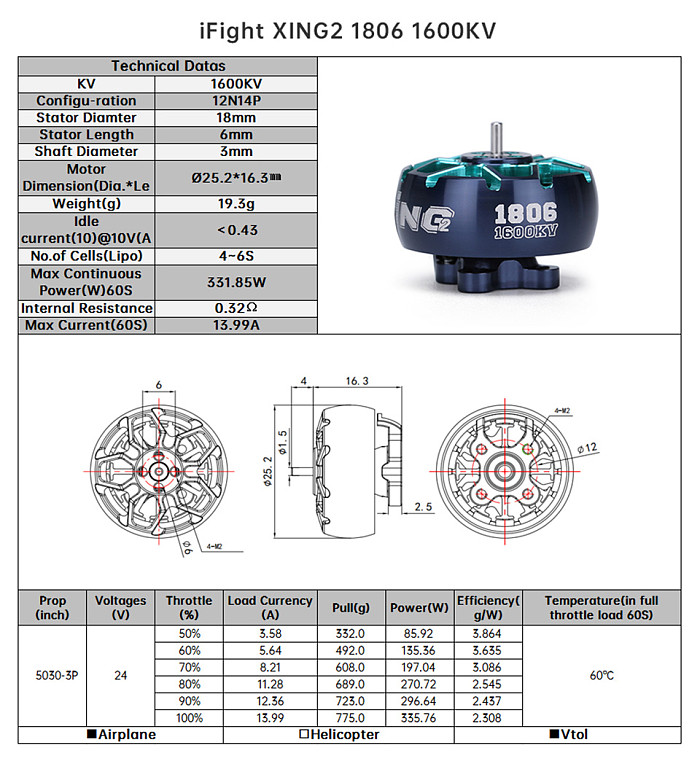

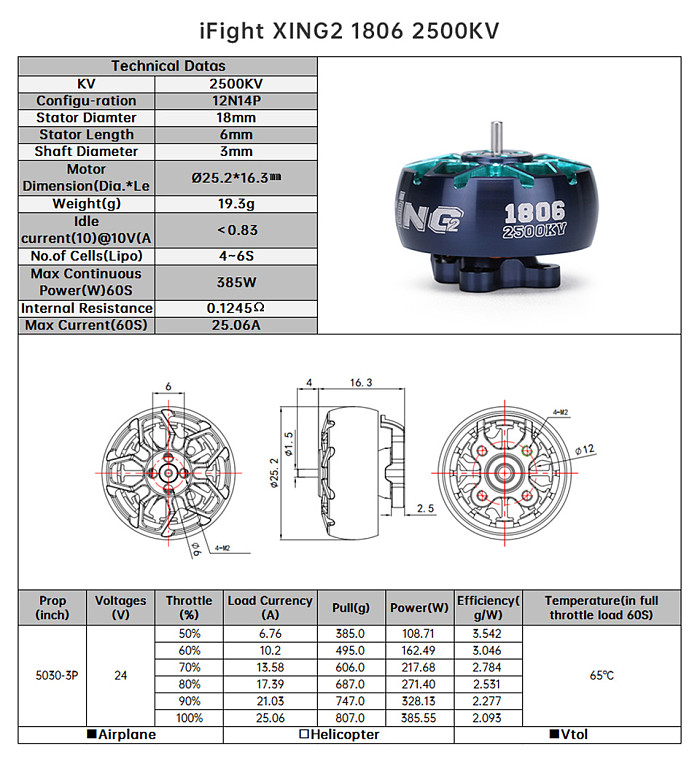

Specification
- Model: XING2 1806
- KV: 1600KV / 2500KV (select)
- Input Voltage: 4S/6S Lipo
- Configuration: 12N14P
- Stator Diameter: 18mm
- Stator Length: 6mm
- Weight: 19.3g with short wire
- Wire length: 24AWG 160mm
- Bottom Mounting pattern: 12*12mm φ2mm
- Top Mounting pattern: 6*6mm φ2mm


Package includes:
1x XING2 1806 Brushless Motor 1.5mm Shaft (KV is optional)
6x M2*7mm screws
NOTE: propeller does not include.
