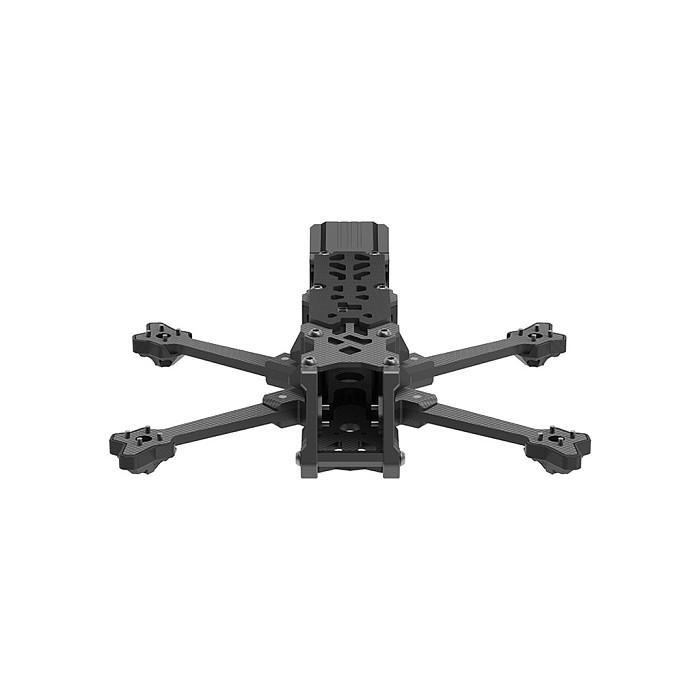

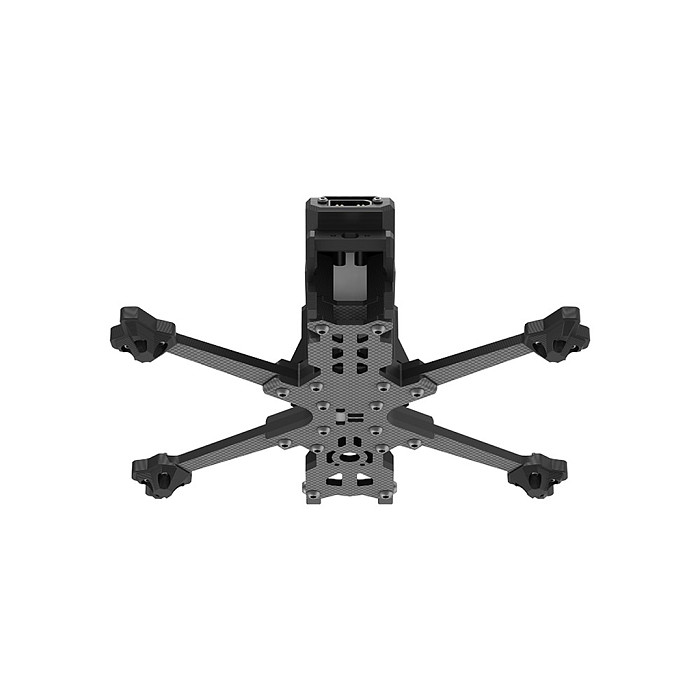

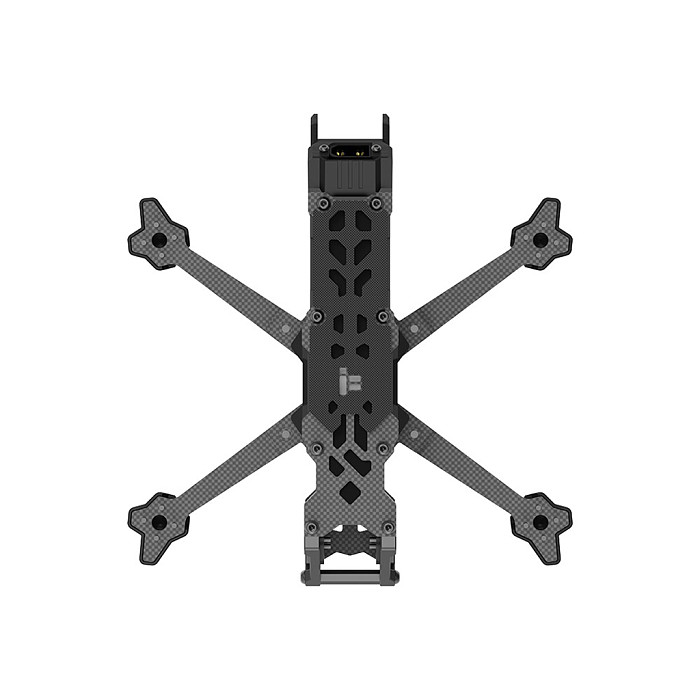

iFlight Nazgul Evoque F4 FPV Frame Kit F4X with 4mm Arm for FPV Parts Item NO.: F50796

The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Introducing the latest iteration of the Nazgul evoque F4, featuring enhanced performance and a lighter, more compact design.

Highlights

Camera Mount for a wider camera FOV with TPU damping inserts

Side Panels to perfectly fit the O3 Air Unit in the back

Dual 5.8G VTX Antenna TPU mount

Latest Nazgul Frame Upgrades for Maximum Protection

Optional Parts to select (not included in frame kit):

New Anti Spark Filter to prevent rapid voltage and current spikes plugging in a battery

Specifications

Product Name: Evoque F4X Frame Kit

Geometry model: Squashed X /DeadCat

Frame wheelbase: 184.8mm / 185mm

Frame Dimension: L258*W199*H25 mm / L149*W110*H36mm

Frame Body Dimension: 36mm

Arm Thickness: 4mm

Bottom Plate Thickness: 3mm

Top Plate Thickness: 2mm

Upper Plate Thickness: 3mm

Max Flight Stack Height: 23mm

Max VTX Height: 23mm

Flight Stack Mounting: 20*20/Φ3mm

VTX Mounting: 25.5*25.5/Φ1.6mm

Motor Mounting: 12x12mm/φ2mm

Weight:  grams

Packing List

1 x Evoque F4X Frame Kit

1 x TPU Set

1 x Screw Bag

12 x Anti-slip Battery Pad

2 x Battery Strap
