PCIe x1 To U.2 NVMe SFF-8639 PCI Express 3.0 x4 Transfer Extension Data Cables Gen3.0 PCI-e U.2 NVME Interface SSD w/ Power Cord

Brand: XT-XINTE

Product model: R17SF, R17SL,R17SL-TU (R17 series)

Product name: PCI-E X1 signal docking cable

Wire length: 15cm,25CM

Speed bandwidth: PCIe3.0x1 gen3 8G/bps

Product function: Industrial control server equipment connection, PCIe signal high-speed transmission.

Restrictions on use:

It is only for professional engineers to purchase.

It cannot be used for general purposes.

Ordinary buyers should not purchase.

Friendly reminder:

There are many compatibility problems with this product.

Incorrect assembly or improper operation will burn your equipment.

Only designated by professional engineers to purchase.

This product is a customized product and cannot be returned or exchanged.

Please consider and confirm clearly before placing an order for purchase.

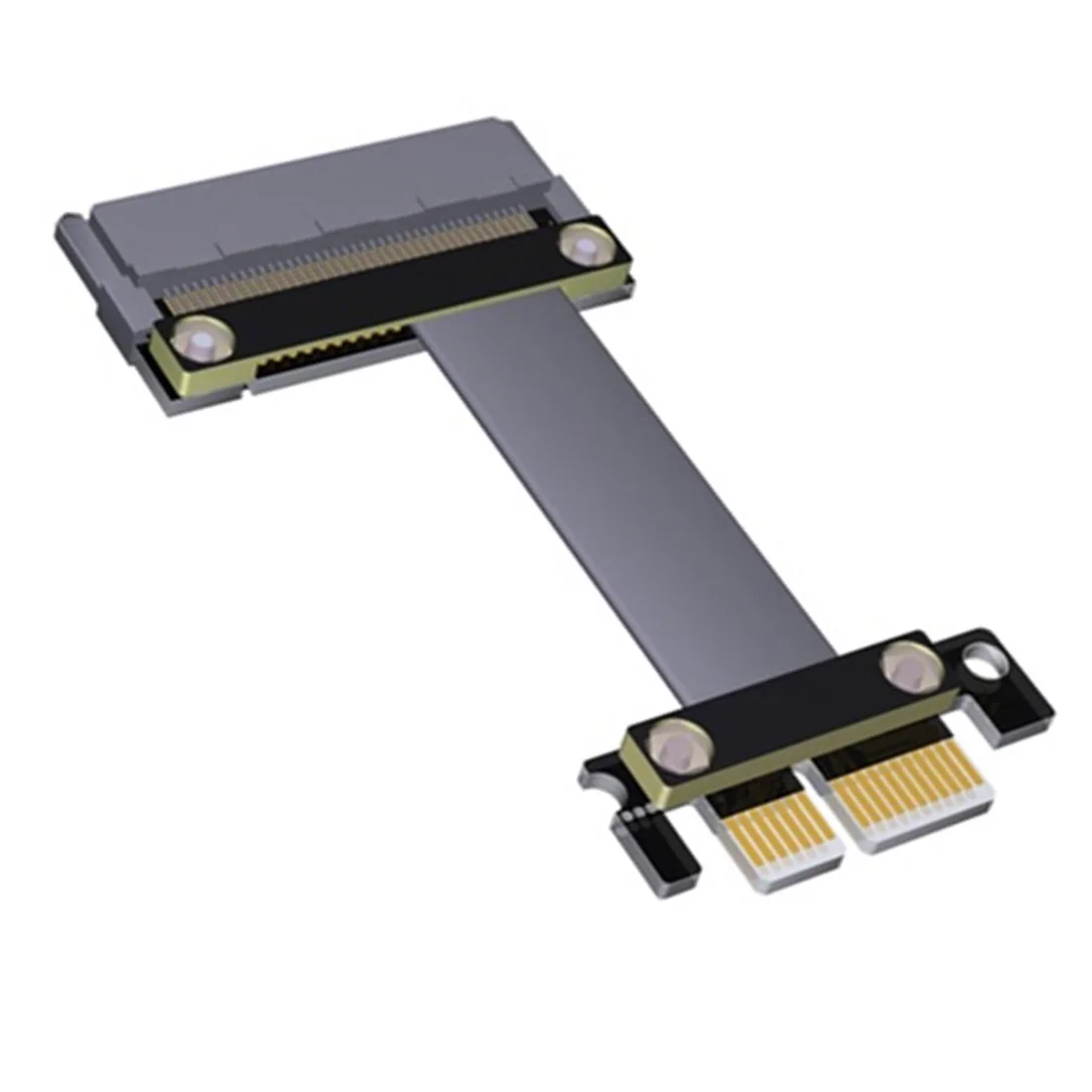

R17 series product model description:

Model: R17SF

Gold finger and connector interface direction: x1 gold finger straight male to U.2 SFF-8639 connector straight female without power supply

Product application: U.2 SSD adapter

Model: R17SL

Gold finger and connector interface direction: x1 gold-finger straight male connector to U.2 SFF-8639 connector upper elbow female seat with power cord

Product application: U.2 SSD adapter

Product advantages:

1. Cable advantage, use German patented imported cable, use Taiwan imported connector, support PCIe 3.0 8G/bps full-speed stable transfer

2. Cable length advantage, from 3 cm to 1 meter can be customized, the adapter sold in our shop, the cable impedance is low, the cable length within 60 cm supports PCIe3.0 full speed.

3. Differential signal has no via hole design, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit phenomenon, and the product is durable

4. The product is made of high-quality materials, the PCB is made of precision, the thickness of the copper material is thickened to 1oz, the gold plated content of the gold finger is sufficient, and the gold plated foot has good electrical conductivity, which can reduce the blue screen of crash caused by the increase of oxidation and rust resistance.

5. The wire used in the product is very durable. Use PCB gaskets with a thickness of 3mm to protect the metal welding points, and lock the screws and hexagonal nuts to fasten the product. The product is strong and reliable, resistant to pulling, anti-interference, and will not break The nail drop problem. The wire can be bent or folded without affecting the use.

6. The PCB is designed with short and fattening, which will not get stuck on the graphics card. The fat and long design makes the board easier to install and reduces the chance of damage.

Precautions for purchase:

1. Be sure to recognize the direction when plugging in, do not plug it in reverse or off-position to prevent burning of the device. When plugging in, first hold the socket of the device before plugging in to avoid inserting the socket pins with excessive force.

It is forbidden to bend or pull within 2cm of the welding place between both ends of the wire and the circuit board.

2. The signal driving ability of various motherboards and equipment is different. The test results of this store are not guaranteed to be consistent with your test results. As long as the extension cable is connected, the signal will be lost. Those who require perfection, please do not buy.

3. The graphics card or motherboard is an electronic device that will age and oxidize with time. Connecting an extension cord will only make it more unstable. Old devices are not supported. Your device is not supported for more than three years. Please do not buy.

4. The purchase is limited to the product engineer's designation. It is only used for product testing. For other purposes, please do not purchase.
