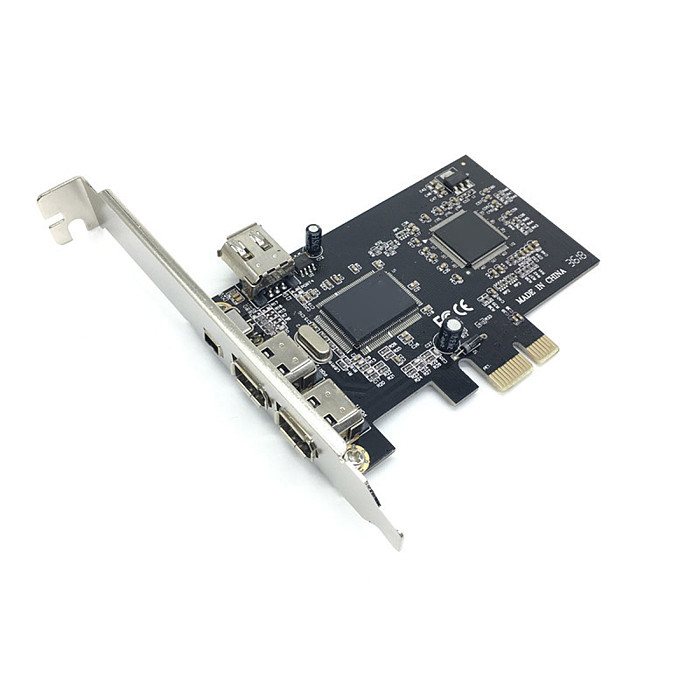

XT-XINTE PCIe Combo 4 Ports (3 + 1) 1394A 1x4 Brooches 3x6 Brooches Controller Card Extension Adapter PCI Express to IEEE 1394 for Firewire desktop PC Computer Components Item NO.: F31965

US$ 8.79

Quantity: Stock ( 9999999 )

Product Name	XT-XINTE PCIe Combo 4 Ports (3 + 1) 1394A 1x4 Brooches 3x6 Brooches Controller Card Extension Adapter PCI Express to IEEE 1394 for Firewire desktop PC Computer Components
Item NO.	F31965
Weight	0.12 kg = 0.2646 lb = 4.2329 oz
Category	Consumer Electronics > Computer Adapter
Brand	XT-XINTE
Creation Time	2019-10-09

XT-XINTE PCIe Combo 4 Ports (3 + 1) 1394A 1x4 Brooches 3x6 Brooches Controller Card Extension Adapter PCI Express to IEEE 1394 for Firewire desktop PC Computer Components

Features:

Compatible with PCI Express Revision 1.1
Support for performance reporting error
Support L0s and L1 Dynamic Power Management (ASPM)
Flexible programmable master bus breaking format and internal control judgment optimize bus usage
Compatible with PCI-E bus power management instructions v1.1 and ACPI v2.0
Support for I2C EEPROM including 1394 hardware configuration
EEPROM EEPROM support EEPROM-less devices
The VT6307 series chip integrates a host controller with a PCI-Express CARD interface to provide fast, flexible connectivity for computer systems with multiple peripherals and consumer electronics.
The IEEE 1394 Veloce Serial Bus STANDARD (commonly known as Firewire) is a PCI peer-to-peer interconnect and interface system is widely recognized as the primary for digital audio and video equipment. The IEEE 1394a STANDARD supports hot-swappable quick links to printers, hard drives, multimedia devices, and consumer electronics like game controllers and camcorders.
The VT6307 series host controller provides a serial performance link for the IEEE 1394 and 1394a serial bus standard by executing the Link and Physics layers.
Compatible with 1394 Open HCI instructions 1.0 and 1.1
Compatible with IEEE1394-1995 Description 1.0
Compatible with IEEE 1394a P2000 STANDARDS
Provide 8 clock synchronism transmission contexts
Provide 4 synchronism to receive contexts
Support data transfer rate of 400/200/100 Mbps
Ordinary DMA controller control mechanism and I / F drawing

Support OS: for Win2000 / Windows xp / 7/8/10 / VISTA

Please note: the built-in 6-pin female IEEE 1394 on metal bar cannot work with the female 9-pin IEEE 1394 on board simultaneously.

Specifications:

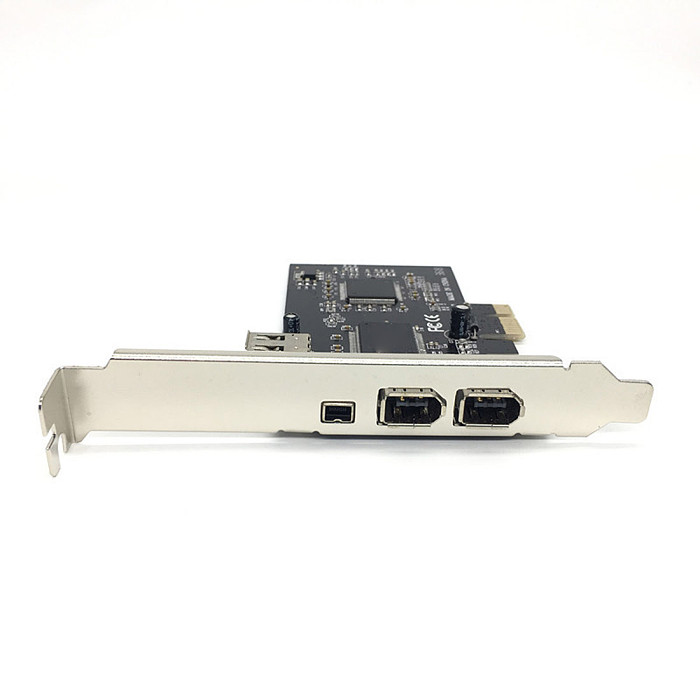

Ports: 3x 1394a (6-pin), 1x 1394a (4-pin)
Maximum support: 1440 * 1080 of the camera

Weight: about 90g

Picture frames and display items:
1 x PCIE 1394a Control Board
1 x Data Cable

1 x low profile bracket
