XT-XINTE PCIe 4.0 X4 /X8 to X16 Riser Card Converter / X16 90degree Right Angled Slot PCI-E Gen 4 Extension Adapter Card for PC

XT-XINTE PCIe 4.0 X4 /X8 to X16 Riser Card Converter / X16 90degree Right Angled Slot PCI-E Gen 4 Extension Adapter Card for PC Item NO.: F49624 F49625 F49626

Write a Review
US$ 7.06
US$ 8.30 Save US$ 1.25 (15% Off)
Version
P816B X8 to X16 P416B X4 to X16 P16AC X16 90degree
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • XT-XINTE PCIe 4.0 X4 /X8 to X16 Riser Card Converter / X16 90degree Right Angled Slot PCI-E Gen 4 Extension Adapter Card for PC
Product Name XT-XINTE PCIe 4.0 X4 /X8 to X16 Riser Card Converter / X16 90degree Right Angled Slot PCI-E Gen 4 Extension Adapter Card for PC
Item NO. F49624 F49625 F49626
Weight 0.042 kg = 0.0926 lb = 1.4815 oz
Category Computer Accessories
Brand XT-XINTE
Creation Time 2023-03-16

XT-XINTE PCIe 4.0 X4 /X8 to X16 Riser Card Converter / X16 90degree Right Angled Slot PCI-E Gen 4 Extension Adapter Card for PC

There are 3models (P816B / P416B / P16AC ) for your choice. pls choose the one you need.

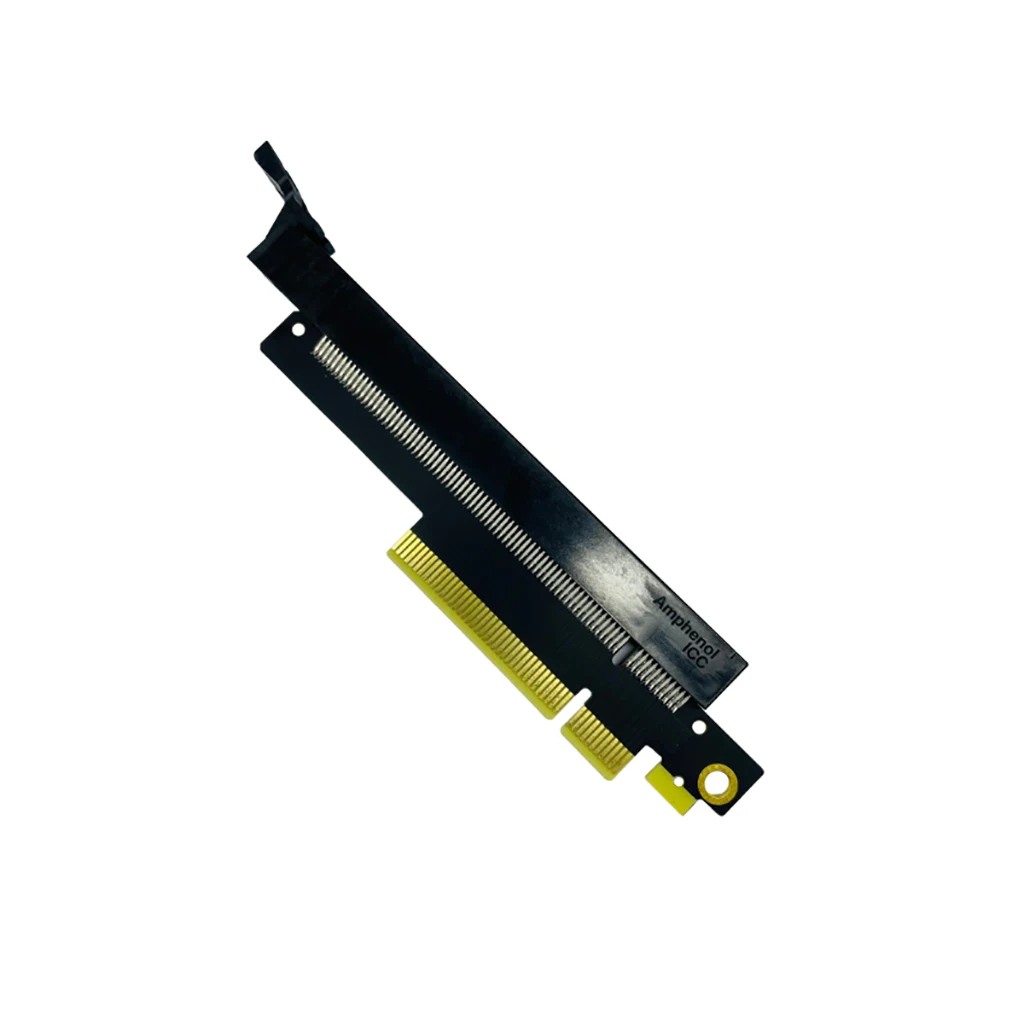

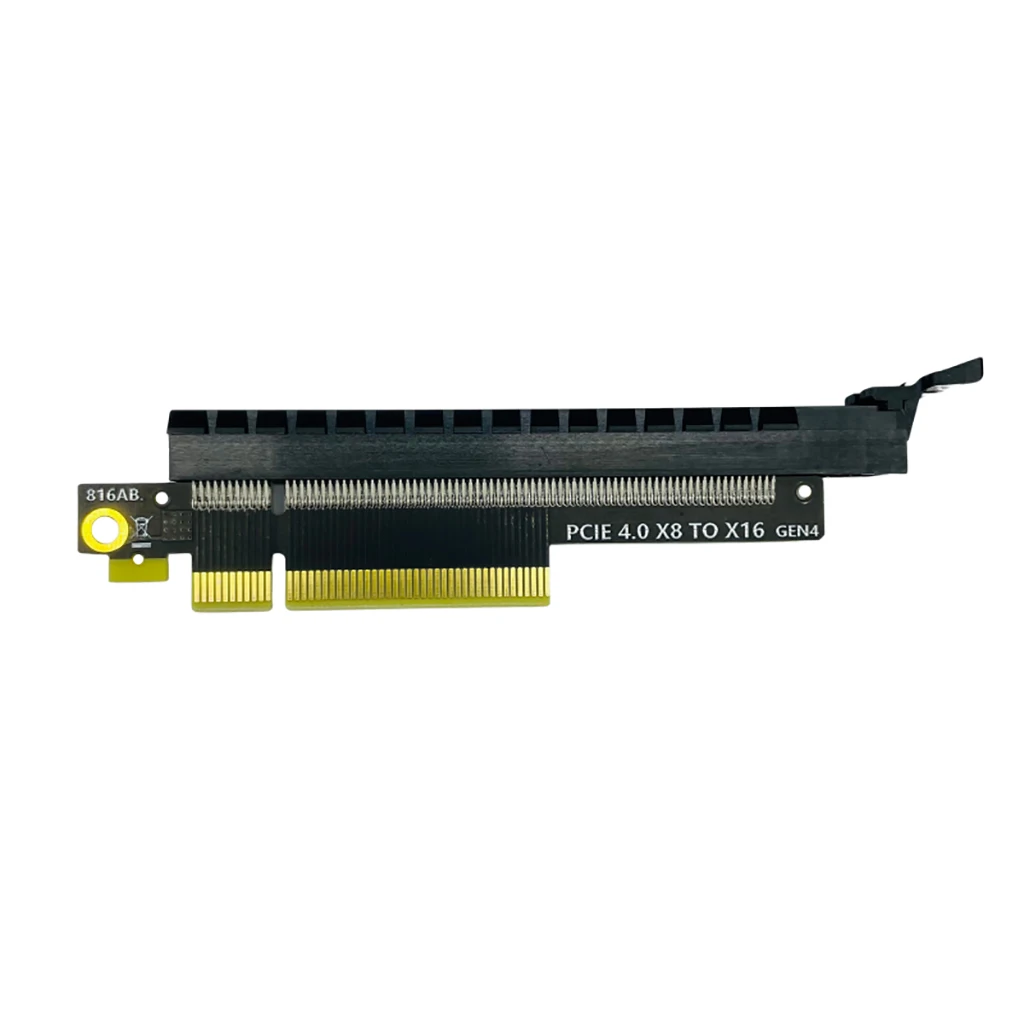

P816B PCIe 4.0 X8 to X16 Adapter

Feature:

1. PCle 4.0 X8 to X16 adapter card, 8X bandwidth.

2. It supports PCIe 4.0 devices , and backward compatible with PCIe3.0 ( The use of PCE extension cable may cause speed reduction, pls take it into your account before buying. )

3.Gold finger process, 5U thick, using high-density low-impedance circuit board

4. X8 pin definition (pin definition) one-to-one.

5. Adopt Amphenol's new generation GEN4 connector, with buckle, stable at high speed.

6. It is suitable for converting X16 card into PCIe X8 slot on the motherboard (bandwidth is X8).

7. It supports for graphics cards, network cards, solid state hard disks, and acquisition cards, etc. with standard PCIe.

8. The total height of the adapter card is 3cm.

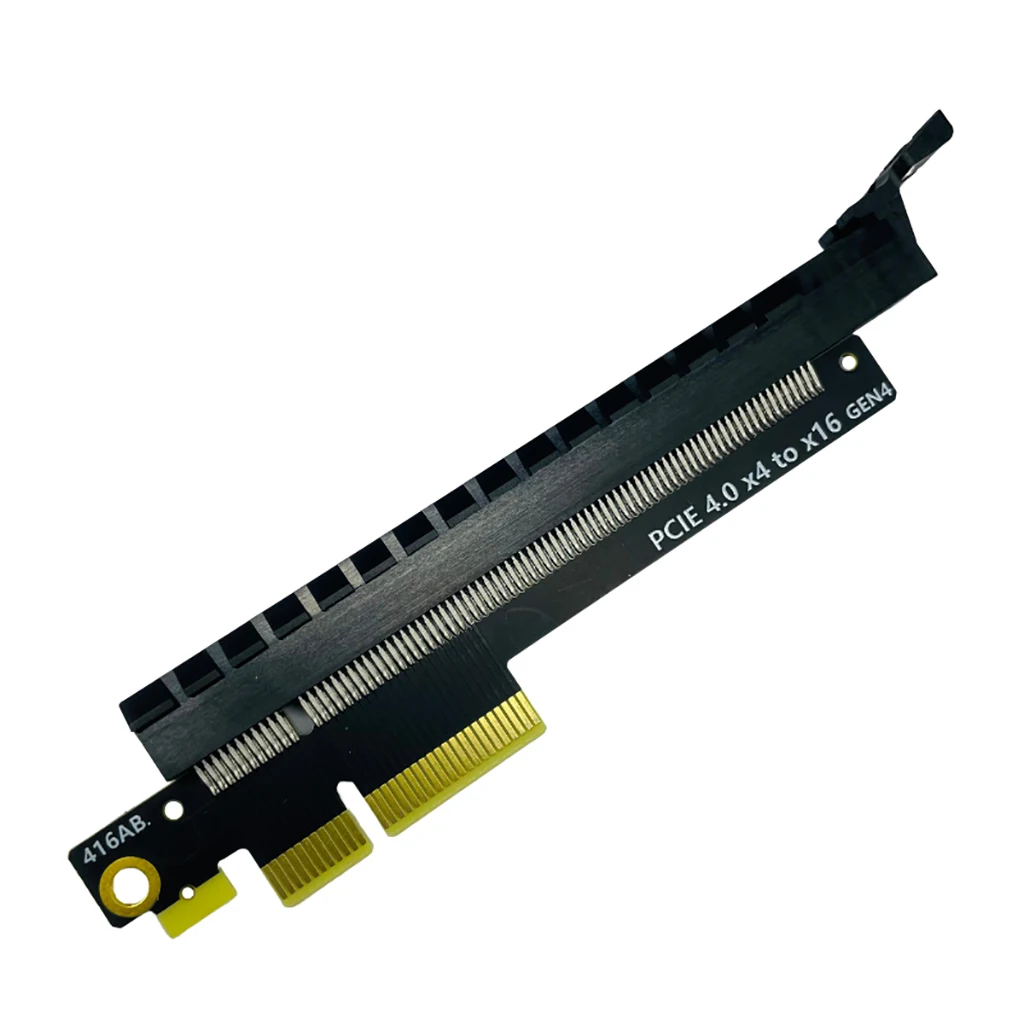

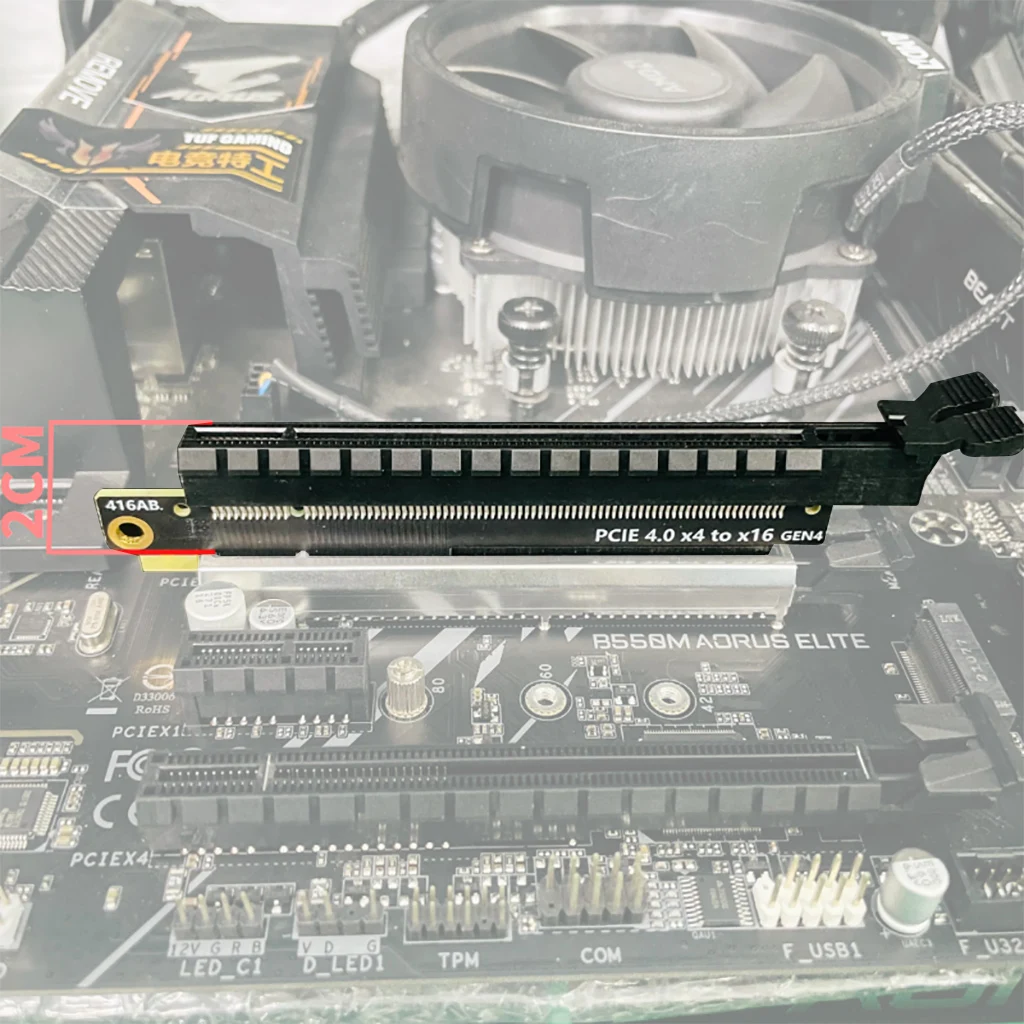

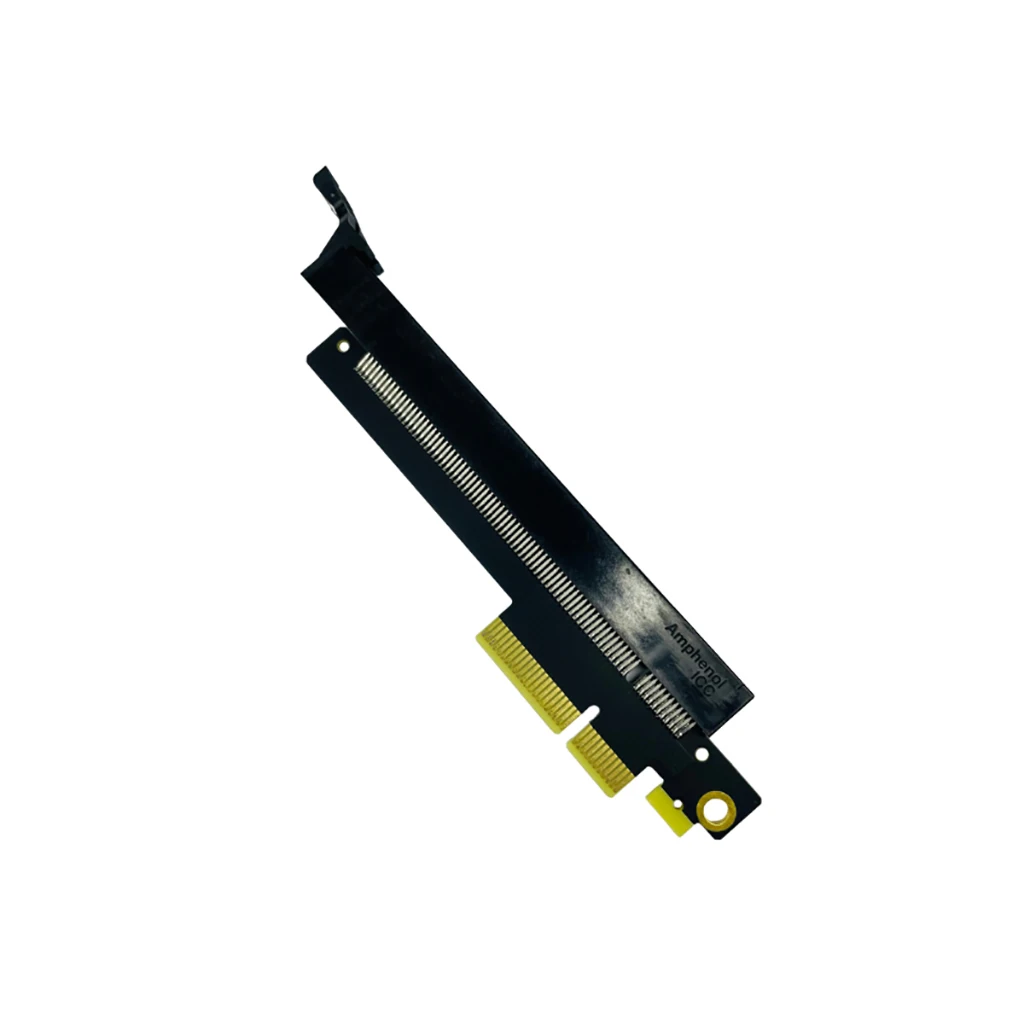

P416B PCIe 4.0 X4 to X16 Adapter

Feature:

1. PCle 4.0 X4 to X16 adapter card, 4X bandwidth.
2. It supports PCIe 4.0 devices , and backward compatible with PCIe 3.0 ( The use of PCE extension cable may cause speed reduction, pls take it into your account before buying. )
3.Gold finger process, 5U thick, using high-density low-impedance circuit board
4. X4 pin definition (pin definition) one-to-one.
5. Adopt Amphenol's new generation GEN4 connector, with buckle, stable at high speed.
6. It is suitable for converting X16 card into PCIe X4 slot on the motherboard (bandwidth is X4).
7. It supports for graphics cards, network cards, solid state hard disks, and acquisition cards, etc. with standard PCIe.
8. The total height of the adapter card is 3cm.

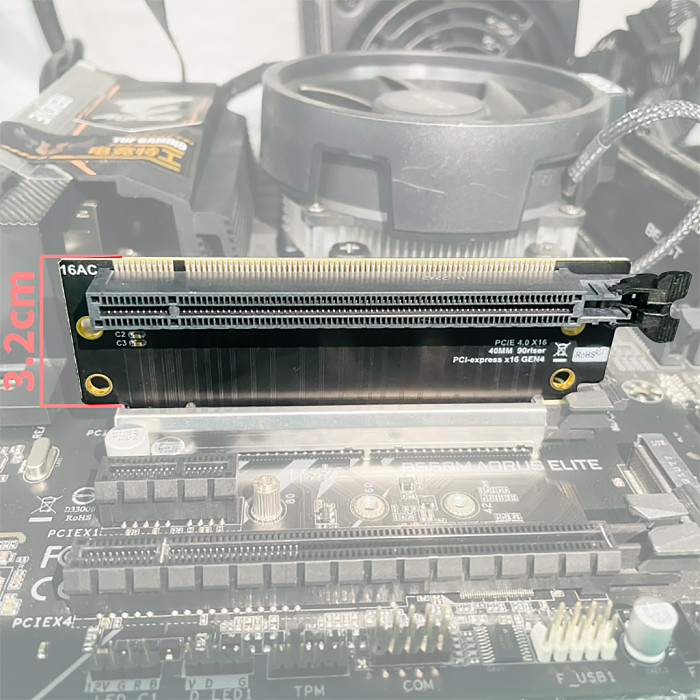

P16AC PCIe 4.0 X16 90° Right Angled Adapter

Feature:

1. PCle 4.0 X16 90degree Right angled adapter

2. It supports PCIe 4.0 devices , and backward compatible with PCIe3.0 ( The use of PCE extension cable may cause speed reduction, pls take it into your account before buying. )
3.Gold finger process, 5U thick, using high-density low-impedance circuit board
4. Impedance control 85 Ω, power supply line is thickened and capacitance is increased

5. Adopt Amphenol's new generation GEN4 connector, with buckle, stable at high speed.
6. It is suitable for computer case modification graphics card position.

7. It supports for graphics cards, network cards, solid state hard disks, and acquisition cards, etc. with standard PCIe.
8. The total height of PCB is 4cm
