Copy| Product Name | HF5111S Small Size RJ45 RS458 Serial To Ethernet Free RTOS Serial Port Transmission Converter Serial Server |
| Item NO. | F36521 |
| Weight | 0.5 kg = 1.1023 lb = 17.6370 oz |
| Volume | 1 CBM |
| Category | Computer Accessories |
| Creation Time | 2023-04-11 |

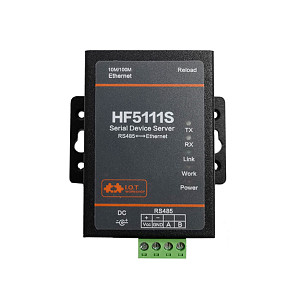

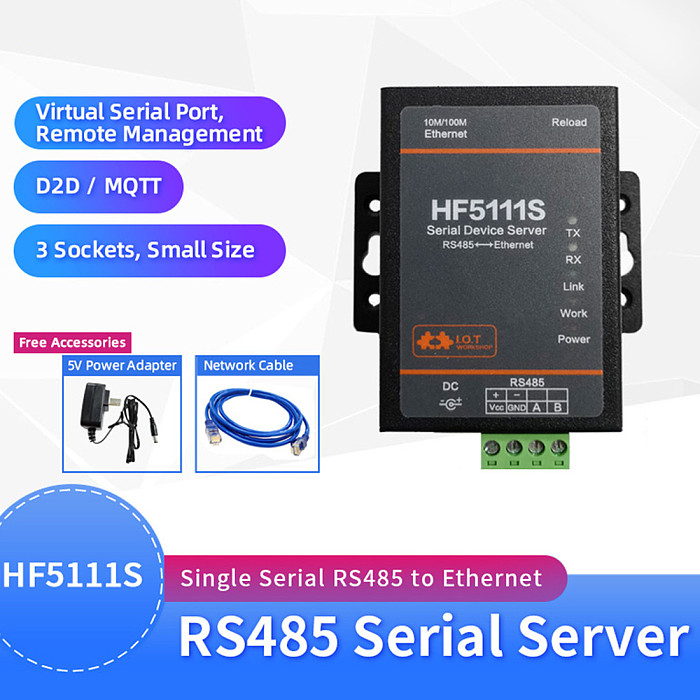

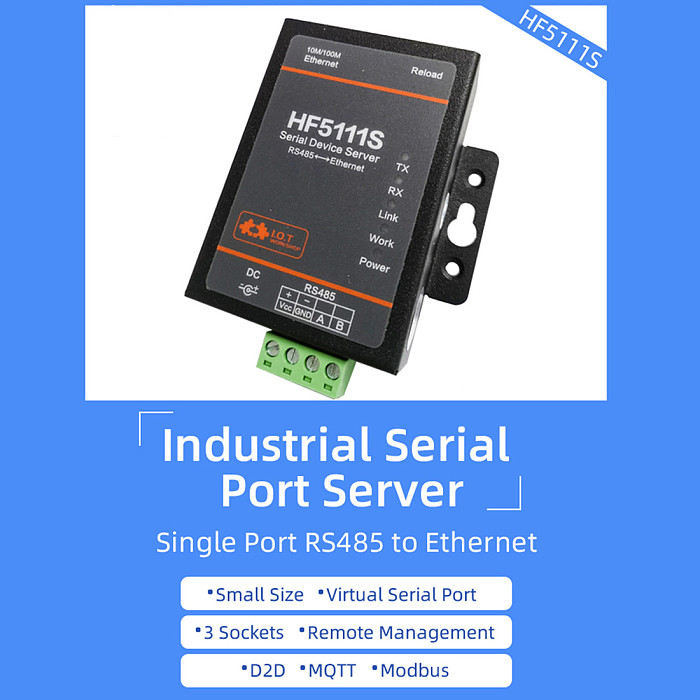

HF5111S Small Size RJ45 RS458 Serial To Ethernet Free RTOS Serial Port Transmission Converter Serial Server

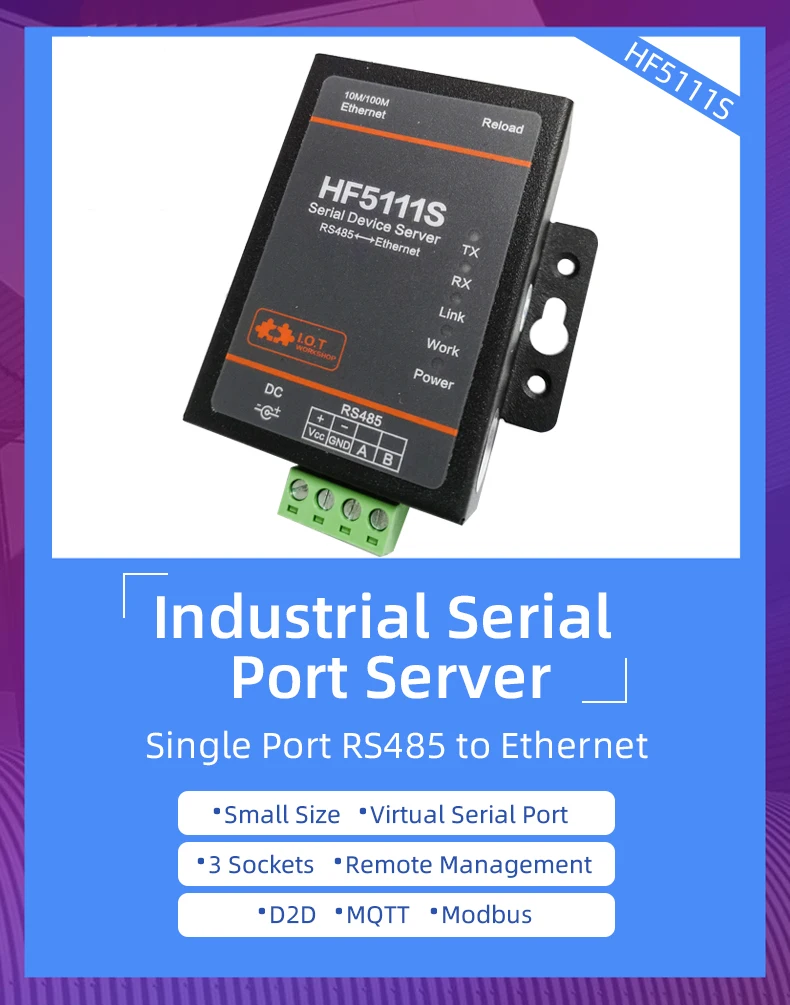

High Flying HF5111S Serial Server Industrial Serial Port Server
RS485 to Ethernet Small Size Virtual Serial Port 3 Sockets Romote Management D2D/MQTT/Modbus Function
Overview of Characteristic
1. Cortex-M3 MCU with 2MB Flash and 128KB SRAM 2. Use FreeRTOS Operation System 3. Support TCP/IP/Telnet /Modbus TCP Protocol 4. Support Serial To 10/100M Ethernet Conversion, Serial Speed Upto 921600 bps 5. Support 10/100M Ethernet Auto-Negotiation 6. Support Easy Configuration Through a Web Interface or PC IOTService Tool 7. Support Security Protocol Such As AES/DES3 8. Support Web OTA Wirelss Upgrade 9. Support Industrial Temperature: -40 to +85˚ C 10. Wide DC Input 5~36VDC 11. Size: 79 x 65 x 25 mm (L x W x H)
Product Size
Size(mm): 79*65*25

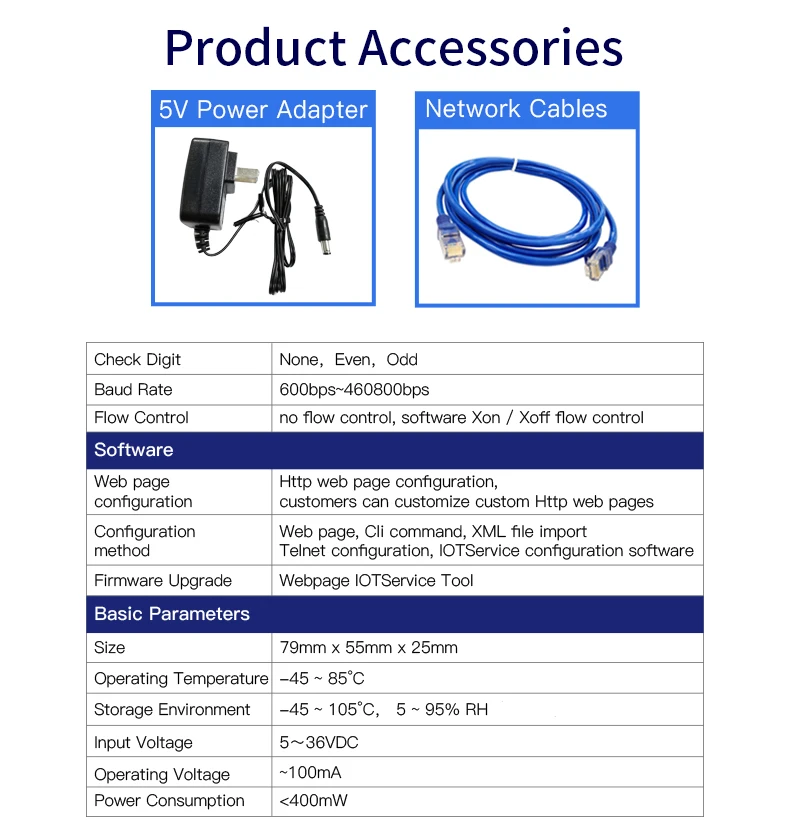

Product Accessories
1* 5V/1A Power Adapter 1* Network Cables

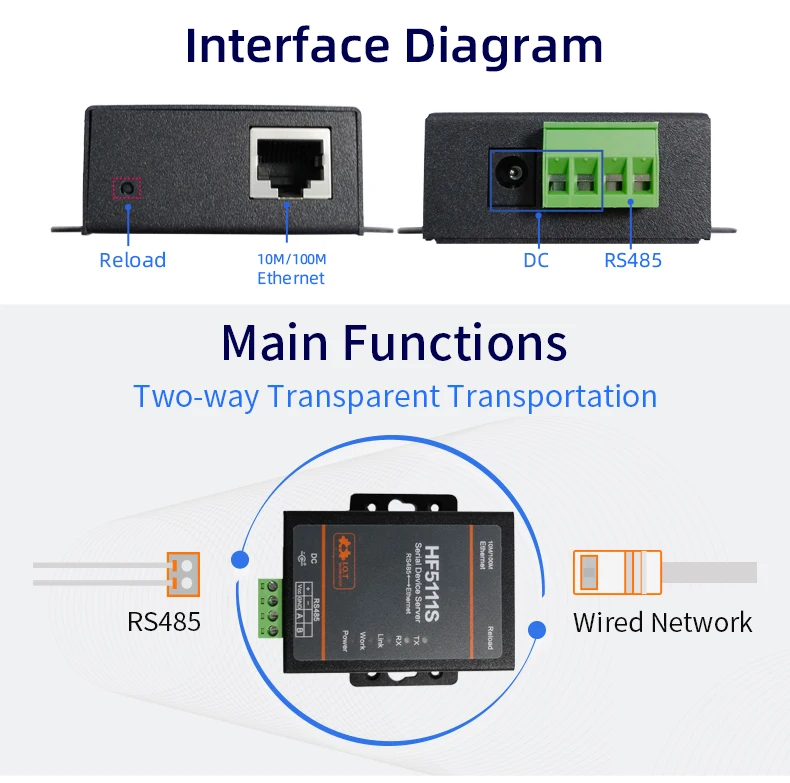

Main Functions
HF5111S can Realize Two-way Transparent Transmission of Data between 485 and Ethernet.

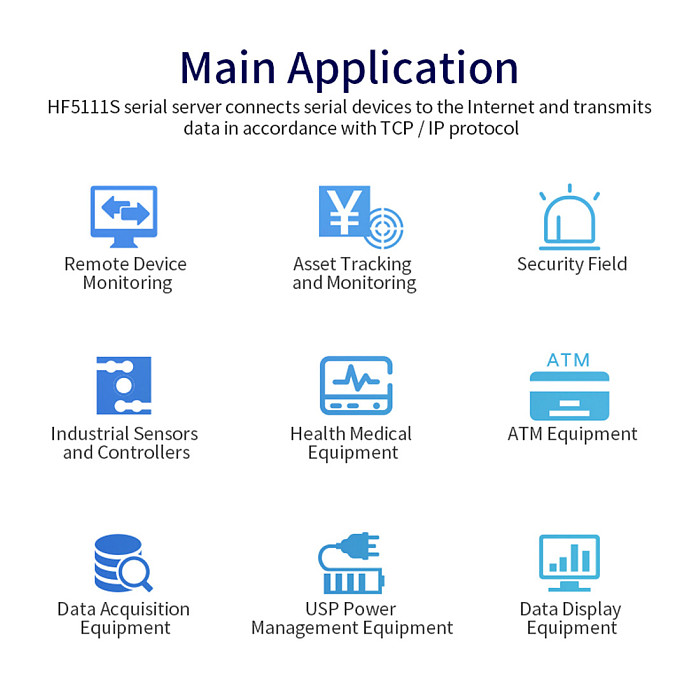

Main Application
HF5111S serial server connects serial devices to the Internet and transmits data in accordance with TCP / IP protocol. Remote Device Monitoring Asset Tracking and Monitoring Security Field Industrial Sensors and Controllers Health Medical Equipment ATM Equipment Data Acquisition Equipment USP Power Management Equipment Data Display Equipment
