XT-XINTE 3.5inch/2.5inch SATA SAS Internal HDD Hard Drive Cage Adapter Tray Caddy Rack Bracket For 3x 4x 5x SATAII Hot Swap HDD

product description:

Brand: XT-XINTE

Color: silver

specification:

Version 1:

2 optical drive positions to 3x3.5/2.5 inch internal hard drive tray

Applicable hard disk: support 3 3.5-inch/2.5-inch (SATA or SAS) hot-swappable hard disks

Product size: 220mm (L) *145mm (W) *85mm (H)

Product interface: 3*SATA, IDE interface*1

Weight: 2.0kg

Net weight: 2.5kg

Cooling system: 80mm bearing fan

Version 2:

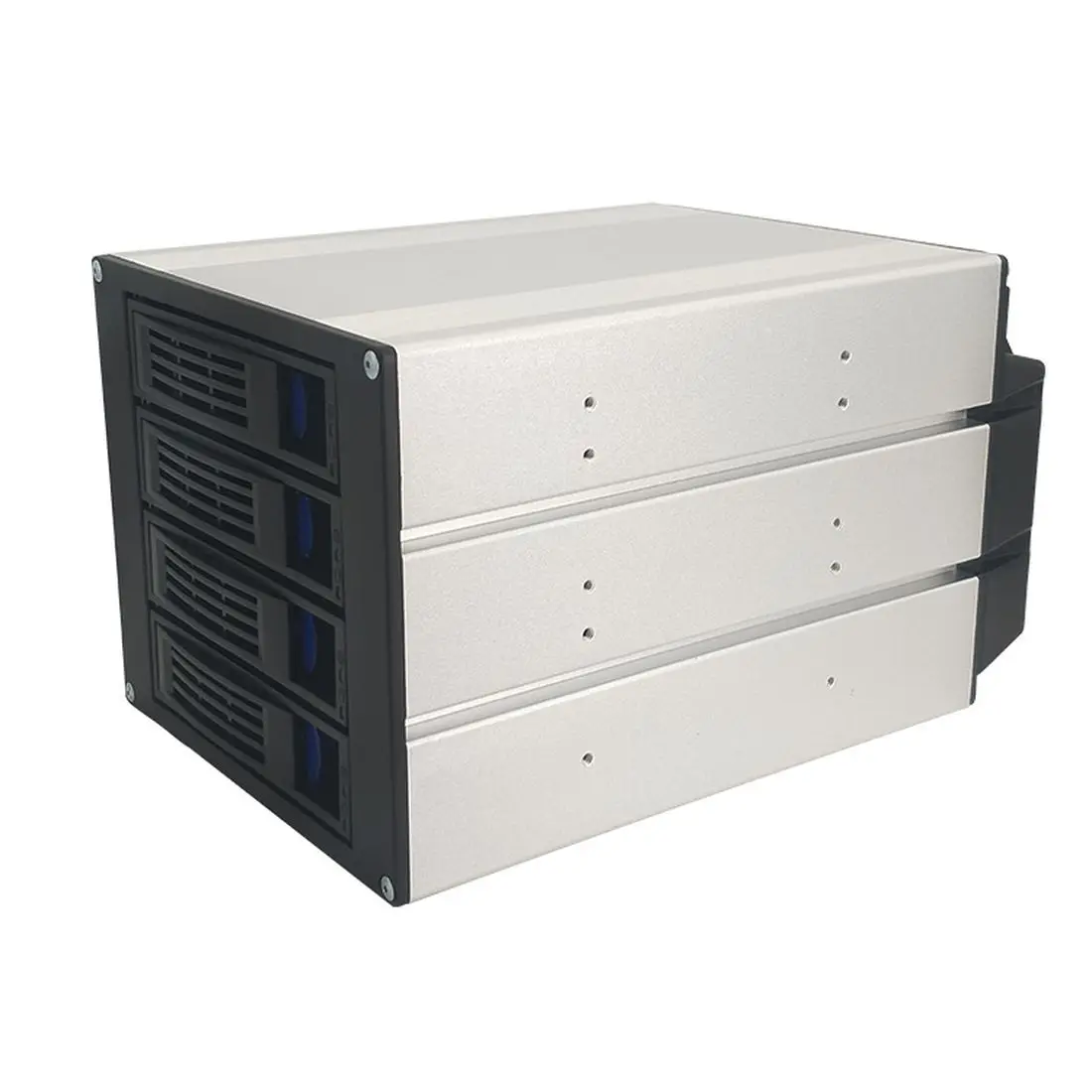

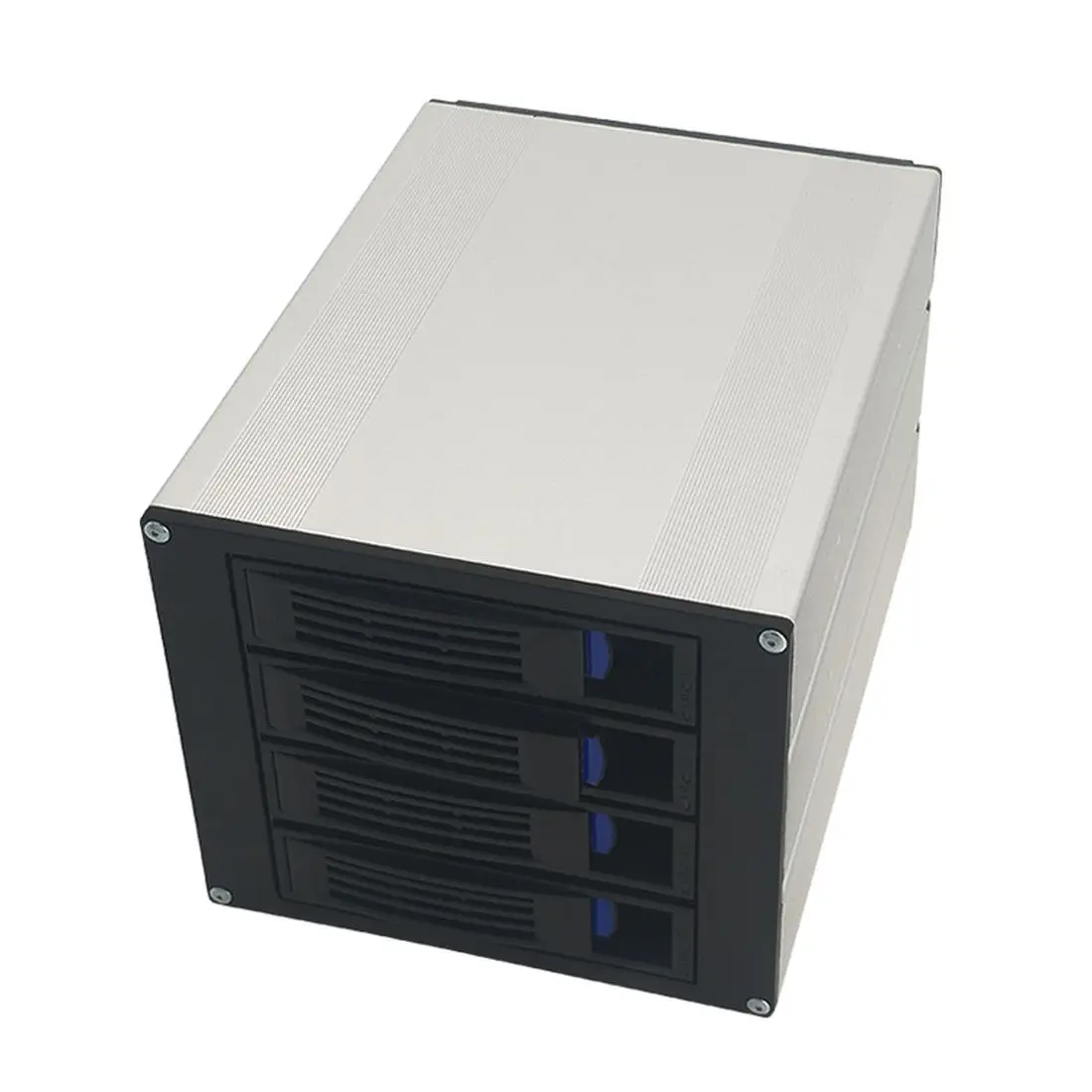

3 optical drive positions to 4x3.5/2.5 inch built-in hard drive tray

Applicable hard disk: support 4 3.5 inch/2.5 inch (SATA or SAS) hot-swappable hard drives

Product size: 220mm (L) *146mm (W) *126mm (H)

Product interface: 4*SATA, IDE interface*2

Weight: 2.26kg

Net weight: 2.94kg

Cooling system: 80mm bearing fan

Version 3:

3 optical drive positions to 5x3.5/2.5 inch built-in hard drive tray

Applicable hard disk: Support 5 3.5-inch/2.5-inch (SATA or SAS) hot-swappable hard disks

Product size: 220mm (L) *146mm (W) *126mm (H)

Product interface: 5*SATA, IDE interface*2

Weight: 2.5kg

Net weight: 3.2kg

Cooling system: 80mm bearing fan

Features:

Support SAS (requires motherboard or array card with SAS interface) SATA interface

1. Support 3 /4 /5 SATAII hard drives;

2. The transmission rate is up to 600MB/Sec;

3. Support hot swap; good heat dissipation design, independent cooling fan:

4. The module occupies 2/3 5.25" expansion slots (optical drive slots), and provides 3/4/5 hot-swappable hard drive bays;

5. There is a power indicator on the right side of the panel, and you can understand the working status of the entire hard disk module during use;

6. Aluminum structure, beautiful and generous, light and strong;

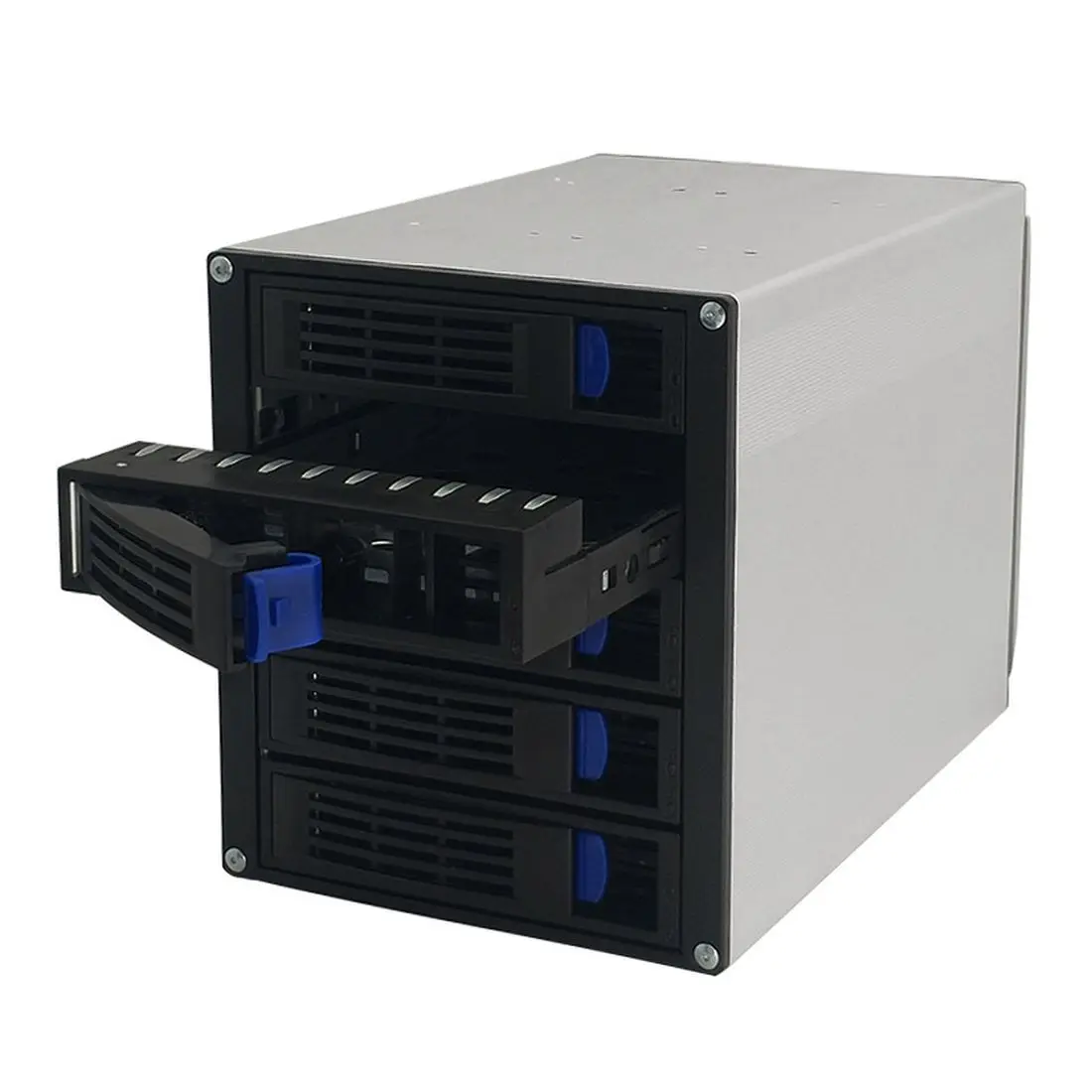

7. The module is equipped with a locking device and a sliding rail design, which is easy and convenient to extract the hard disk;

8. The entire module has an EMC design, and there is a metal shielding layer behind the plastic casing to protect SATA high-speed storage from electromagnetic interference;

The hard disk module effectively utilizes 2/3 standard 5.25-inch chassis optical drive positions, allowing users to install 3/4/5 hard disks at the same time, allowing you to make full use of the chassis space, allowing you to store and manage you conveniently The hard disk data and data, and the body made of aluminum metal material, the operation is very stable, and the hard disk module thermal convection cooling system design provides a good heat dissipation environment for your hard disk. In the interface part, it supports simultaneous Runs 3/4/5 3.5-inch SATA hard drives (supporting SATA 1st, 2nd and 3rd generation) hard drives, and the capacity is not limited, based on the current maximum hard drive capacity, excellent 8CM sound fan design, and has a front panel Operating status of each hard disk.

Applicable scene:

Suitable for different types of storage applications, such as data storage for household and consumer electronic products, security monitoring, monitoring image storage, media industry broadcast systems, VOD video-on-demand systems, storage arrays, servers, workstation data protection and backup, etc. .

Precautions:

1. When installing the module, please cut off the power first;

2. After the module is installed, please confirm that the module is stable and firm;

3. Please do not extract the hard disk when reading and writing the hard disk;

System Requirements:

2 or 3 idle 5.25" chassis space (optical drive bay)

Corresponding SATA 7Pin data interface and power interface

Products include:

Optical drive bay Internal hard drive extraction box * 1

Fan * 1

Screw pack * 1

Carton packaging * 1
