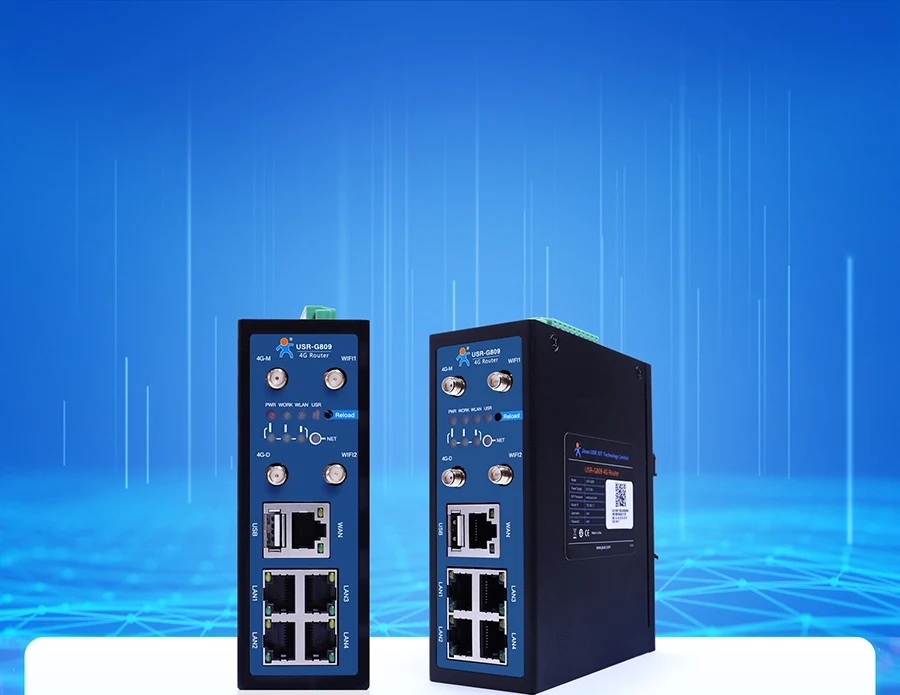

USR-G809-E IO Controller 4G Industrial Cellular VPN Router 4G LTE Wifi DI / DO Serial Port Ethernet WAN LAN Networking Router

USR-G809-E IO Controller 4G Industrial Cellular VPN Router 4G LTE Wifi DI / DO Serial Port Ethernet WAN LAN Networking Router Item NO.: F44586

Write a Review
US$ 129.16
US$ 151.95 Save US$ 22.79 (15% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • USR-G809-E IO Controller 4G Industrial Cellular VPN Router 4G LTE Wifi DI / DO Serial Port Ethernet WAN LAN Networking Router
Product Name USR-G809-E IO Controller 4G Industrial Cellular VPN Router 4G LTE Wifi DI / DO Serial Port Ethernet WAN LAN Networking Router
Item NO. F44586
Weight 1.1 kg = 2.4251 lb = 38.8014 oz
Category Consumer Electronics > Computer Adapter
Brand USRIOT
Creation Time 2021-08-10

USR-G809-E IO Controller 4G Industrial Cellular VPN Router 4G LTE Wifi DI / DO Serial Port Ethernet WAN LAN Networking Router

The USR-G809 is an industrial cellular VPN router that integrates 4G LTE, Wi-Fi,DIDO,serial port,Ethernet ports(4 LAN and 1 WAN) and VLAN,VPN technologies to provide state-of-the-art Internet connectivity and high-speed data access for equipment networking.

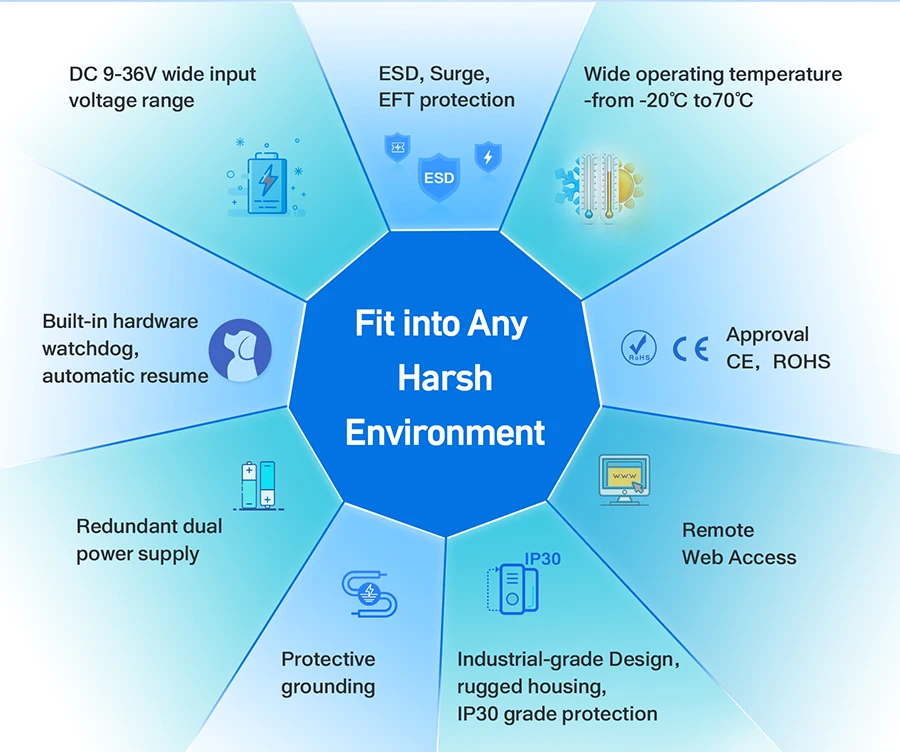

Industrial design, metal enclosure , protection class IP30

Wide input voltage DC 9-36V,with reverse polarity protection

ESD, Surge, EFT/Burst protection

Supports 2G/3G/4G network all over the world ,supports APN / VPDN private network access

Supports 2.4GHz WiFi, scaling more devices access, support wired and wireless connecting Internet

Compatible with 5.8GHz WiFi(optional)

Supports VPN(PPTP, L2TP, IPSec, OpenVPN,GRE), and VPN encryption function, suitable for various networking

and high-security requirements Scenarios


HardwareSpecifications

Cellular Interface

Antenna

2x SMA-K

Note: North America models: 2 x SMA 4G antenna connectors.

SIM card

1 x (3 V & 1.8 V) Standard 2FF SIM, drawer-type sim card slots

Ethernet

1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX,1.5KV network isolation transformer protection

4 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX,1.5KV network isolation transformer protection

Indicators

LED

PWR: red,always on after powered on

Work: green,blinking when the router is ready and working properly

WLAN: green,always solid on when WiFi is enabled and working properly

USR:user defined.

Net indicator:

Red always on after connected to 2G network

Green always on after connected to 3G network

Orange always on after connected to 4G network

Signal strength3 solid bars,strongest signal

Terminal block

Pinout

V+,V- : 2 cores terminal power supply socket,built-in power supply phase-reversal protection

GND:groundterminal

Tx/B:RS-232/RS485pinsetupby software

Rx/A:RS-232/RS485pinsetupby software

DI:2 x Digital input,passive switch

DO:2 x Digital open collector output, max output 36 V, 300 mA

COM: common terminal,use in conjunction with DOs





WiFi Interface

Standards & Frequency

IEEE 802.11b/g/n,2.4GHz, AP mode

Data speed

IEEE 802.11b/g,maximum 54Mbps.IEEE 802.11n,maximum 150Mbps

Antenna

2x RP-SMA-K

Transmission distance

80 meters by line of sight.Actual transmission distance depends on environment of the site.

Power Supply

Adaptor

DC 12V/1A

Connector

DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or industrial terminal block,reverse polarity protection

Input voltage

DC 9~36V

Working power

Average 522mA/12V, Maximum 811mA/12V

Serial Interface

RS485/RS232(alternative)

industrial terminal block.

Note:RS232 default.

Baud rate(bps)

1200,2400,4800,9600,19200,38400,57600,115200,230400

Data bits

8

Stop bits

1,2

Parity

NONE,ODD,EVEN







Physical Characteristics

Housing

Metal shell,IP30

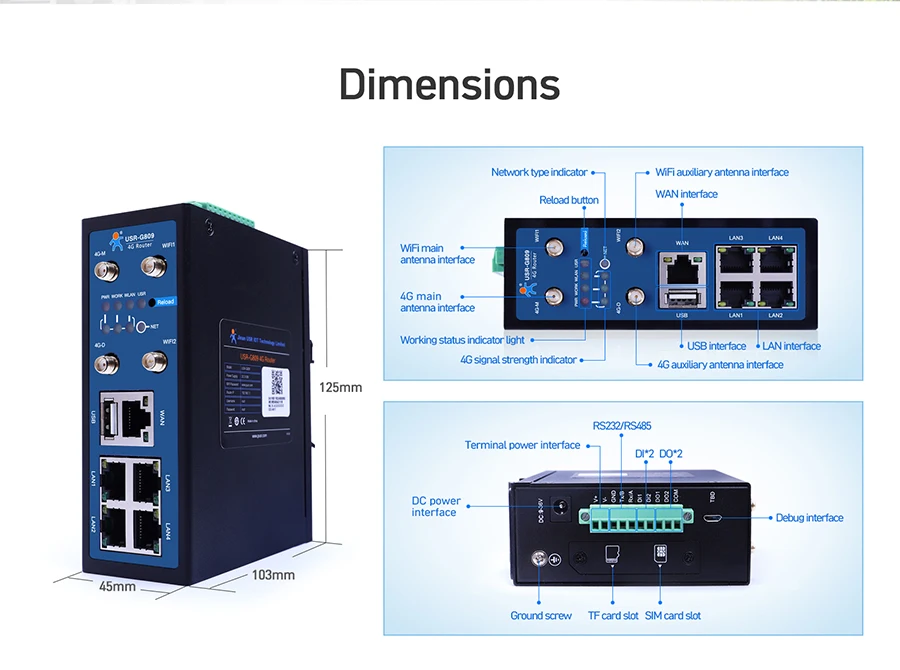

Dimensions

125.0*103.0*45.0mm (L*W*H,antenna pedestal,terminal block and DIN Rail are not included)

Installation method

Ear mounting, DIN-Rail mounting

EMC

StaticIEC61000-4-2, level3

Pulsed Electric FieldIEC61000-4-4, level3

SurgeIEC61000-4-5, level3

Operating temperature

-20℃+70℃

Storage temperature

-40℃+125℃

Operating humidity

5%95%RHnon-condensing

Others

Reload

Pinhole button,restore factory defaults/firmware resume/firmware upgrading with USB

TBD

Debug interface (TTL Level)

USB

Firmware upgrading

TF

TF card slot

Ground protection

Screw

Embedded Watchdog

Device runs self-detection, auto recovers from malfunctions

Certificate

CE

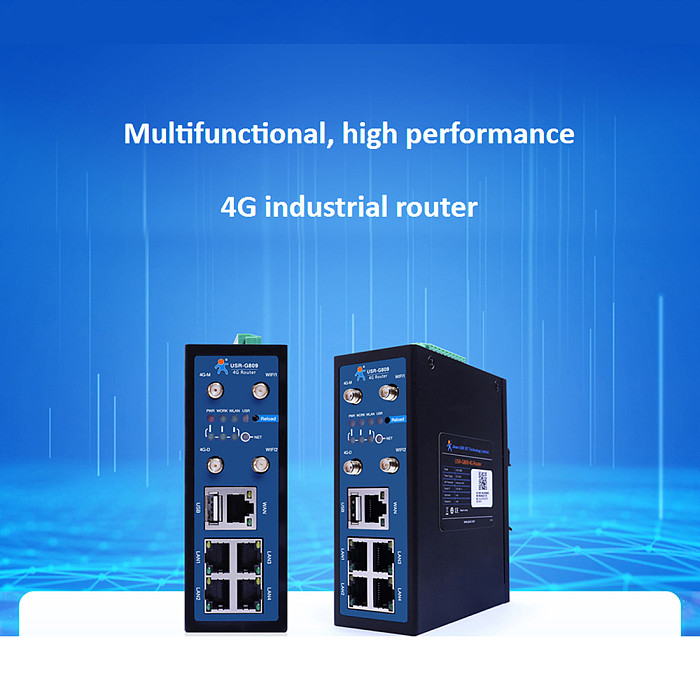

Multifunctional, high performance

4G industrial router

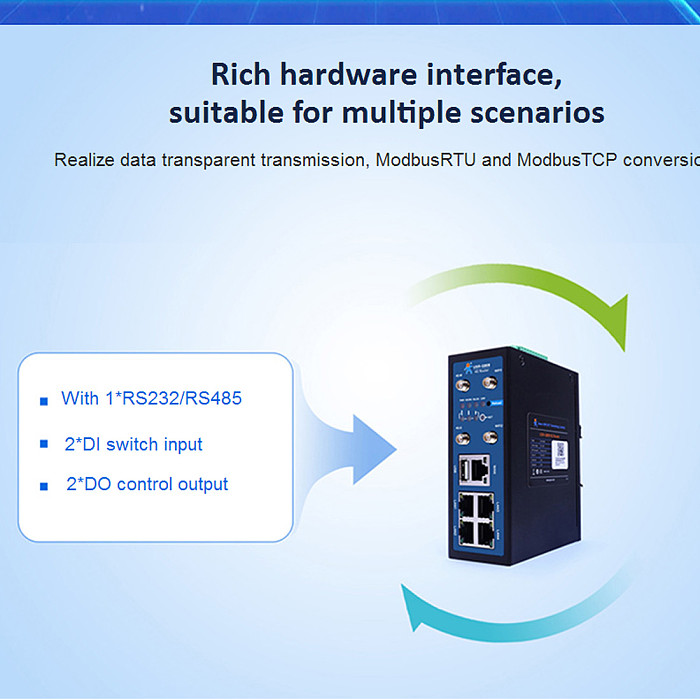

Rich hardware interface,
suitable for multiple scenarios

Realize data transparent transmission, ModbusRTU and ModbusTCP conversion.

With 1*RS232/RS485

2*DI switch input

2*DO control output

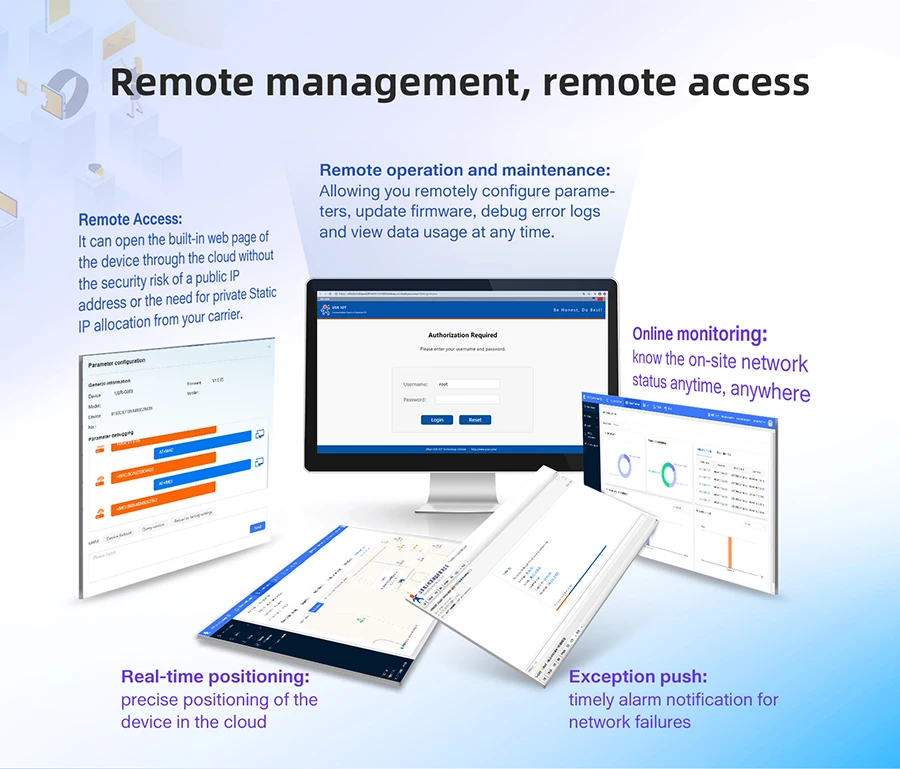

Abnormal alarm, monitoring at any time

Real-time monitoring of the status of routers ,
and immediately send SMS and email alarms when abnormalities occur
It can also drive the DO relay for emergency braking, which greatly guarantees safety.

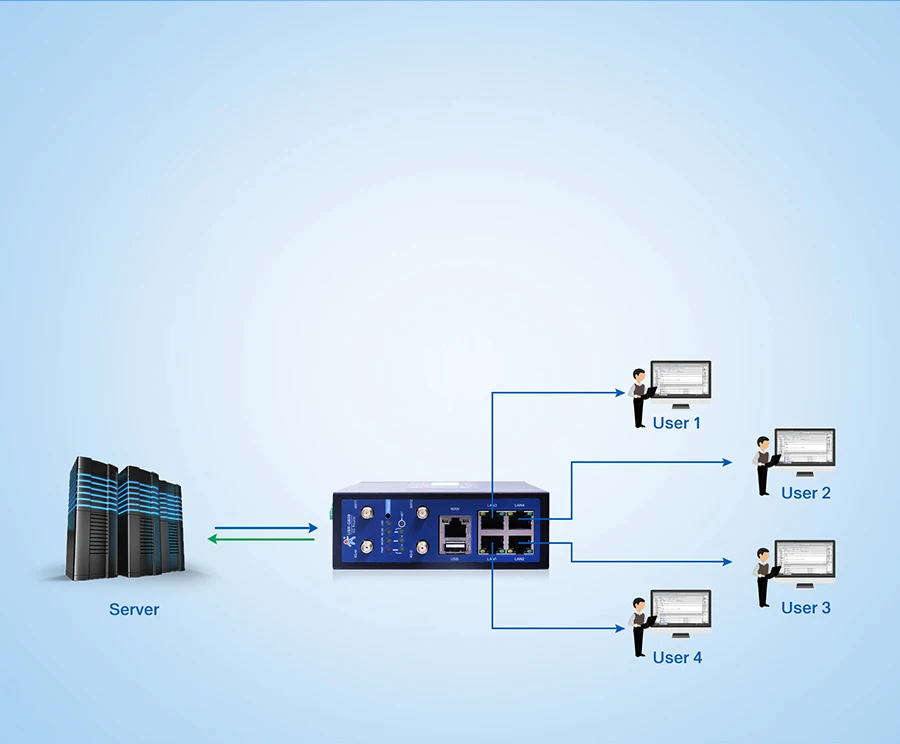

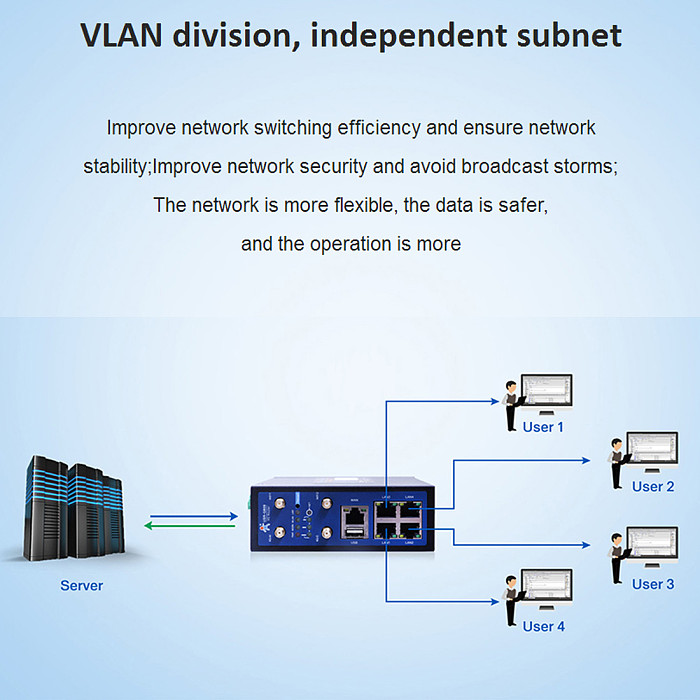

VLAN division, independent subnet

Improve network switching efficiency and ensure network
stability;Improve network security and avoid broadcast storms;
The network is more flexible, the data is safer,
and the operation is more

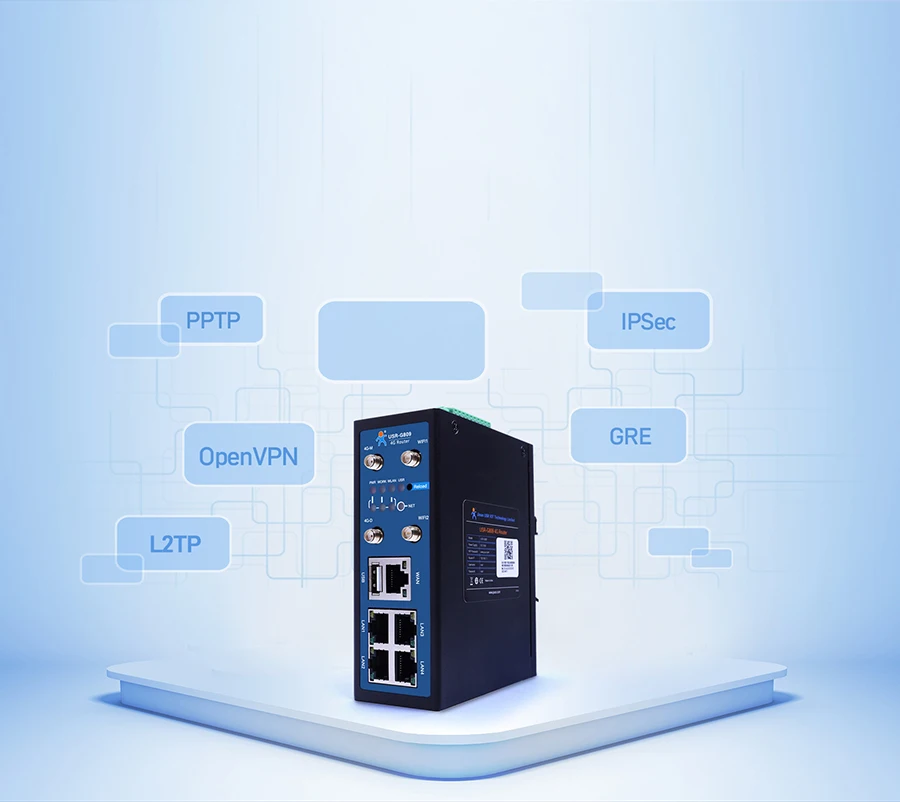

Data security, multiple VPN

G809 fully supports mainstream VPN protocols,
including PPTP, L2TP, IPSec, OpenVPN, and GRE;
Multiple high-encryption methods make data safe
transmission up to financial-level standards.

Mainstream
VPN protocol

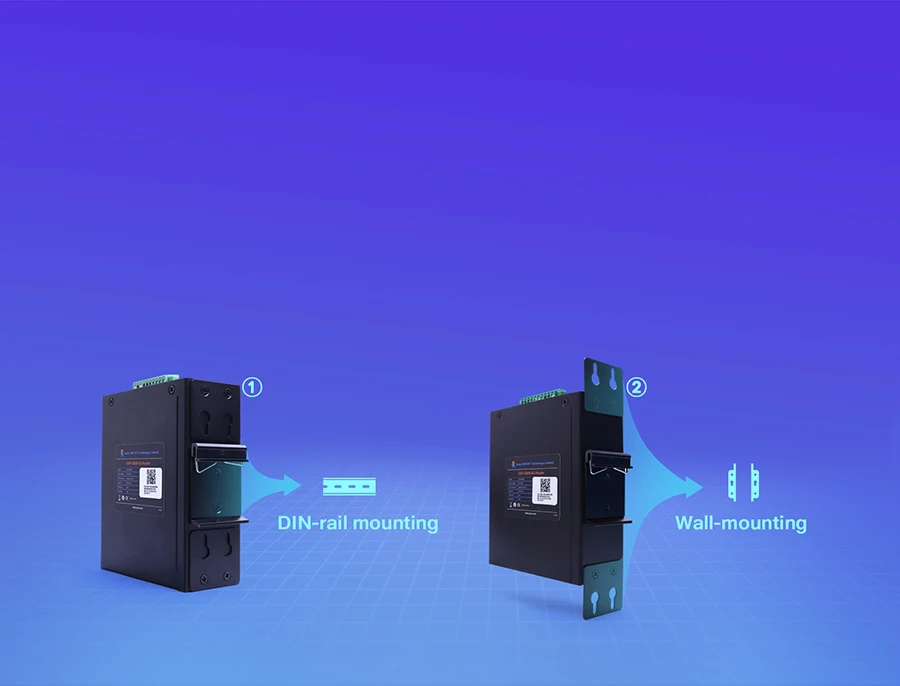

Wall-mounting and DIN-rail mounting
options available

Two installation methods are free to choose, adapt to diverse on-site installation;
Only one device, one SIM card, one-time installation, once and for all;
It is convenient and fast, saves time and money and labor, and can be used in

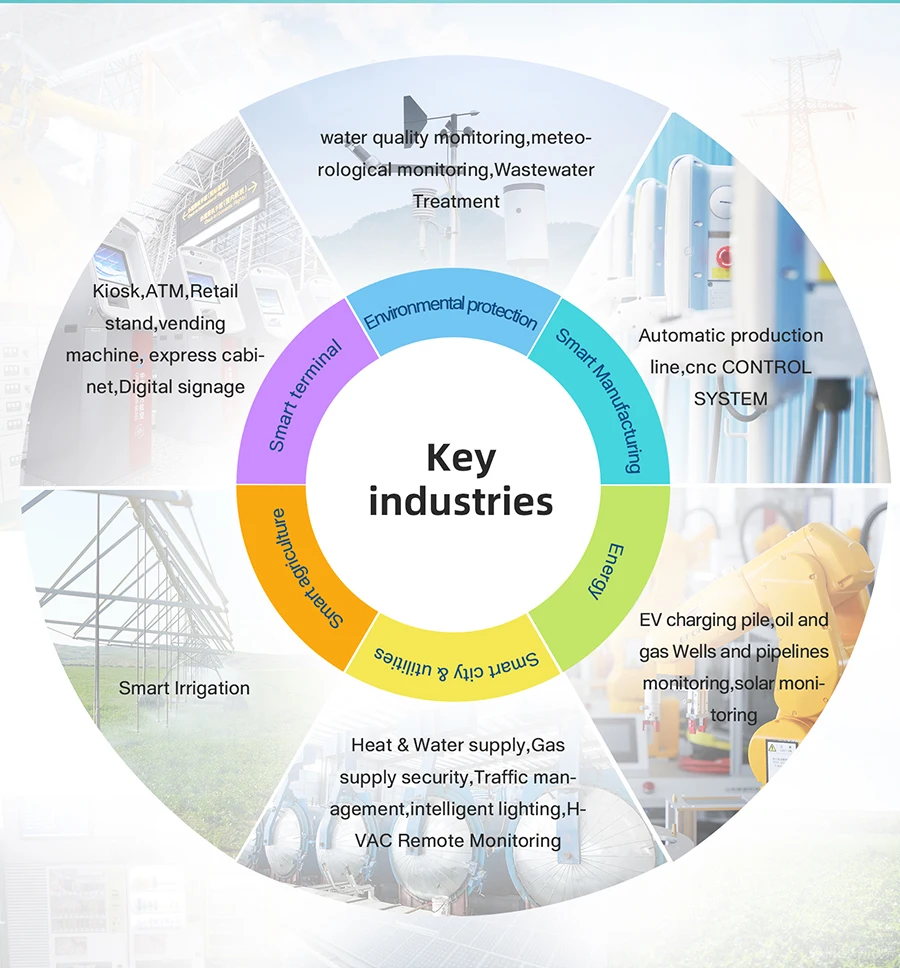

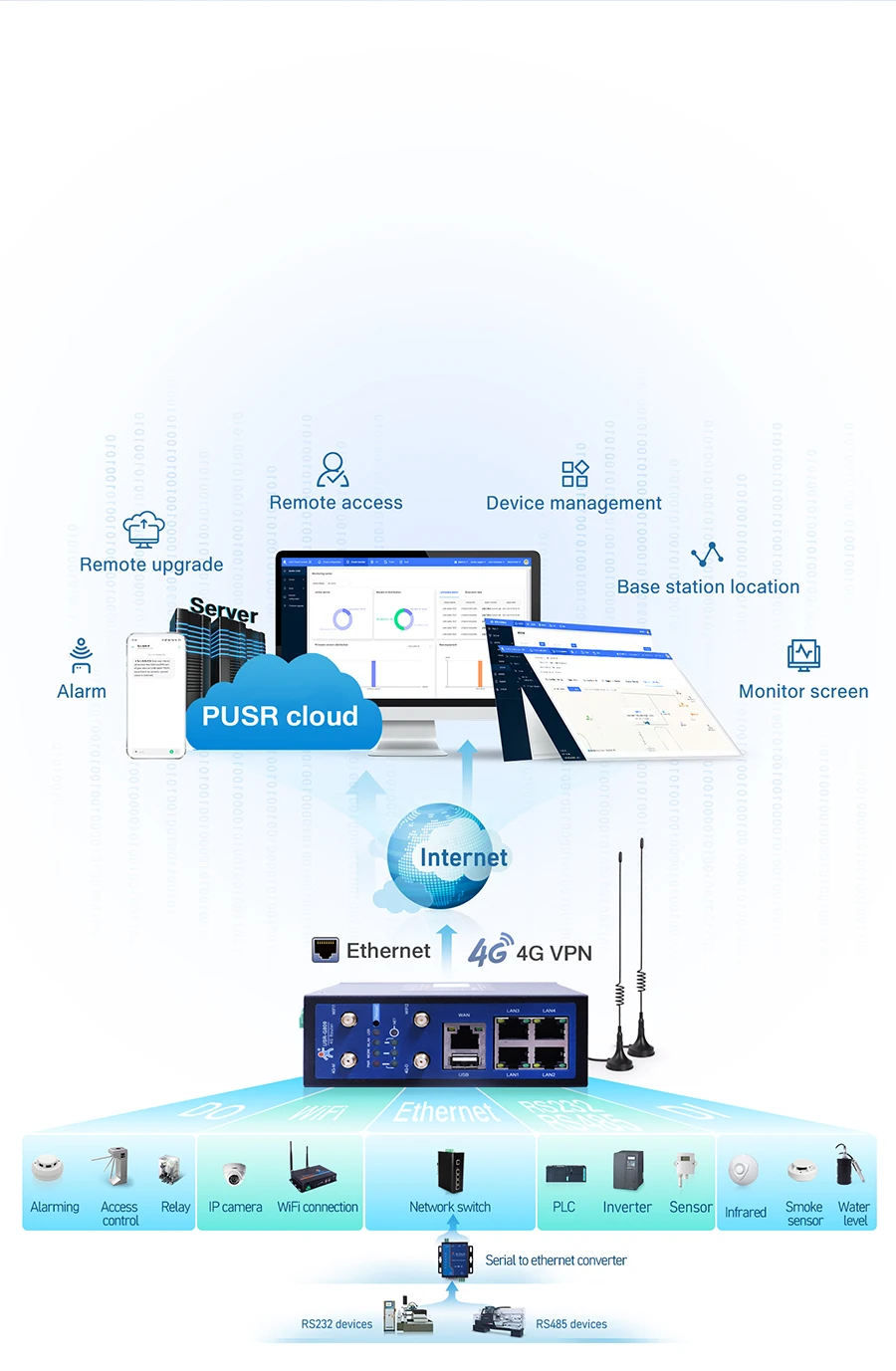

Diverse applications without
fear of complexity

G809 wireless router provides wireless access to
the network;Provide network for wireless devices,
Ethernet devices, sensors, switch control, etc.;
It can also expand network services on more devices
through the switch plus serial device server ;

Applications

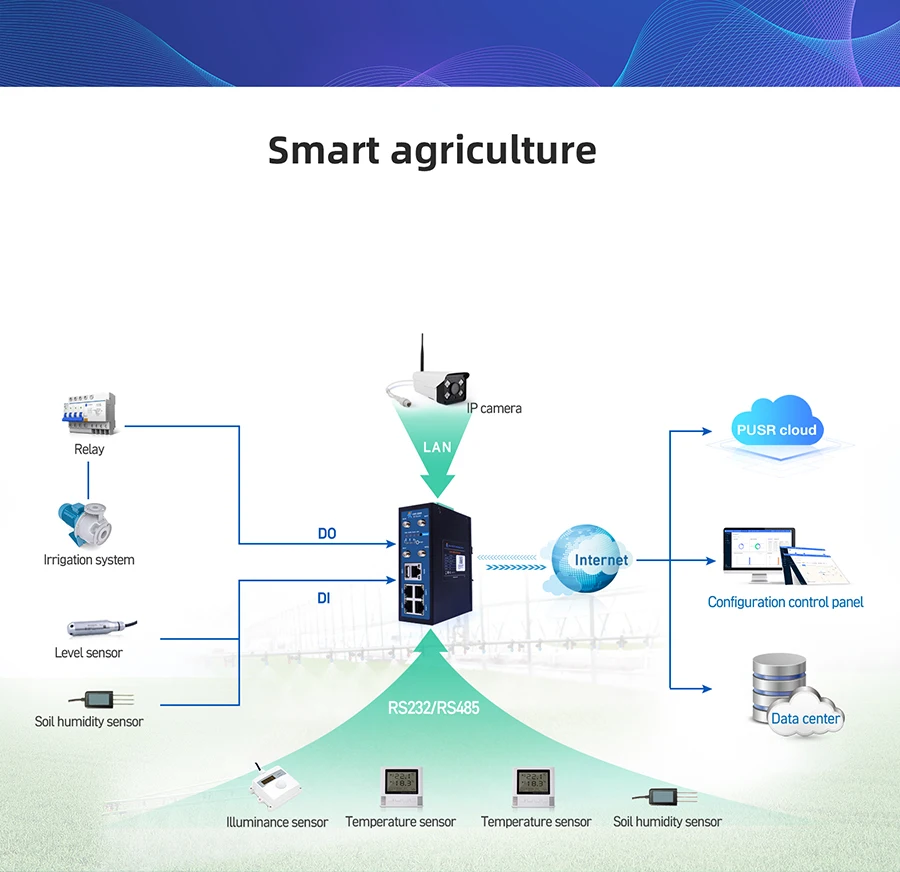

In the smart agriculture solution based on 4G industrial router G809,
the environmental information collected by sensors is reported to the
irrigation system server through the DTU function, and the site location
is reported via the GPS data.The liquid level and soil moisture are used to
determine whether to drive the irrigation system to achieve precise irrigation.

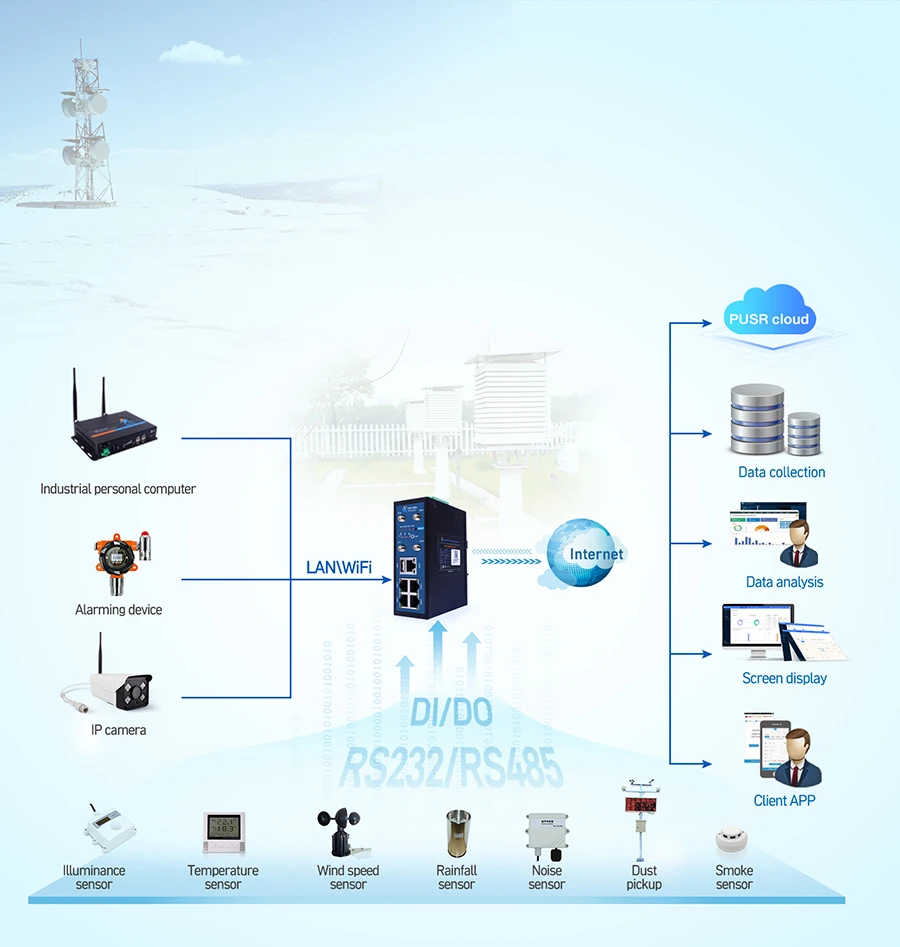

Meteorological monitoring case

The smart agricultural meteorological monitoring system, relying on the
meteorological stations, collects meteorological data (atmospheric
temperature, atmospheric humidity, atmospheric pressure, light intensity,
wind speed, precipitation, wind direction, wind speed, etc.) in real time
without interruption, and transmits real-time video to the cloud platform
in time to form a data report, which fully and intuitively presents the climate status.

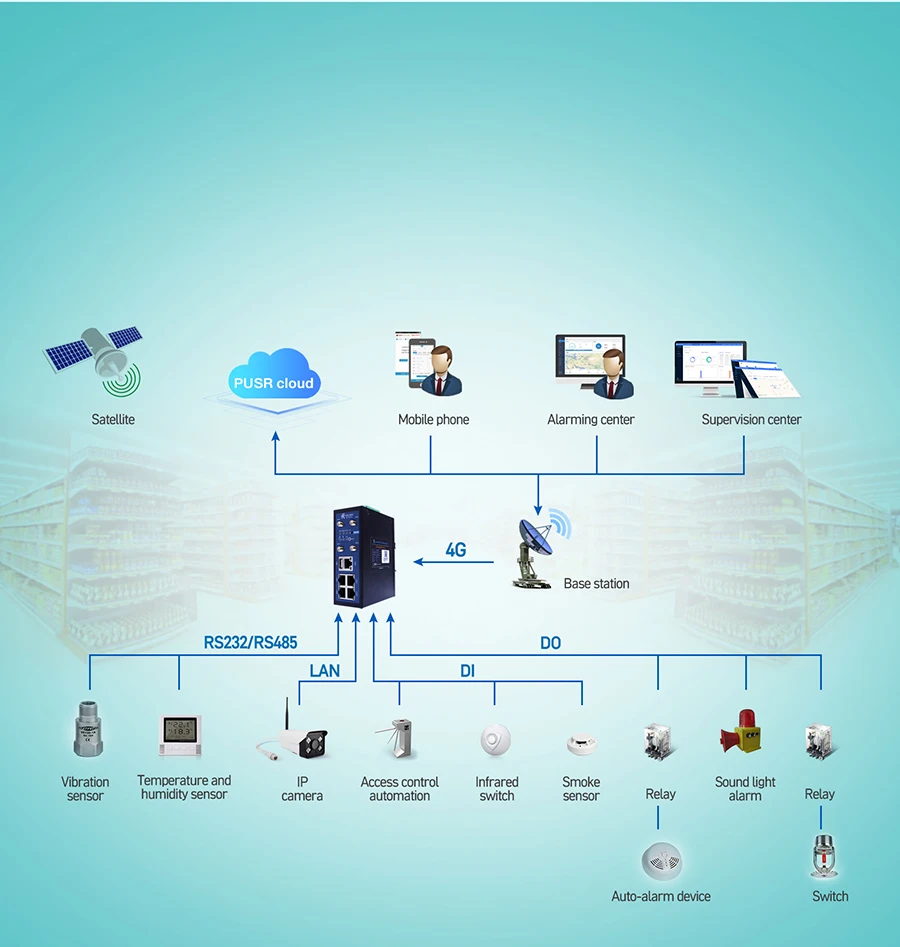

Smart store solutions

The IP camera installed in the store sends the real time vedio to the monitoring
center through a wired connection to the 4G industrial router G809,the access control switch and
infrared switch are connected to the DI input of the router to check the status
of illegal breaking in, the DO output is used to control the automatic alarm.
These information is sent to the mobile phone of the management personnel
through short message.As a core networking driver, G809 escorts the security of stores.
