Copy| Product Name | USR-G786 Industrial Serial Cellular LTE 4G Modem RS232/RS485 Interfaces Electrical Isolation Protection with Modbus RTU to TCP |
| Item NO. | F45793-D1F45793-D2 |
| Weight | 0.565 kg = 1.2456 lb = 19.9298 oz |
| Category | Consumer Electronics > Computer Accessories |
| Brand | USR |
| Creation Time | 2021-12-17 |
USR-G786 Industrial Serial Cellular LTE 4G Modem RS232/RS485 Interfaces Electrical Isolation Protection with Modbus RTU to TCP
USR-G786-G is a RS485 Electrical Isolation Protection 4G cellular modem which has perfect functions and covers most of the conventional application scenarios. User can use the cellular modem USR-G786-G to realize data transmission between RS232 / RS485 and 4G network through simple configuration.
Reliable Serial to 4G Cellular Communication. With RS232 or RS485 interfaces, full network coverage, wide temperature and wide voltage, multi center transmission。Provides wireless data communications between field serial devices and the central control system to enable remote control of industrial field sites.G786-G is ideal for M2M and IoT applications including distribution automation, smart metering, water & wastewater, heating, street light monitoring and etc.
● Global Bands, Covering Global Regions
● RS485 Electrical Isolation
● High Reliability, High Rate, Low Latency
● FOTA Remote Upgrade
High reliability,
High speed, Low latency
Terminal block, RS232/485
Industrial Design,
metal housing, IP30 protection
Provide data two-way transparent transmission between field
serial devices and the central control server
Support 2 Socket connections, support TCP Client and UDP
Support custom heartbeat package and registration package
Private protocols can be customized
HTTPD Client submit serial data to the designated server
by HTTP (GET/POST) method
Modbus RTU/Modbus TCP protocol conversion for
industrial SCADA systems and field devices.
The registration packet is sent to the server to identify the device.
The heartbeat packet is used to judge the active state of the device when sent to
the server, and actively collect data when sent to the serial terminal.
The contents of registration package and heartbeat package, heartbeat
interval can be modified by AT command.
Support AT command setup by serial port,network ,
SMS and provide configuration tool for PC(windows).
With the remote management platform,
it can realize the automatic firmware upgrade
The difference algorithm upgrade package is small,
saving upgrade traffic and time
G786 supports customized development based on many
different protocols such as MQTT and Modbus required by users.
The electromagnetic interference generated by the air compressor during operation
often affects the normal operation of other equipment. USR-G786 adopts
high-reliability RS485 electrical isolation to shield electromagnetic interference
while transmitting data.

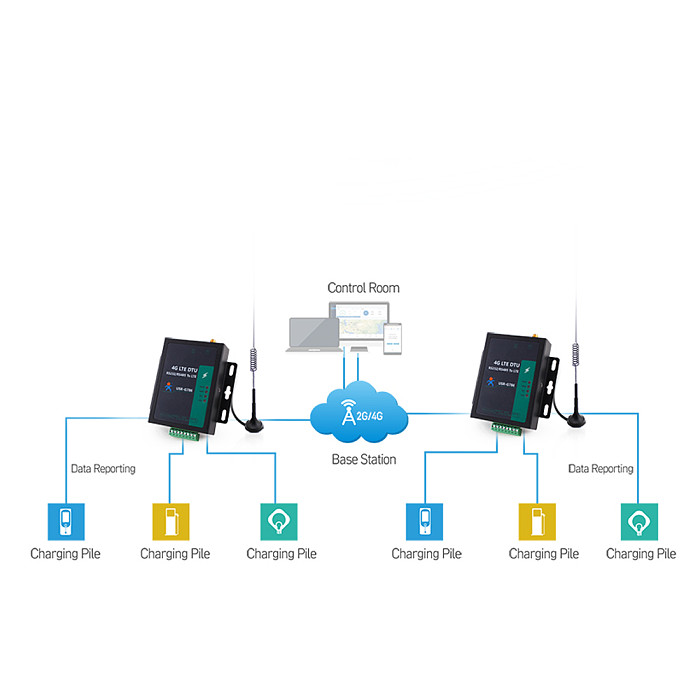

When the charging pile is working, the data can quickly upload to the cloud server
through the USR-G786, which is convenient for the platform operators to manage piles
