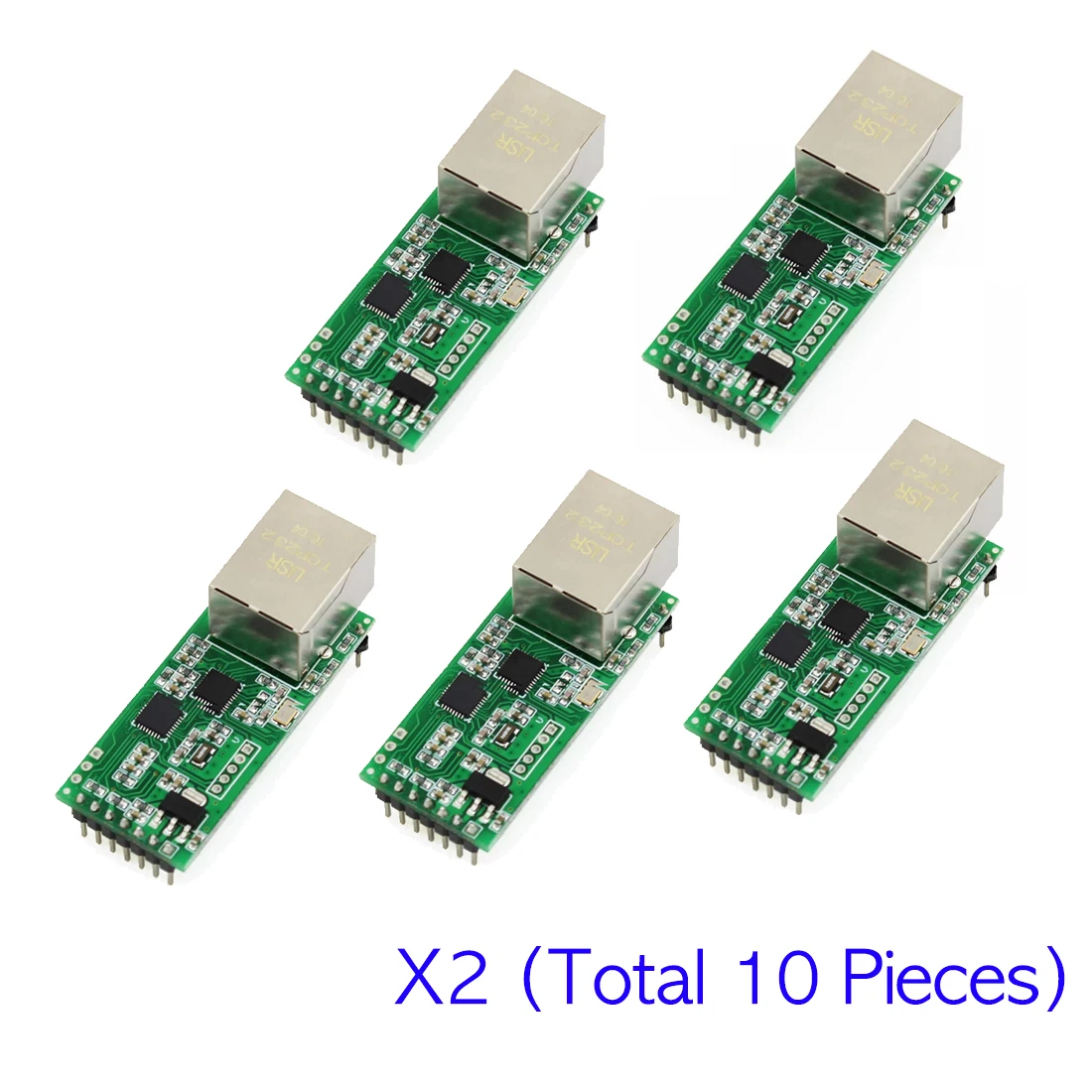

Quantity: 10 Pieces
Serial to ethernet converter modules USR-TCP232-T2 can transmit data transparently between TCP/IP and TTL, and it can also be applied in RS232/ RS485 by level shift circuit.
● Based on Cortex-M0 core.
● Pin type.
● Low Power, fast-speed and high-efficiency.
● Supports TCP server/client, UDP server/client
● Web page configuration / DHCP & DNS
● Virtual COM
Introduction of Serial to Ethernet Converter Modules USR-TCP232-T2
Serial to Ethernet converter module USR-TCP232-T2 can realize data bidirectional transparent transmission between serial TTL and RJ45 Port. USR-TCP232-T2 is based on Cortex-M0 core. It has characters of low power, fast speed, and high efficiency.
Serial UART Ethernet Module – M0 Series
|
Solution
|
Cost-Effective, -25~75C
|
|
Keep-Alive
|
Detect the inactive connection, rebuild connection automatically
|
|
Built-In Webpage
|
Configure parameters
|
|
DHCP+DNS
|
DNS and DHCP automatically obtain an IP address
|
|
Firmware
|
Upgrade firmware via network
|
|
Client connection
|
Support 1 to 16 clients to be connected in TCP server mode
|
Features of Serial to Ethernet Converter Modules USR-TCP232-T2
DHCP &DNS, automatically obtain an IP address and query IP address through serial setting protocol
Set parameters through webpage and serial AT command
Upgrade firmware via network
Auto-MDI/MDIX, RJ45 port with 10/100Mbps
Serial port baud rate from 600 bps to 460.8 Kbps, Check bit of None,Odd,Even,Mark and Space
Work mode: TCP Server, TCP Client, UDP Client, UDP Server, httpsD Client
Support virtual serial port and provide corresponding software USR-VCOM
Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
User-defined registration package mechanism, check connection status and use as custom packet header
Under TCP Server mode, Client number ranges from 1 to 16; default number is 4
The global unique MAC address bought from IEEE, user can define MAC address
Restore factory default
Across the gateway, switches, routers
Can work in LAN, also can work in the Internet (external network)
Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
Support customization
Application Field of Serial UART Ethernet Modules
Industrial data transmission, industrial automation
security and protection monitoring, public security
Smart home, power control, environmental monitoring, intelligent agriculture
Door check on work attendance system, POS system, rice selling system
Building automation system, power monitoring, self-service banking system, telecom machine room monitoring

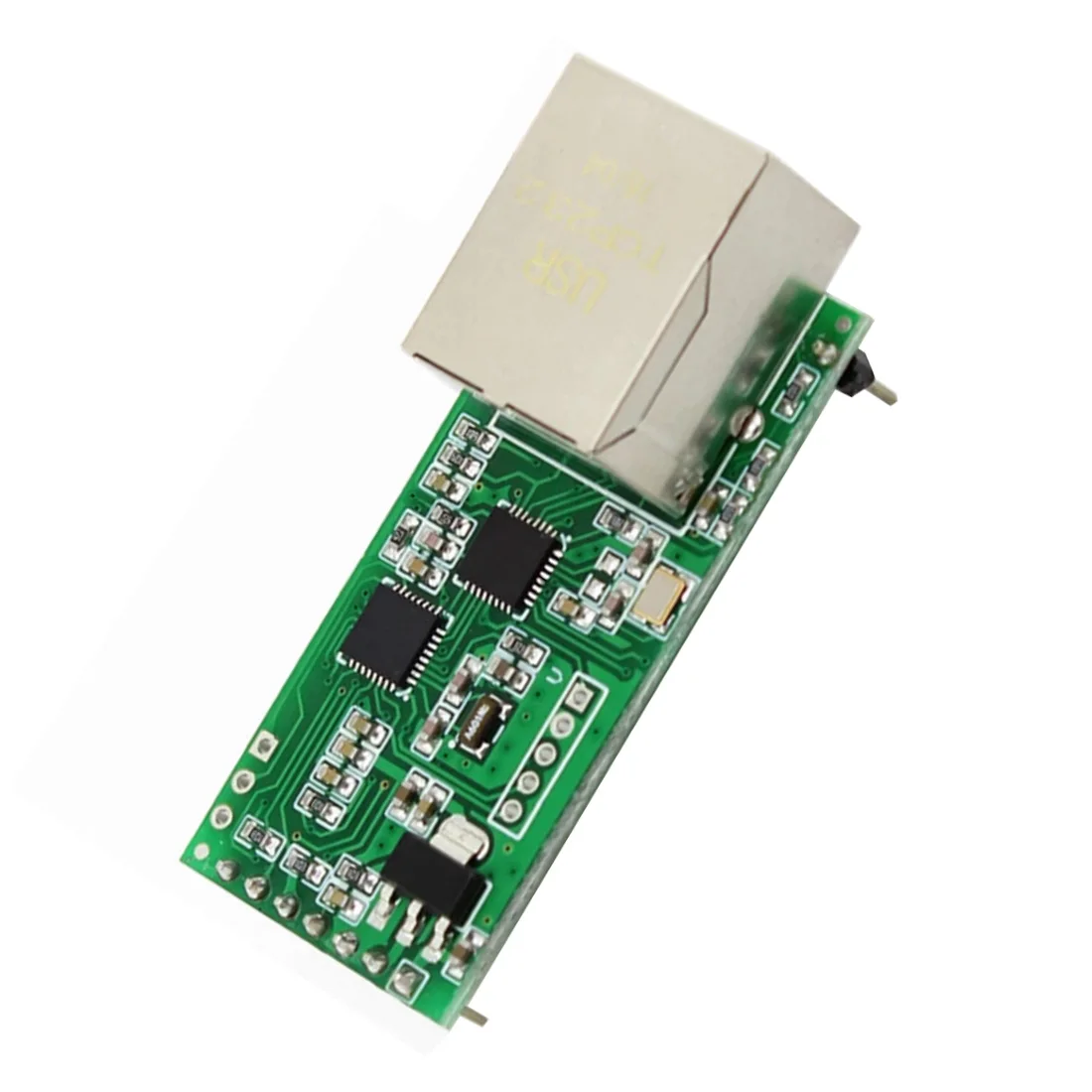

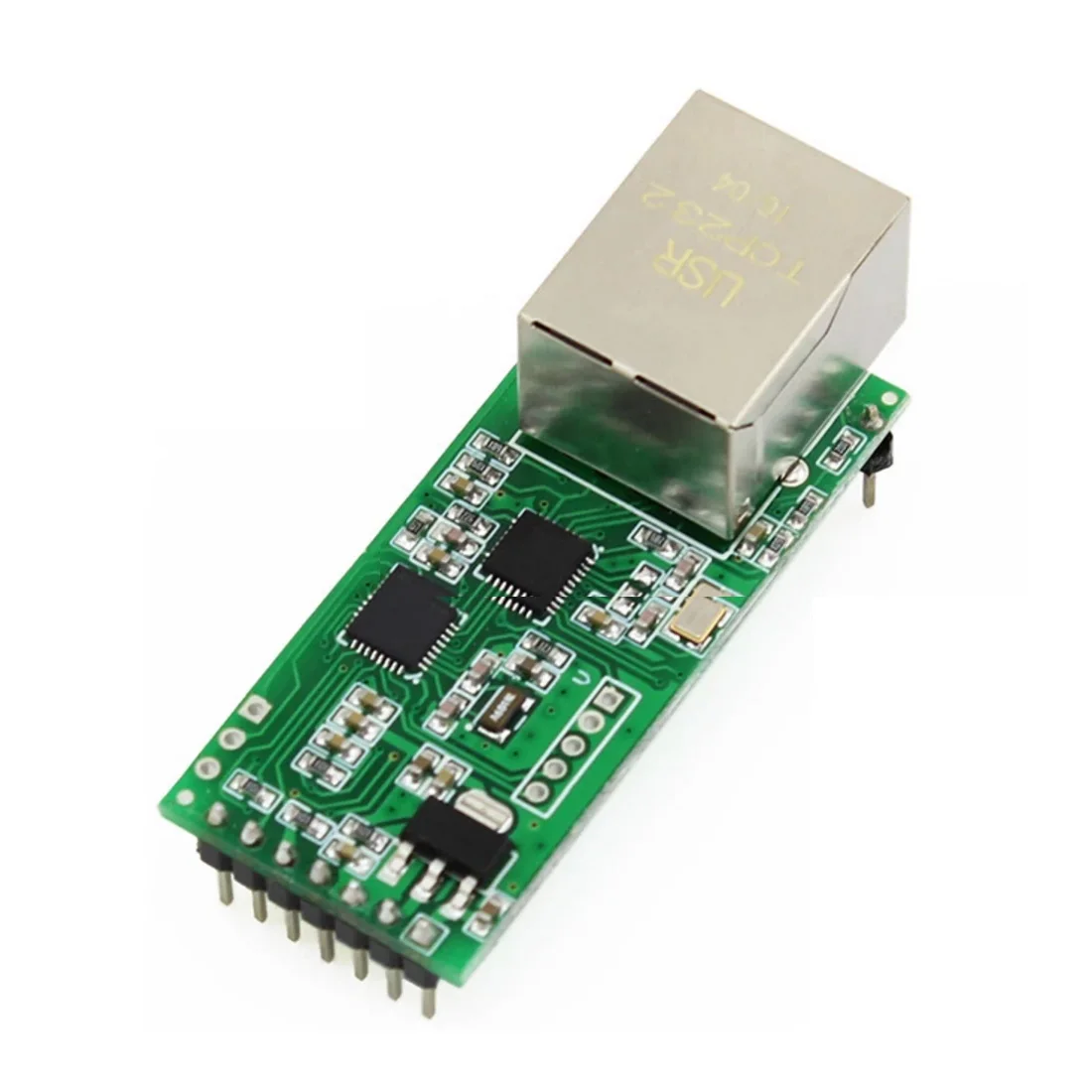

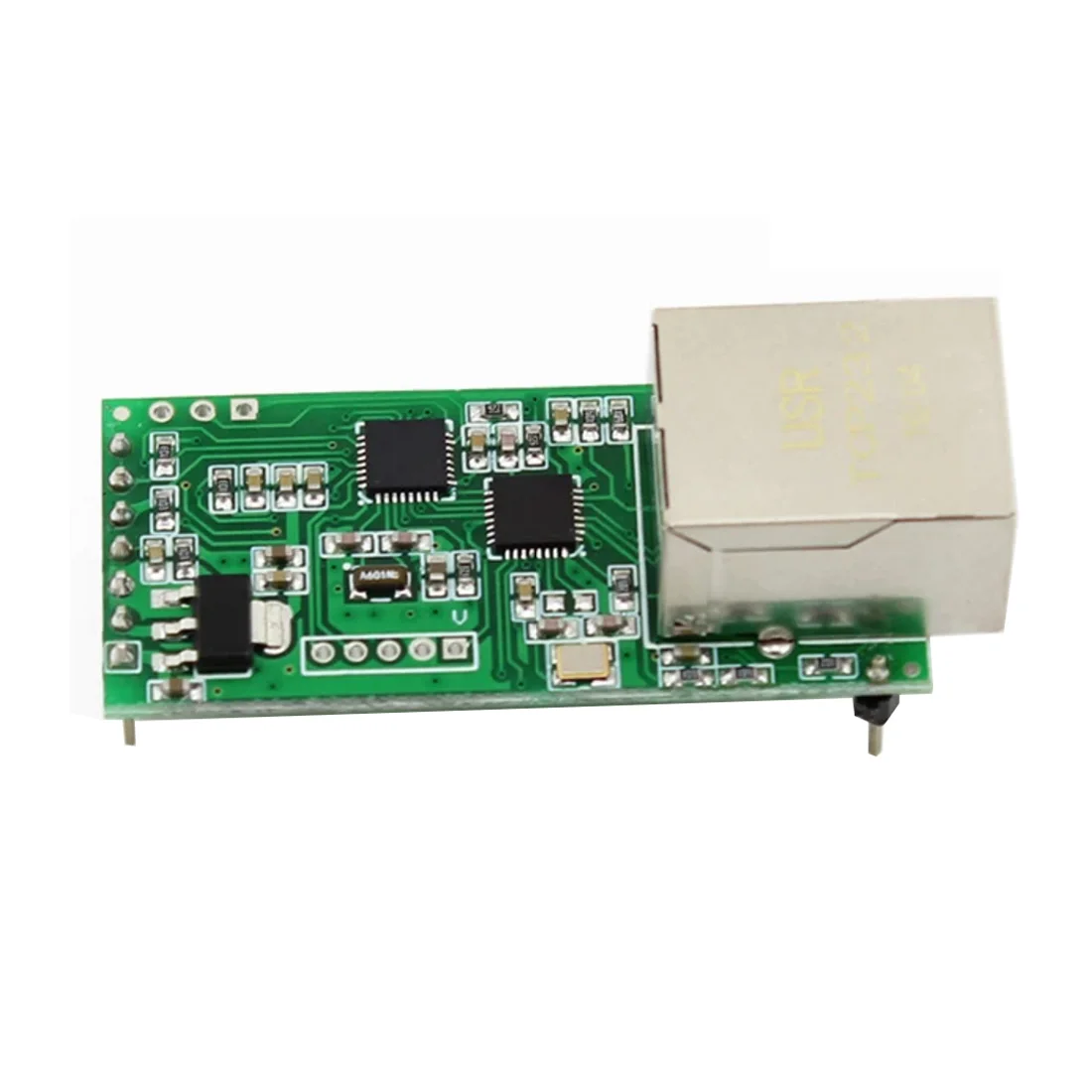

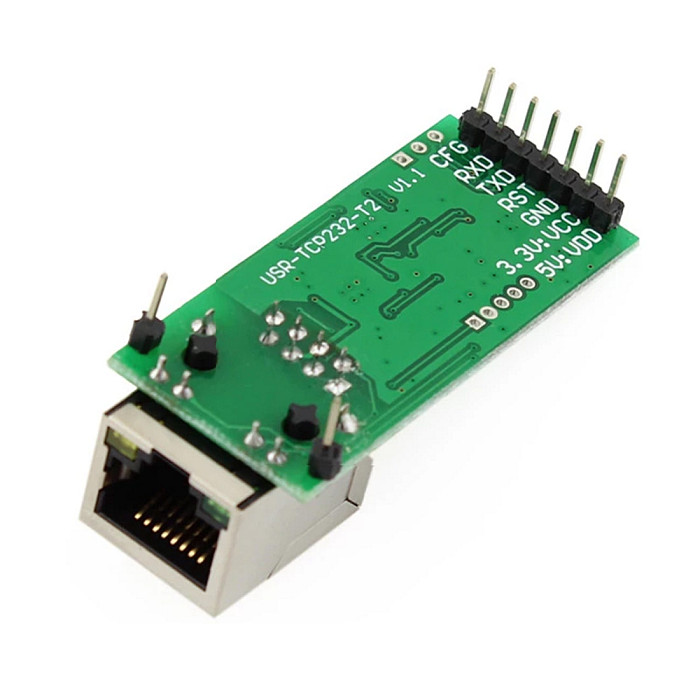

Image of Serial UART to Ethernet Modules
