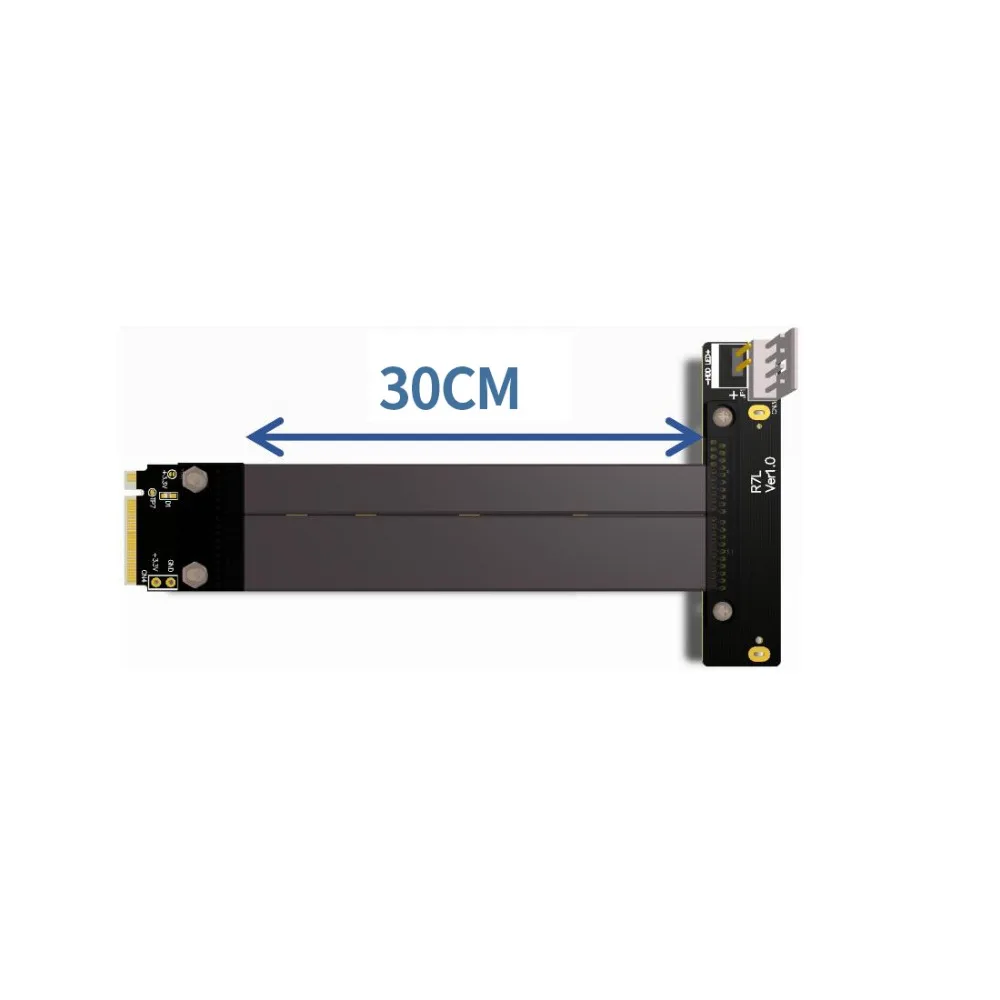

U2 interface SFF-8639 ( U.2 ) to M.2 NVMe NGFF Key M key-M M2 Adapter Riser Card Ribbon extender Cable 30cm For U.2 NVME SSD Item NO.: F29499

US$ 26.61 ~ US$ 29.57

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 29.57	US$ 28.09	US$ 26.61

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

Product Name	U2 interface SFF-8639 ( U.2 ) to M.2 NVMe NGFF Key M key-M M2 Adapter Riser Card Ribbon extender Cable 30cm For U.2 NVME SSD
Item NO.	F29499
Weight	0.0999 kg = 0.2202 lb = 3.5239 oz
Category	Consumer Electronics > Computer Accessories > Wire & Cable & Cord
Brand	ADT-Link
Creation Time	2019-07-02

U2 interface SFF-8639 ( U.2 ) to M.2 NVMe NGFF Key M key-M M2 Adapter Riser Card Ribbon extender Cable 30cm For U.2 NVME SSD

Length is customizable,cable prices of different lengths are not the same,pls contact us if you need!

Product name: M.2 graphics card extension cord

Product model: R47SL

Connector 1: M.2 Key-M

Connector 2: SFF-8639 (U.2)

Speed: PCIe3.0x4; 32G.bps

Model Instructions

Description	Item	Support
SFF-8639（U.2） to PCIe x4	R27SL	U.2 NVME SSD
SFF-8639（U.2）to M.2（Key-M）	R47SL	U.2 NVME SSD

The length of the wire instructions:

Our wire length refers to the visual wire part, does not include the PCB and connector.

The following models for R47SL - 8 cm, refer to the below dimension.

HTB1cRmuf4SYBuNjSspjq6x73VXaa

This M2 SFF-8643 adapter card can convert the M2 PCIe SSD interface of the motherboard into 36-pin SFF-8643 interface, Use for connecting all kinds of devices with a SFF-8643 interface. It can also be connected to the high performance 2.5 "NVMe U. 2 (SFF-8639) SSD solid-state drives Through a SFF-8643 to SFF-8639 data cable.

Product Features:

Transfer PCIe x4 SSD interface to SFF-8639 interface (R47SL)

Connect the 2.5 "NVMe U.2 (SFF-8639) SSD to the motherboard M2 connector via SFF-8643 to SFF-8639 cable

Don't need a driver.

Specifications:

M.2 Key-M SSD interface

SFF-8639 U.2 connector

M2 size: 2280

Operating temperature / humidity: - 40 ° C - 80 ° C / 5-95% relative humidity (non-condensing)

Storage temperature / relative humidity: - 40 ° C - 85 ° C / 0 - 90% relative humidity (non-condensing)

RoHS compliant

Product advantage:

1. Wire advantages: using the German patent imported wire, using the Lotes connectors which imported from Taiwan, high frequency support PCIe 3.0 X4 8G/bps stable transfer
2.Differential signal without hole design, there is no problem of signal attenuation interference in a parasitic capacitance and parasitic inductance, there will be no more CAF micro short circuit, cable is durability.
3.PCB use high frequency low resistance of materials with high quality, PCB using high TG board, copper thickness thicken to 1oz, gold finger plating enough gold, Good conductive performance, can reduce oxidize higher impedance caused by the crash blue screen.
