Teeny1S F4 Flight Controller Integrated OSD 5V Boost Module for Indoor Mini RC Drone Quadcopter

Teeny1S F4 Flight Controller Integrated OSD 5V Boost Module for Indoor Mini RC Drone Quadcopter Item NO.: F21743

Write a Review
US$ 11.82
US$ 13.90 Save US$ 2.09 (15% Off)
Sold Out

Copy and share this link on social network or send it to your friends

Copy

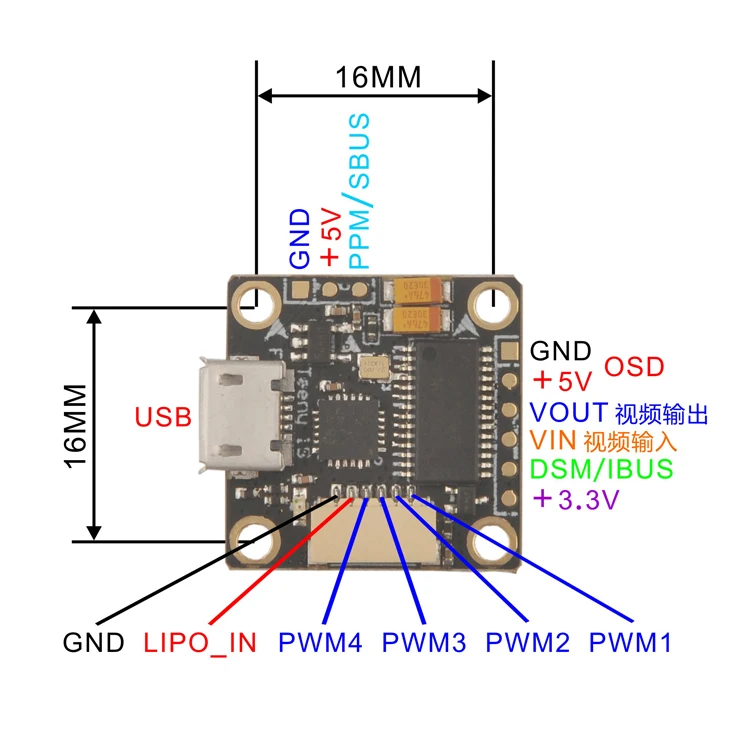

  • Item name: Teeny1s F4 flight controller board
  • Size: 20*20mm
  • Mounting hole: 16*16mm
  • Mount hole Diameter: 2mm
  • Weight: 2.3g
  • Processor: STM32F405RGT6
  • Sensor: MPU-6000 ( connected by SPI)
  • Firmware version: betaflight_3.1.7_OMNIBUSF4SD
  • Built-in SBEC: 5V 500MA
  • Power supply: 1S lipo battery ( 3.3V-4.35V)
  • Receiver: PPM, IBUS, SBUS, DSM-2, DSM-X etc.
  • Suitable for Micro FPV brushless frame
Product Name Teeny1S F4 Flight Controller Integrated OSD 5V Boost Module for Indoor Mini RC Drone Quadcopter
Item NO. F21743
Weight 0.0275 kg = 0.0606 lb = 0.9700 oz
Category DIY RC Drone Accessories > Motor
Tag
Brand XT-XINTE
Creation Time 2017-07-31

Specification:
Item name: Teeny1s F4 flight controller board
Size: 20*20mm
Mounting hole: 16*16mm
Mount hole Diameter: 2mm
Weight: 2.3g
Processor: STM32F405RGT6
Sensor: MPU-6000 ( connected by SPI)
Firmware version: betaflight_3.1.7_OMNIBUSF4SD
Built-in SBEC: 5V 500MA
Power supply: 1S lipo battery ( 3.3V-4.35V)
Receiver: PPM, IBUS, SBUS, DSM-2, DSM-X etc.
Suitable for Micro FPV brushless frame

Features:
-Support programmable LED Sprit (turn off transponder before using)
-Support BLheli/BLHELI_S suite Pass-through ready
-Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
-Support the newest DSHOT ESC
-Built-in voltage detection, alarm
-Built-in Betaflight-OSD, Configure by Betaflight GUI
-Buzzer Ready (Solder pin)
-LED_STRIP Ready (Solder pin)

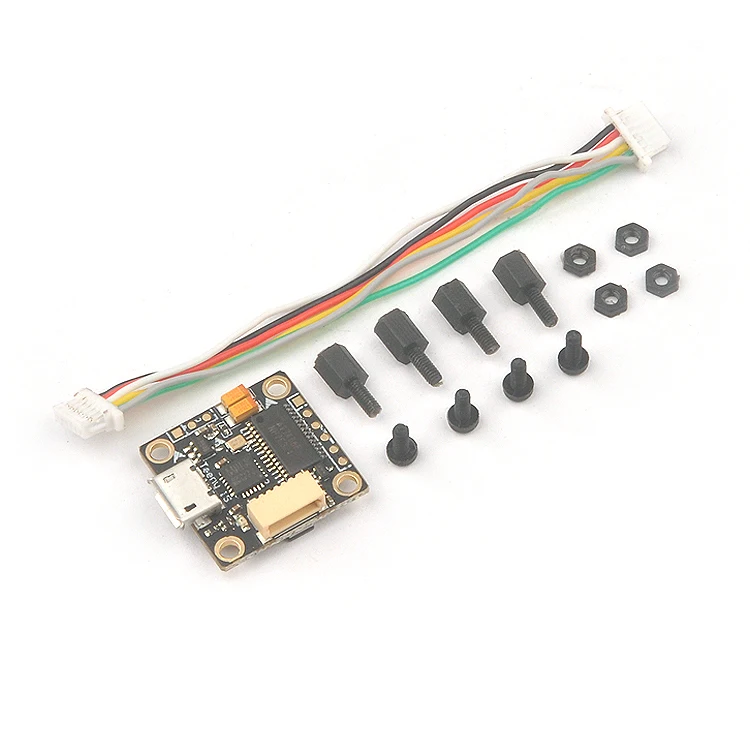

Package included:
1* Teeny1SF4 flight controller board
4*M2*5+5 Nylon column
4*M2 Nuts
4*M2 Screw

Notes:
-SBUS/IBUS/DSM-X receiver please configure RX1(UART1) as input, and enable Serial_RX
-PPM receiver don't need to enable Serial_RX (PPM receiver need to Disable LED_Strip *Betaflight 3.17 Firmware known issue)
-DSM/DSM-2/DSM-X receiver power from 3.3V.
-SBUS and PPM receiver power from 5V.
