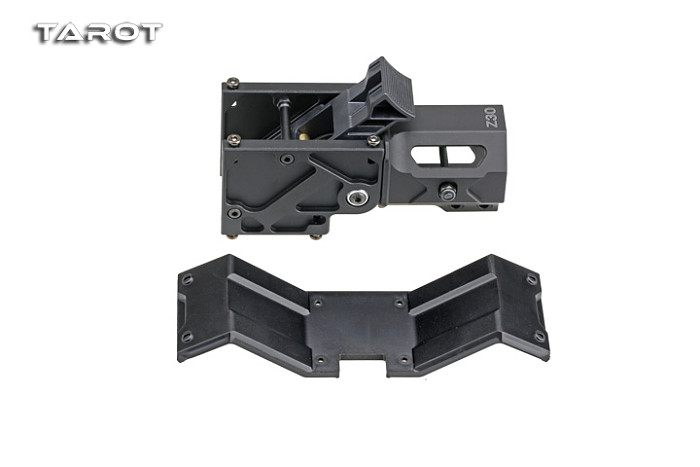

Tarot Z30 CNC 30mm Folding Arm Seat Mount TL30A1 Waterproof Matte Black for X4II / X6II / X8II RC DIY FPV Multicopter

Product manual:

For diameter DIA 30MM four-axis / six-axis / eight-axis multi-rotor UAV use the button to unlock, a key to unlock the automatic folding, easy to use and easy to put. Locking mechanism can arm vibration, automatic one-way locking closed function.

Unique folding seat waterproof sealing baffle design allows this double-layer carbon plate structure of the UAV, no longer worry about waterproof (edge need to apply waterproof plastic), in line with the needs of industrial UAVs.

The overall use of 6061-T6 aluminum alloy super-hard aluminum alloy, high-precision multi-axis CNC machining. X4II / X6II / X8II and other models can be directly installed, free of charge above the upper and lower carbon fiber cover CAD drawings, to the original assembly quality.

Related Product ID:

Z25 Folding arm base / dumb black TL25A1

T25 folding arm base / 6 degree tilt TL25A2

Z28 Waterproof Folding Armrest / Matte Black TL28A1

T28 waterproof folding arm base / 6 degree tilt TL28A2

Z30 Waterproof Folding Armrest / Matte Black TL30A1

Z28 / Z30 metal connector board TL28A3

Product Specifications:

Plastic waterproof baffle × 1 (132 × 24 × 43MM) 8.8G

Metal left support plate × 1 (54.5 × 40 × 5.5MM) 19.0G

Metal right support plate × 1 (54.5 × 40 × 5.5MM) 19.0G

M3.0 × 5MM round head hexagon screw × 10

M2.0 × 5MM cup head hexagon screw × 4

DIA 4 × 26MM spring × 2

H5 × 27MM hexagonal aluminum column × 2

M2.0 × 5MM round head hexagon screw × 4

Unlock slider × 1 (70 × 15 × 26.5MM) 10.0G

Self-locking copper pillar × 1 (DIA 6 × 32.30MM) 6.5G

DIA 30MM metal arm tube clamp × 1 (70 × 37 × 42MM) 49G

Positioning pin × 1 (DIA 7 × 36.5MM) 7.5G

M3.0 × 6MM head round hexagon screw × 2

M3 metal gasket × 1
