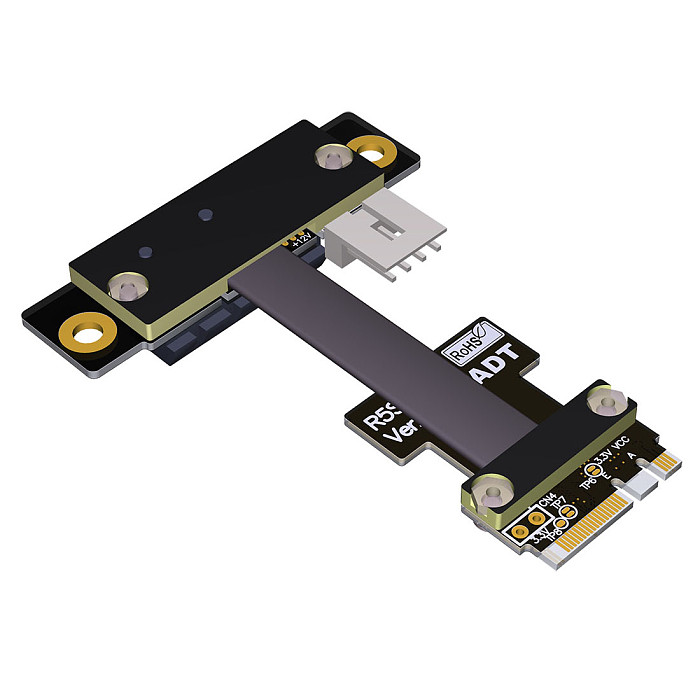

ADT-Link M.2 WiFi A.E Key Interface Adapter M.2-A\Ekey to PCIE X1 Adapter Board Extensione Cable Supports PCI-E 3.0 x1 Riser Adapter

Copy and share this link on social network or send it to your friends

Copy

ADT-Link M.2 WiFi A.E Key Interface Adapter M.2-A\Ekey to PCIE X1 Adapter Board Extensione Cable Supports PCI-E 3.0 x1 Riser Adapter Item NO.: F35358-F35396

Write a Review
US$ 10.64 (12% Off)
US$ 12.09 Save US$ 1.45
Version:
R51SF R51SL R51SR
Size:
3cm 5cm 10cm 15cm 20cm 25cm 30cm 35cm 40cm 50cm 60cm 80cm 100cm
Quantity:
Shipping Cost:
Estimate Shipping Cost

Product Name ADT-Link M.2 WiFi A.E Key Interface Adapter M.2-A\Ekey to PCIE X1 Adapter Board Extensione Cable Supports PCI-E 3.0 x1 Riser Adapter
Item NO. F35358-F35396
Weight 0.09 kg = 0.1984 lb = 3.1747 oz
Category Consumer Electronics > Computer Adapter
Brand ADT-Link
Creation Time 2019-12-30

ADT-Link M.2 WiFi A.E Key Interface Adapter M.2-A\Ekey to PCIE X1 Adapter Board Extensione Cable Supports PCI-E 3.0 x1 Riser Adapter


product description:

Brand: ADT-Link /
Colour: Black
Size: 3 5 10 15 20 25 30 35 40 50 60 70 80 100cm
Weight: 26 26 28 30 31 32 34 35 37 40 43 49 55g

Note: This product is for engineering use only. It does not support external laptop graphics card. It does not support external laptop graphics card. Please consider carefully before purchasing.

Features: Produced by ADT, excellent product performance, superb reputation products, official authentic, 100% power-on test and delivery

Support M.2 WiFi (A.E key) interface, speed bandwidth: PCIe3.0x1

Product advantages:
1. Advantages of wires, using German patented wires, high-frequency support for PCIe 3.0 8G / bps stable transfer

2. The cable length advantage can be customized from 2 cm to 10 meters. The cable sold by our store has low impedance. The cable length within 60 cm can stably support the full speed of PCIe3.0. The actual measurement of this store uses 10 meters at 2.5G / bps Can be stably transferred at the speed of

3. The differential signal has no via design, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro-short circuit phenomenon, and the product is durable.

4. The PCB is made of high-frequency and low-resistance high-quality materials. The PCB is manufactured with precision. The PCB uses high TG materials. The thickness of the copper material is thickened to 1oz. The gold fingers have sufficient gold plating content. Blue screen of death issue

5. The wire used in the product itself is very durable. It is protected by a PCB gasket with a thickness of 3mm at the metal welding point, and the screw is locked.
Summary of technical issues

What is the difference between the extension of the extension line, 90 degrees left (SL), 180 degrees horizontal (SF), and 270 degrees right (SR)

Below: SL = upright, SF = plywood, SR = upright

SL: PCIe connector and PCB turn 90 degrees vertically

SF: PCIe connector and PCB board turn 180 degrees horizontally

SR: PCIe connector and PCB turn upside down 270 degrees


Precautions:

Be sure to identify the direction when inserting the wire. Do not insert it in the wrong direction or to prevent it from being burned. Hold the equipment's socket before inserting the wire.

Various motherboards and equipment have different signal driving capabilities and other conditions. The test results of this store are not guaranteed to be consistent with your test results. As long as an extension cable is connected, the signal will be lost.

Graphics cards or motherboards are electronic products that age and oxidize over time. Older devices are not supported. More than 3 years. Do not buy,

Only designated by engineering personnel, do not have the ability to install DIY without DIY ability, please do not buy


As long as it is an adapter cable, there are compatibility issues. Please confirm the compatibility between your device and the motherboard system. If you are not sure,pls don't order, this product only supports M.2 WiFi interface (AEKey). Please confirm whether your motherboard is M. .2 WiFi interface, please do not buy if you cannot confirm.

It is known that notebooks of HP and Lenovo brands have BIOS compatibility issues that may make your network card unusable. Please confirm the compatibility between the laptop and your network card.

This product has many compatibility issues and can only be purchased by engineering professionals.

Packing contains:

M.2 WiFi A.E key interface extension cable 1
