Tarot-RC CNC T Shape Collar Mount 25mm Quick Release Landing Gear Skid Tripod Carbon Fiber Bottom Tube Set TL96040
Product manual:
It is suitable for UAVs with DIA 25MM diameter. It is made of 6061T6 aluminum alloy with full CNC precision machining. The bottom tube is made of 18MM diameter carbon fiber reinforced plastic tube.
Related Product ID:
DIA 25 quick release landing gear tube group TL96040
DIA 25 shock absorber landing gear tube group TL96041

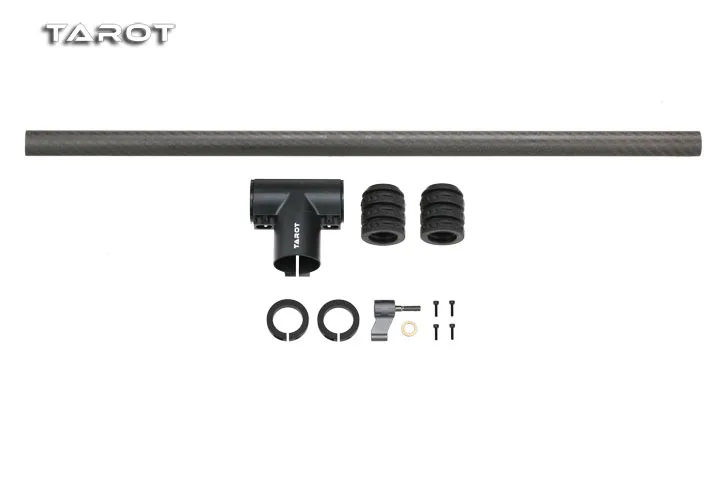

Product Specifications:
DIA 16MM 3K pure carbon tube × 1 (DIA 16 × DIA 18 × 550MM) 42G
Rubber shock absorber sleeve × 2 (DIA 16 × DIA 25.8 × 31MM) 26.8G
Metal T seat × 1 (53 × 53 × 34MM) 26.8G
Metal locating ring × 2 (DIA 18 × 26 × 5MM) 3.5G
DIA 18 rubber non-slip tube × 1
M4 × 15MM hexagonal hand screw × 1
M4 copper washer × 1
2M × 8MM cup head hexagon screw × 4
