Home>DIY RC Drone Accessories>8A UBEC Output 5V / 6V 6A / 8A Max 12A Inport 7V-25.5V 2-6S Lipo / 6-16 cell Ni-Mh Input Switch Mode BEC for RC Quadcopter
8A UBEC Output 5V / 6V 6A / 8A Max 12A Inport 7V-25.5V 2-6S Lipo / 6-16 cell Ni-Mh Input Switch Mode BEC for RC Quadcopter

8A UBEC Output 5V / 6V 6A / 8A Max 12A Inport 7V-25.5V 2-6S Lipo / 6-16 cell Ni-Mh Input Switch Mode BEC for RC Quadcopter

US$ 7.92
Style
8A 5V 8A 12V
Add to Cart
Estimate Shipping Cost
  • Detail
    • Product Name: 8A UBEC Output 5V / 6V 6A / 8A Max 12A Inport 7V-25.5V 2-6S Lipo / 6-16 cell Ni-Mh Input Switch Mode BEC for RC Quadcopter
    • Item NO.: F24905 F53046
    • Weight: 0.033 kg = 0.0728 lb = 1.1640 oz
    • Category: DIY RC Drone Accessories
    • Creation Time: 2024-09-20

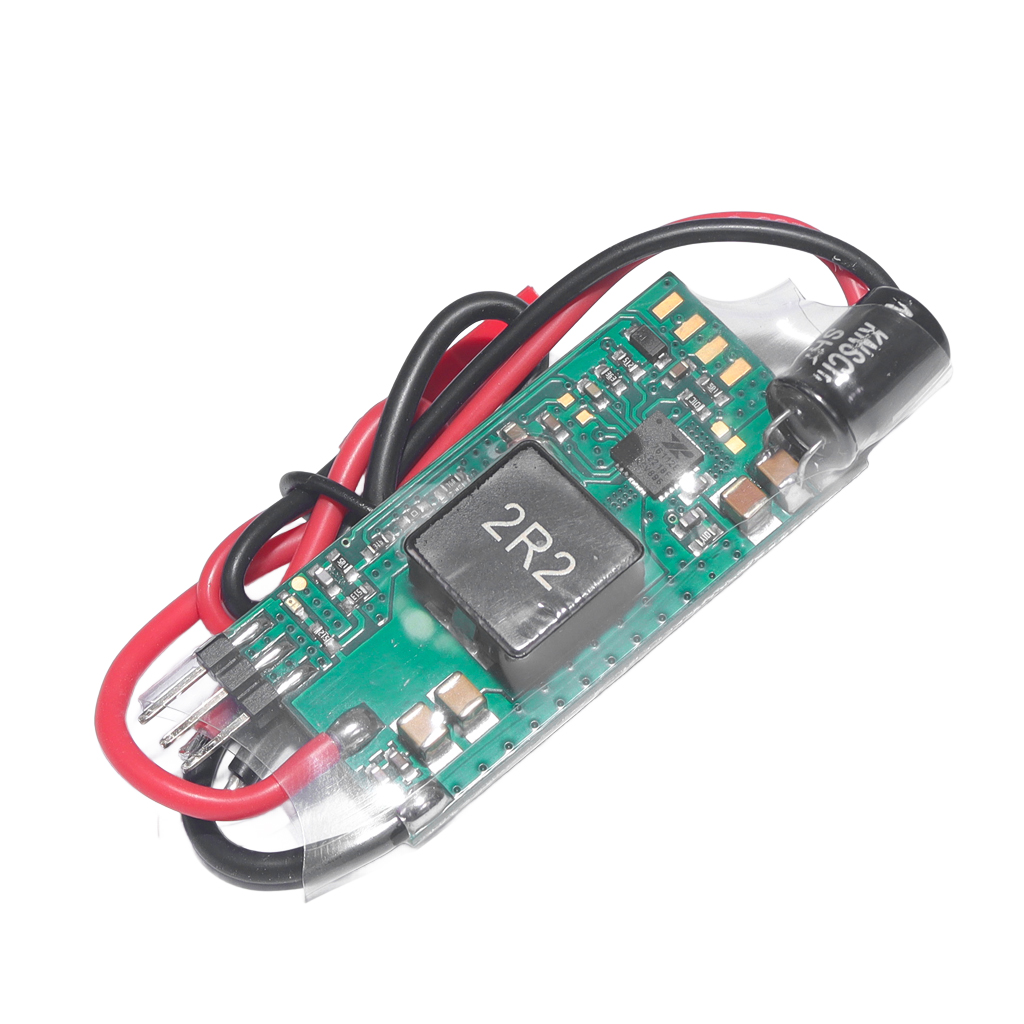

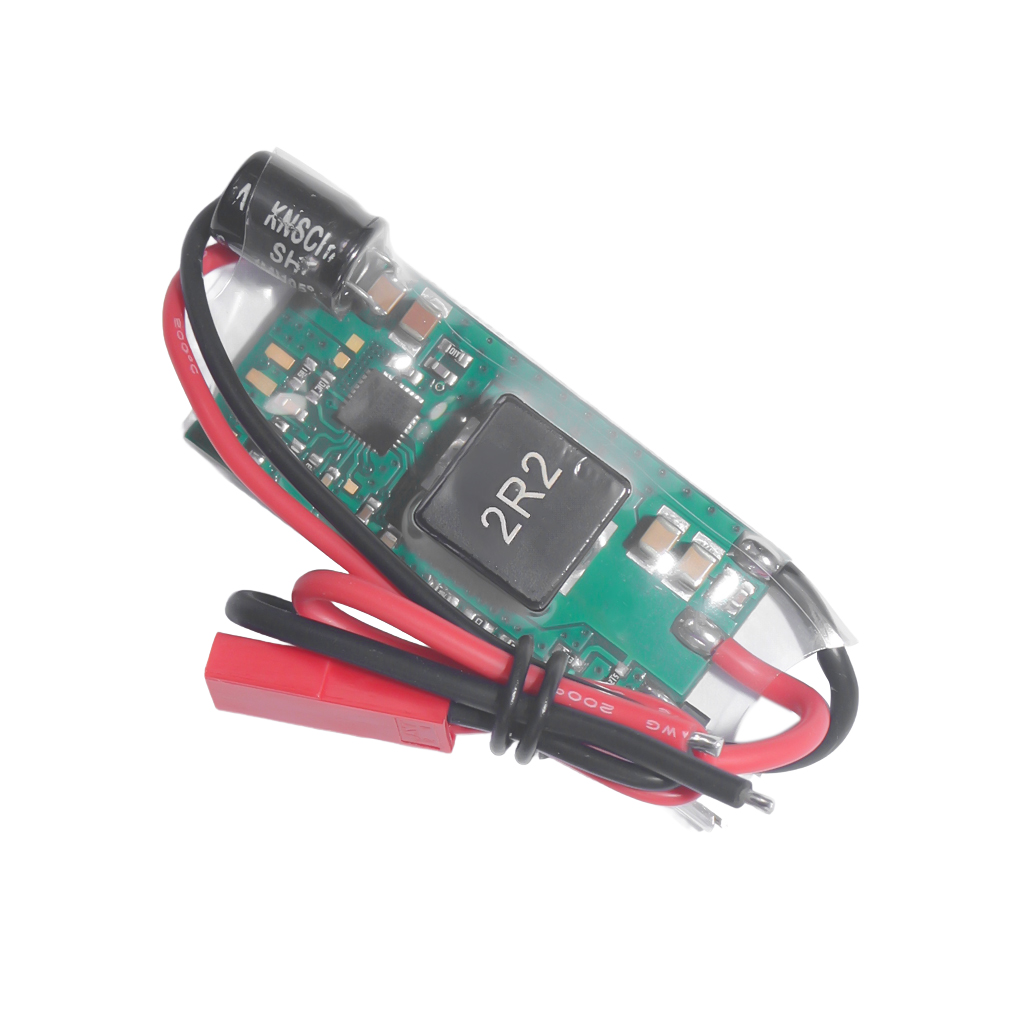

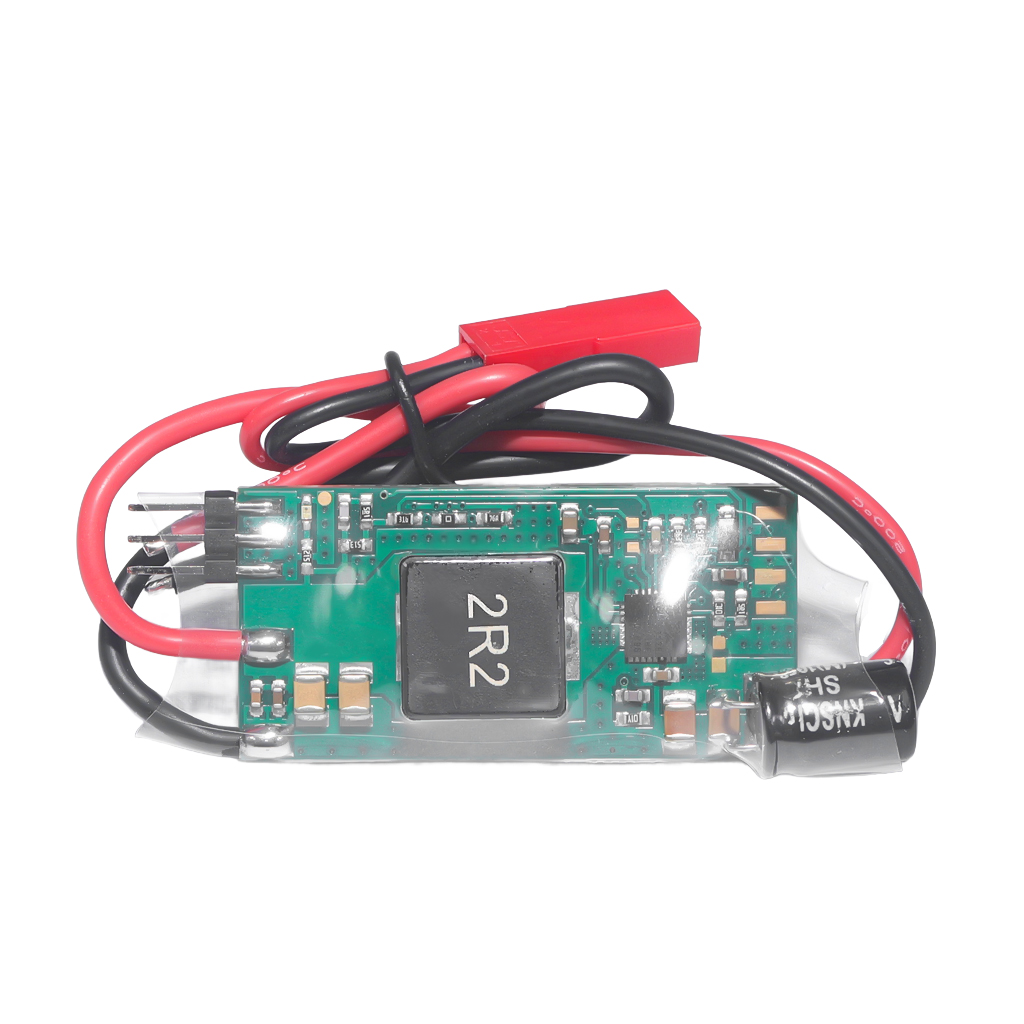

    HENGE 8A UBEC Output 5V / 6V 6A / 8A Max 12A Inport 7V-25.5V 2-6S Lipo / 6-16 cell Ni-Mh Input Switch Mode BEC for RC Helicopter

    Pls note that

    The 8A 5V conventional outputs are: 5.0V, 6.0V, and 7.4V switchable model BEC

    8A 12V output is a 12V output

    Product Specifications:

    1 Input voltage: 7V-25.5V(2-6S LIPO/ 6-16 cell Ni-Mh)
    2.Output voltage: 5V/6A or 6V/6A
    3.Current: 6A peak 8A (less than 15 seconds)
    4.Weight: 14g
    5. Size: 39 x 21 x 6mm (LxWxH)

    Features:
         Adopt the most advanced synchronous rectification switching power supply control chip design, with over-current and thermal protection, the chip at maximum efficiency as high as 93%
    The small size, light weight;
        Output current, continuous output current capacity of 6A peak output current capability of 8A, fully guaranteed equipment, demand for electricity;
        The output line to configure the filtering magnetic ring, greatly reduces the electromagnetic interference and ensure the receiver to work;
        Has a wide voltage range of 7V-25.5V can be within the normal work;
    Has a feature to prevent reverse input polarity, input power supply polarity mistake will not damage equipment;


       Has a working state indicator, when the output to normal when the indicator light.
    Package included:

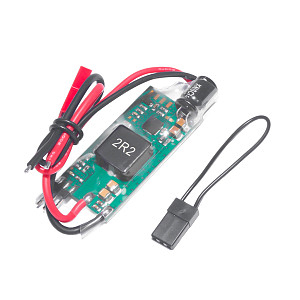

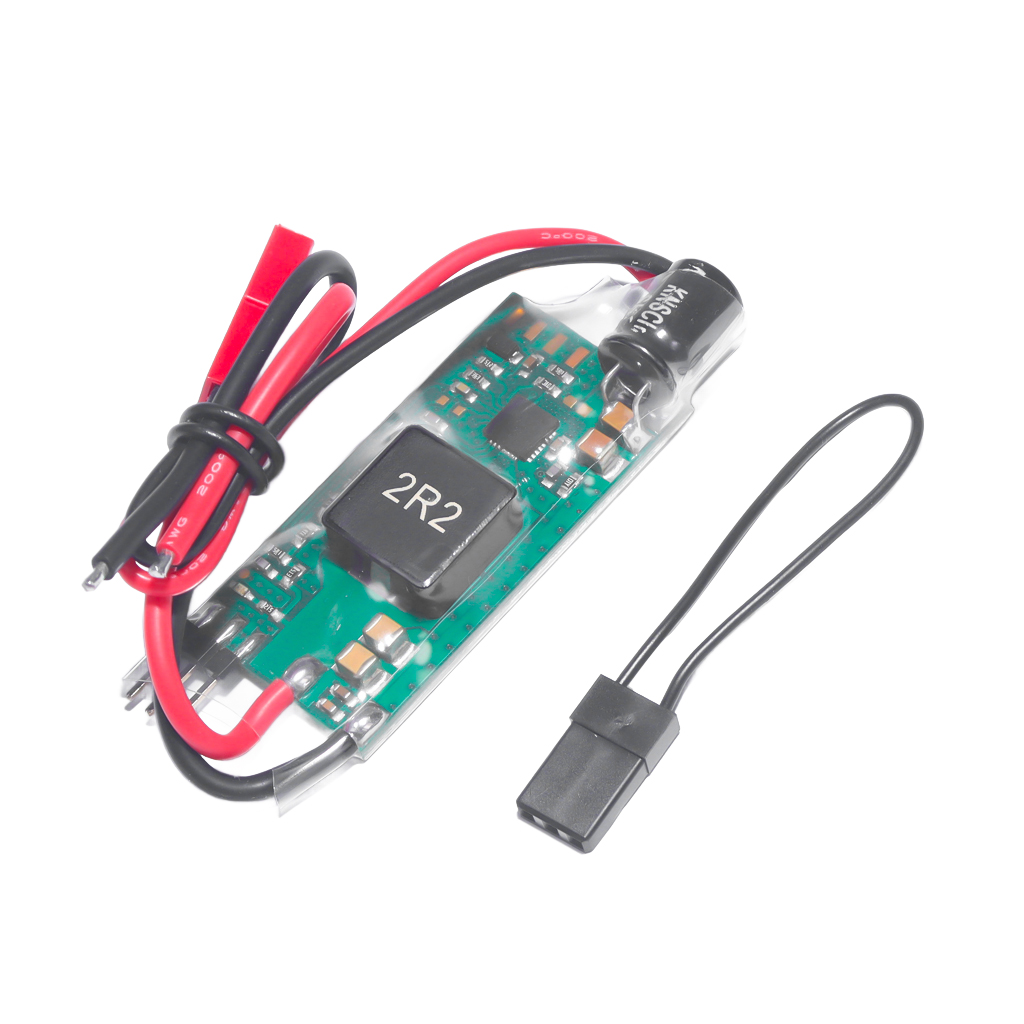

    1x HENGE 8A UBEC
