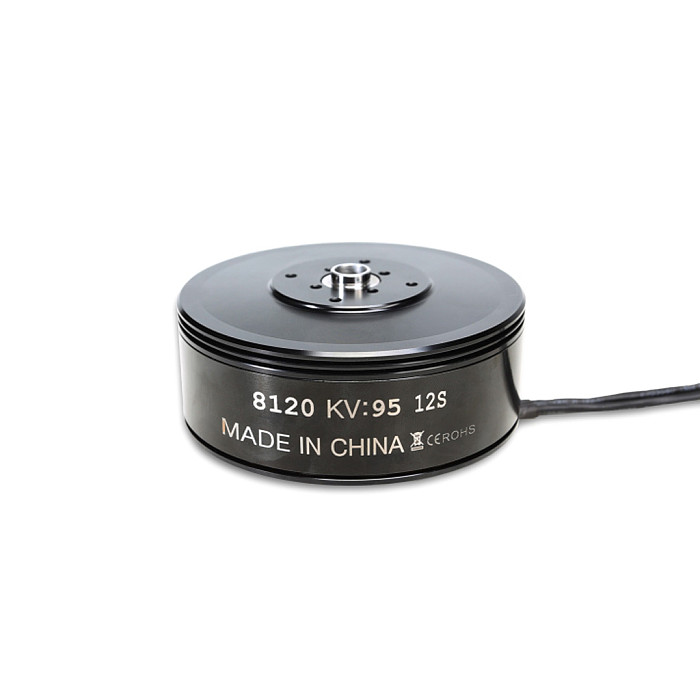

Tarot Martin Aluminum Alloy Brushless Motor 12S 8120 95KV TL81M20, Multi-Rotor High Efficiency Long Endurance Motor
-
Detail
- Product Name: Tarot Martin Aluminum Alloy Brushless Motor 12S 8120 95KV TL81M20, Multi-Rotor High Efficiency Long Endurance Motor
- Item NO.: F55736
- Weight: 0.682 kg = 1.5036 lb = 24.0568 oz
- Category: DIY RC Drone Accessories > Motor
- Brand: Tarot
- Creation Time: 2026-08-10
- Tarot Martin Aluminum Alloy Brushless Motor 12S 8120 95KV TL81M20, Multi-Rotor High Efficiency Long Endurance Motor
Tarot Martin Aluminum Alloy Brushless Motor 12S 8120 95KV TL81M20, Multi-Rotor High Efficiency Long Endurance Motor
Tarot Martin‑Series 8120/95KV Long‑Endurance Brushless Motor is engineered for long‑flight‑time multirotor aircraft. Fabricated via full CNC machining, it features a flat, seamless‑smooth housing and outstanding rotational balance. Its rotor is precision‑made from high‑strength NdFeB permanent‑magnet material. The stator is pressure‑sealed and reinforced with high‑toughness epoxy resin for high‑temperature resistance. This high‑flux outrunner motor receives dedicated dynamic balancing calibration to cut vibration troubles common to poorly‑balanced conventional outrunner motors. The motor shaft is made of high‑speed alloy steel.
Heavy‑duty high‑speed precision bearings are fitted on both top and bottom end‑caps, delivering low friction torque, minor power loss, shock resistance and sturdy radial support under instant high‑speed rotation.
The new‑generation 8120/95KV brushless motor has passed rigorous engineering‑performance tests covering static‑dynamic properties, magnetic‑field traits, high‑temperature demagnetization loss, operational vibration, noise and loaded‑state performance. It carries forward Tarot brushless motors’ premium strengths: long service life, high energy‑saving efficiency, low power consumption, quiet operation and dependable throttle response. Optimal performance can be achieved when matched with our motor mount (TL1813) and propeller (TL100D38).

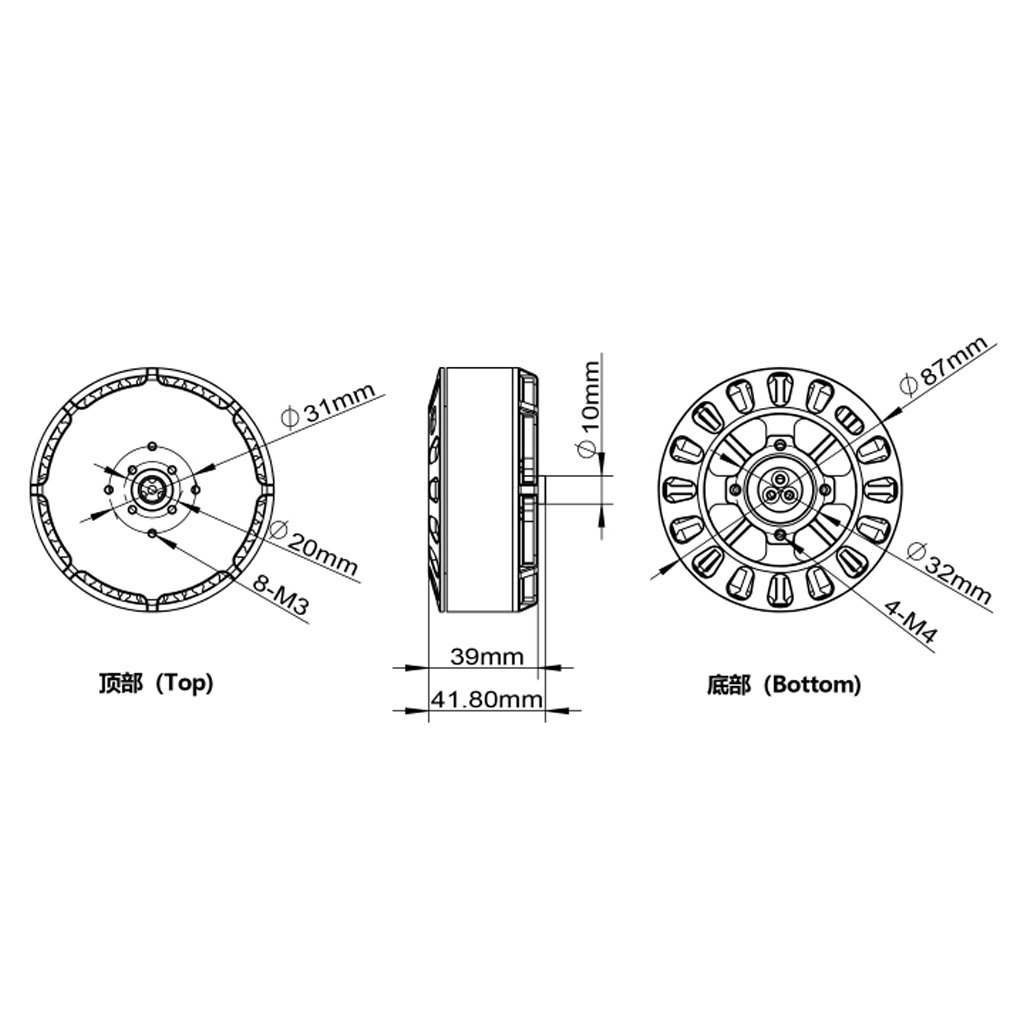

Product Specifications
- Supported lithium‑battery cells: 12S
- Propeller mounting bore options: 20 mm / 31 mm
- Recommended propeller size: 30‑inch
- Motor shaft diameter: φ10 mm
- Motor overall height: 39.0 mm
- Symmetric mounting‑hole spacing: 32 mm
- Motor outer casing diameter: 87.0 mm
- Stator outer diameter: 81.0 mm
- Stator stack thickness: 20.0 mm
- Stator winding slots: 36N
- Motor pole count: 40P
- No‑load speed @20 V: 2000±5% RPM
- No‑load current @20 V: ≤1.4 A
- Lead‑wire length & terminal: 70 mm bare wire
- Motor net weight: 520 g
- Martin 8120/95KV Brushless Motor ×1
- Button‑head Screws (M4*10 mm) ×4
