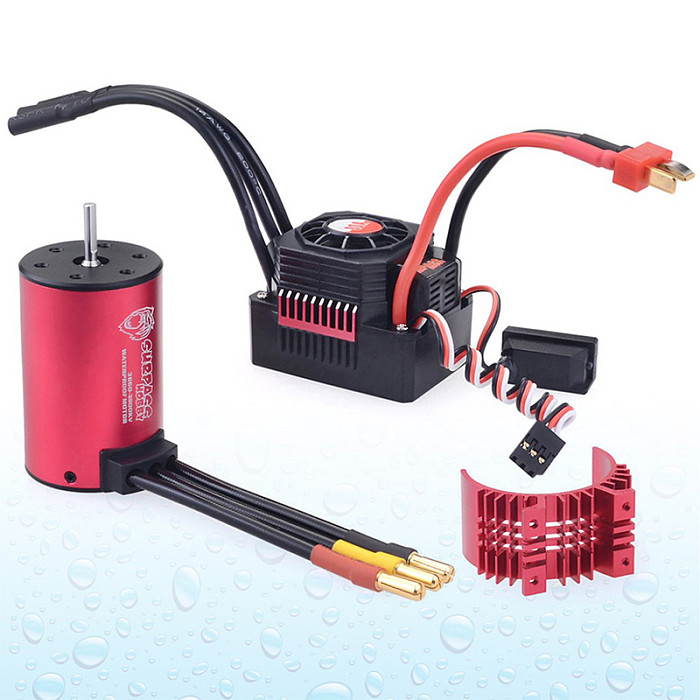

Surpass Hobby New Waterproof Combo 3660 5.0mm 1750KV 2200KV 2600KV 3100KV 3300KV 3500KV Brushless Motor w/Heat sink 80A ESC Combo Item NO.: F43797

Surpass Hobby New Waterproof Combo 3660 5.0mm 1750KV 2200KV 2600KV 3100KV 3300KV 3500KV Brushless Motor w/Heat sink 80A ESC Combo

Motor Features:
4 Pole 12 Slot Hi-torque Motor Design
High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings
Universal fit, for 1:10 2S RC car , 3S RC racing, off-road car
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator - Super Thin (0.35mm) Laminations

Motor Specifications:
Brand: SURPASSHOBBY
Series: KK
Name: 3660 RC Motor
KV(RPM/Volt): 1750KV 2200KV 2600KV 3100KV 3300KV 3500KV 4200KV Optional
Watt:1200
Max RPM: 50000
Max voltage: <12V
Max amps: 100A
Rotor poles: 4
Diameter: 35.5mm
Length: 59mm
Shaft length: 17mm
Connector: 4.0mm gold
Weight:218g

ESC DECLARATION:
This is Electronic Speed Controller (ESC) for car. High power system for RC model is very dangerous, so please read this manual carefully.
Since we can't control over the correct use, installation, application, or maintenance of our products, we'veno liability shall be assumed nor accepted for any damages,
losses or costs resulting from the use of the product. Any claimsarising from the operating, failure of malfunctioning etc. will be denied.
We assume no liability for personal injury,consequential damages resulting from our product or our workmanship.

ESC Specification:
Brand: SURPASSHOBBY
Name: KK 80A ESC
Cont.Current/Burst Current: 80A/480A
Motor Type: Sensorless Brushless Motor

for 2S Lipo or 6 cells NiMH :
1. on-road: 3670-Size or smaller motor with the KV<3000KV
2. off-road/Buggy/Monster: 3670-size or smaller motor with the KV <3000KV

for 3S Lipo or 9 cells NiMH :
1. on-road: 3660-Size or smaller motor with the KV<3000KV
2. off-road/Buggy/Monster: 3660-size or smaller motor with the KV <2500KV

Resistance: 0.0005ohm
Battery: 2-3S Lipo/4-9Cells NiMH
BEC Output: 6.1V/3A (Switch mode)
Dimensions/Weight: 51.5x68.5x38.5mm/84g

Package Included:
1 x SURPASSHOBBY KK 3660 Brushless Motor
1 x SURPASSHOBBY Waterproof 80A ESC
1 x English Manual
