Surpass Hobby Waterproof Brushless Motor 3650 3660 3665 3670 3674 RC Car Motor for 1/8 1/10 2S 3S RC Car Drift Racing Off-Road

US$ 15.64

Version

Estimate Shipping Cost

Detail
- Product Name: Surpass Hobby Waterproof Brushless Motor 3650 3660 3665 3670 3674 RC Car Motor for 1/8 1/10 2S 3S RC Car Drift Racing Off-Road
- Item NO.: F43752 F43753 F43754-F43773 F43774 F43775
- Weight: 0.27 kg = 0.5952 lb = 9.5240 oz
- Category: FOR SALE
- Brand: Surpass Hobby
- Creation Time: 2021-05-08
Surpass Hobby Waterproof Brushless Motor 3650 3660 3665 3670 3674 RC Car Motor for 1/8 1/10 2S 3S RC Car Drift Racing Off-Road

Features:
4 Pole 12 Slot Hi-torque Motor Design
High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings
Universal fit, for 1:10 2S RC car , 3S RC racing car
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator - Super Thin (0.35mm) Laminations

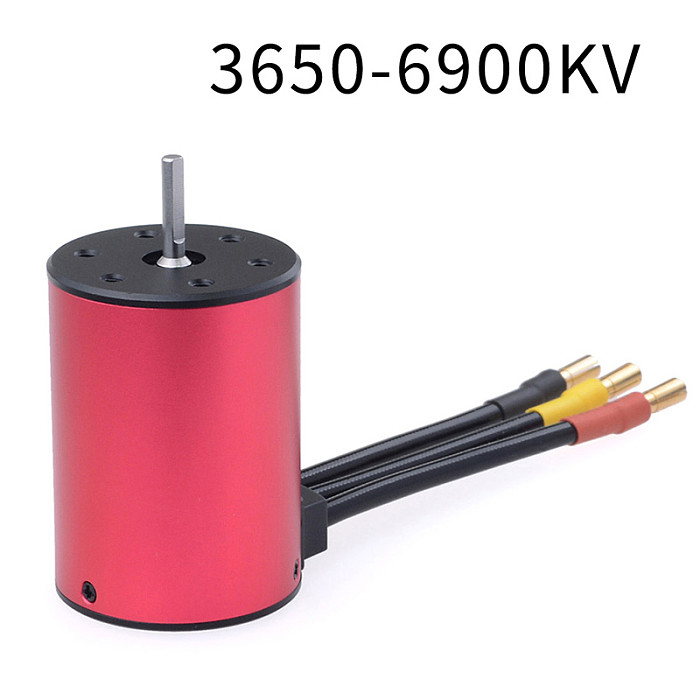

3650 RC Motor
KV(RPM/Volt): 2300KV 3100KV 3600KV 4500KV 5200KV 5900KV 6900KV 7700KVOptional
Watt: 850
Max RPM: 60000
Max voltage: <8.4V
Max amps: 100A
Rotor poles: 4
Diameter: 35.5mm
Length: 49mm
Shaft length: 15mm
Connector: 4.0mm gold
Weight:165g

3660 RC Motor
KV(RPM/Volt): 2200KV 2600KV 3100KV 3500KV 4200KV Optional
Watt:1200
Max RPM: 50000
Max voltage: <12V
Max amps: 100A
Rotor poles: 4
Diameter: 35.5mm
Length: 59mm
Shaft length: 17mm
Connector: 4.0mm gold
Weight:218g

3665 RC Motor
KV(RPM/Volt): 1800KV 2300KV 2900KV 3100KV 3500KV Optional
Watt:1400
Max RPM: 50000
Max voltage: <14.8V
Max amps: 95A
Rotor poles: 4
Diameter: 35.5mm
Length: 64.5mm
Shaft length: 17mm
Connector: 4.0mm gold
Weight:250g

3670 RC Motor
KV(RPM/Volt): 1350KV 1700KV 2050KV 2650KV Optional
Watt:1600
Max RPM: 50000
Max voltage: <16.5V
Max amps: 95A
Rotor poles: 4
Diameter: 35.5mm
Length: 69mm
Shaft: 5.0mm
Shaft length: 17mm
Connector: 4.0mm gold
Weight:276g

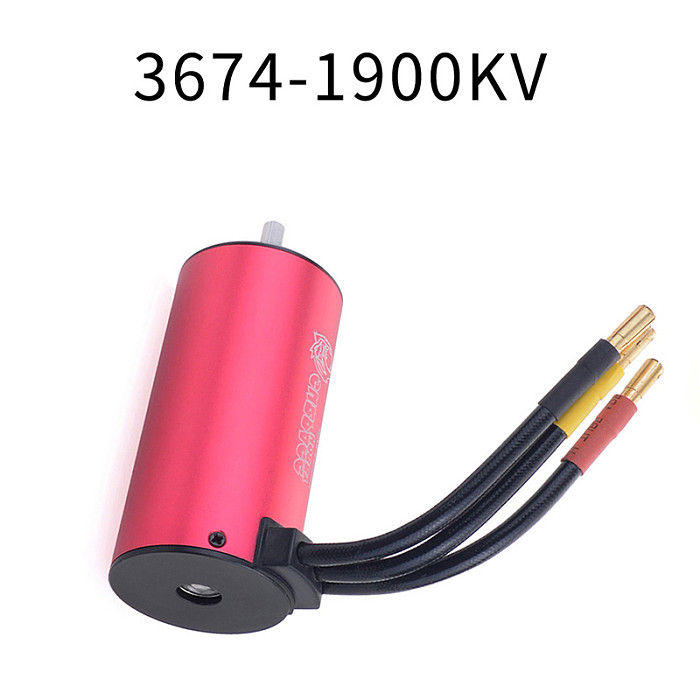

3674 RC Motor
KV(RPM/Volt): 1900KV 2250KV 2500KV Optional
Watt:1800
Max RPM: 50000
Max voltage: <22.2V
Max amps: 80A
Rotor poles: 4
Diameter: 35.5mm
Length: 73mm
Shaft: 5.0mm
Shaft length: 17mm
Connector: 4.0mm gold
Weight:298g

Package Information:
Package size:110 x 70 x 42mm/4.33 x 2.76 x 1.65in
Package weight:300g/7.12oz
General Box Package

Package Included:
1 x SURPASSHOBBY KK Brushless Motor
1 x English Manual
