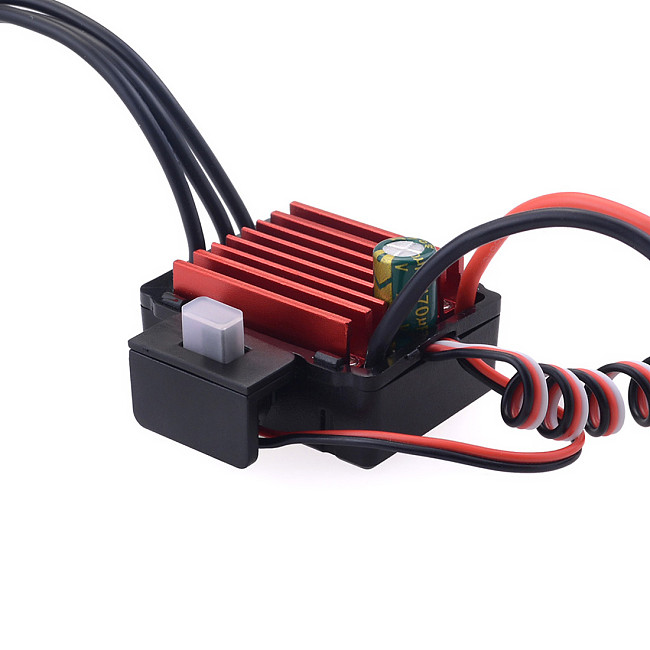

Surpass Hobby KK Waterproof 35A Brushless ESC 2-3S Electric Speed Controller for RC 1/16 1/14 RC Car 2838 2845 Brushless Motor
Declaration:
This is Electronic Speed Controller (ESC) for car. High power system for RC model is very dangerous, so please read this manual carefully.
Since we can't control over the correct use, installation, application, or maintenance of our products, we'veno liability shall be assumed nor accepted for any damages,
losses or costs resulting from the use of the product. Any claimsarising from the operating, failure of malfunctioning etc. will be denied.
We assume no liability for personal injury,consequential damages resulting from our product or our workmanship.
Features:
1. Water- proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water;Clean and dry it soon after the use for avoiding the connectors get rusty.)
2. Specially designed for RC car with excellent start-up, acceleration and linearity features.
3. Compatible with sensorless brushless motor.
4. The strong resistant current capability, excellent heat dissipation.
5. Multiple protection features: Low voltage cut-off protection for litium or nickel battery /Over-heat protectionThrote signal loss protection / Motor blocked protection/
6. Easily programmed and compatible with pocket-sized program card.
Specification:
Brand: SURPASSHOBBY
Name: KK 35A ESC
Cont.Current/Burst Current: 35A/120A
Motor Type: Sensorless Brushless Motor
For 2S Lipo or 6 cells NiMH :
1. on-road: 28XX-Size or smaller motor with the KV<6000KV
2. off-road/Buggy/Monster: 28XX-size or smaller motor with the KV <4000KV
For 3S Lipo or 9 cells NiMH :
1. on-road: 28XX-Size or smaller motor with the KV<4000KV
2. off-road/Buggy/Monster: 28XX-size or smaller motor with the KV <3000KV
Suitable Car: 1/16 1/14 Car
Resistance: 0.0004ohm
Battery: 2-3S Lipo/4-9Cells NiMH
BEC Output: 5.0V/2A(analog mode)
Dimensions/Weight: 40x32x20mm/37g
Package included:
1 * SURPASSHOBBY Waterproof 35A ESC
