Hobbywing EzRun Max8 v3 T / TRX Plug Waterproof Brushless ESC + 4274 2200KV Motor +LED Programing for 1/8 RC Car Truck

Hobbywing EzRun Max8 v3 T / TRX Plug Waterproof Brushless ESC + 4274 2200KV Motor +LED Programing for 1/8 RC Car Truck

US$ 187.31
type
COMBO-MAX8-T PLUG COMBO-MAX8-TRX PLUG
Customized Requirements
Add to Cart
Estimate Shipping Cost
  • Detail
    • Product Name: Hobbywing EzRun Max8 v3 T / TRX Plug Waterproof Brushless ESC + 4274 2200KV Motor +LED Programing for 1/8 RC Car Truck
    • Item NO.: F19289- F19290
    • Weight: 1.18 kg = 2.6015 lb = 41.6233 oz
    • Category: DIY RC Drone Accessories > ESC
    • Brand: Hobbywing
    • Creation Time: 2017-07-25
    • Hobbywing EzRun Max8 v3 T / TRX Plug Waterproof Brushless ESC + 4274 2200KV Motor +LED Programing for 1/8 RC Car Truck



    Hobbywing EzRun Max8 v3 T / TRX Plug Waterproof Brushless ESC + 4274 2200KV Motor +LED Programing for 1/8 RC Car Truck




    Package include :

    Hobbywing EzRun Max8 v3 T / TRX Plug Waterproof Brushless ESC *1

    Hobbywing EzRun   SL 4274 2200KV Sensorless Brushless  Motor * 1

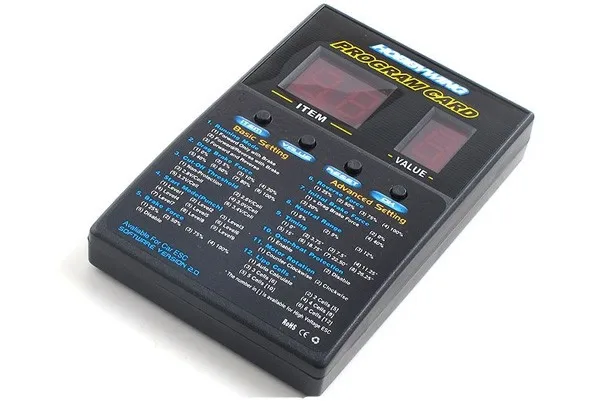

    Hobbywing  LED Programing *1


    aeProduct.getSubject()


    ESC  Specification :


    Model :  EZRUN-MAX8-V3

    Continuous / peak current : 150A / 950A

    Support motor type : sensorless brushless motor,
    Applicable models : 1/8 RC Car / truck / SUV

    Applicable motor KV :  When 4S lithium or NiMH Section 12: 4274 motor, KV ≤3000;
    When using 6S lithium or NiMH Section 18: 4274 motor, KV ≤2400;

    The number of cells  : 9-18 Cells NiMH, 3-6S Lipo

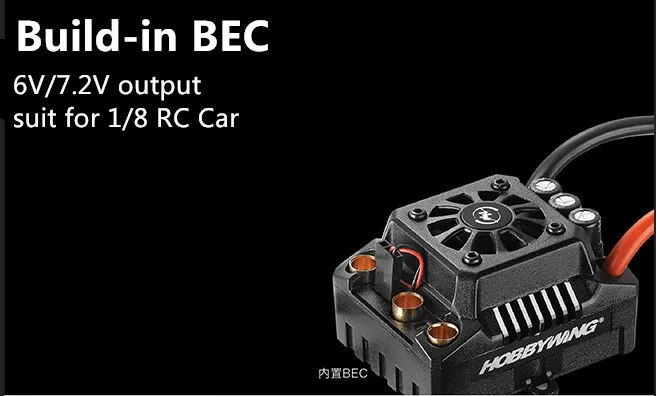

    BEC output : 6V / 7.2V adjustable, continuous current 6A (switching power mode)

    Dimensions :  59.8 (L) x 48 (width) x 36.8 (high)

    Weight :174 g

    Fans take power acquired from the built-in BEC of 6V or 7.2V stable

    Parameter setting interface and the interface to the common fan


    Features :

    1. Multiple real-time overload

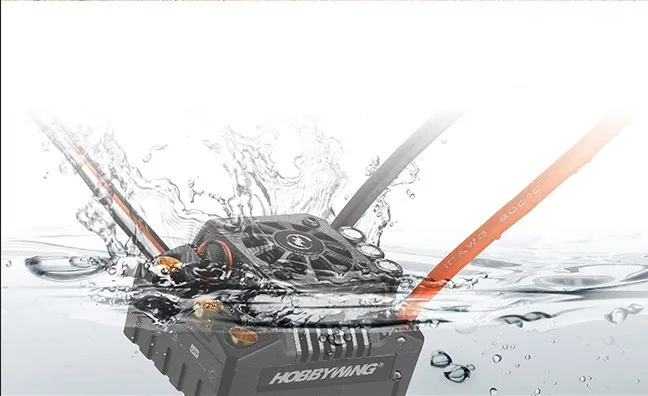

    2. Waterproof ,suit for any situation weather .
    3.Built in BEC for 1/8 th Car  ,Max Output Current  15A ,Max output  Voltage 6V/7.2V   ,easy driving and  high voltage and power steering servos
    4.exceed eletronic switch 5000 times .

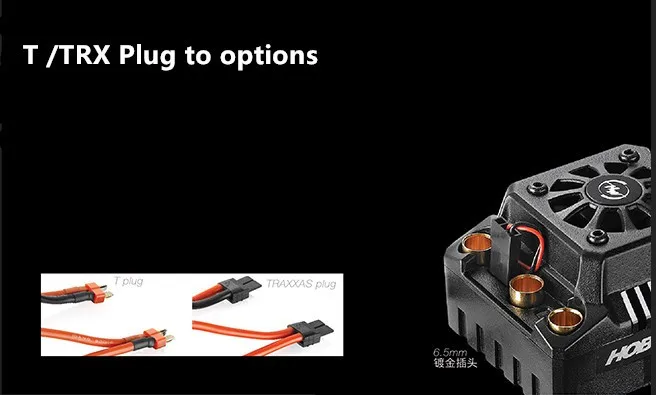

    5. Compatibility TRAXXAS and HPI etc 1/8 th monster truck  Motor Plug
    6. For TRAXXAS E-Revo E-MAXX HPI SAVAGE THUNDER TIGHER E-MTA 1/8th truck.



    aeProduct.getSubject()

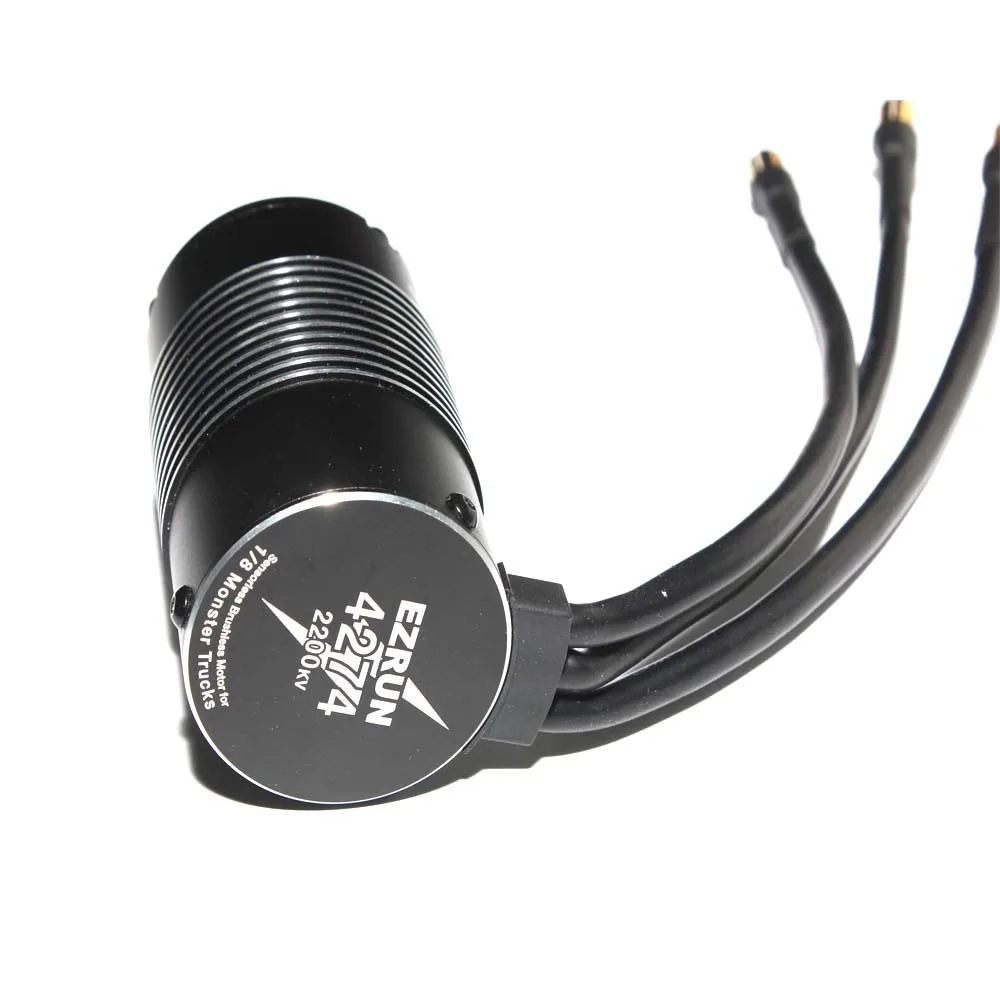

    Motor Specifictions:


    Model : EZRUN-4274SL -2200

    KV :2200KV

    Resistance (Ω): 0.0058

    No-load current (A): 5A

    Maximum output power (W):  3000W

    The maximum output power point current (A) : 120A

    The outer diameter and length (mm):  Φ = 42
      L = 74

    Exposed shaft diameter and shaft length (mm) : Φ = 5
      L = 18.5

    Support Lipo :  2-6S

    Weight :418g

    Uses : 1/8 Monster Truck / RC Car
