Surpass Hobby KK Waterproof 25A Brushless ESC 2S Electric Speed Controller with LED Programing Card for RC 1/16 1/18 1/20 RC Car 2030 2040 2430 2435 2440 2445 Motor

Name: Surpass Hobby KK Waterproof 25A Brushless ESC 2S Electric Speed Controller with LED Programing Card for RC 1/16 1/18 1/20 RC Car 2030 2040 2430 2435 2440 2445 Motor
Brand: Surpass Hobby
SKU: F32299-A
Price: 19.29 USD
Availability: InStock

US$ 19.29

Add to Cart

Estimate Shipping Cost

Detail
- Product Name: Surpass Hobby KK Waterproof 25A Brushless ESC 2S Electric Speed Controller with LED Programing Card for RC 1/16 1/18 1/20 RC Car 2030 2040 2430 2435 2440 2445 Motor
- Item NO.: F32299-A
- Weight: 0.07 kg = 0.1543 lb = 2.4692 oz
- Category: DIY RC Drone Accessories > ESC
- Brand: Surpass Hobby
- Creation Time: 2019-10-14

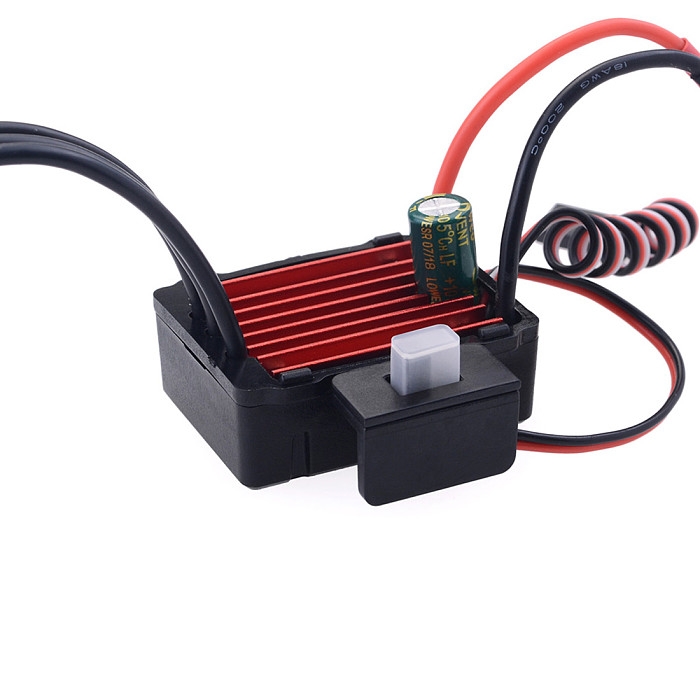

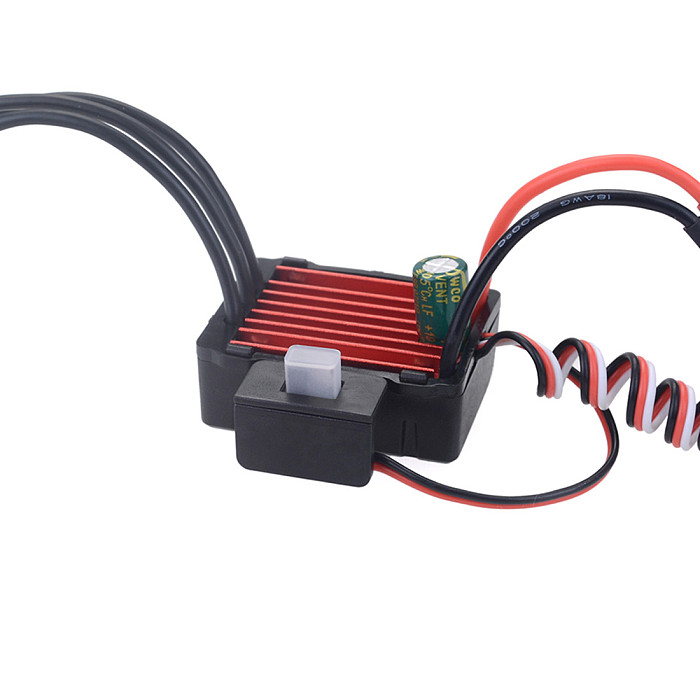

Surpass Hobby KK Waterproof 25A Brushless ESC 2S Electric Speed Controller with LED Programing Card for RC 1/16 1/18 1/20 RC Car 2030 2040 2430 2435 2440 2445 Motor

Declaration:

This is Electronic Speed Controller (ESC) for car. High power system for RC model is very dangerous, so please read this manual carefully.

Since we can't control over the correct use, installation, application, or maintenance of our products, we'veno liability shall be assumed nor accepted for any damages,

losses or costs resulting from the use of the product. Any claimsarising from the operating, failure of malfunctioning etc. will be denied.

We assume no liability for personal injury,consequential damages resulting from our product or our workmanship.

Features:

1. Water- proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water;Clean and dry it soon after the use for avoiding the connectors get rusty.)

2. Specially designed for RC car with excellent start-up, acceleration and linearity features.

3. Compatible with sensorless brushless motor.

4. The strong resistant current capability, excellent heat dissipation.

5. Multiple protection features: Low voltage cut-off protection for litium or nickel battery /Over-heat protectionThrote signal loss protection / Motor blocked protection/

6. Easily programmed and compatible with pocket-sized program card.

Specification:

Brand: SURPASSHOBBY

Name: KK 25A ESC

Cont.Current/Burst Current: 25A/100A

Motor Type: Sensorless Brushless Motor

1. on-road: 24XX-Size or smaller motor with the KV<7200KV

2. off-road/Buggy/Monster: 24XX-size or smaller motor with the KV <4800KV

Suitable Car: 1/20 1/18 1/16 Car

Resistance: 0.0014ohm

Battery: 2S Lipo/4-6Cells NiMH

BEC Output: 5.0V/2A(analog mode)

Dimensions/Weight: 40x32x15mm/33g

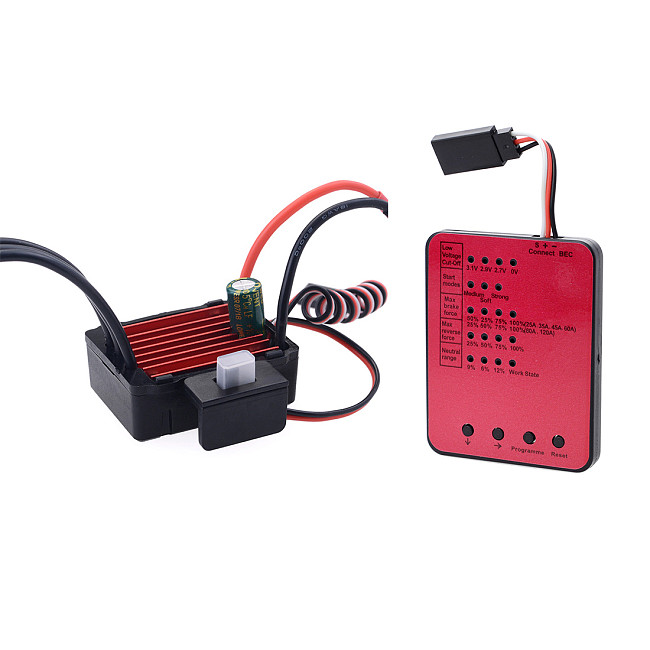

Package Included:

1 * SURPASSHOBBY Waterproof 25A ESC
1 * LED Programing Card (Red)

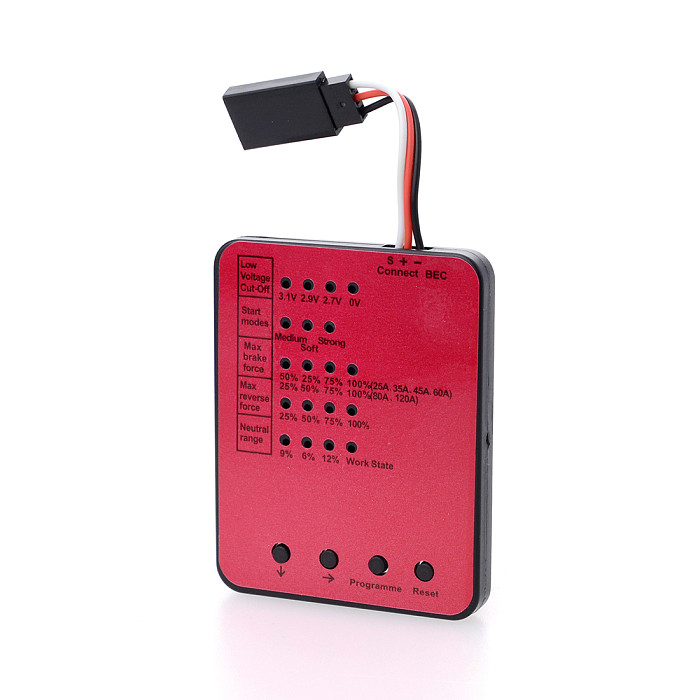

LED Programing Card

Specifications:
Brand: SURPASS HOBBY
Low voltage cut off: 3.1V/Cell 2.8V/Cell 3.3V/Cell No cut-off
Start mode:Medium, soft, strong
Max brake force: 25%, 50%, 75%, 100%
Max reverse force: 25%, 50%, 75%, 100%
Neutral range: 6%, 9%, 12%, work state
