Storage Expansion Card PCIe4.0 Gen4x2 CFexpress Type-B Adapter Card for NVMe M.2 2230 key M SSD Extender For Canon R5 Z6Z7 XBOX

Brand: XT-XINTE

Product model: R94A

Product name: CFexpress type_B to M.2 NVMe 2230 key_M expansion card

Product length: 81x29.6x3.8mm

Bandwidth speed: PCIe4.0 gen4x2 (support CFexpressB specification full speed)

Product use: suitable for the extension of the CFexpress card slot to the M.2 NVME 2230 hard drive

Purchase restriction: only designated by professional engineers for purchase, general purpose is not suitable and cannot be used, ordinary buyers do not purchase.

Procurement Tips: Be sure to buy 1~2 samples first, and then buy them in bulk after testing and verifying that they are correct.

Friendly reminder: XBOX dedicated expansion card, currently only for Western Digital CH SN530 hard drive

Product advantages:

Material advantages: high-quality gold-plated connectors are used, high-frequency and low-resistance high-quality materials are used for the PCB, the PCB is made of precision, the PCB uses high TG plates, and the thickness of the copper material is thickened to 1oz; the gold-plated connectors have good conductivity and can reduce oxidation and rust Problems such as slow disconnection and slow speed jam caused by increased impedance.

Design advantages: Differential signal enhanced layout design, no CAF micro short circuit phenomenon, high-speed signal data transmission, no parasitic capacitance and parasitic inductance signal attenuation interference, power circuit enhanced wiring design, PCB board miniaturization design, can reduce mechanism interference, It is easy to install the product without the hardware card. The adapter board does not require a driver, the LED indicator design, and the custom-made copper pillars are convenient for fixing the M2 hard drive, which is stable and reliable.

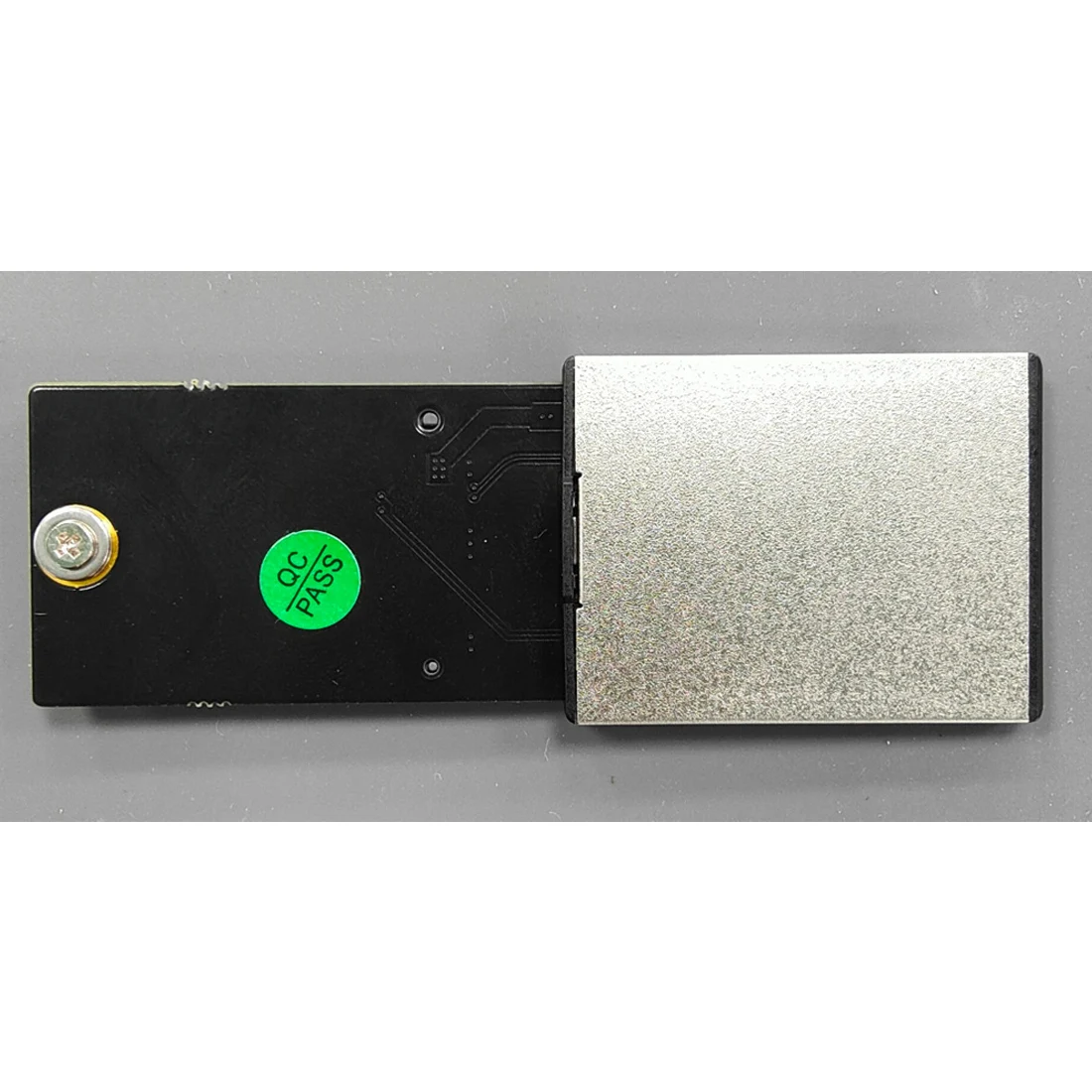

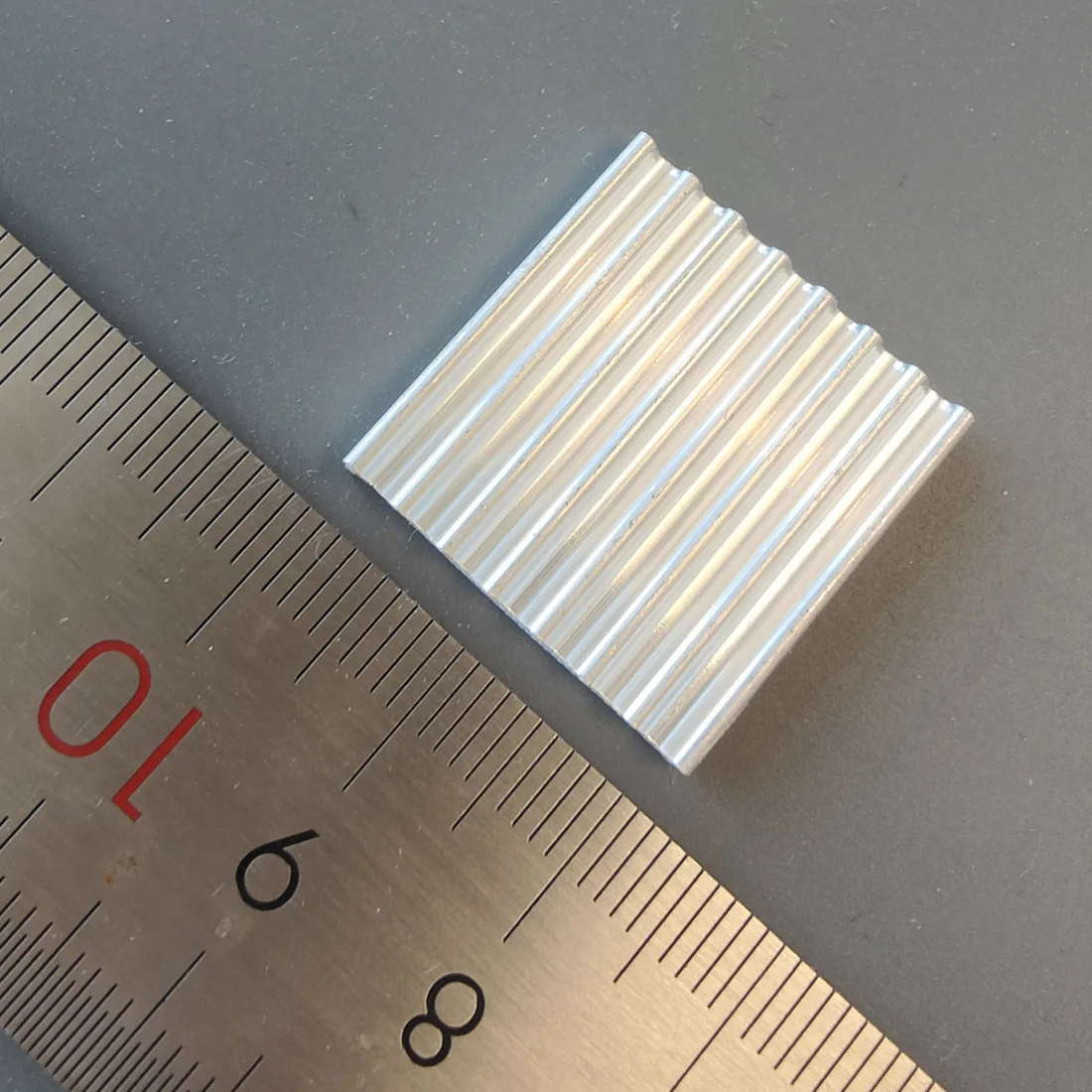

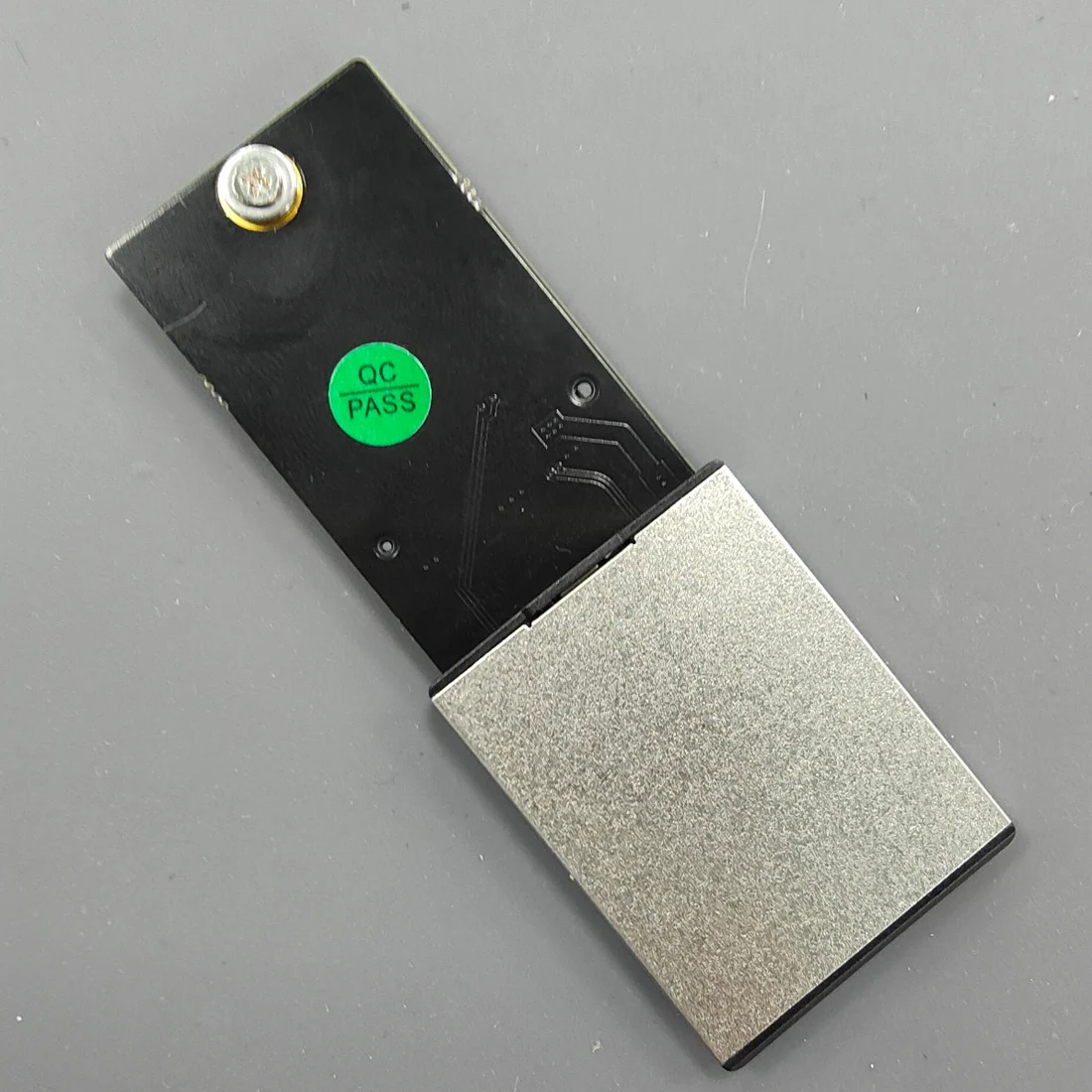

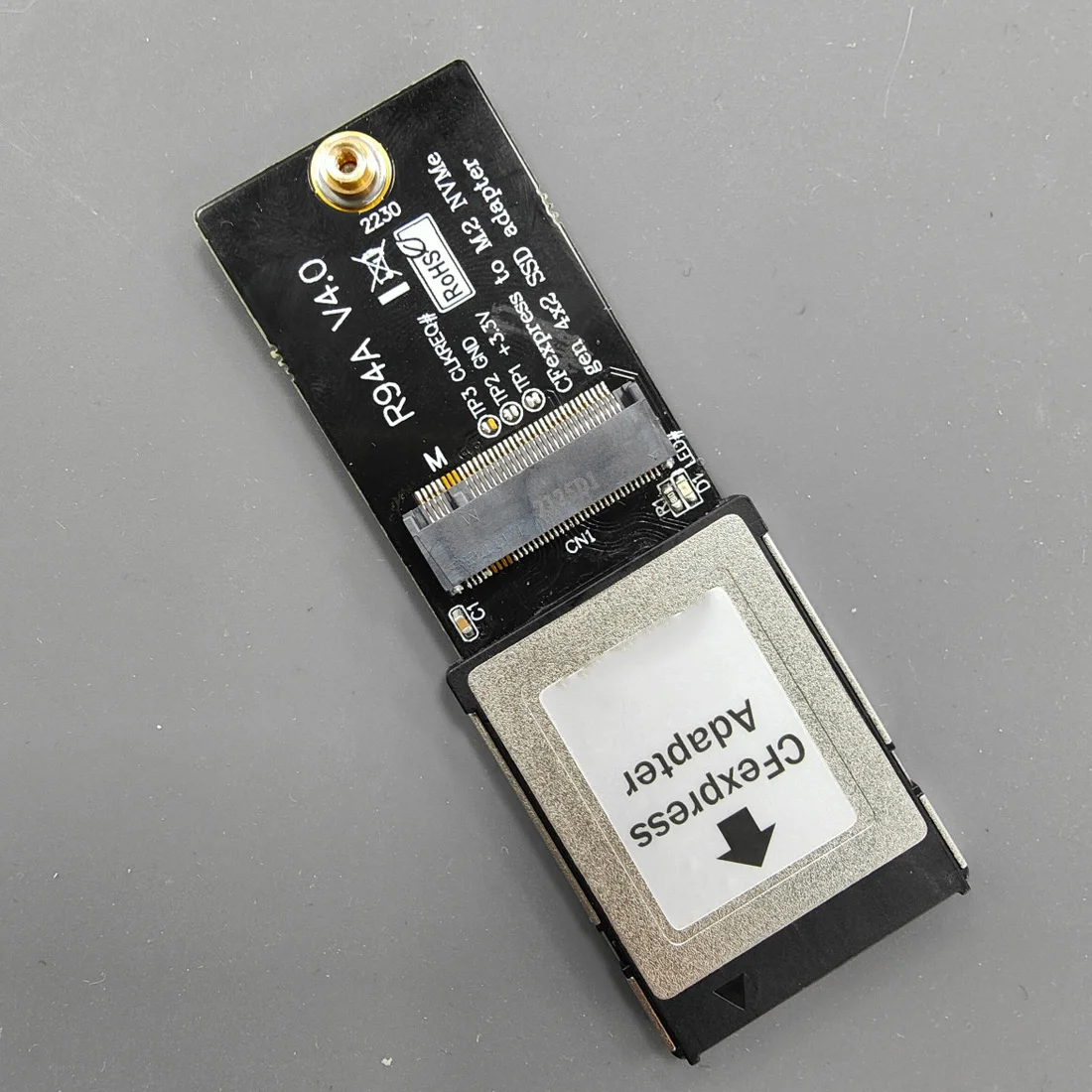

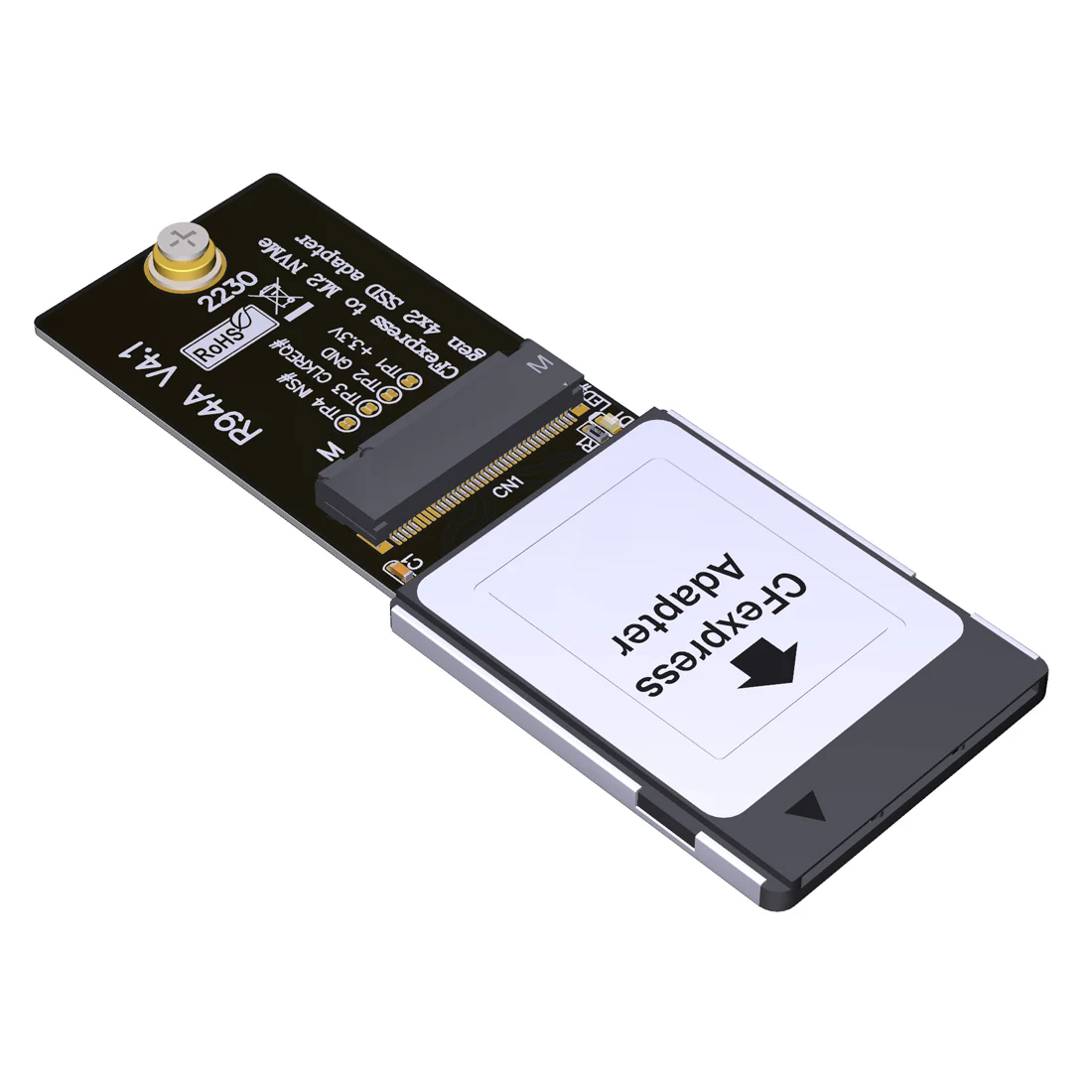

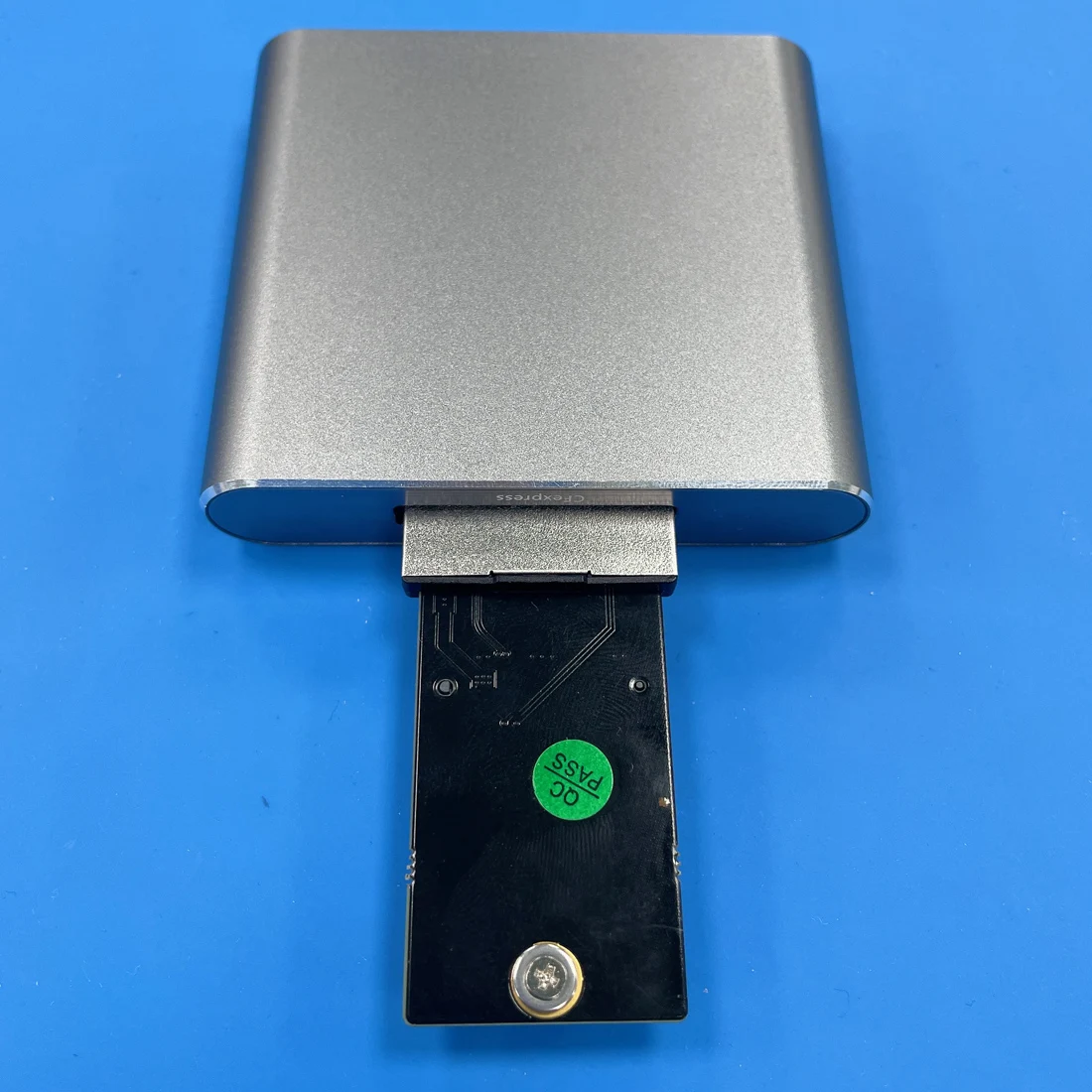

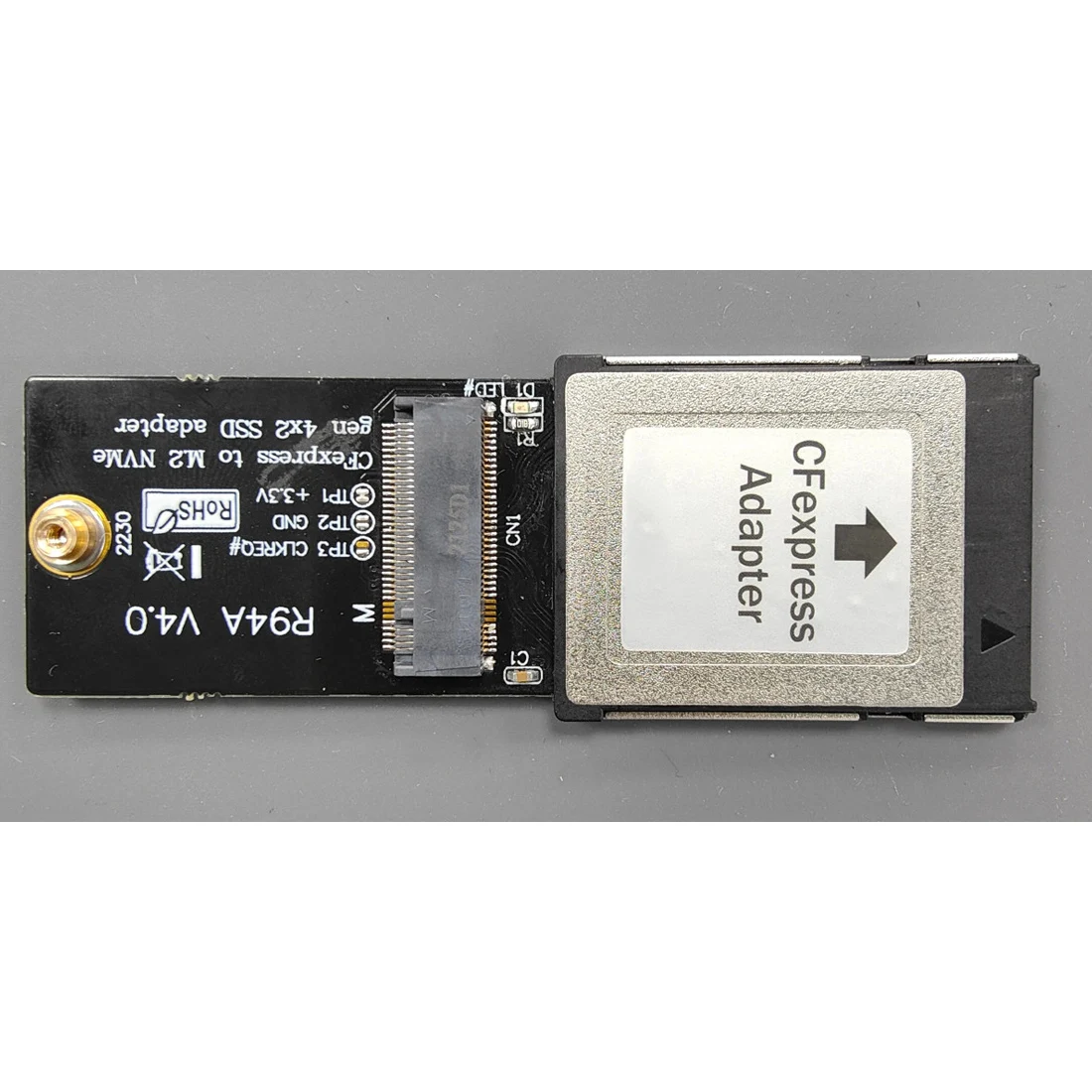

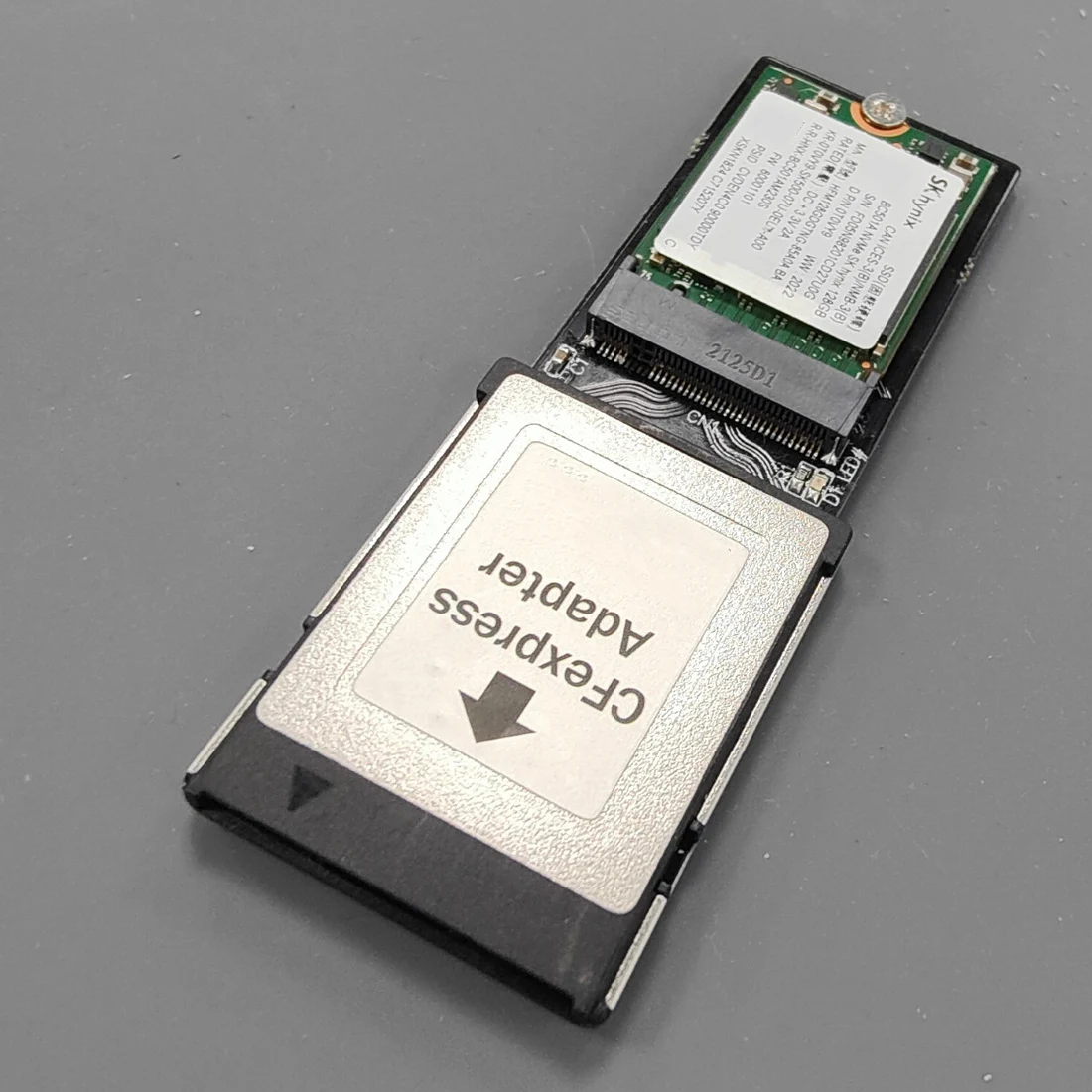

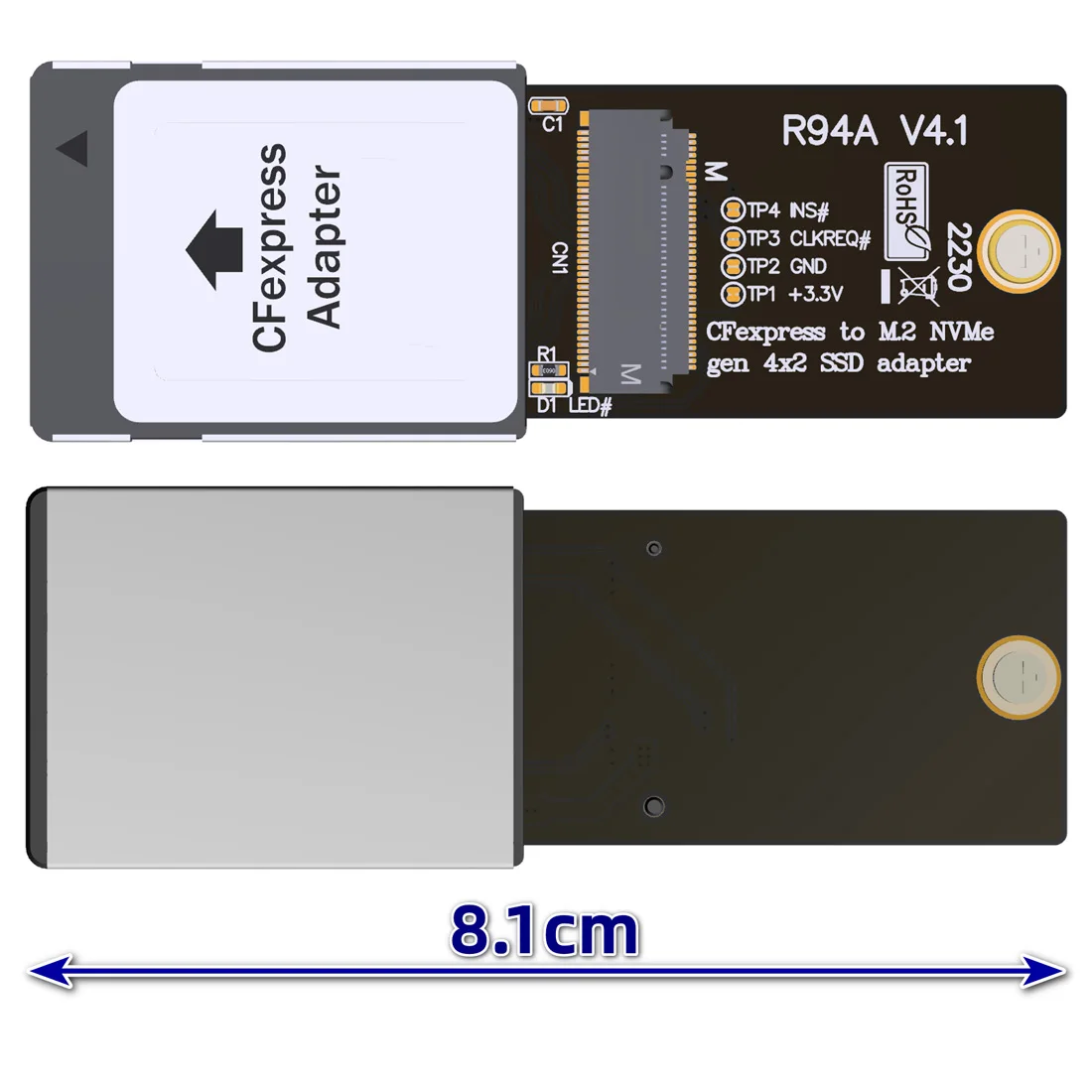

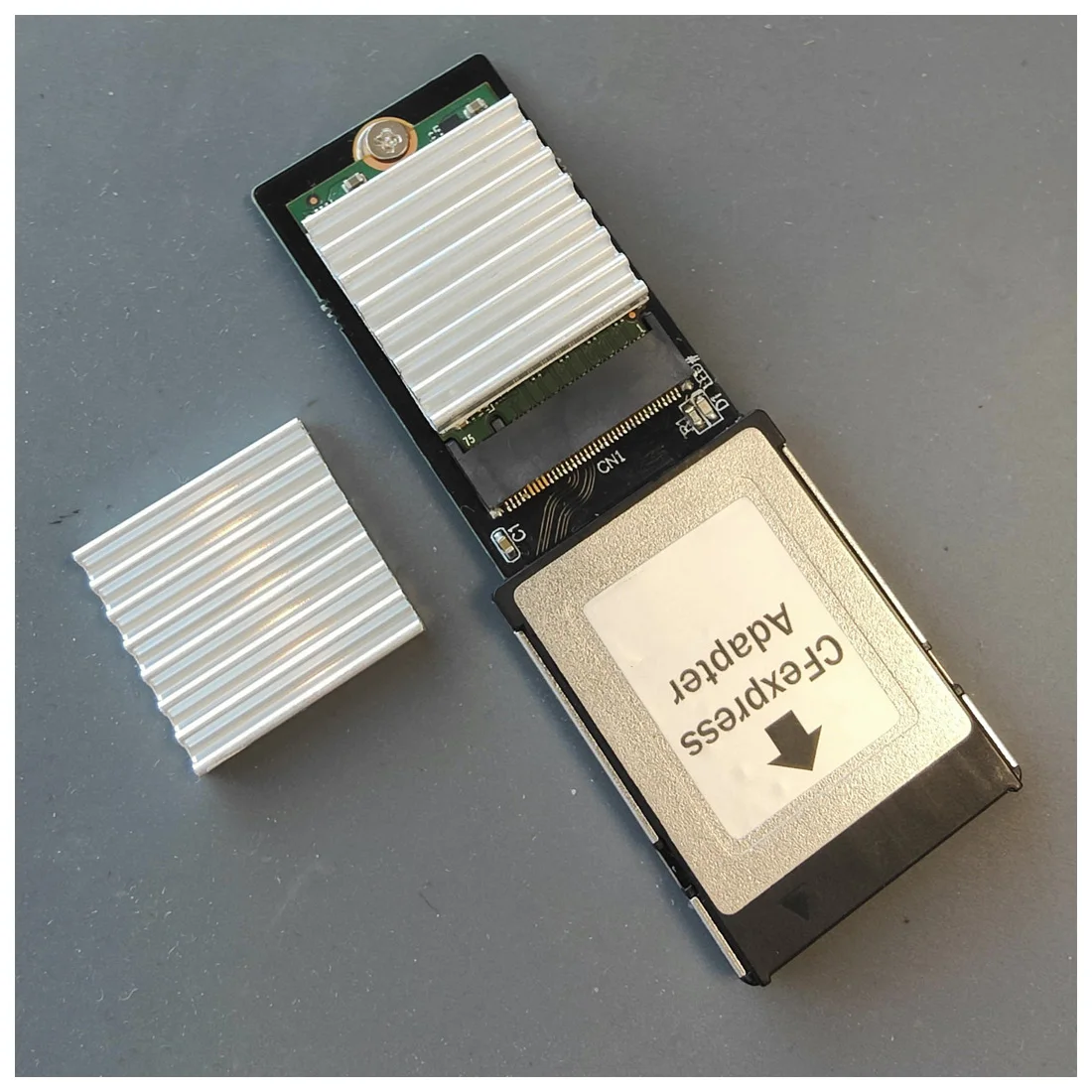

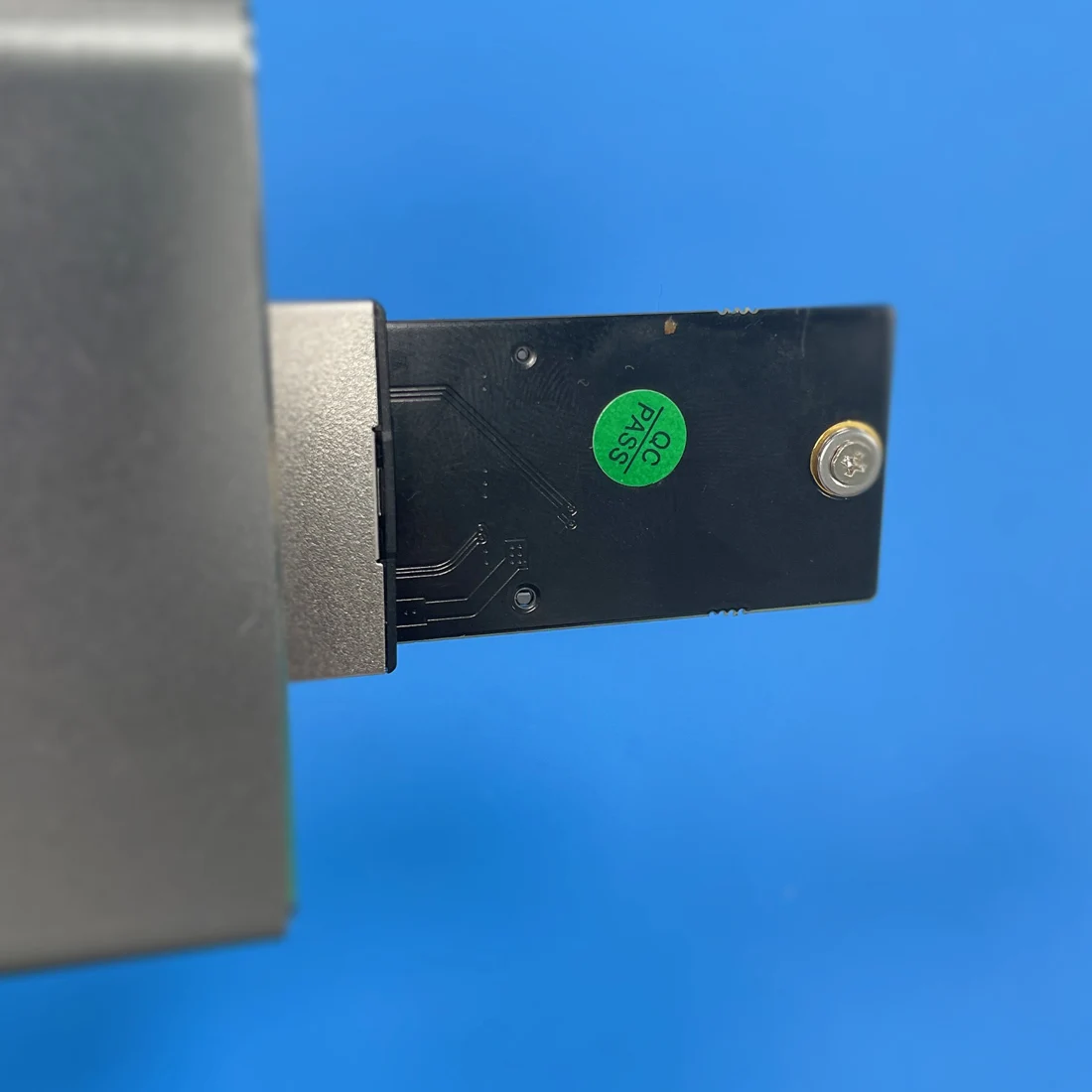

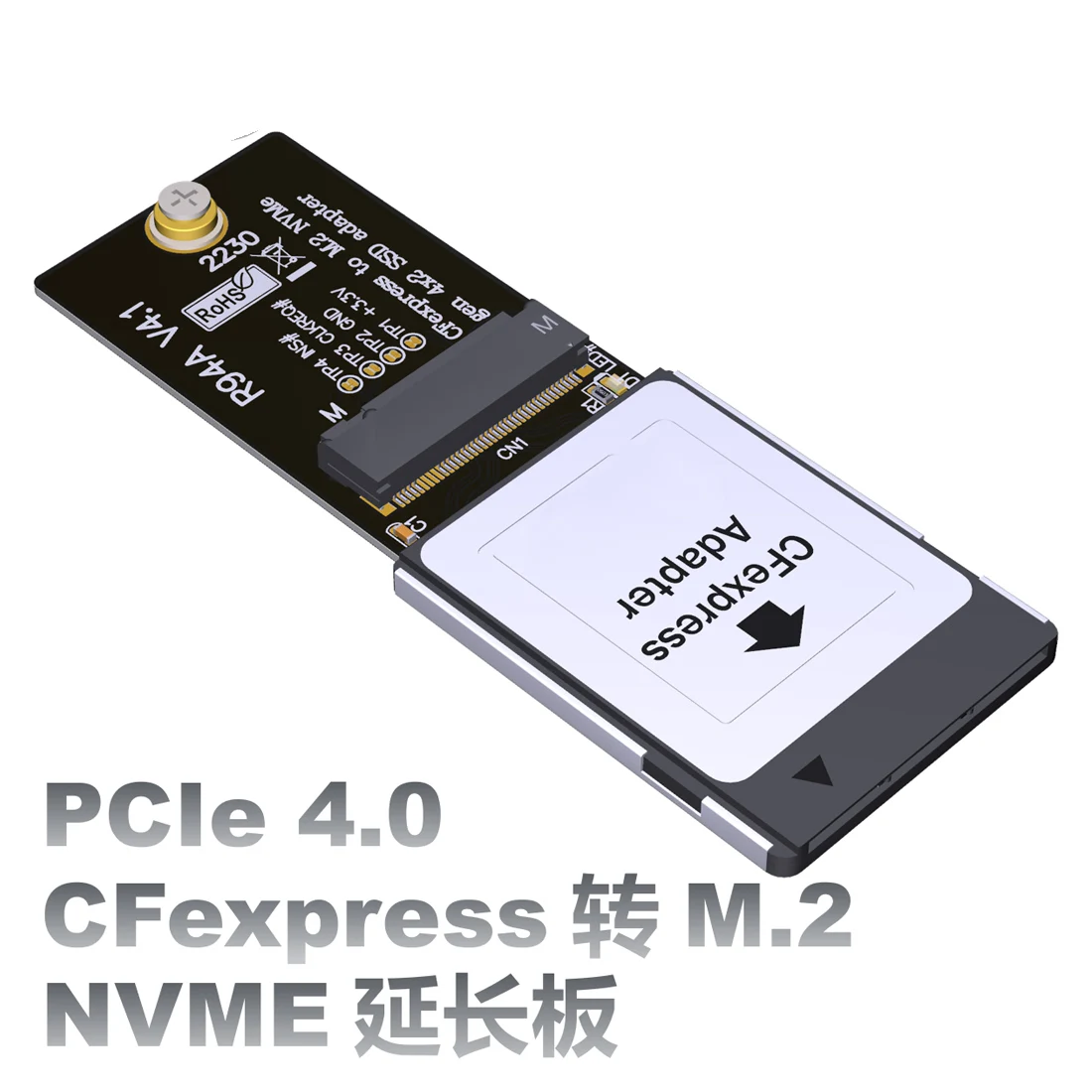

Product Image:
