Home>Computer Accessories>RP2350 Plus microcontroller development board Compatible with Raspberry Pi Pico2 RP2350-Plus RP2350A Upgraded Version

RP2350 Plus microcontroller development board Compatible with Raspberry Pi Pico2 RP2350-Plus RP2350A Upgraded Version Item NO.: F53850 F53851

US$ 5.75 ~ US$ 6.39

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 6.39	US$ 6.07	US$ 5.75

Version: RP2350-Plus RP2350-Plus-M

Quantity: Stock ( 19999998 )

Estimate Shipping Cost

RP2350 Plus microcontroller development board Compatible with Raspberry Pi Pico2 RP2350-Plus RP2350A Upgraded Version

Product Name	RP2350 Plus microcontroller development board Compatible with Raspberry Pi Pico2 RP2350-Plus RP2350A Upgraded Version
Item NO.	F53850 F53851
Weight	2025 kg = 4464.3608 lb = 71429.7729 oz
Volume	1 CBM
Category	Computer Accessories
Brand	XT-XINTE
Creation Time	2025-02-09

RP2350 Plus microcontroller development board Compatible with Raspberry Pi Pico2 RP2350-Plus RP2350A Upgraded Version

RP2350-Plus No pins

RP2350-Plus-M Welded the pins

Features:

1. This upgraded version of RP2350 microcontroller is compatible with the vast majority of Pico modules based on RP2350A.

2. Equipped with dual core ARM Cortex-M33 processor and dual core Hazard 3 RISC-V processor, running at a frequency of up to 150 MHz.

3.26 multifunctional GPIO pins, supporting pin configuration functions, allowing for convenient and flexible development and integration.

4. Compact in size, 51mm * 21mm, easy to integrate.

5. Based on the RP2350 mini development board, it is an enhanced version of Pi Pico 2, which enhances or adds additional features on the basis of compatibility with the vast majority of Pi Pico 2 modules.

Parameter:

Adopting RP2350A microcontroller chip

Unique dual core and dual architecture, equipped with dual core ARM Cortex-M33 processor and dual core Hazard 3 RISC-V processor, with a clock operating frequency of up to 150MHz

Built in 520KB SRAM and 4MB on-chip Flash

Adopting Type-C interface, keeping up with the trend of the times, no need to worry about forward and backward insertion

The onboard lithium battery charging and discharging interface is beneficial for the use of this product in mobile scenarios

The onboard DC-DC chip MP28164 is a high-efficiency DC-DC buck boost chip with a load current of up to 2A

Stamp hole design, can be directly welded and integrated into the user's self-designed base plate

USB 1.1 Host and Device Support

Support low-power sleep and sleep mode

Can be recognized as a large capacity storage device through USB for drag and drop downloads

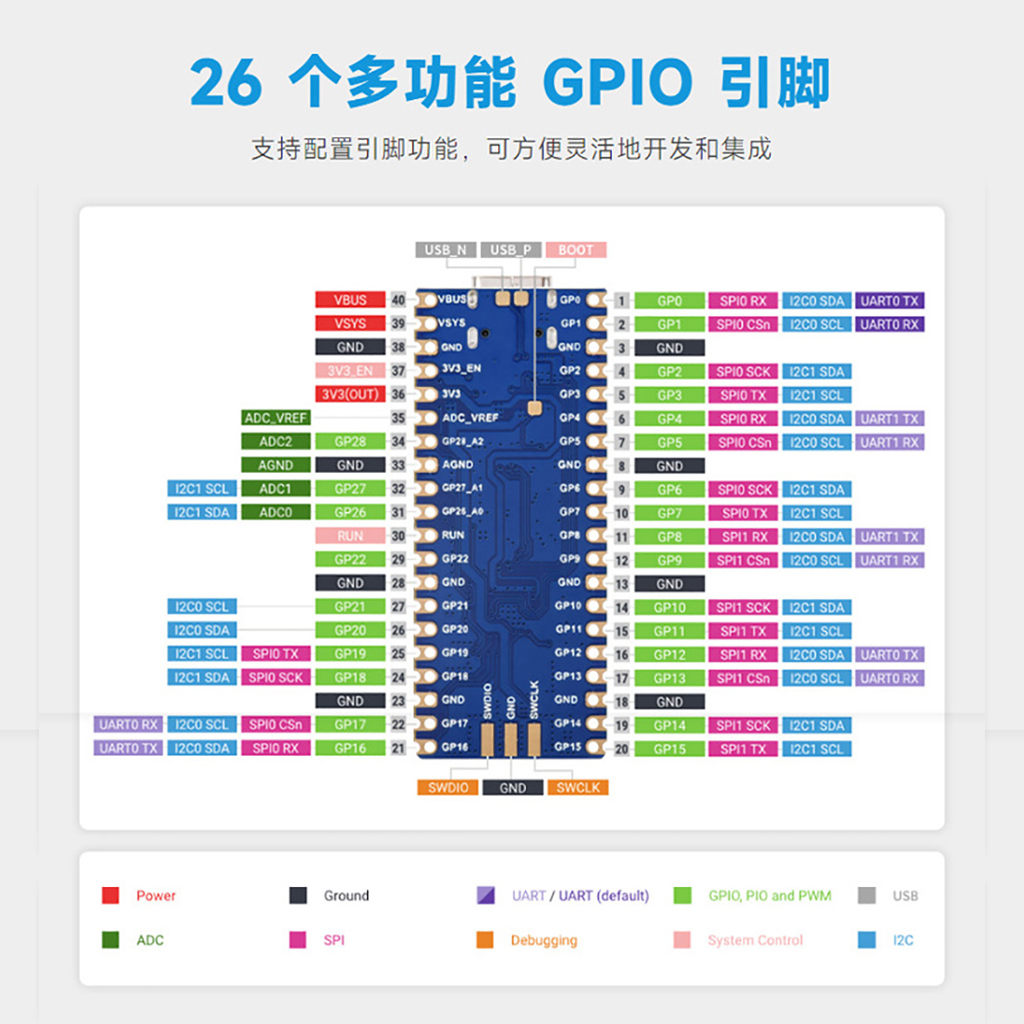

Up to 26 multifunctional GPIO pins

2 SPI, 2 I2C, 2 UART, 4 12 bit ADCs, and 16 controllable PWM channels

Accurate on-chip clock and timer

Built in temperature sensor
