RM20 Wireless Router Module for Linux Support Secondary Development PWM UART SPI Multi-port Dual-core Gigabit Ethernet Module
-
Detail
- Product Name: RM20 Wireless Router Module for Linux Support Secondary Development PWM UART SPI Multi-port Dual-core Gigabit Ethernet Module
- Item NO.: F52131-D1 F52131-D2
- Weight: 2024 kg = 4462.1562 lb = 71394.4990 oz
- Volume: 1 CBM
- Category: Computer Accessories
- Creation Time: 2024-05-01
RM20 Wireless Router Module for Linux Support Secondary Development PWM UART SPI Multi-port Dual-core Gigabit Ethernet Module
Product Description:

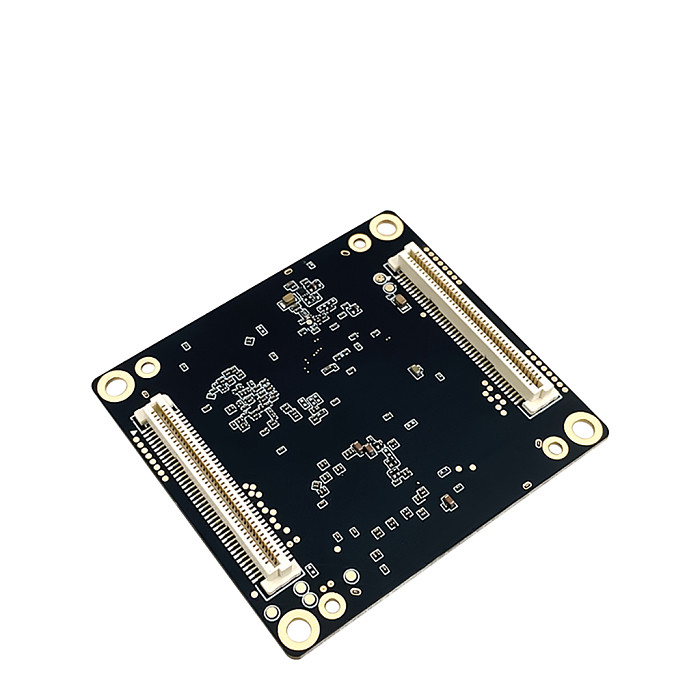

RM20 is a high performance Gigabit Ethernet module with MT7981B+MT7531A chip solution,
which can be used to build a variety of wireless routers, switches, and other network devices, etc.
The SoC is manufactured using an advanced silicon process and integrates
a dual-core ARM-compatible Cortex-A53MCore with
an operating frequency of up to 1.3GHz and more DRAM bandwidth.
Includes multiple peripherals, SGMII and USB3.0 (host) ports.
Parameters:
Hardware parameters:
Hardware Interface: UART/GPIO/PWM/SPI/I2C/USB
Operating Voltage: 3.3V
GPIO drive capacity: Max:12mA
Operating current: 700mA@3.3V (recommended power supply ≥3A)
Storage capacity: DDR3 256M(2Gbit)
Nand Flash:128M(1Gbi)
Software parameters:
Wireless Mode:STA/AP/AP Client
Firmware Upgrade: Serial Upgrade/Web Upgrade
Network protocol: IPv4, TCP/UDP
User Configuration: Web Configuration
Software environment: OpenWrt
Other parameters:
Environment standard:
Operating Temperature: -20℃-+80
Operating humidity: 10%-90%RH (non-condensing)
Storage temperature: -40℃ - +85℃
Storage humidity: 5%-90%RH (non-condensing)
Size: 63*58mm

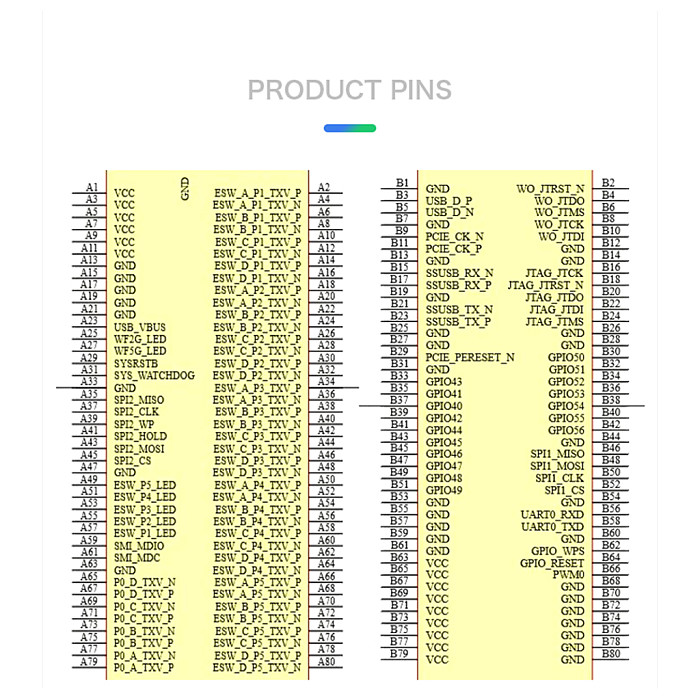

Package: Single row female socket *2
Application Scenario:
Suitable for home, small and medium-sized enterprise network environment,
to create high-speed, stable wireless and wired hybrid network solutions,
but also can be applied to IoT gateway and edge computing nodes and other scenarios.
